Mikuni RS Flat Slide Pilot Adjustment Screws
- daveo
- Topic Author
- Offline
- Premium Member
Is the Mikuni RS Flat Slide carburetor spec setting of 1/8 to 1/2 turns maximum out accurate for the Pilot Screws, or should it really be 1/4 to 3 1/2 turns out?
I just don't get how just 3/8 turn of that fine-thread screw can provide adequate adjustment, if any at all...:S
1982 KZ1100-A2
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 23006
- Thank you received: 2755
Steve
Please Log in or Create an account to join the conversation.
- daveo
- Topic Author
- Offline
- Premium Member
- Posts: 2806
- Thank you received: 658
SWest wrote: Pic of a screw? Are they in front of the slides or behind them?
Steve

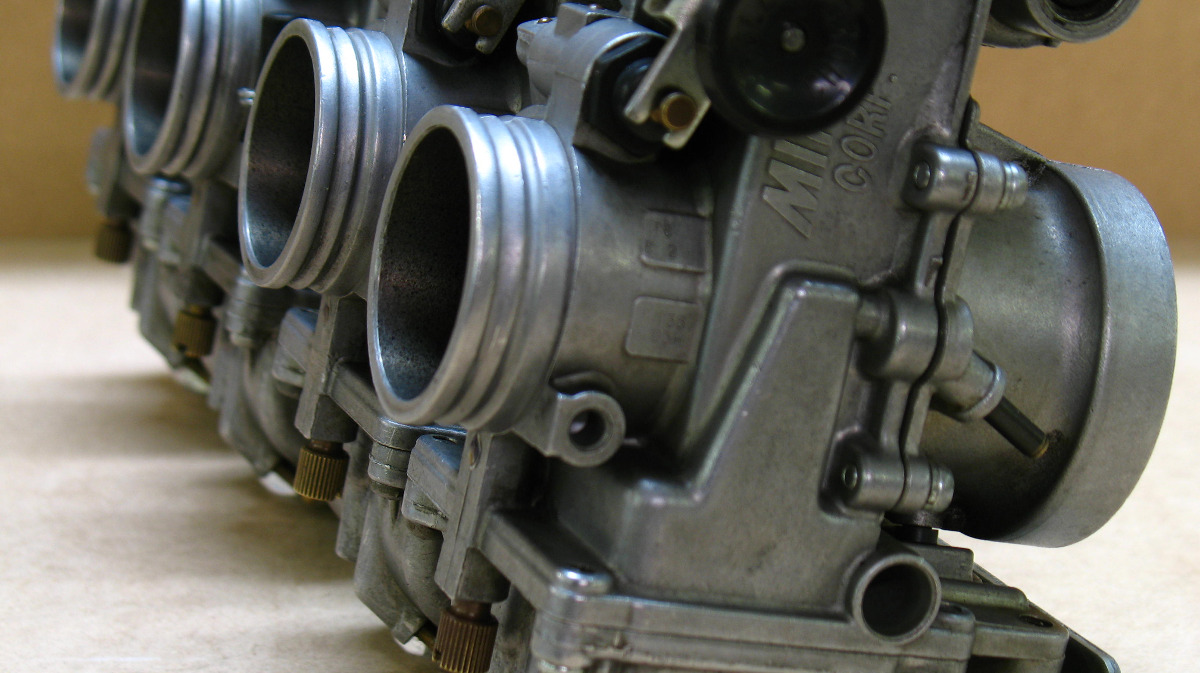

The RS36 set I had before the 34's:

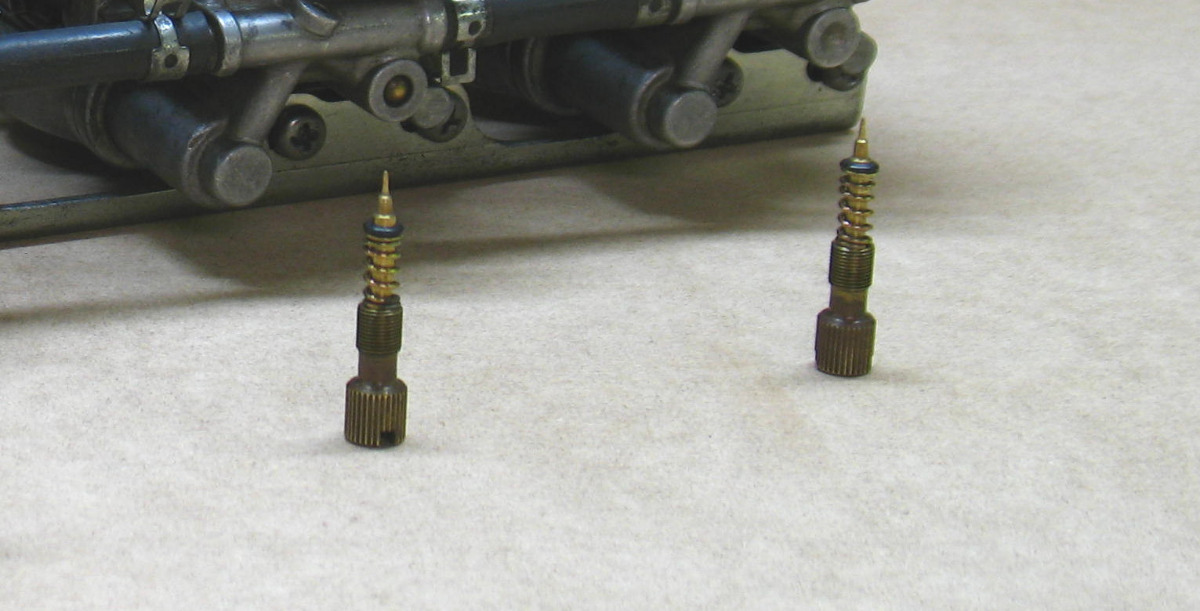

Screws removed:
