19 Oct 2022 11:28 #875712 by Moosey
Engine numbers was created by Moosey
Help me, I recently purchased a 1982 kawasaki can anyone shed some light on my engine number
As I can not find any imfo
It's KZ650A-90151038


Please Log in or Create an account to join the conversation.

More
19 Oct 2022 14:10 - 19 Oct 2022 14:13 #875730 by martin_csr
Replied by martin_csr on topic Engine numbers
What country are you in?  I don't think that number is correct.
Maybe post a pic of the motorcycle & the engine number.
The jarlef z650 site has engine & frame number info.
The engines listed there begin w KZ650BE or KZ650DE.  and end w 6 numerical digits.
Last edit: 19 Oct 2022 14:13 by martin_csr.

Please Log in or Create an account to join the conversation.

More
19 Oct 2022 23:57 #875744 by Moosey
Replied by Moosey on topic Engine numbers
I'm in the UK ts definitely KZ650A and matches on registration certificate.

Please Log in or Create an account to join the conversation.

More
20 Oct 2022 01:10 - 20 Oct 2022 01:11 #875748 by zed1015
Replied by zed1015 on topic Engine numbers
No Z650 had an A prefix in the engine or frame numbers.
The first 1977 model was KZ650B ,then KZ650C ,KZ650D and the last KZ650F- .
After the engine prefix there were also only six digits in the engine number.
A photo of yours will most likely show that the number has been incorrectly re-stamped..

AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





Last edit: 20 Oct 2022 01:11 by zed1015.

Please Log in or Create an account to join the conversation.

More
20 Oct 2022 02:15 #875749 by Moosey
Replied by Moosey on topic Engine numbers

Please Log in or Create an account to join the conversation.

More
20 Oct 2022 03:56 - 20 Oct 2022 06:48 #875750 by Moosey
Replied by Moosey on topic Engine numbers

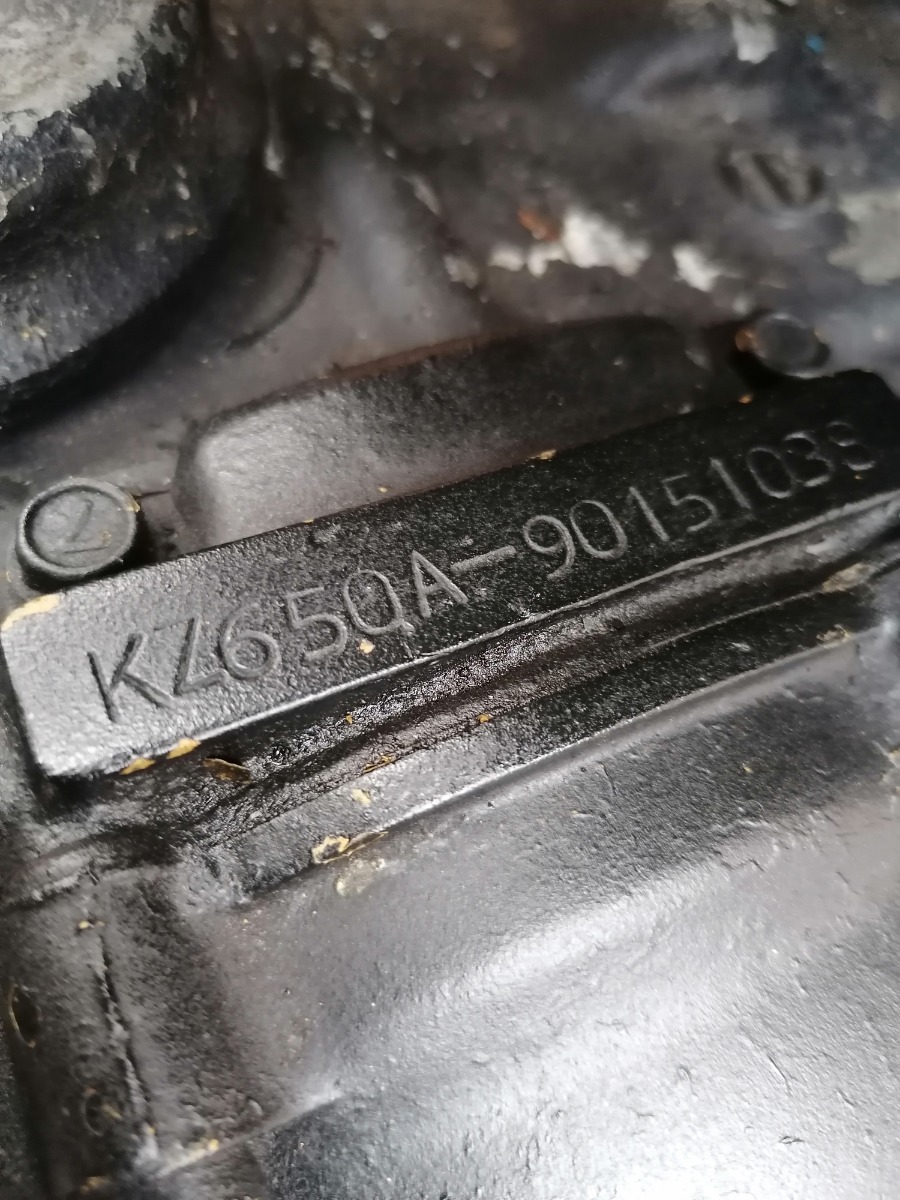

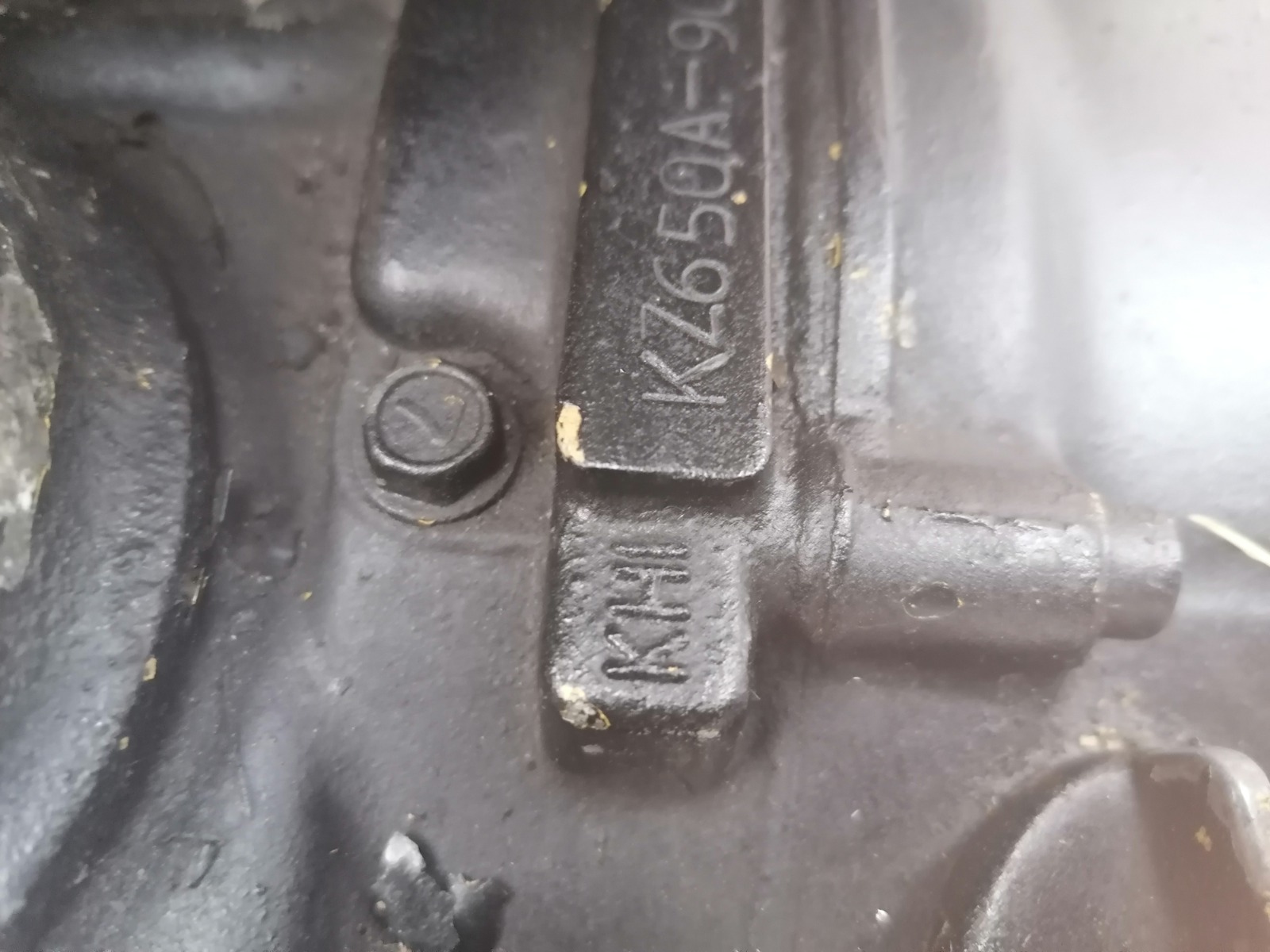

Not the best picture but clearly KZ650A and hasn't been restamped same engine number on documents registered in 1982 march
Last edit: 20 Oct 2022 06:48 by Street Fighter LTD.

Please Log in or Create an account to join the conversation.

More
20 Oct 2022 04:11 #875751 by Moosey
Replied by Moosey on topic Engine numbers

Please Log in or Create an account to join the conversation.

More
20 Oct 2022 07:33 #875757 by martin_csr
Replied by martin_csr on topic Engine numbers
I don't know, but I guess it could be a replacement from the dealer.  But the engine number doesn't seem right to have that many digits, plus the engine number rectangle doesn't have the raised edge around it.

Here's a 750-4 engine. the 650 should be similar.

Please Log in or Create an account to join the conversation.

More
20 Oct 2022 07:37 #875758 by Moosey
Replied by Moosey on topic Engine numbers
It's certainly a strange one, thanks for your help and I will find out eventually.

Please Log in or Create an account to join the conversation.

More
20 Oct 2022 08:34 #875760 by zed1015
Replied by zed1015 on topic Engine numbers
Those letters and numbers are not Kawasaki font but generic font of the widely available engineering number stamps such as supplied by Micromark etc
It's a neatish job but not at all original.



AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





Please Log in or Create an account to join the conversation.

More
20 Oct 2022 08:44 #875762 by Wookie58
Replied by Wookie58 on topic Engine numbers

Those letters and numbers are not Kawasaki font but generic font of the widely available engineering number stamps such as supplied by Micromark etc
It's a neatish job but not at all original.



I see what you mean ref the stamping, however if this matches the original documentation could this possibly be a "pre-production" bike ahead of a model year change that has been stamped by hand. Many years ago when we as a dealer ordered a replacement engine from VW it came blank and the dealer tech stamped the number into it to match the documentation (I have seen some done well and some shocking) not sure what the value of "matching numbers " is in that instance

Please Log in or Create an account to join the conversation.

More
20 Oct 2022 08:47 #875763 by Moosey
Replied by Moosey on topic Engine numbers
The numbers match all documents
Reg in 1982  march
​​​​​​I'm now in contact with Kawasaki in the Netherlands waiting on information.
