Cylinder Head Removal - first time and could use some guidance
- jekyllman
-
Topic Author
- Offline
- User
Less
More
06 Apr 2022 18:05 #865063
by jekyllman
1980 KZ650F1 - 10k miles (see photo)
1981 KZ305 CSR - 10k miles (didn't have the heart to customize this one, will stay original)
Replied by jekyllman on topic Cylinder Head Removal - first time and could use some guidance
Yeah I’m pretty sure those are the ones I have. They say up on one side
1980 KZ650F1 - 10k miles (see photo)
1981 KZ305 CSR - 10k miles (didn't have the heart to customize this one, will stay original)
Please Log in or Create an account to join the conversation.
- hardrockminer
-
- Offline
- Sustaining Member
Less
More
- Posts: 3033
- Thank you received: 1089
06 Apr 2022 18:50 #865067
by hardrockminer
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Replied by hardrockminer on topic Cylinder Head Removal - first time and could use some guidance
If you have the correct ones there should be no need to trim them. They should fit on the flat perfectly. I go back to my question about whether you have the front and back rollers mixed up. If you look at them carefully and look at your head you will see that one roller fits into the cutout in the head but the other one won't because there is no indent in the head. I can't remember if it's the front or back one, but one fits entirely into the cylinders and the head sits on top of it. The other sits partly into the cylinders and extends up into the head.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Please Log in or Create an account to join the conversation.
- jekyllman
-
Topic Author
- Offline
- User
Less
More
- Posts: 58
- Thank you received: 9
06 Apr 2022 21:41 #865071
by jekyllman
1980 KZ650F1 - 10k miles (see photo)
1981 KZ305 CSR - 10k miles (didn't have the heart to customize this one, will stay original)
Replied by jekyllman on topic Cylinder Head Removal - first time and could use some guidance
I’m 100% sure it’s the right one as I’ve never removed the other one. Plus it has the chain tensioner “plate” on the bottom wheel. I may have just been sent the wrong rubber dampers, although it seems the ones I’m replacing are the bigger of the two per that diagram. They DEFINITELY don’t fit flush with the gasket surface. When I put the head back on the posts it was slightly off the surface and would rock back and forth a little until I tightened things down and it compressed the rubber dampers.
1980 KZ650F1 - 10k miles (see photo)
1981 KZ305 CSR - 10k miles (didn't have the heart to customize this one, will stay original)
Please Log in or Create an account to join the conversation.
- hardrockminer
-
- Offline
- Sustaining Member
Less
More
- Posts: 3033
- Thank you received: 1089
07 Apr 2022 04:24 #865073
by hardrockminer
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Replied by hardrockminer on topic Cylinder Head Removal - first time and could use some guidance
The assembly should sit higher than the top of the cylinders but there should be an indentation in the head to allow the head to sit flat on the cylinder surface.
I'm guessing you have the large ones if you had to trim them.
I'm guessing you have the large ones if you had to trim them.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Please Log in or Create an account to join the conversation.
- jekyllman
-
Topic Author
- Offline
- User
Less
More
- Posts: 58
- Thank you received: 9
11 Apr 2022 09:02 #865229
by jekyllman
1980 KZ650F1 - 10k miles (see photo)
1981 KZ305 CSR - 10k miles (didn't have the heart to customize this one, will stay original)
Replied by jekyllman on topic Cylinder Head Removal - first time and could use some guidance
I think I got the wrong part. I trimmed it quite a bit and it fit much better. There's a tiny bit of friction on the sprocket but nothing bad and it sat much better on the block.
1980 KZ650F1 - 10k miles (see photo)
1981 KZ305 CSR - 10k miles (didn't have the heart to customize this one, will stay original)
Please Log in or Create an account to join the conversation.
- ghostdive
-
- Offline
- User
Less
More
- Posts: 399
- Thank you received: 118
11 Apr 2022 10:11 #865231
by ghostdive
1982 KZ750 Spectre - 6 speed swap, BS34s, 18" rear wheel
2001 ZX-6R
Replied by ghostdive on topic Cylinder Head Removal - first time and could use some guidance
I like to think of such things as "self-clearancing".
1982 KZ750 Spectre - 6 speed swap, BS34s, 18" rear wheel
2001 ZX-6R
Please Log in or Create an account to join the conversation.
- jekyllman
-
Topic Author
- Offline
- User
Less
More
- Posts: 58
- Thank you received: 9
20 Apr 2022 16:51 #865855
by jekyllman
1980 KZ650F1 - 10k miles (see photo)
1981 KZ305 CSR - 10k miles (didn't have the heart to customize this one, will stay original)
Replied by jekyllman on topic Cylinder Head Removal - first time and could use some guidance
Ok more of me asking questions. I've got the head back on and installed the camshafts/chain/sprockets/etc. I installed the cam chain tensioner and, per the manual, rotated the crankshaft a full cycle to check the timing marks. Now the 1-4 T and the TDC marks on the camshaft sprockets are a fraction off. How much wiggle room is considered ok here? Or does it need to be absolutely precise?
1980 KZ650F1 - 10k miles (see photo)
1981 KZ305 CSR - 10k miles (didn't have the heart to customize this one, will stay original)
Please Log in or Create an account to join the conversation.
- hardrockminer
-
- Offline
- Sustaining Member
Less
More
- Posts: 3033
- Thank you received: 1089
21 Apr 2022 04:36 #865870
by hardrockminer
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Replied by hardrockminer on topic Cylinder Head Removal - first time and could use some guidance
There is always a bit off wear in the cam chain sprockets and in the chain itself. If you can rotate the engine without any obstruction you are probably good to go. A degree or two off the TDC mark will affect your timing slightly.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Please Log in or Create an account to join the conversation.
- jekyllman
-
Topic Author
- Offline
- User
Less
More
- Posts: 58
- Thank you received: 9
21 Apr 2022 12:36 #865897
by jekyllman
1980 KZ650F1 - 10k miles (see photo)
1981 KZ305 CSR - 10k miles (didn't have the heart to customize this one, will stay original)
Replied by jekyllman on topic Cylinder Head Removal - first time and could use some guidance
Yeah it seems to rotate really easily. I have no issue adjusting the timing but I'd rather not put it all back together and ruin something trying to get it started! Thanks for the tip
1980 KZ650F1 - 10k miles (see photo)
1981 KZ305 CSR - 10k miles (didn't have the heart to customize this one, will stay original)
Please Log in or Create an account to join the conversation.
- hardrockminer
-
- Offline
- Sustaining Member
Less
More
- Posts: 3033
- Thank you received: 1089
21 Apr 2022 16:46 #865910
by hardrockminer
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Replied by hardrockminer on topic Cylinder Head Removal - first time and could use some guidance
After installing the cams and the tensioner I usually turn the engine over carefully to ensure the valves aren't striking a piston. If not, it's a good sign that you have correctly set the timing chain.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Please Log in or Create an account to join the conversation.
- jekyllman
-
Topic Author
- Offline
- User
Less
More
- Posts: 58
- Thank you received: 9
04 May 2022 21:35 - 05 May 2022 06:50 #866639
by jekyllman
1980 KZ650F1 - 10k miles (see photo)
1981 KZ305 CSR - 10k miles (didn't have the heart to customize this one, will stay original)
Replied by jekyllman on topic Cylinder Head Removal - first time and could use some guidance

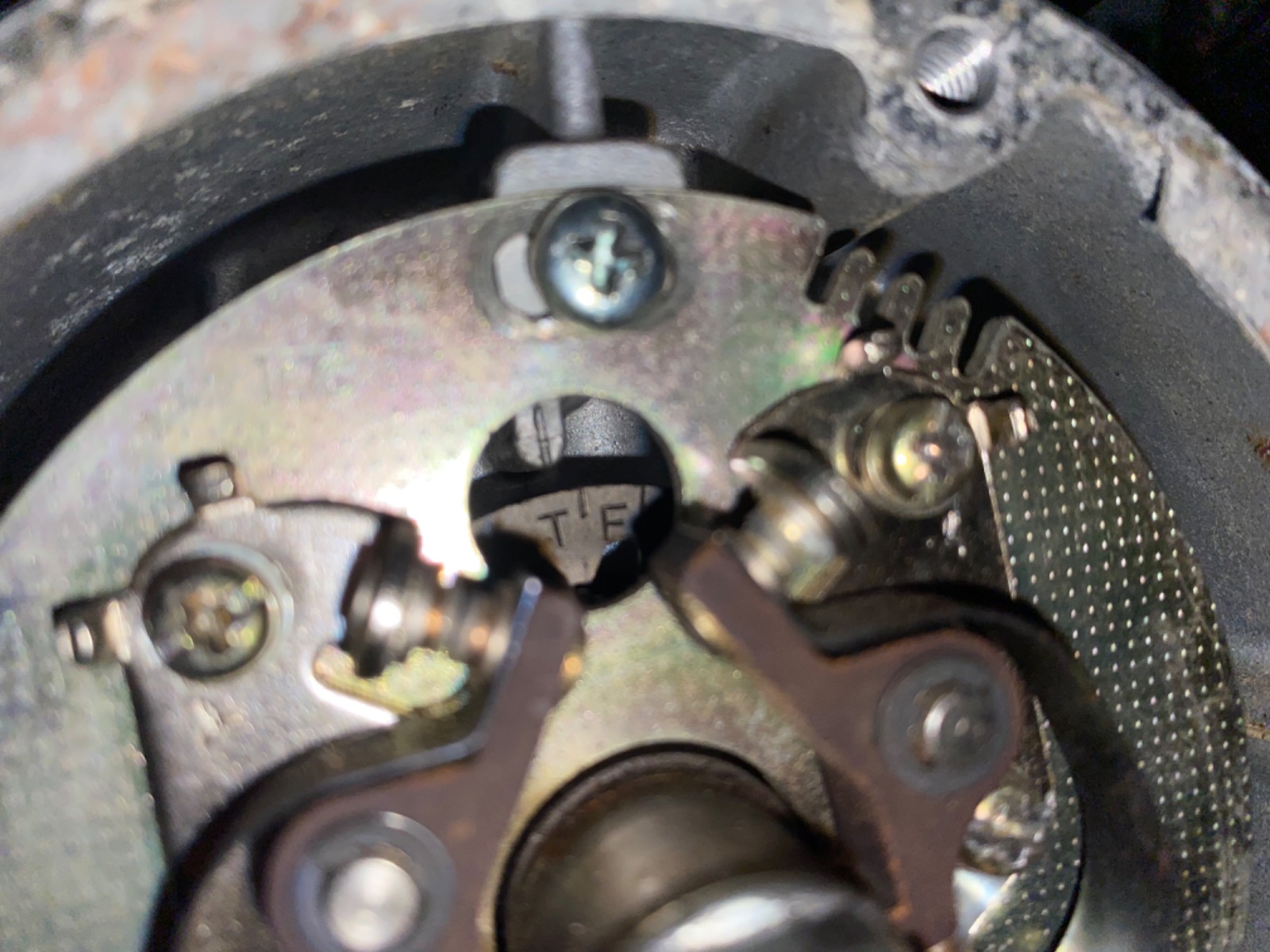

Yeah I just spun it around by hand a few times and didn’t notice any impacts or sounds. Here’s how far we’re talking with the camshaft sprocket marks exactly parallel to the surface of the head.
1980 KZ650F1 - 10k miles (see photo)
1981 KZ305 CSR - 10k miles (didn't have the heart to customize this one, will stay original)
Last edit: 05 May 2022 06:50 by Street Fighter LTD.
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Offline
- Moderator
Less
More
- Posts: 4069
- Thank you received: 2318
05 May 2022 00:41 #866643
by Wookie58
Replied by Wookie58 on topic Cylinder Head Removal - first time and could use some guidance
How far does 1 tooth move the mark (sometimes if everything is lined up perfectly as you tension the chain the cams rotate) which can leave you a tooth out
