Cylinder head 14 Aug 2020 08:31 #832878

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 5072
  • Thank you received: 1425

Mikaw wrote: Beyond the old school swing arm pointer type sold at sears 100 years ago that I only trusted to torque lawnmower heads.


A bending beam torque wrench is arguably the best option for garage mechanics. They never go out of calibration and can take a lot of abuse. I broke a pin internal to one of my Precision Instruments dial torque wrench when the nut was sticking and then suddenly released (with a crack noise.) It cost me $75 to have it fixed and calibrated. Now I use the beam torque wrench for head nuts, unless they turn nice and smooth.
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

Cylinder head 14 Aug 2020 14:49 #832913

  • VTEC
  • VTEC's Avatar
  • Offline
  • Member
  • Member
  • Posts: 532
  • Thank you received: 80
Maybe we should get back on topic. I went through the whole thread and didn't see anywhere that the originator specified what bolt in the head broke. He said "a bolt" then started talking about carbs. What bolt broke? Can't be a head bolt because it would have broken off in the block? I originally thought he was talking about a cam cap bolt which we all know commonly pulls the threads out of the head.
KZ1000-K2
ZRX1100
XR400R

Please Log in or Create an account to join the conversation.

Last edit: by VTEC.

Cylinder head 14 Aug 2020 15:25 #832916

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1634
  • Thank you received: 362
I guess when the kids are left alone we start to get into the cookie jar.
1976 KZ 900 A4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

Cylinder head 14 Aug 2020 17:08 #832923

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1208
  • Thank you received: 370
When steel is placed under stress such as tension it yields elastically. If it's a bolt under tension it will begin to elongate. Up until it reaches its maximum yield strength it will return to its original size when the stress is removed, hence the term elastic. Beyond its maximum yield strength steel will begin to deform. This is called the plastic zone. Finally, when the steel reaches its ultimate strength it will fail, releasing all of the energy stored in it. Mild steel in tension will neck down in the failure area to about half its original size before snapping. In torsion it can actually twist more than 360 degrees before failing. High strength bolts are more brittle than mild steel. They have a greater yield strength but much less of a plastic zone.
I have a couple of Z1B's restored, an '80 KZ1000LTD restored, a 1981 KZ550 restored and a 2008 KLR 650 for off road fun. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

Cylinder head 14 Aug 2020 19:42 #832934

  • zoomzoompop
  • zoomzoompop's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 18
  • Thank you received: 0
It was a cam cap bolt. Sorry i have been off for a bit. I did get a helicoil in and it torqued back up. I did not think it should snap like that either but rather strip the hole out of aluminum. But it did.

Please Log in or Create an account to join the conversation.

Cylinder head 17 Aug 2020 06:31 #833080

  • zoomzoompop
  • zoomzoompop's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 18
  • Thank you received: 0
New head came so i will be putting that on today.
Besides dont break a bolt.
Any body have things i should be watching for?

Please Log in or Create an account to join the conversation.

Cylinder head 17 Aug 2020 06:54 #833082

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Posts: 5261
  • Thank you received: 1209
Look for cracks, especially in the combustion chamber between the sparkplug and valves.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

Cylinder head 17 Aug 2020 13:12 #833107

  • zoomzoompop
  • zoomzoompop's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 18
  • Thank you received: 0

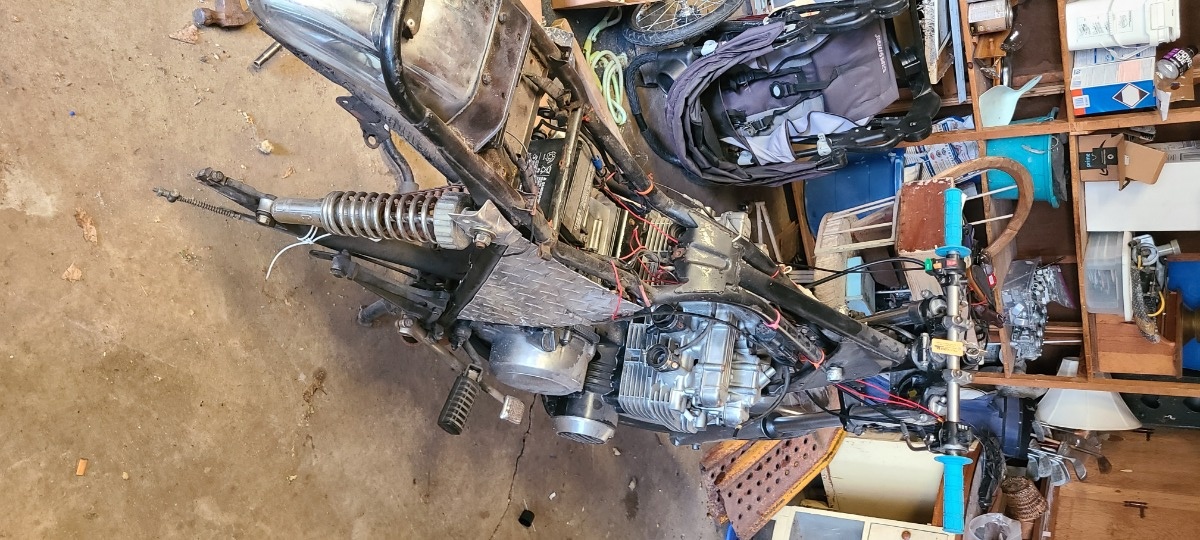

Back together. I believe it runs super. First bike I've built from boxes. Saved it from a care racer build.
