Cylinder head

More
08 Aug 2020 18:56 #832457 by zoomzoompop
Cylinder head was created by zoomzoompop
I have a 81 kz650 csr h1. So I over tightened a bolt. Snap! Fucked up the hole when i drilled it out. Might be able to make it work cause its not so bad. Wondering if 80 kz650 ltd cylinder head will work if bought?

Please Log in or Create an account to join the conversation.

  • gd4now
  • Offline
  • User
  • Denco where did you go?
More
09 Aug 2020 14:02 #832501 by gd4now
Replied by gd4now on topic Cylinder head
Not sure. Some of the 80 models use the hyvo cam chain and some did not. But all of the 81 models did make use of the hyvo cam chain. Offl the top of my head I do not remember if the LTD used this type of cam chain or not. That is the thing I would suggest you look into.
1977 KZ650 B1
Pods and Denco header

OLD KAW OWNERS SMILE ALOT

Please Log in or Create an account to join the conversation.

More
10 Aug 2020 09:26 #832560 by q-base
Replied by q-base on topic Cylinder head

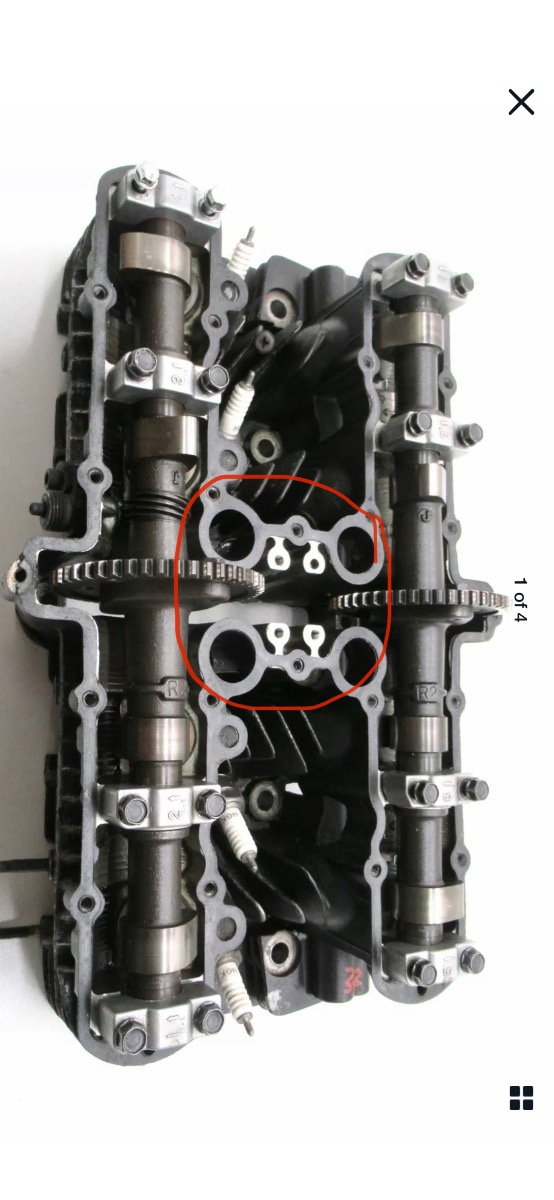

It most likely will. When you have an existing head with everything your options are good. You can just bolt you cams and running gear from your old head into the new - if it runs a different chain type. Then main thing to consider is whether your head has the four holes threaded for the sprocket between the cams - if so - you need to find one that has this as well.

1977 kz750

Instagram: @jmreiche
Attachments:

Please Log in or Create an account to join the conversation.

More
10 Aug 2020 14:43 #832579 by zoomzoompop
Replied by zoomzoompop on topic Cylinder head
What am i missing here guys? I am pretty sure its a carb issue. I have pods with 15 slow jet and 110 main. Think maybe its too big main?

Please Log in or Create an account to join the conversation.

More
10 Aug 2020 15:05 #832586 by Mikaw
Replied by Mikaw on topic Cylinder head

zoomzoompop wrote: What am i missing here guys? I am pretty sure its a carb issue. I have pods with 15 slow jet and 110 main. Think maybe its too big main?


WHAT? Read your own post please.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: Nessism

Please Log in or Create an account to join the conversation.

More
10 Aug 2020 15:19 #832590 by zoomzoompop
Replied by zoomzoompop on topic Cylinder head
There was spose to be a video.
Must not have uploaded.
And yes it was off topic so i get it was a little confusing.

Please Log in or Create an account to join the conversation.

More
10 Aug 2020 15:39 #832593 by Mikaw
Replied by Mikaw on topic Cylinder head
So is your post about head interchangeability or a carb issue. Might be better to open another post
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: Nessism

Please Log in or Create an account to join the conversation.

More
10 Aug 2020 15:52 #832596 by zoomzoompop
Replied by zoomzoompop on topic Cylinder head
Yeah i prolly should've

Please Log in or Create an account to join the conversation.

More
10 Aug 2020 16:15 #832600 by Nessism
Replied by Nessism on topic Cylinder head
Whatever you're smoke'n I want some!:P
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
The following user(s) said Thank You: Mikaw, gordone, ghostdive

Please Log in or Create an account to join the conversation.

More
10 Aug 2020 16:51 #832609 by zoomzoompop
Replied by zoomzoompop on topic Cylinder head
Lets clear this up.
The post is about head interchangeability, but while i had others responding about that i thought maybe i could ask about the carb issue i was having because the few post i got about the heads answered that question.
Sorry it was confusing and i tried to upload a video of the the bike running to give you all a better understanding of what im seeing

Sorry about the confusion

Please Log in or Create an account to join the conversation.

More
10 Aug 2020 17:00 - 10 Aug 2020 17:03 #832613 by VTEC
Replied by VTEC on topic Cylinder head
If the hole you messed up is now too big for a helicoil. You might get away with a time-sert. Important thing when installing a time-sert is using a guide for drilling and tapping to keep it perpendicular to the surface. Some of the kits don't come with the guide. Why? I have no idea.
KZ1000-K2
ZRX1100
XR400R
Last edit: 10 Aug 2020 17:03 by VTEC.

Please Log in or Create an account to join the conversation.

More
10 Aug 2020 17:10 #832615 by zoomzoompop
Replied by zoomzoompop on topic Cylinder head
I was able to use a helicoil. But i didnt keep the hole totally perpendicular. I found if i use a slightly shorter bolt im able to tighten up. So im good in the regard.
Thanks

Please Log in or Create an account to join the conversation.
