Cylinder head
- martin_csr
-
- Offline
- User
-
Registered
- Posts: 8018
- Thanks: 1645
Re: Cylinder head
10 Aug 2020 21:29 - 11 Aug 2020 03:44
Just wondering. Do you have a couple of torque wrenches? The manual should have the specs for most bolts, but even then it's a good idea to reference the general bolt tightening chart in the manual for comparison. Also, some bolts should be tightened to INCH-lbs. It's also a good idea to stop & think before tightening anything.
Last edit: 11 Aug 2020 03:44 by martin_csr.
Please Log in or Create an account to join the conversation.
- 650ed
-
- Offline
- User
-
Registered
- Posts: 15339
- Thanks: 2833
Re: Cylinder head
11 Aug 2020 05:53 - 11 Aug 2020 05:54martin_csr wrote: Just wondering. Do you have a couple of torque wrenches? The manual should have the specs for most bolts, but even then it's a good idea to reference the general bolt tightening chart in the manual for comparison. Also, some bolts should be tightened to INCH-lbs. It's also a good idea to stop & think before tightening anything.
Agree! I'll never understand someone tightening up a bolt until something breaks when if one follows the torque specs that will not happen. :blink: Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Last edit: 11 Aug 2020 05:54 by 650ed.
The following user(s) said Thank You: zoomzoompop
Please Log in or Create an account to join the conversation.
- Nessism
-
- Offline
- Sustaining Member
-
Registered
- Posts: 7758
- Thanks: 3147
Re: Cylinder head
11 Aug 2020 08:29650ed wrote:
Agree! I'll never understand someone tightening up a bolt until something breaks when if one follows the torque specs that will not happen. :blink: Ed
Thoes stupid stretch bolts down inside the cam chain area will snap before reaching factory recommended torque. Be careful with thoes.
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Please Log in or Create an account to join the conversation.
- zoomzoompop
-
Topic Author
- Offline
- User
-
Registered
- Posts: 18
- Thanks: 0
Re: Cylinder head
11 Aug 2020 09:42
I do have a torque wrench/owners manual and was just about to torque when snap.
Only one so it was prolly on its way out is my guess.
Only one so it was prolly on its way out is my guess.
Please Log in or Create an account to join the conversation.
- VTEC
-
- Offline
- User
-
Registered
- Posts: 558
- Thanks: 80
Re: Cylinder head
11 Aug 2020 17:30 - 11 Aug 2020 17:40
Never had a bolt break when torqued to specs. These old heads suffer from weakened metal and you typically pull the threads out getting close to torque specs. The CORRECT bolts torqued to the CORRECT specs don't break -- unless the bolt was previously overstretched. They are engineered to withstand more than that. May get a cross thread or corroded hole jamming the bolt going in, but a good bolt still will not break until over torqued.
KZ1000-K2
ZRX1100
XR400R
ZRX1100
XR400R
Last edit: 11 Aug 2020 17:40 by VTEC.
Please Log in or Create an account to join the conversation.
- Nessism
-
- Offline
- Sustaining Member
-
Registered
- Posts: 7758
- Thanks: 3147
Re: Cylinder head
11 Aug 2020 18:43 - 11 Aug 2020 18:46VTEC wrote: Never had a bolt break when torqued to specs. These old heads suffer from weakened metal and you typically pull the threads out getting close to torque specs. The CORRECT bolts torqued to the CORRECT specs don't break -- unless the bolt was previously overstretched. They are engineered to withstand more than that. May get a cross thread or corroded hole jamming the bolt going in, but a good bolt still will not break until over torqued.
Incorrect.

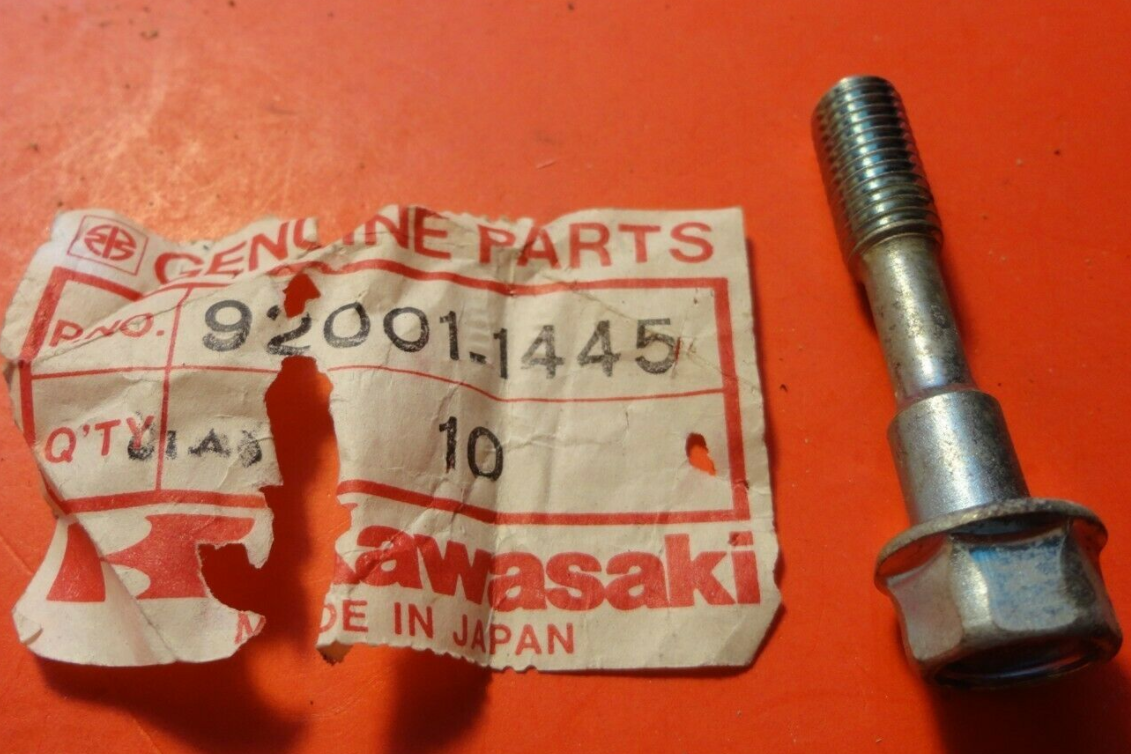

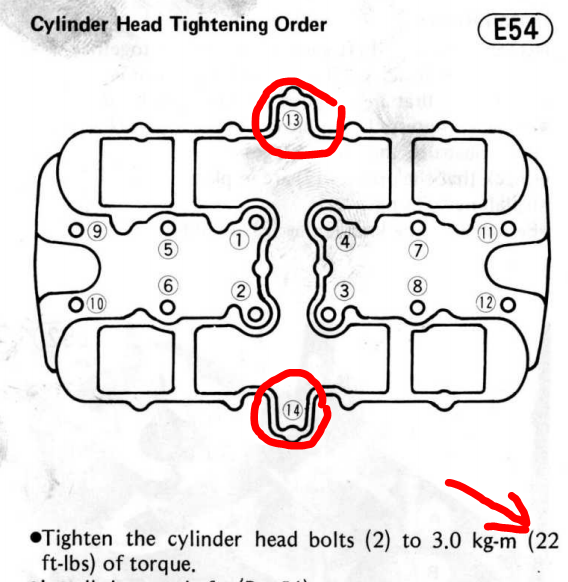

These are stretch bolts that are supposed to be torqued to 22 ft-lbs, but if you try they will snap.
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Attachments:
Last edit: 11 Aug 2020 18:46 by Nessism.
Please Log in or Create an account to join the conversation.
- Irish Yobbo
-
- Offline
- User
-
Registered
- Posts: 380
- Thanks: 93
Re: Cylinder head
11 Aug 2020 19:54Nessism wrote:VTEC wrote: Never had a bolt break when torqued to specs. These old heads suffer from weakened metal and you typically pull the threads out getting close to torque specs. The CORRECT bolts torqued to the CORRECT specs don't break -- unless the bolt was previously overstretched. They are engineered to withstand more than that. May get a cross thread or corroded hole jamming the bolt going in, but a good bolt still will not break until over torqued.
Incorrect.
These are stretch bolts that are supposed to be torqued to 22 ft-lbs, but if you try they will snap.
I've never installed one of those stretch bolts, but I was told that they only snap when you re-use them. They're designed to stretch and keep tension so that they don't need to be re-torqued when the rest of the accessible bolts are.
Whatever the case, they really don't need to be torqued much. My kz750 had a leak at the front of the block when I got it, so I replaced the head gasket and found that the previous owner had obviously broken that bolt, removed it, and used a different, slightly shorter bolt and stripped the threads in the block. I thought the bolt just wasn't tightened so didn't realize until reassembly, so I just measured the depth of the hole and got a bolt as long as I could without bottoming out so it would reach the remaining thread. I tightened it until it was 'snug' - perhaps 8-10ft-lbs. No leaks.
Regarding this entire thread - which bolt snapped? The valve cover bolts can corrode into place and snap easy. Replace as best as you can, go easy on the torque, and use some anti-seize on the threads if you can. You could probably get away with a missing bolt here, but use some sealant.
The camshaft cap bolts snap easy enough too, sometime when taking them out. They just need to be replaced, if you get some grade 8 bolts and torque them to spec they won't break again. If the hole is too damaged here, I'd be included to use a helicoil.
If it's a head stud, that's mounted to the block, so it's a head-off job to helicoil the block.
1981 KZ750 LTD
Please Log in or Create an account to join the conversation.
- VTEC
-
- Offline
- User
-
Registered
- Posts: 558
- Thanks: 80
Re: Cylinder head
13 Aug 2020 18:20 - 13 Aug 2020 18:31Nessism wrote:VTEC wrote: Never had a bolt break when torqued to specs. These old heads suffer from weakened metal and you typically pull the threads out getting close to torque specs. The CORRECT bolts torqued to the CORRECT specs don't break -- unless the bolt was previously overstretched. They are engineered to withstand more than that. May get a cross thread or corroded hole jamming the bolt going in, but a good bolt still will not break until over torqued.
Incorrect.
These are stretch bolts that are supposed to be torqued to 22 ft-lbs, but if you try they will snap.
I'm referring to an excessively stretched bolt. Every bolt normally stretches when torqued, That's how it keeps the component held down tight. An overly stretched bolt is typically over- torqued or was subject to extreme heat. Many service manuals give specifications (mostly for head bolts) to measure the distance between threads to determine if the bolt was over-stretched and should be discarded. If you're saying the correct undamaged bolt broke when applying the correct torque, it's either an uncommon factory defect, or you're missing something.
KZ1000-K2
ZRX1100
XR400R
ZRX1100
XR400R
Last edit: 13 Aug 2020 18:31 by VTEC.
Please Log in or Create an account to join the conversation.
- Irish Yobbo
-
- Offline
- User
-
Registered
- Posts: 380
- Thanks: 93
Re: Cylinder head
13 Aug 2020 18:52 - 13 Aug 2020 18:53VTEC wrote:Nessism wrote:VTEC wrote: Never had a bolt break when torqued to specs. These old heads suffer from weakened metal and you typically pull the threads out getting close to torque specs. The CORRECT bolts torqued to the CORRECT specs don't break -- unless the bolt was previously overstretched. They are engineered to withstand more than that. May get a cross thread or corroded hole jamming the bolt going in, but a good bolt still will not break until over torqued.
Incorrect.
These are stretch bolts that are supposed to be torqued to 22 ft-lbs, but if you try they will snap.
I'm referring to an excessively stretched bolt. Every bolt normally stretches when torqued, That's how it keeps the component held down tight. An overly stretched bolt is typically over- torqued or was subject to extreme heat. Many service manuals give specifications (mostly for head bolts) to measure the distance between threads to determine if the bolt was over-stretched and should be discarded. If you're saying the correct undamaged bolt broke when applying the correct torque, it's either an uncommon factory defect, or you're missing something.
These particular bolts that appear at the front and back of the cam on these engines are torque-to-yeild bolts . The manuals won't give measurements to determine if they have been over-stretched, because if they have been used once, then they need to be replaced. They're designed to deform permanently under the specified torque.
I've personally not broken one of these bolts, but I wouldn't be surprised if they do fail in 'normal' circumstances. If you put a little oil on the thread of any TTY bolt and torque it up, it will almost always break. With clean undamaged threads and surfaces, and a new bolt they should be OK. But when working on a 40yo bike in your garage, that's not usually the case, there doesn't need to be much deviation to break one. And since they just don't actually need to be very tight, it's probably best to go easy on them.
1981 KZ750 LTD
Last edit: 13 Aug 2020 18:53 by Irish Yobbo.
The following user(s) said Thank You: SWest, zoomzoompop
Please Log in or Create an account to join the conversation.
- hardrockminer
-
- Offline
- Sustaining Member
-
Registered
- Posts: 3054
- Thanks: 1155
Re: Cylinder head
13 Aug 2020 19:50
I suspect the 22 ft-lbs spec is a mistake. Not the first time KHI made that error.
If you look at the general spec page for 8 mm bolts they specify 12 to 16 ft-lbs for coarse thread and a bit lower for fine thread. By the looks of the bolt, if you over torque it I think it would fail where the thread meets the neck down portion. That's where the greatest stress exists.
If you look at the general spec page for 8 mm bolts they specify 12 to 16 ft-lbs for coarse thread and a bit lower for fine thread. By the looks of the bolt, if you over torque it I think it would fail where the thread meets the neck down portion. That's where the greatest stress exists.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: Nessism
Please Log in or Create an account to join the conversation.
- Nessism
-
- Offline
- Sustaining Member
-
Registered
- Posts: 7758
- Thanks: 3147
Re: Cylinder head
14 Aug 2020 06:39

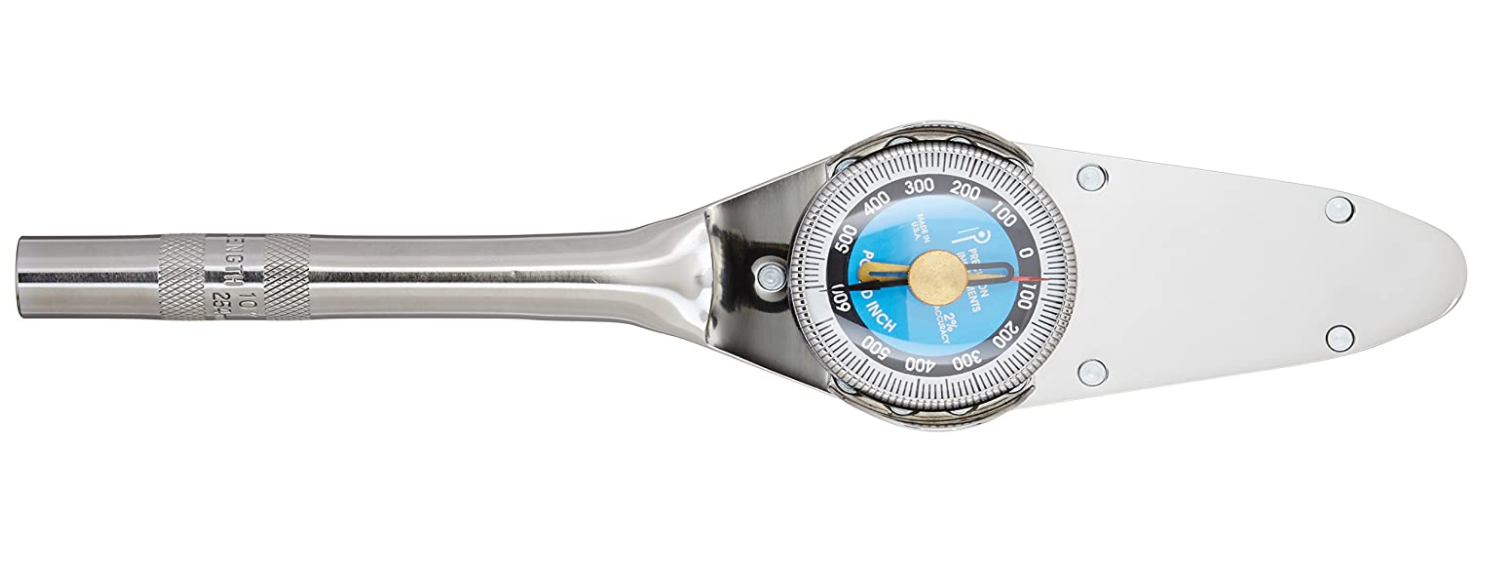

My torque wrench(s) are made by Precision Instruments with Snap-On branding. High quality stuff.
The bolts in question started to yield at something like 18 ft-lbs (can't remember exact number.) I was turning the wrench but the dial wouldn't go any higher so I stopped. Just another example where you have to use judgement, not just trust the torque wrench.
The bolts in question started to yield at something like 18 ft-lbs (can't remember exact number.) I was turning the wrench but the dial wouldn't go any higher so I stopped. Just another example where you have to use judgement, not just trust the torque wrench.
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Attachments:
The following user(s) said Thank You: loudhvx, SWest, Mikaw
Please Log in or Create an account to join the conversation.
- Mikaw
-
- Offline
- Sustaining Member
-
Registered
- Posts: 4836
- Thanks: 1851
Re: Cylinder head
14 Aug 2020 08:11 - 14 Aug 2020 08:12Nessism wrote: My torque wrench(s) are made by Precision Instruments with Snap-On branding. High quality stuff.
The bolts in question started to yield at something like 18 ft-lbs (can't remember exact number.) I was turning the wrench but the dial wouldn't go any higher so I stopped. Just another example where you have to use judgement, not just trust the torque wrench.
Thank you. Now I understand what torque to yeild mean. You need a dial type torque wrench. All I have ever owned were click type. Beyond the old school swing arm pointer type sold at sears 100 years ago that I only trusted to torque lawnmower heads. Never understood how you torque to yeild with the click type wrench. I get it now. With a good dial wrench you watch the dial and when the value stops climbing that is the Torgue to yield value...
Another learning opportunity. I love the KZR school!!!
1976 KZ 900 A4
kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Last edit: 14 Aug 2020 08:12 by Mikaw.
