Oil drain plug torque specifications?
- 650ed
- Offline
- User
Scirocco wrote: Have to ask about the positioning of the oil filter bucket. Some parts diagrams showing the bucket on top other on the bottom of the oil filter.
Which position is right and what is the meaning of the oil filter bucket?
It varies depending on the model. The image below shows the KZ650 setup. On the KZ650 the bucket goes on the bottom, but notice that unlike the one in the other photo the KZ650 bucket is perforated to let the oil easily flow though it. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- ned37
- Offline
- User
- Posts: 80
- Thank you received: 11
back when i was a dealer, we used to steal parts from the new bikes all the timeI've never had a bucket on mine. Including my Z1B purchased new in 1975.
'83 GPZ1100, '97 Triumph Trophy 1200, '08 Husky TE610
Verde Valley, AZ
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4193
- Thank you received: 2063
now i am standing here poorer and am as smart as before..
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- Dr. Gamma
- Offline
- Sustaining Member
- Posts: 1227
- Thank you received: 676
hardrockminer wrote: I've never had a bucket on mine. Including my Z1B purchased new in 1975.
Don't worry about it. The '73 to '80 900's and 1000's never used them.
Kawasaki started using them on the '81 and up Kz1000's and Kz1100's.
1972 H2 750 Cafe Racer built in 1974.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!
Up in the hills near Prescott, Az.
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22963
- Thank you received: 2746
Steve
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4193
- Thank you received: 2063
SWest wrote:
My question is, what's the purpose?
That´s the question nobody can answer.....
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4193
- Thank you received: 2063
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- old_kaw
- Offline
- User
- Posts: 932
- Thank you received: 269
Scirocco wrote: The only answer i can imagine is that the bucket on top of the oil filter did distribute the hot oil flow to a larger filter area and not pointed into one direction that could be damage or perforate the filter paper.

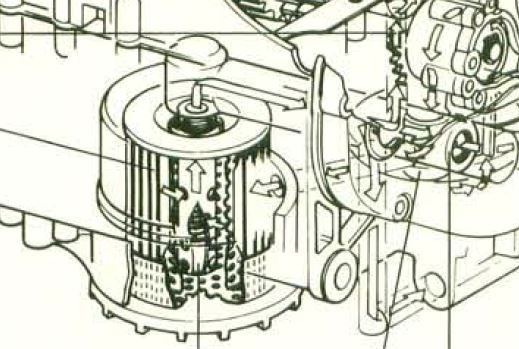

I think we have a winner here! As you can see in this snip from the 81-83 Kz1000/Kz1100 service manual (page 3-27) of the oil pump and filter, the filter is pressurized by the oil pump. If you look closely at the snip, it shows the fence on top of the filter. This would diffuse the oil flow and distribute it evenly around the perimeter of the filter element.
Attachment not found
As can be seen in this pic of the filter opening in the oil pan that the pump output is a hole towards the top of the filter opening. The oil is forced through the filter element, then exits into the oil gallery through the filter bypass valve / bolt assembly.
Attachment not found

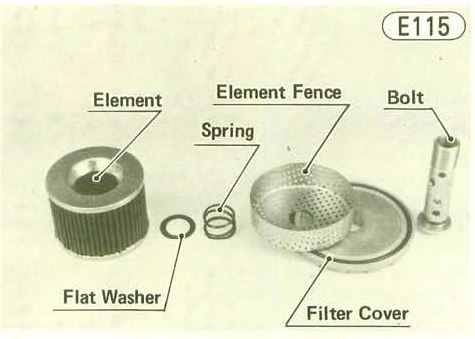

And now if you will all turn to page 6-39 for the filter assembly parts breakdown.
Attachment not found

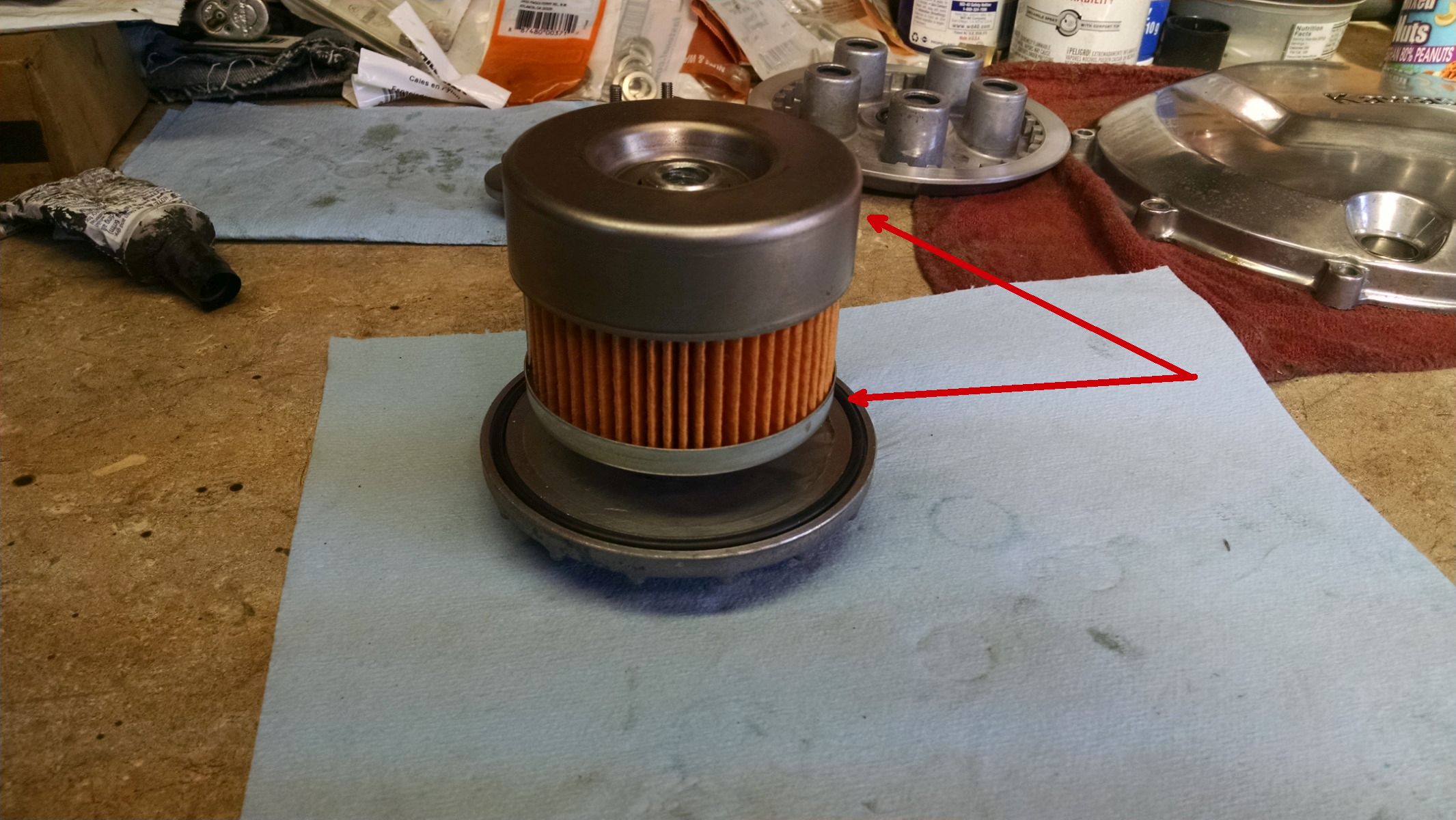

Assembled filter. *note that the fence was installed on the bottom of the filter (wrong) when I got the bike, so I had been assembling it wrong for years until I spotted this pic in the service manual one day.*
