Shift lever and pawls
- retterath
- Topic Author
- Offline
- User
Less
More
10 Sep 2017 20:06 - 10 Sep 2017 20:08 #770710
by retterath
Shift lever and pawls was created by retterath
1980 KZ1000 LTD
I pulled the cover off the trans to investigate a shifter that didn't return to center.

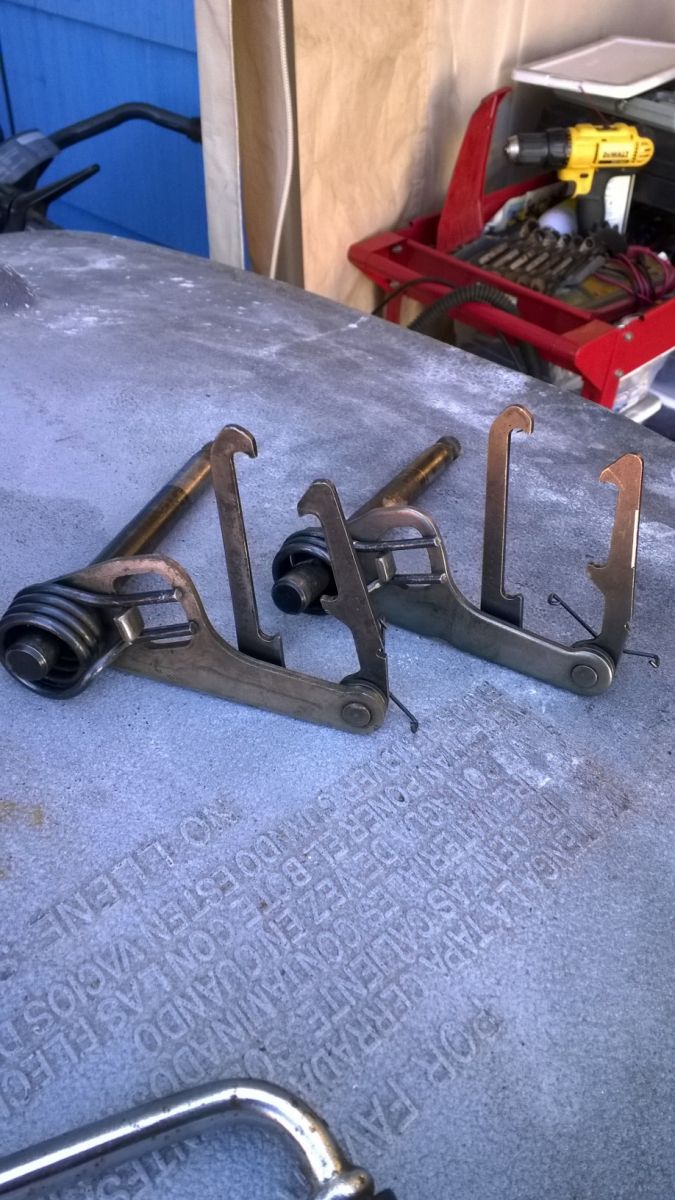

I found the rear setup in the pic, with the coil spring bound tight around the boss machined in the engine case.
I try the other setup with the 4 coil spring, and what do you know, it works perfectly. Not only does the shifter return to center, the slightly longer pawls match up with the shift drum, eliminating the need to move the lever in the opposite direction first before a shift.
Yay, a small victory. But then I wiggled the output shaft. . .
<iframe width="560" height="315" src="" frameborder="0" allowfullscreen>
This is bad, right.
I pulled the cover off the trans to investigate a shifter that didn't return to center.
I found the rear setup in the pic, with the coil spring bound tight around the boss machined in the engine case.
I try the other setup with the 4 coil spring, and what do you know, it works perfectly. Not only does the shifter return to center, the slightly longer pawls match up with the shift drum, eliminating the need to move the lever in the opposite direction first before a shift.
Yay, a small victory. But then I wiggled the output shaft. . .
<iframe width="560" height="315" src="" frameborder="0" allowfullscreen>
This is bad, right.
Last edit: 10 Sep 2017 20:08 by retterath. Reason: tweaking pics
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22969
- Thank you received: 2749
10 Sep 2017 20:13 #770711
by SWest
Replied by SWest on topic Shift lever and pawls
That will tighten up when you install the sprocket.
Steve
Steve
The following user(s) said Thank You: retterath
Please Log in or Create an account to join the conversation.
- retterath
- Topic Author
- Offline
- User
Less
More
- Posts: 99
- Thank you received: 9
10 Sep 2017 20:17 #770712
by retterath
Replied by retterath on topic Shift lever and pawls
Are you sure? There is at least 1/16th inch of movement in the bearing. I also have a growl at low rpm that goes away when the clutch is disengaged. Related?
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22969
- Thank you received: 2749
10 Sep 2017 20:26 #770713
by SWest
Replied by SWest on topic Shift lever and pawls
The sprocket will push on the collar and tighten on the inner bearing race. What bike?
Steve
Steve
Please Log in or Create an account to join the conversation.
- retterath
- Topic Author
- Offline
- User
Less
More
- Posts: 99
- Thank you received: 9
10 Sep 2017 20:30 #770714
by retterath
Replied by retterath on topic Shift lever and pawls
1980 KZ1000 LTD. With some mods.
Please Log in or Create an account to join the conversation.
- Scirocco
- Away
- Premium Member
- Never change a running system
Less
More
- Posts: 4197
- Thank you received: 2063
11 Sep 2017 03:03 - 11 Sep 2017 03:11 #770716
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic Shift lever and pawls

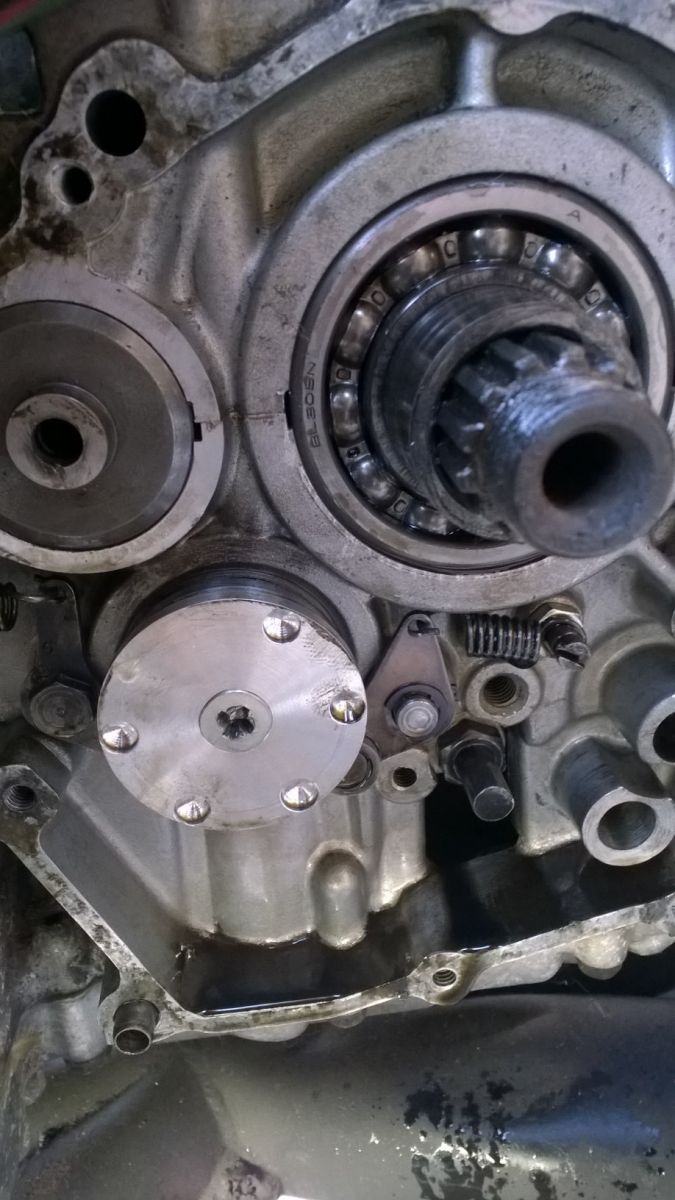

Your shift drum pin plate looks like self made.
Normally the plate has one hole only for the neutral indicator switch.
The ball bearing on the output shaft should be play free.
For me it´s shot and must be replaced with a new one.
This type of bearing is not designed to get play free by torque like the steering neck bearing.
Normally the plate has one hole only for the neutral indicator switch.
The ball bearing on the output shaft should be play free.
For me it´s shot and must be replaced with a new one.
This type of bearing is not designed to get play free by torque like the steering neck bearing.
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Last edit: 11 Sep 2017 03:11 by Scirocco.
The following user(s) said Thank You: retterath
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22969
- Thank you received: 2749
11 Sep 2017 06:29 #770719
by SWest
Replied by SWest on topic Shift lever and pawls
If there is no play when the sprocket is on the bearing is fine.
Steve
Steve
Please Log in or Create an account to join the conversation.
- retterath
- Topic Author
- Offline
- User
Less
More
- Posts: 99
- Thank you received: 9
11 Sep 2017 09:11 #770729
by retterath
Replied by retterath on topic Shift lever and pawls
I'll try tightening the sprocket up after work. fingers crossed.
The funky shift drum is for the poor man's air shifter. The neutral switch kills power to the coils for a split second while shifting.
The funky shift drum is for the poor man's air shifter. The neutral switch kills power to the coils for a split second while shifting.
The following user(s) said Thank You: SWest
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22969
- Thank you received: 2749
11 Sep 2017 16:16 #770757
by SWest
Replied by SWest on topic Shift lever and pawls
Are the threads on the countershaft munged up? I torque mine to 70' Lbs.
Steve
Steve
Please Log in or Create an account to join the conversation.
- Scirocco
- Away
- Premium Member
- Never change a running system
Less
More
- Posts: 4197
- Thank you received: 2063
11 Sep 2017 16:45 #770763
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic Shift lever and pawls
No eBay APP ID and/or Cert ID defined in Kunena configurationBl305N bearing
www.cmsnl.com/kawasaki-kz1000b4-ltd-1980...t/61468.html#results
118 Euro
US $50.00 but shipping price is crazy
i will search for a cheaper one
www.cmsnl.com/kawasaki-kz1000b4-ltd-1980...t/61468.html#results
118 Euro
US $50.00 but shipping price is crazy
i will search for a cheaper one
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22969
- Thank you received: 2749
11 Sep 2017 18:27 #770777
by SWest
Replied by SWest on topic Shift lever and pawls
The cases would have to be split and there is a locating ring groove.
Steve
Steve
Please Log in or Create an account to join the conversation.
- retterath
- Topic Author
- Offline
- User
Less
More
- Posts: 99
- Thank you received: 9
11 Sep 2017 18:54 #770779
by retterath
Replied by retterath on topic Shift lever and pawls
Threads are fine. I'm fully aware of the scope of the project. :ohmy:
Would I be better off swapping in an entire used transmission, since I'm sure more than one bearing will need attention? Or just open it up and see what I've got first?
Would I be better off swapping in an entire used transmission, since I'm sure more than one bearing will need attention? Or just open it up and see what I've got first?
