Clutch Screw Won't adjust/no clutch return
- SWest
- Offline
- Sustaining Member
- 10 22 2014
I've had one do it then grab the screw finally splitting the cover.
Steve
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
Notice the opening for the rod is too small for the ball bearing to fall out on the sprocket side.
Obviously, it's also too small to push one in from the sprocket side, unless they use a much smaller ball bearing.
Part 14 is part 11 on Ed's diagram.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- JR
- Offline
- Sustaining Member
- Posts: 2937
- Thank you received: 448

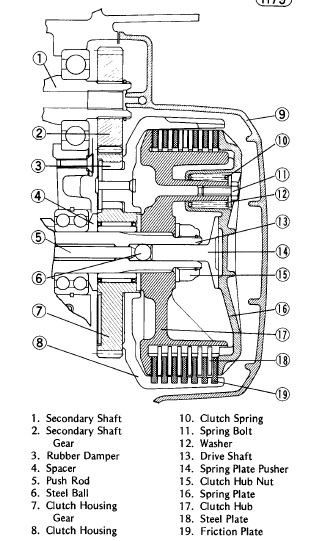

Here ya go. From the 750-4 manual on the mbsween site.Does anyone have a comparable image like this for a 750? This is from a 550 factory manual.
I have never had to open my clutch but I did remove the push rod for some reason many years ago and did not have the ball bearing fall out.
1980 kz750E1, Delkevic exhaust
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22972
- Thank you received: 2749
Steve
Please Log in or Create an account to join the conversation.
- floivanus
- Offline
- User
- Posts: 1055
- Thank you received: 116
swest wrote: Ed is right. Even with the ball under extreme use it can weld itself to the rod and push plate.
That's why they have the roller bearing setup and ceramic ball, that's the setup on my 1200cc motor
my bikes; 80kz1000(project), 77 gl1000, 74 h2 (project)
Past; 78 kz1000, 83 kz550
Andrew
Please Log in or Create an account to join the conversation.
- Oldercrow
- Offline
- User
- Posts: 24
- Thank you received: 0
Adjusted my cable to 2-5mm play and things seem good now.
The manual had me adjusting the clutch adjuster the wrong way.
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22972
- Thank you received: 2749
Steve
Please Log in or Create an account to join the conversation.
- rrsmsw9999
- Offline
- User
- Posts: 778
- Thank you received: 67
1980 KZ 1000E2
Crashed 6/2016
1980 KZ550A
Sold 3/2016
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
This image is for the 550, but is likely the same for 750's.
gpzweb.s3-website-us-east-1.amazonaws.com/ClutchReleaseMech.GIF
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22972
- Thank you received: 2749
Steve
Please Log in or Create an account to join the conversation.
- KZB2 650
- Offline
- User
- Posts: 1475
- Thank you received: 265
floivanus wrote:
swest wrote: Ed is right. Even with the ball under extreme use it can weld itself to the rod and push plate.
That's why they have the roller bearing setup and ceramic ball, that's the setup on my 1200cc motor
Denco said the Torrington roller bearing set up was a "must" on their high performance bikes. Few other big names have stated it too over the years.
1978 KZ650 b-2
700cc Wiseco kit 10 to 1.
1980 KZ750 cam, ape springs, stock clutch/ Barnett springs.
Vance and Hines Header w/ comp baffle and Ape pods, Dyna S and green coils, copper wires.
29MM smooth bores W/ 17.5 pilots, 0-6s and 117.5 main
16/42 gearing X ring chain and alum rear JT sprocket.
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
- Posts: 7507
- Thank you received: 2823
Regarding the ball everyone keeps talking about, I'm pretty sure you can not remove the ball from the clutch cover side of the bike. It needs to come out from the clutch side.
