Valve clearance/carbon deposit on plugs
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Steve
Please Log in or Create an account to join the conversation.
- gcphoto
- Topic Author
- Offline
- User
'78 KZ650 SR
___________
Wear a helmet, pants are optional.
Please Log in or Create an account to join the conversation.
- Tyler
- Offline
- User
- Posts: 845
- Thank you received: 92
chconger wrote:
gcphoto wrote: so they don't come stock with all the same size shims? I would think they leave the factory with the same shims in each valve.
No, the shim is there to soak up the tolerances that get stacked together of the cast aluminum head, valve seats, and valves themselves. All these parts have a +/- specification when new. Taken together, they cannot meet the valve lash spec consistently.
The factory will put in shims in to make a spec that is impossible to meet otherwise due to these added tolerances of the various parts. Every valve will be different.
He is right, they wont be the same, but they should be close. You can tell quite a bit by the shim sizes that are installed. For example, if your shims are the upper range, say 2.50 to 2.70 that indicates little wear on the valves and seats, very thin shims (2.00 and below) can indicate the head has had a valve job in the past or is in dire need of one. If one valve has a much smaller shim than the rest that can indicate a problem too. Make a table and write down each shim you remove and corresponding clearance ( or lack of clearance) you have now. Reply with your measurements...
If you have a very thin shim already on a valve with no clearance then you can't fix the problem without a valve job, or replacing the head.
If I knew what I was doing all the time life wouldn't be any fun.
'80 KZ650 E 700cc, dyna ignition and coils, frame up restoration, daily driver
'81 KZ1300 A3 full restoration, custom big bore pistons, 1400cc 6 cylinder super bike
"77 KZ650 B1 - Barn Find, work in progeress
"74 Yamaha DT 400 Enduro
Please Log in or Create an account to join the conversation.
- gcphoto
- Topic Author
- Offline
- User
I printed it out and will probably attempt this in the next few days. I know I probably needed to learn this eventually. I'm going to recheck my measurements again because it's been bothering me that I might have made a mistake.
'78 KZ650 SR
___________
Wear a helmet, pants are optional.
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22977
- Thank you received: 2750
Steve
Please Log in or Create an account to join the conversation.
- dom2570
- Offline
- User
- Posts: 408
- Thank you received: 27
I had issues with 0 clearances with my 750 so I opted for the hot cams kit because I was lazy, and knew I would be adjusting them again the next season.
Whip it like a mule!
Please Log in or Create an account to join the conversation.
- gcphoto
- Topic Author
- Offline
- User
1=.1
2=.06
3=.06
4=.08
5=.06
6=.04
7=.1
8=.06
'78 KZ650 SR
___________
Wear a helmet, pants are optional.
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- gcphoto
- Topic Author
- Offline
- User
'78 KZ650 SR
___________
Wear a helmet, pants are optional.
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
If your bike has the VM24SS carbs and is a 1978 KZ650 SR it is a KZ650-D1. If that is the case, the manuals that include your year & model will have either part number 99924-1001-02 or part number 99924-1001-03 printed on the back of the cover and a photo of a red KZ650-B1 on the front cover. Those are the only 2 editions of the manuals that include the KZ650-D1. BE SURE TO VERIFY that the back cover has one of those 2 part numbers. Earlier part numbers of that manual, such as 99924-1001-01, will NOT have your model in them.
If you discover your bike is actually a KZ650-D1A let us know and I'll see if I can find the part numbers for the correct manual for that model. Ed
Attachment 00003a-20.jpg not found
Attachment 00003d-3.jpg not found
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- gcphoto
- Topic Author
- Offline
- User
'78 KZ650 SR
___________
Wear a helmet, pants are optional.
Please Log in or Create an account to join the conversation.
- gcphoto
- Topic Author
- Offline
- User
So, in the past couple weeks I've cleaned the carbs, did the valve adjustment, installed new coils, plugs and wires and an oil change. At the beginning of this thread I mentioned I had heavy black carbon on the spark plugs. I will check the plugs weekly to see if they stay clean. If they get blackened again I'll check back in to see what I can do about that.

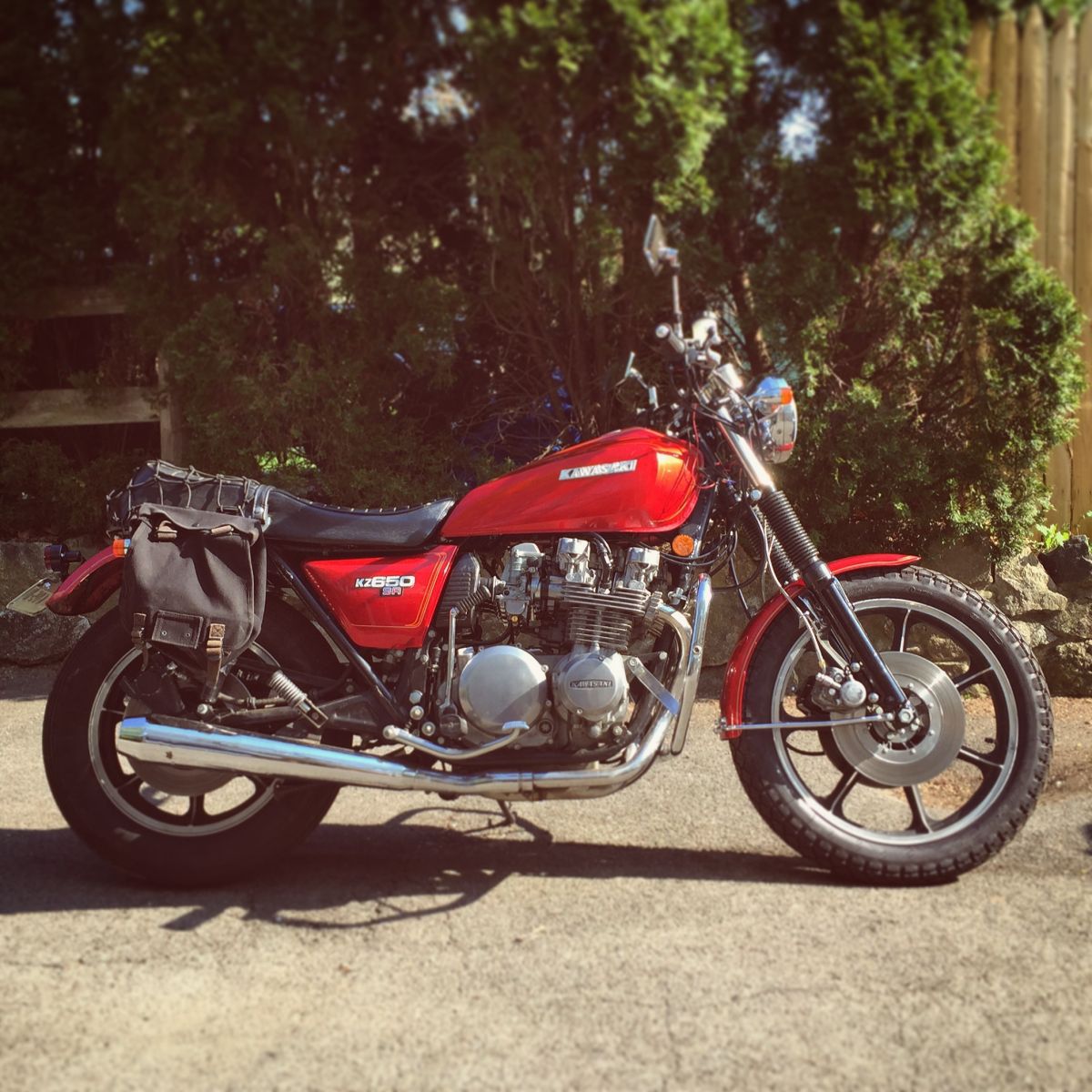

Thanks so much for all of your help guys. It's so appreciated. I definitely couldn't have done it without this board. Here's a shot of the bike as she looks now after all the hard work to get her going.
