An odd Rattle...
- P21
- Offline
- User
Attachment 24.jpg not found
P21 wrote: on your clutch you have to adjust the screw on the side of push rod for some play (at trans cover)
this picture just only referance www.kz400.com/KZ440MaintainanceFrameset.html
here it is
Kawasaki KZ 1000 Police (2002) P21
Please Log in or Create an account to join the conversation.
- Robwolf
- Topic Author
- Offline
- User
- It's ugly, but it moves!
- Posts: 110
- Thank you received: 2
'79 Kz400H1 'cafe' and '94 En500 Vulcan in swampy Florida.
Please Log in or Create an account to join the conversation.
- Robwolf
- Topic Author
- Offline
- User
- It's ugly, but it moves!
- Posts: 110
- Thank you received: 2
I probably should. I need to make the investment in some good tools.
'79 Kz400H1 'cafe' and '94 En500 Vulcan in swampy Florida.
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
Routine clutch push rod adjustment.
Assure having some "slop" in the clutch cable, using adjustments at the handlebar lever perch and at mid-cable along left frame down tube near the exhaust header.
Removing the access plate should reveal the adjustment screw and locknut.
First, slightly loosen the locknut.
The hidden end of the screw interfaces with the pushrod.
The basic idea is to lightly seat the screw against the pushrod, then back the screw 1/4 turn away from the pushrod, to thereby provide a small gap between end of screw and pushrod.
Here's a possible snag ---
The screw is part of an actuator assembly.
On some designs (screw-type), the screw turns clockwise to seat before turning counter-clockwise to provide the gap.
On other designs (ball and ramp), the screw turns counter-clockwise to seat before turning clockwise to provide the gap.
Will now speculate that the bike at hand has the ball and ramp style, whereby the screw turns counter-clockwise to seat before turning clockwise to provide the gap. But I might be wrong. So if it doesn't work that way, adjust it the other way.
Remember to snug the locknut before finishing. Just snug is plenty tight enough.
Lastly, reduce "slop" in the cable to produce desired amount of free play in the lever at the perch.
With the clutch lever released (not being squeezed), the clutch is supposed to be fully engaged (plates pressed tightly together).
If the gap isn't there, the plates can't fully press together, which causes the clutch to "slip."
With the clutch lever squeezed, the clutch plates are supposed to be separated. When squeezed, the gap disappears and the push-rod is pressed inward to press the plates apart, overcoming the spring pressure, and thereby disengaging the clutch.
Too much gap wastes clutch lever movement as too much lever travel is expended to simply close the gap before starting pressure against the push-rod. Whereby the clutch may only partly disengage when the lever is fully squeezed, and produce the sensation of a "sticky" or "grabby" clutch.
Way too much gap may waste all the clutch lever movement, as all the lever travel is expended to simply close the gap, with no movement left to exert pressure against the push-rod.
No gap or too little gap may over-stress the actuator assembly when the clutch lever is squeezed and cause the actuator assembly to pop apart.
It's important to know exactly how to set the required gap.
The general rule is to lightly close the gap, then back off ¼~½ turn.
On some models the gap is closed by turning the adjustment screw clockwise. But on other models the gap is closed by turning the adjustment screw counter-clockwise.
Mistaking which direction to turn the adjustment screw could for example start with the gap wide open instead of lightly seated.

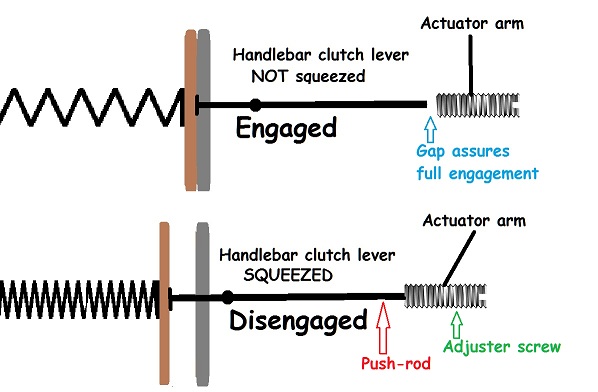

Here's a simplified illustration to help visualize what is supposed to happen as the mechanisms engage and disengage the clutch.
Good Fortune!
