new to me 1978 KZ 1000

  • Kelly E
  • Offline
  • User
  • Never Give Up. Never Surrender
More
21 Jun 2023 20:08 #886295 by Kelly E
Replied by Kelly E on topic new to me 1978 KZ 1000
We always use Apex Brakes for our lines, 7 out of our 12 bikes have them. You won't be disappointed and Apex is in Canada.

The Rust Bros. Garage Collection
1974 Honda CB 550 K0
1975 Honda CB 400F Super Sport
1977 Kawasaki KZ 1000 LTD
1980 Suzuki GS 1100E
1982 Honda CB 900F Super Sport
1983 Honda CB 1100F
1984 Honda Sabre 700
1984 Honda Interceptor 1000
1990 Moto Guzzi 1000
1994 Kawasaki ZG 1000 Concours

And more
The following user(s) said Thank You: BCScott

Please Log in or Create an account to join the conversation.

More
24 Jun 2023 20:45 - 24 Jun 2023 21:34 #886374 by Treetall
Replied by Treetall on topic new to me 1978 KZ 1000
Hi Kelly
Thanks for getting back to me.
I went on Apex Brakes, They seem to be mostly or all automotive. Do I have the right link?
I tried to build some custom lines, but their banjo bends in their  pics. aren't what we need for our bikes.
Would you have a list of part  #s  for the lines you ordered.
Your back end is the same as mine. The front should be the same, minus in one line.
Thanks in advance.
Last edit: 24 Jun 2023 21:34 by Treetall.

Please Log in or Create an account to join the conversation.

  • Kelly E
  • Offline
  • User
  • Never Give Up. Never Surrender
More
25 Jun 2023 08:52 #886387 by Kelly E
Replied by Kelly E on topic new to me 1978 KZ 1000
Send them a message on the contact form and they'll get back to you. It's not the best website but we've bought at least 7 sets of lines from them. They have the spec's for a lot of bikes.

The Rust Bros. Garage Collection
1974 Honda CB 550 K0
1975 Honda CB 400F Super Sport
1977 Kawasaki KZ 1000 LTD
1980 Suzuki GS 1100E
1982 Honda CB 900F Super Sport
1983 Honda CB 1100F
1984 Honda Sabre 700
1984 Honda Interceptor 1000
1990 Moto Guzzi 1000
1994 Kawasaki ZG 1000 Concours

And more
The following user(s) said Thank You: Treetall

Please Log in or Create an account to join the conversation.

More
05 Nov 2023 19:12 #891343 by Treetall
Replied by Treetall on topic new to me 1978 KZ 1000

Send them a message on the contact form and they'll get back to you. It's not the best website but we've bought at least 7 sets of lines from them. They have the spec's for a lot of bikes.

Hi Kelly
I did send Apex an email, but they never got back to me. I did some more looking around on the net. I found an outfit out of Calgary, called HEL.
You can build custom lines on their web site. The only problem was you can't change the direction of the banjo's on the site.
I gave him a call, I emailed some pics of the lines and sizes/ lengths. This was late Monday afternoon. The new brake lines were on my doorstep Friday morning.
Calgary is only a couple hrs away, but still pretty nice service.
Pretty good prices, the lines came with banjo bolts and copper washers.


Please Log in or Create an account to join the conversation.

More
05 Nov 2023 19:35 #891344 by Treetall
Replied by Treetall on topic new to me 1978 KZ 1000

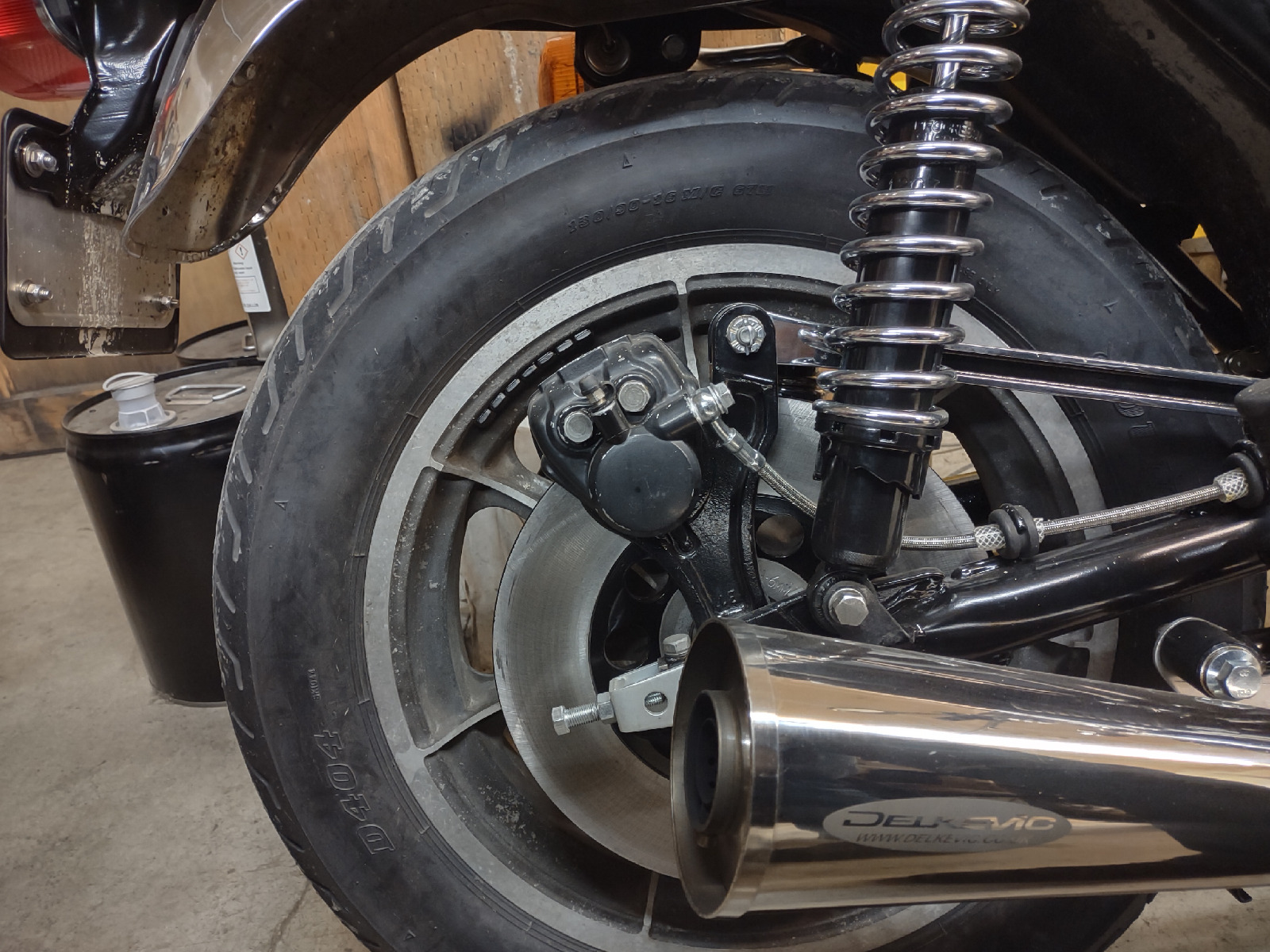

I have a question on bleeding the back brake.
I rebuilt the rear caliper, pistons move in and out freely. I used the red grease sparingly that came with the kit.
Installed a new line.
Took apart the MC and cleaned it. I didn't buy a rebuild kit, as everything seemed in good condition and none of the rubbers were hard.
I checked the push rod for back pressure, and it moved in and out freely.
I did the bleeding the ole fashion way. Pump up and release with the bleeder bolt. I used a rubber hose ( didn't have a clear one handy) submerged fluid in the bottom of a clear container.
I pumped enough fluid to go from the upper reservoir mark to the lower mark.
But I can't get any back pressure.
Thoughts?
With moving that much brake fluid, there shouldn't be anything plugged!?
Thanks in advance.
Conrad

Please Log in or Create an account to join the conversation.

  • Kelly E
  • Offline
  • User
  • Never Give Up. Never Surrender
More
05 Nov 2023 19:35 #891345 by Kelly E
Replied by Kelly E on topic new to me 1978 KZ 1000

Send them a message on the contact form and they'll get back to you. It's not the best website but we've bought at least 7 sets of lines from them. They have the spec's for a lot of bikes.

Hi Kelly
I did send Apex an email, but they never got back to me. I did some more looking around on the net. I found an outfit out of Calgary, called HEL.
You can build custom lines on their web site. The only problem was you can't change the direction of the banjo's on the site.
I gave him a call, I emailed some pics of the lines and sizes/ lengths. This was late Monday afternoon. The new brake lines were on my doorstep Friday morning.
Calgary is only a couple hrs away, but still pretty nice service.
Pretty good prices, the lines came with banjo bolts and copper washers.


That's too bad, we've always had great service from Raymond. We did the KZ 1000LTD back in February with no issues from Raymond.


The Rust Bros. Garage Collection
1974 Honda CB 550 K0
1975 Honda CB 400F Super Sport
1977 Kawasaki KZ 1000 LTD
1980 Suzuki GS 1100E
1982 Honda CB 900F Super Sport
1983 Honda CB 1100F
1984 Honda Sabre 700
1984 Honda Interceptor 1000
1990 Moto Guzzi 1000
1994 Kawasaki ZG 1000 Concours

And more

Please Log in or Create an account to join the conversation.

More
05 Nov 2023 19:42 #891346 by Treetall
Replied by Treetall on topic new to me 1978 KZ 1000
Oh well! No big deal. I found us Canucks another source for brake lines.

Please Log in or Create an account to join the conversation.

More
05 Nov 2023 20:09 - 05 Nov 2023 20:10 #891347 by Treetall
Replied by Treetall on topic new to me 1978 KZ 1000

Couple more questions

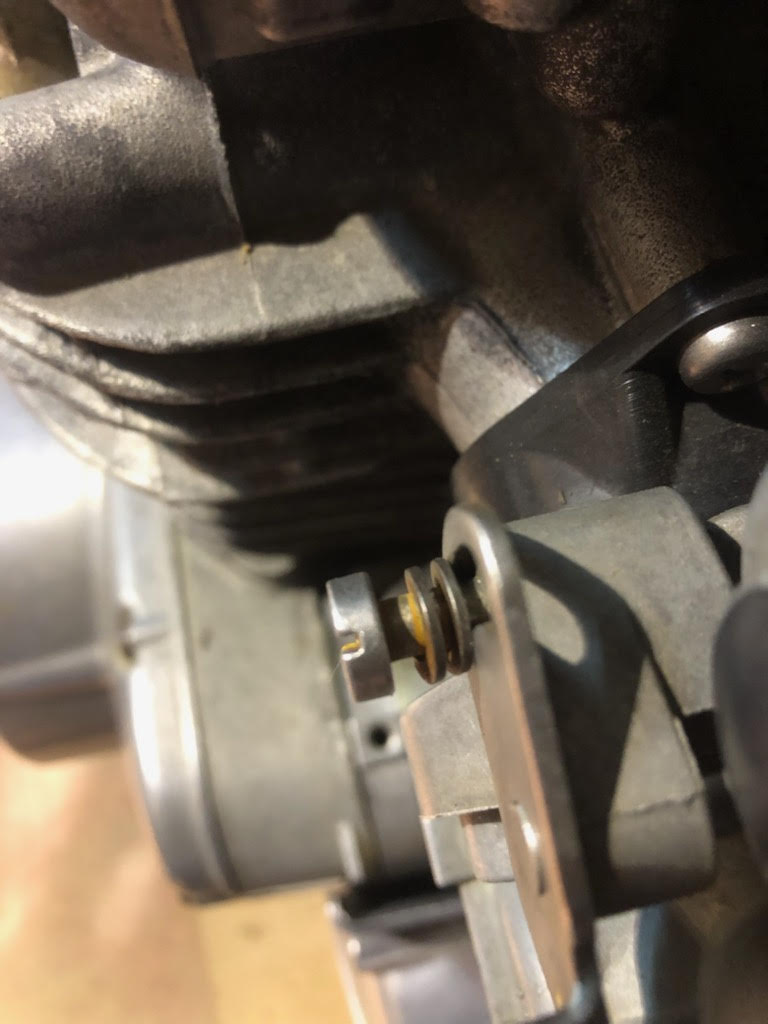

I put the carbs back together. But the choke/ enricher rod seems to have bottomed out. Where did I goof?

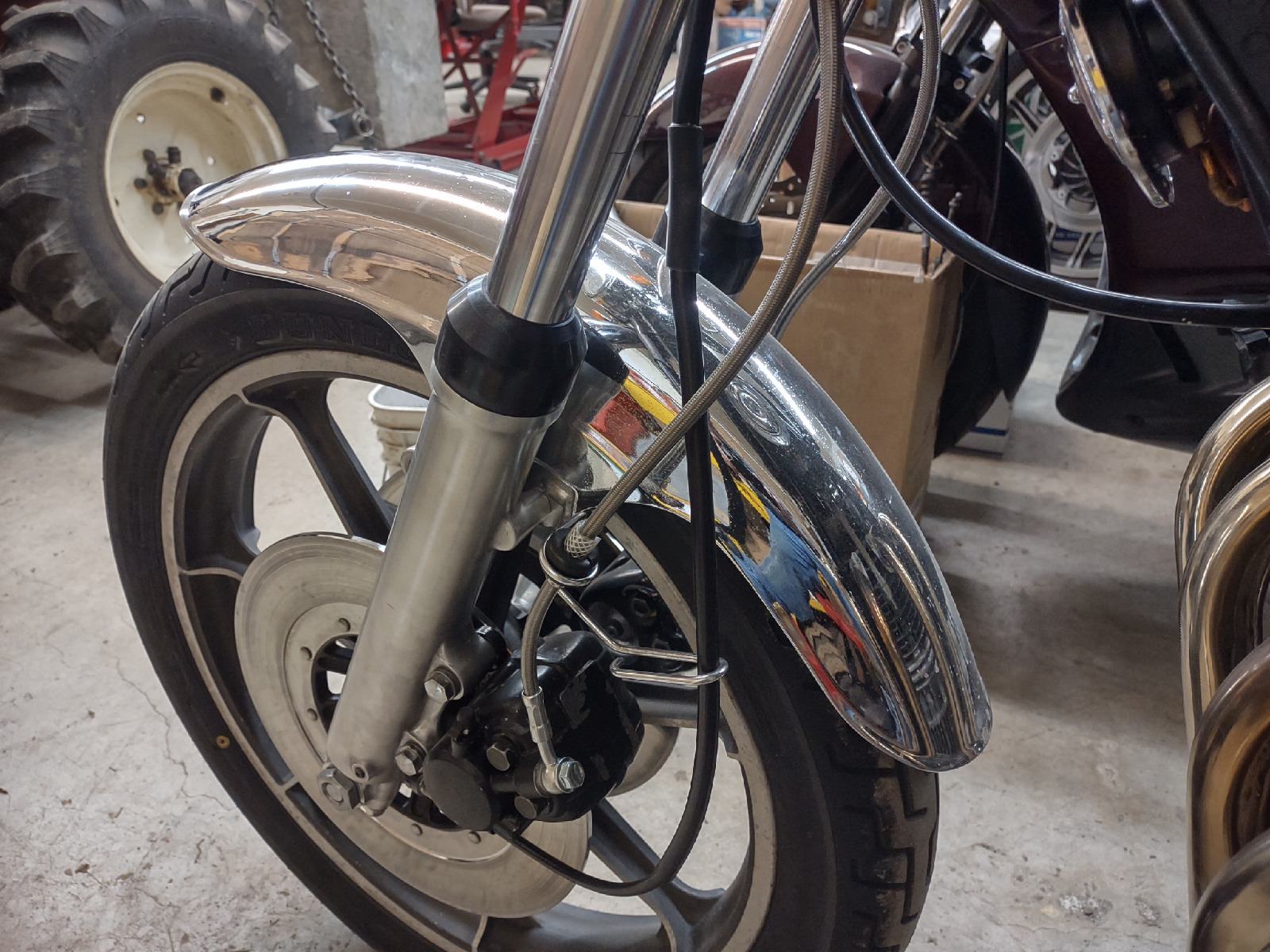

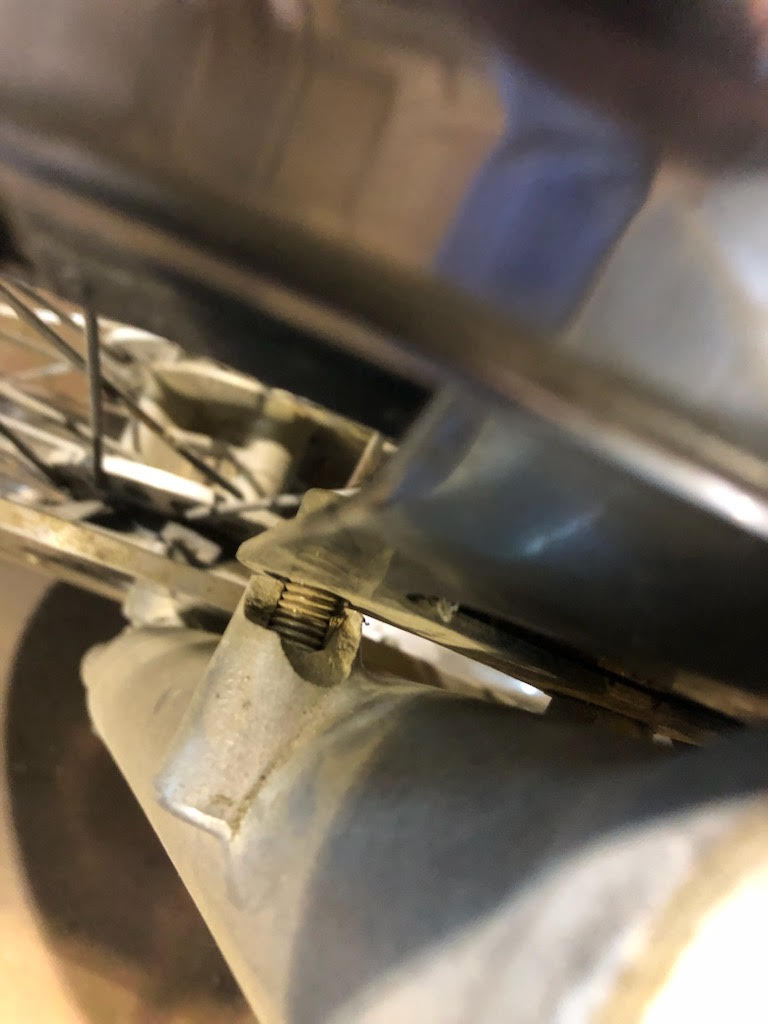

Two of the 4 bolts that go into the fork to hold the fender, are partly broken. Is there enough meat left not to be a concern? If not, is there a fix, besides new forks!

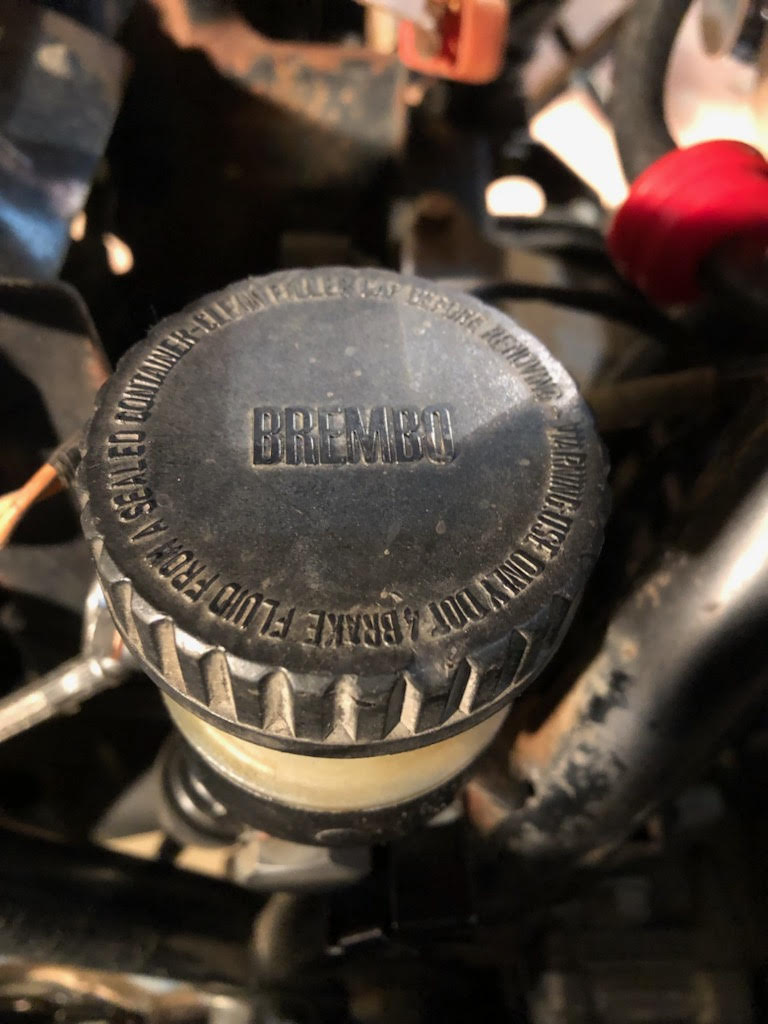

The cap for my rear MC is full of cracks. I went to the local swap meet the other day. This Brembo cap fits perfectly. Just an FYI if someone is looking and can't find one.

Last edit: 05 Nov 2023 20:10 by Treetall.

Please Log in or Create an account to join the conversation.

More
06 Nov 2023 12:31 #891371 by Mikaw
Replied by Mikaw on topic new to me 1978 KZ 1000

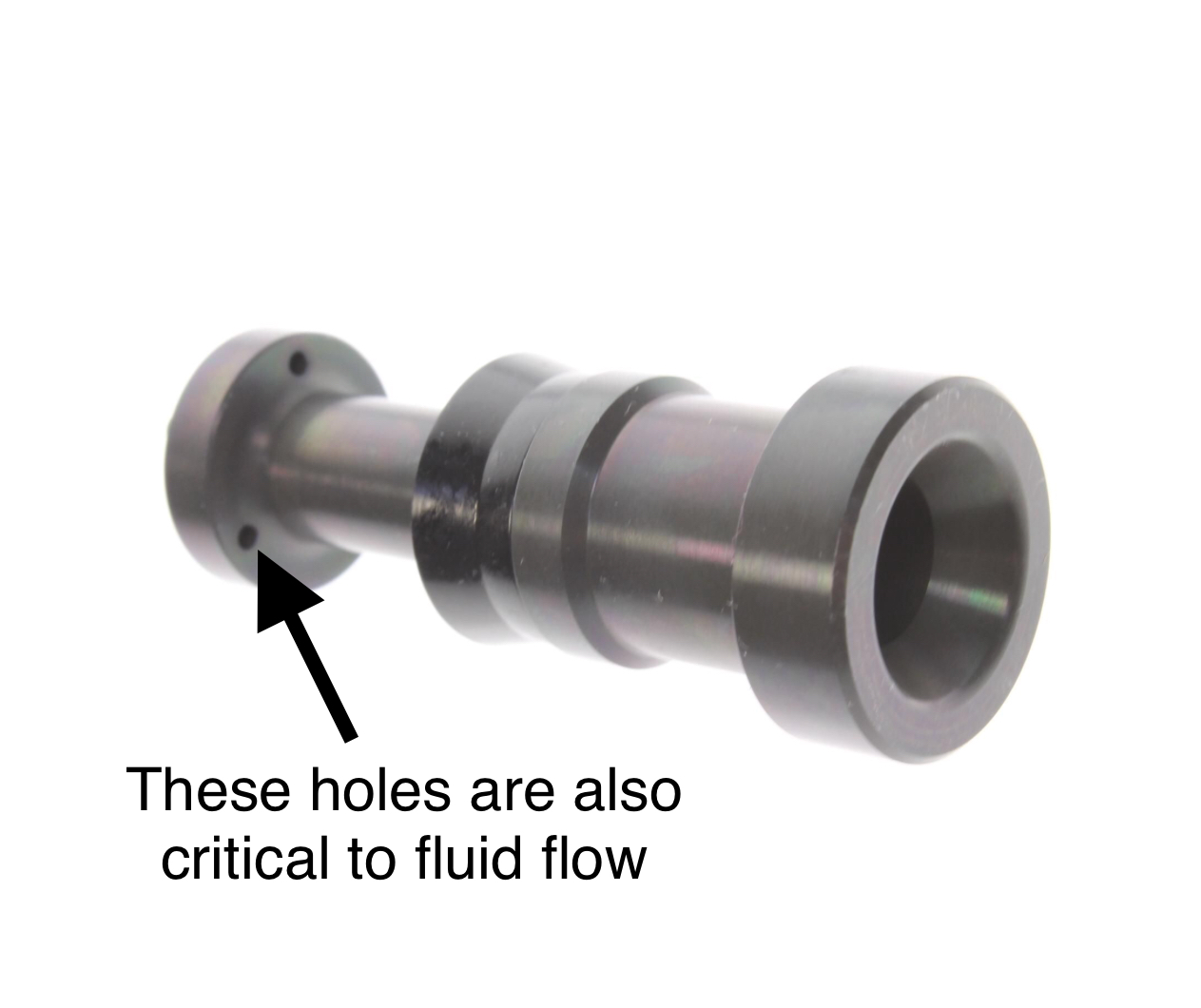

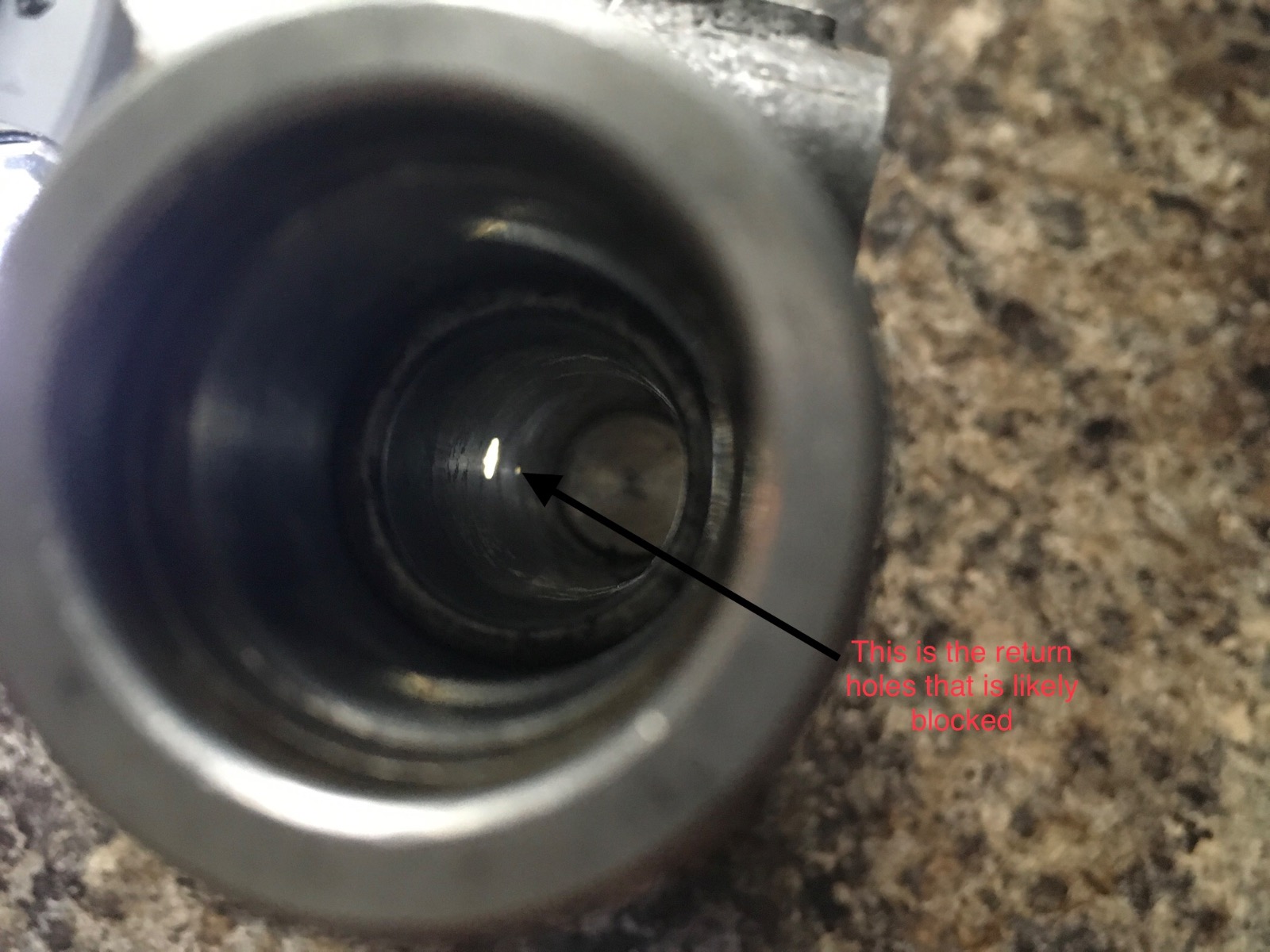

Back pressure? Do you have a solid hard peddle? If not it’s more likely a bleed/balance return port that is blocked. It a very,very,very tiny hole dead center under the large side bolt. Aslo need the holes in the end of the piston clear.



1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: howardhb

Please Log in or Create an account to join the conversation.

More
06 Nov 2023 12:33 - 06 Nov 2023 12:45 #891372 by Mikaw
Replied by Mikaw on topic new to me 1978 KZ 1000

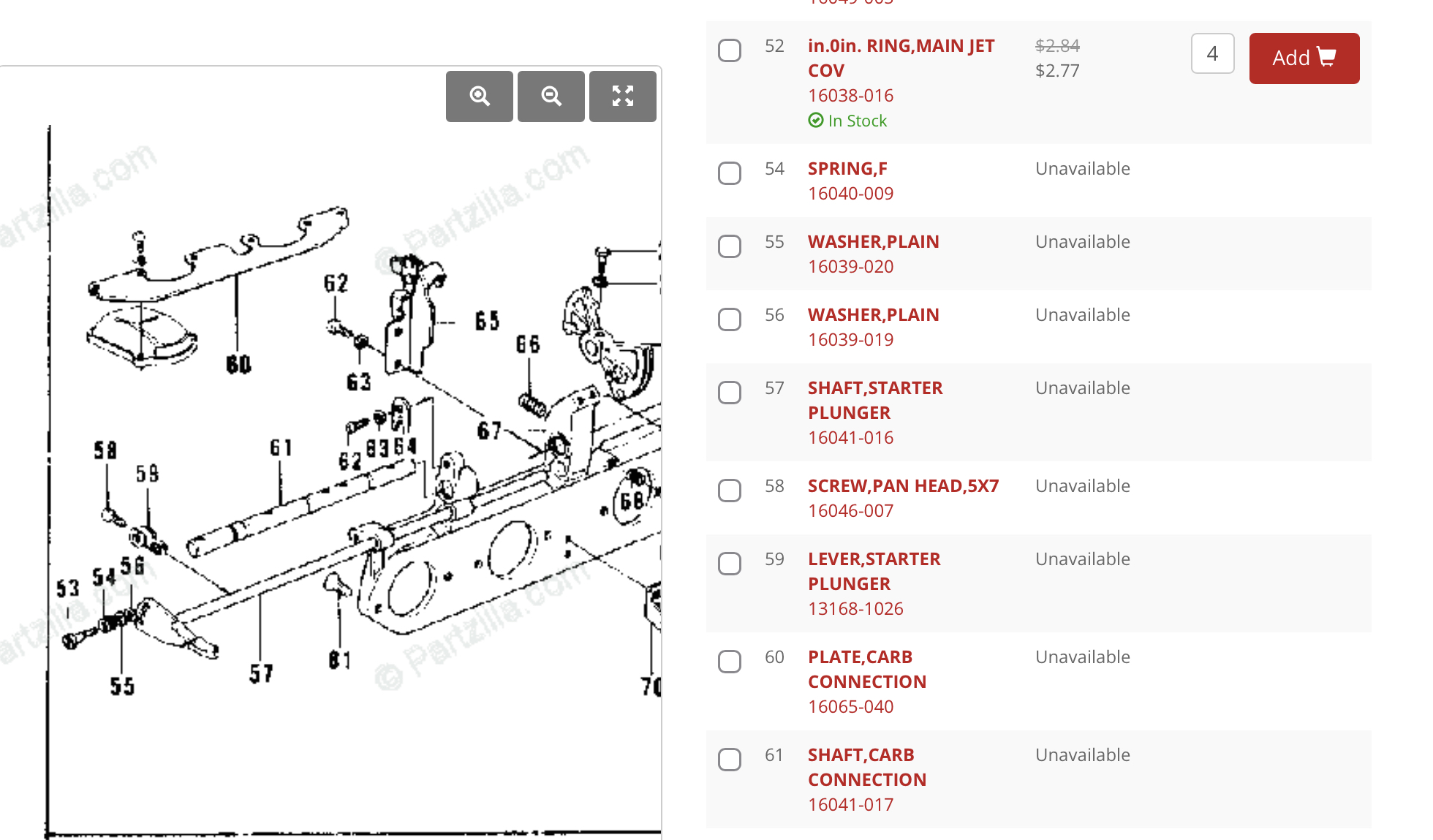

Your missing a plastic washer and spring under the screw head holding the choke lever?

54 is spring
55 is steel washer
56 is plastic washer




1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Last edit: 06 Nov 2023 12:45 by Mikaw.

Please Log in or Create an account to join the conversation.

More
06 Nov 2023 19:35 #891392 by Treetall
Replied by Treetall on topic new to me 1978 KZ 1000
Thanks Mikaw
I will take it apart and see where I may/ probably missed it. I thought I'd cleaned things pretty well! But that side hole would be easy to miss!
Any thoughts on the fender bolts in the fork legs!?

Please Log in or Create an account to join the conversation.

More
06 Nov 2023 19:42 #891393 by Treetall
Replied by Treetall on topic new to me 1978 KZ 1000
Thanks again Mikaw
That's an easy fix!

Please Log in or Create an account to join the conversation.
