82 kz1000 ground up build 27 Jan 2021 10:37 #842509

  • Mikaw
  • Mikaw's Avatar
  • Away
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843
Progress is progress no matter how many days between steps. Looking forward to seeing that ‘03 engine getting set.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

82 kz1000 ground up build 19 Feb 2021 07:34 #843713

  • jowek70
  • jowek70's Avatar Topic Author
  • Offline
  • User
  • Posts: 142
  • Thank you received: 23
Agreed
Just didn’t realize how long this has been sitting in my basement haha. One of the maintenance guys at work is making up rear wheel spacers and modifying the sprocket carrier for me. Getting a set of tires put on my wheels and adding swingarm spools. Also have design put together for the engine mounts. Once I have the rear end together I can put the bike on my table and see how the engine sits in the frame.

Please Log in or Create an account to join the conversation.

Last edit: by jowek70.

82 kz1000 ground up build 03 May 2021 08:18 #847919

  • jowek70
  • jowek70's Avatar Topic Author
  • Offline
  • User
  • Posts: 142
  • Thank you received: 23

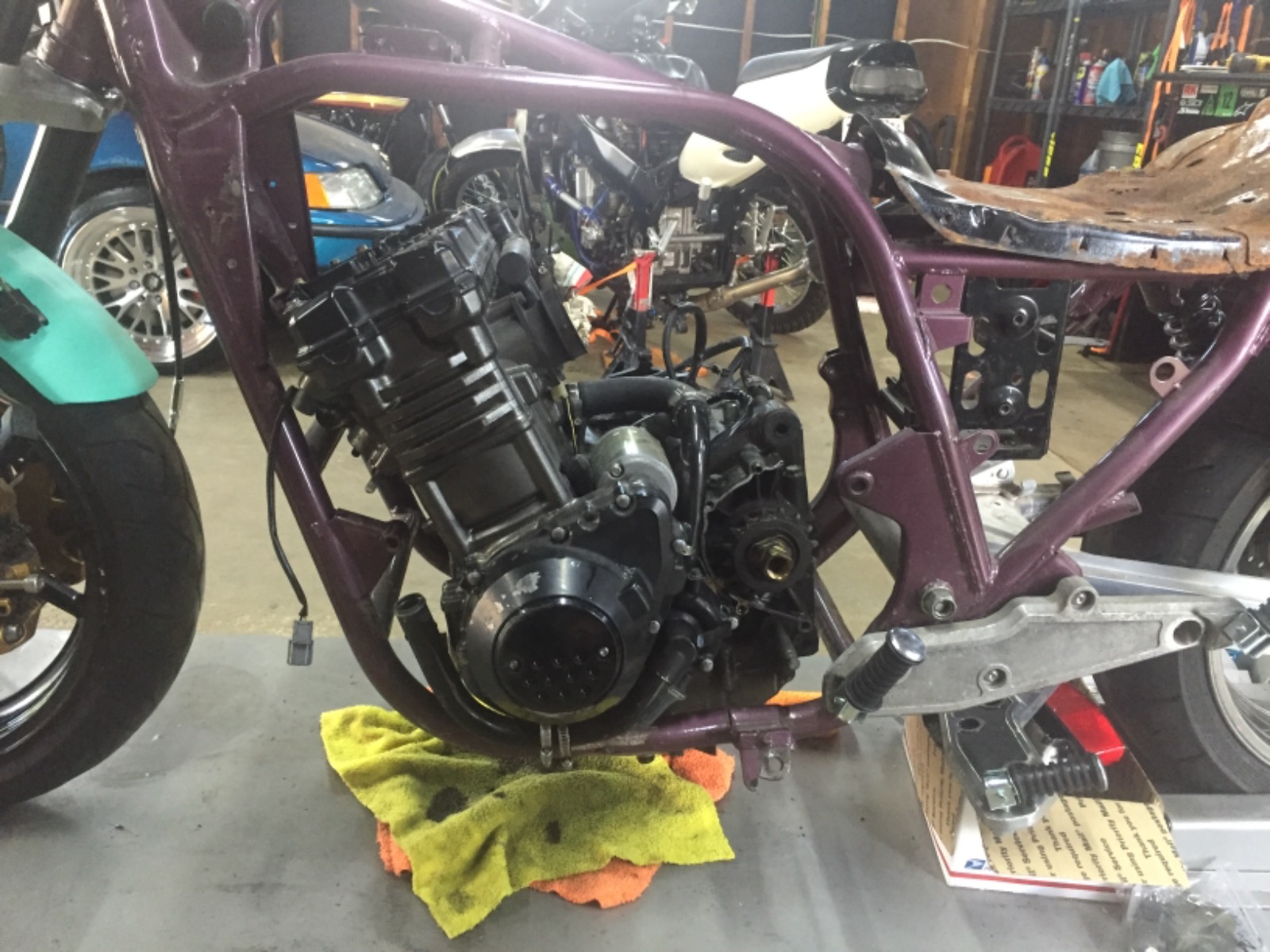

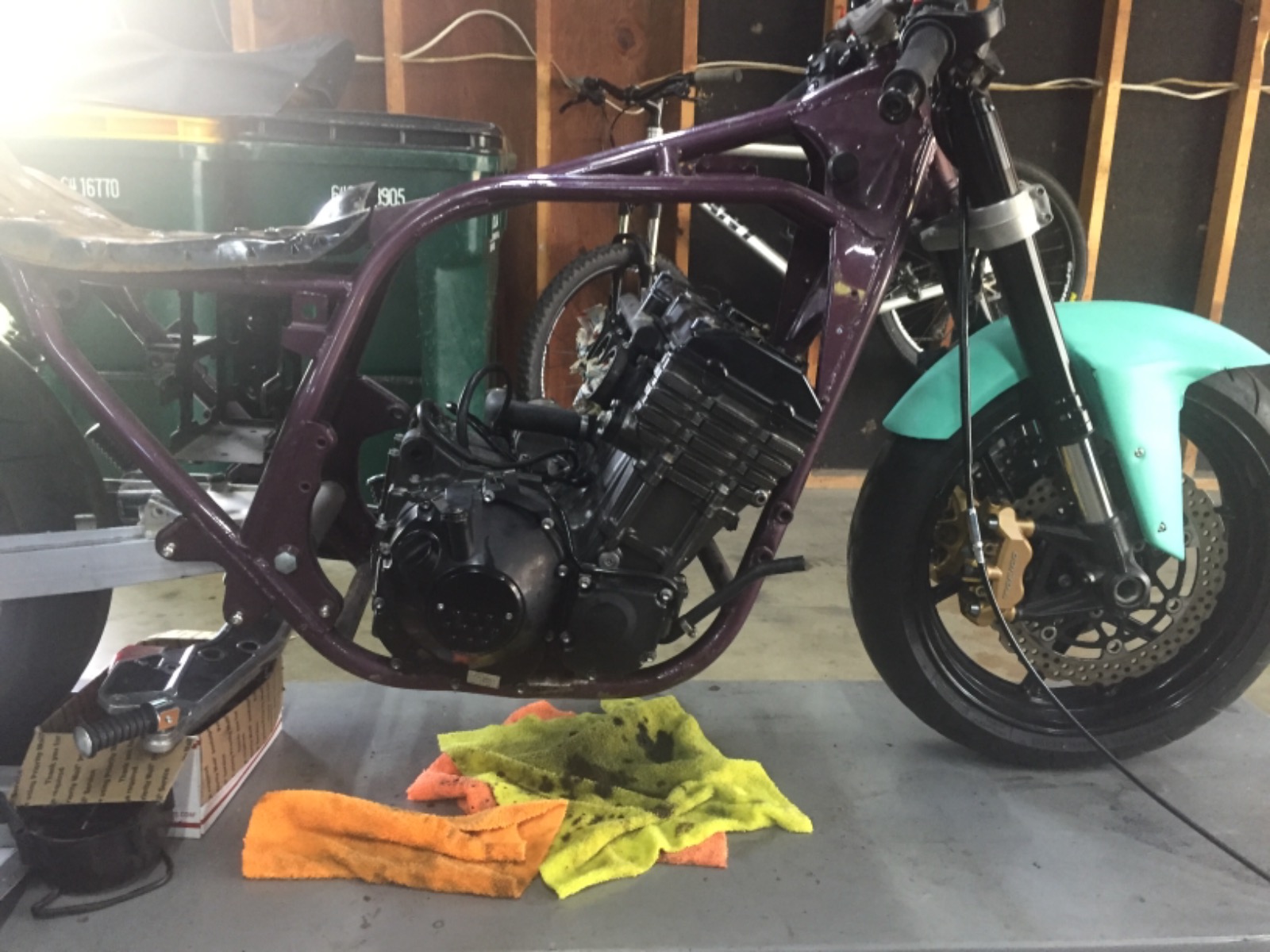

Engine looks so small in the frame!
time to get some mounts made up and start cutting and welding.
Attachments:

Please Log in or Create an account to join the conversation.

82 kz1000 ground up build 03 May 2021 16:09 #847949

  • 750 R1
  • 750 R1's Avatar
  • Offline
  • User
  • Posts: 1215
  • Thank you received: 394

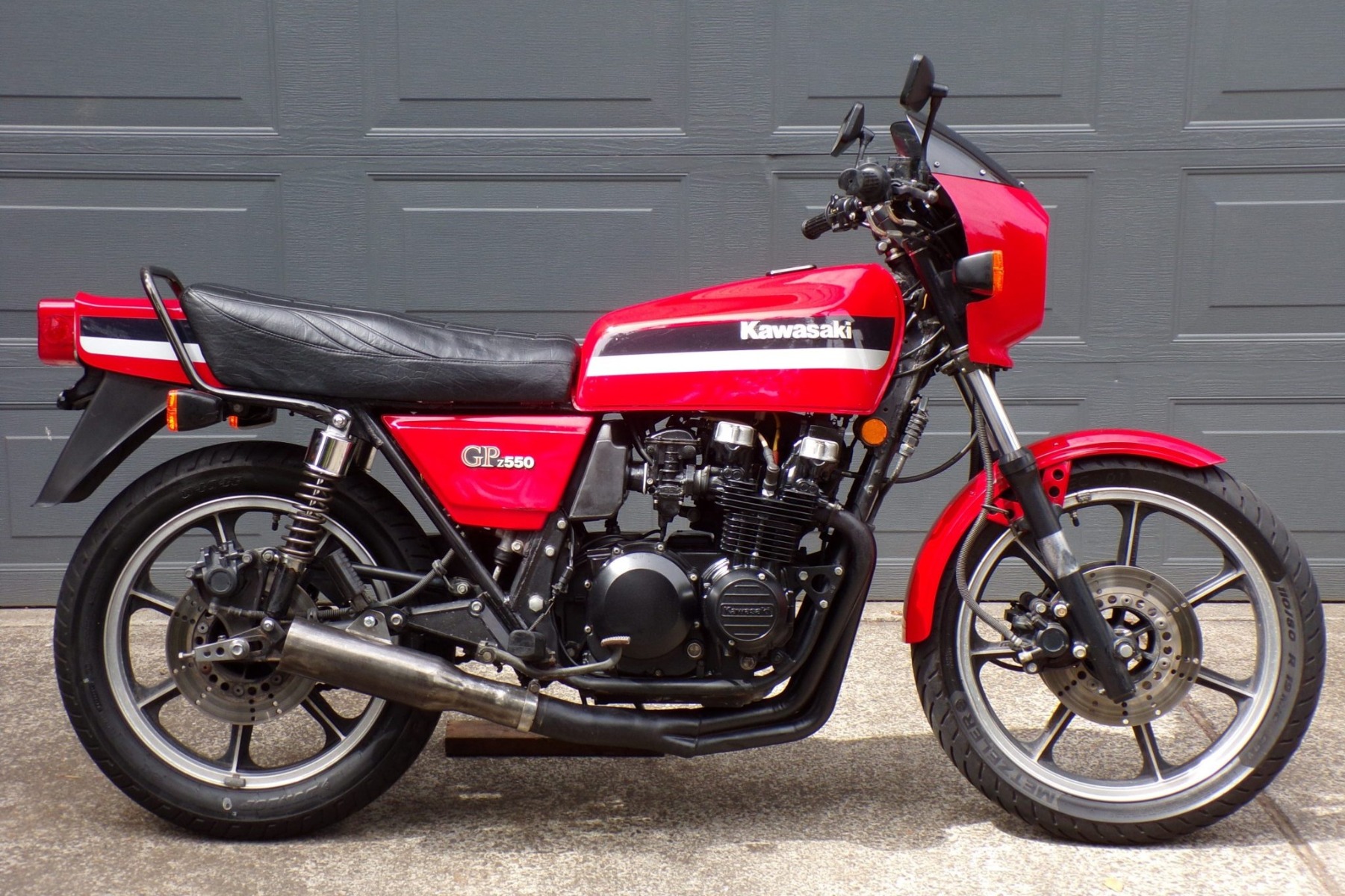

Wow, that engine is small, imagine putting that in something like a 1981 GPZ550...!!!!


Attachments:

Please Log in or Create an account to join the conversation.

82 kz1000 ground up build 08 Nov 2021 07:02 #857646

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3093
  • Thank you received: 1720
Nice project, you may want to consider setting the motor further back. I know someone who had an early GSXR1100 motor in a Harris that was built for a Z1000 motor. The front sprocket is so far ahead of the swing arm pivot that you will need to run the chain loose to avoid the suspension movement being affected as the swing arm goes past level (the longest point)

Please Log in or Create an account to join the conversation.

82 kz1000 ground up build 08 Dec 2021 12:16 #858822

  • jowek70
  • jowek70's Avatar Topic Author
  • Offline
  • User
  • Posts: 142
  • Thank you received: 23

Nice project, you may want to consider setting the motor further back. I know someone who had an early GSXR1100 motor in a Harris that was built for a Z1000 motor. The front sprocket is so far ahead of the swing arm pivot that you will need to run the chain loose to avoid the suspension movement being affected as the swing arm goes past level (the longest point)


Motor is simply laying in the frame in these photos.  I have to get the mounts made up which will lift it into a much better position.  Winter project for my friend with a 3d printer to help me out before I have the mounts made out of steel and welded to the frame.

Please Log in or Create an account to join the conversation.

Last edit: by jowek70.

82 kz1000 ground up build 08 Dec 2021 12:23 #858824

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3093
  • Thank you received: 1720
No worries, just thought I'd mention it as my friend broke a couple of chains before settling on running the chain loose (he had spent a lot on money on mounts, exhaust header etc by then) be lucky
The following user(s) said Thank You: jowek70

Please Log in or Create an account to join the conversation.

82 kz1000 ground up build 19 Jan 2022 13:06 #860759

  • jowek70
  • jowek70's Avatar Topic Author
  • Offline
  • User
  • Posts: 142
  • Thank you received: 23
Trying to find the place i purchased the offset front sprocket for the 77 kz1000 i built a couple years ago; was 5/8" offset 17t 520 pitch....apperantely the last one on earth!  In the meantime i have decided to go with nardo gray paint on the body work, satin black frame/wheels/hard parts and either blue or purple or green accent color (nuts/bolts/brake lines/etc).  Designing engine mounts this weekend to get 3D printed and mock up next week.  Going to run motoscope gauges that i'll have machined into the upper triple tree, bar end turn signals, pod filters/PC3 with a dyno tune, reproduction seat (the one i got from ebay seller from vietnam on the 77 kz i built was excellent) and i want to find a titanium header and mate it with an underbody muffler like on the ninja 650.  Lots of custom parts to go, rearsets, hangers, brackets, etc, but its winter in Wisconsin so i have plenty of time; ideally i want to be riding by Fall 2022.  Will update as things progress.
The following user(s) said Thank You: Skidmark

Please Log in or Create an account to join the conversation.

82 kz1000 ground up build 15 Dec 2022 10:28 #877845

  • jowek70
  • jowek70's Avatar Topic Author
  • Offline
  • User
  • Posts: 142
  • Thank you received: 23
Few more things done, lots of parts added to wish list....
slow going but getting closer.

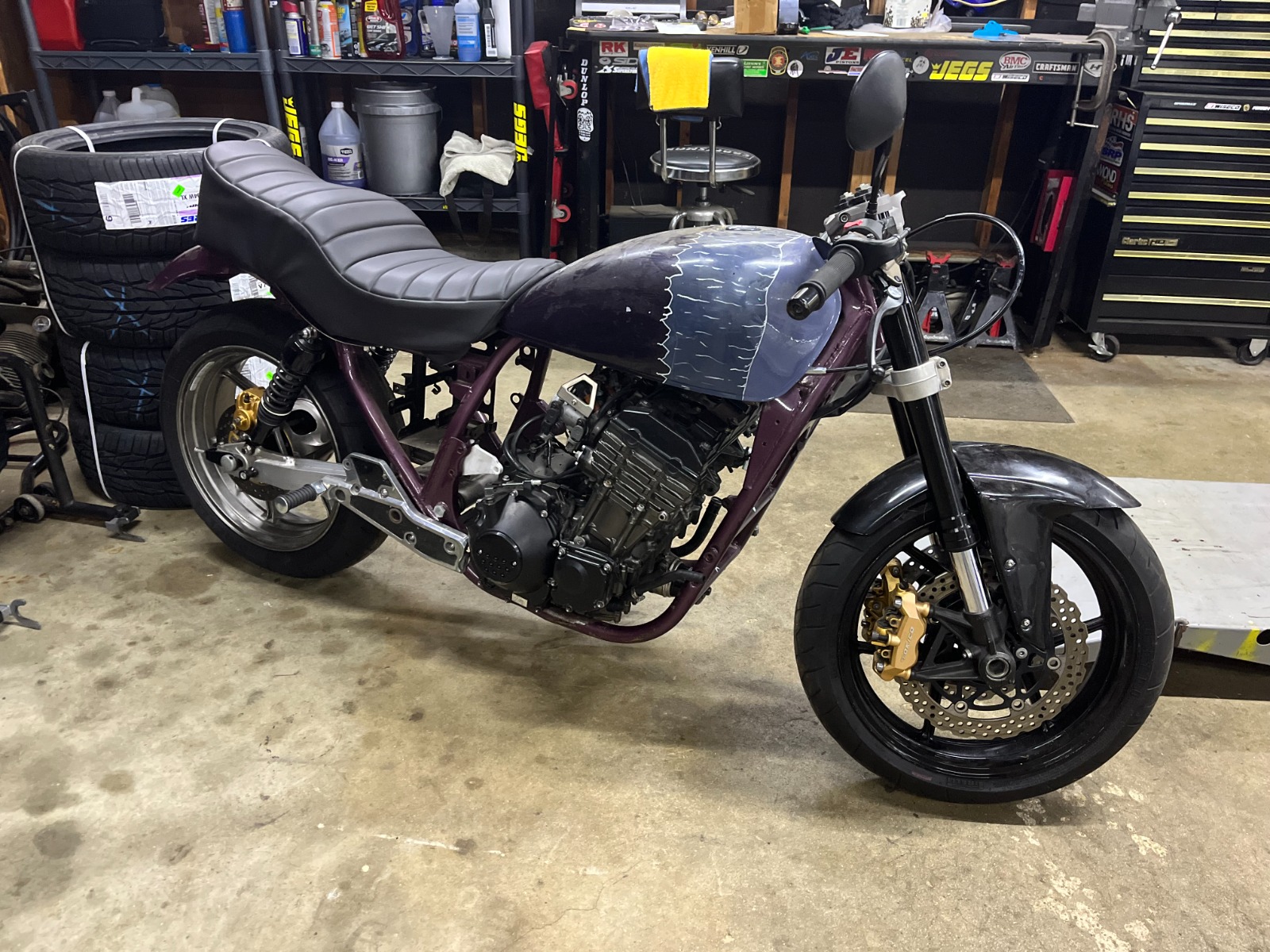

This is how the bike sits now, everything will be different aside from the general look.
Attachments:
The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.

Last edit: by Street Fighter LTD.

82 kz1000 ground up build 05 Aug 2023 18:29 #887988

  • jowek70
  • jowek70's Avatar Topic Author
  • Offline
  • User
  • Posts: 142
  • Thank you received: 23

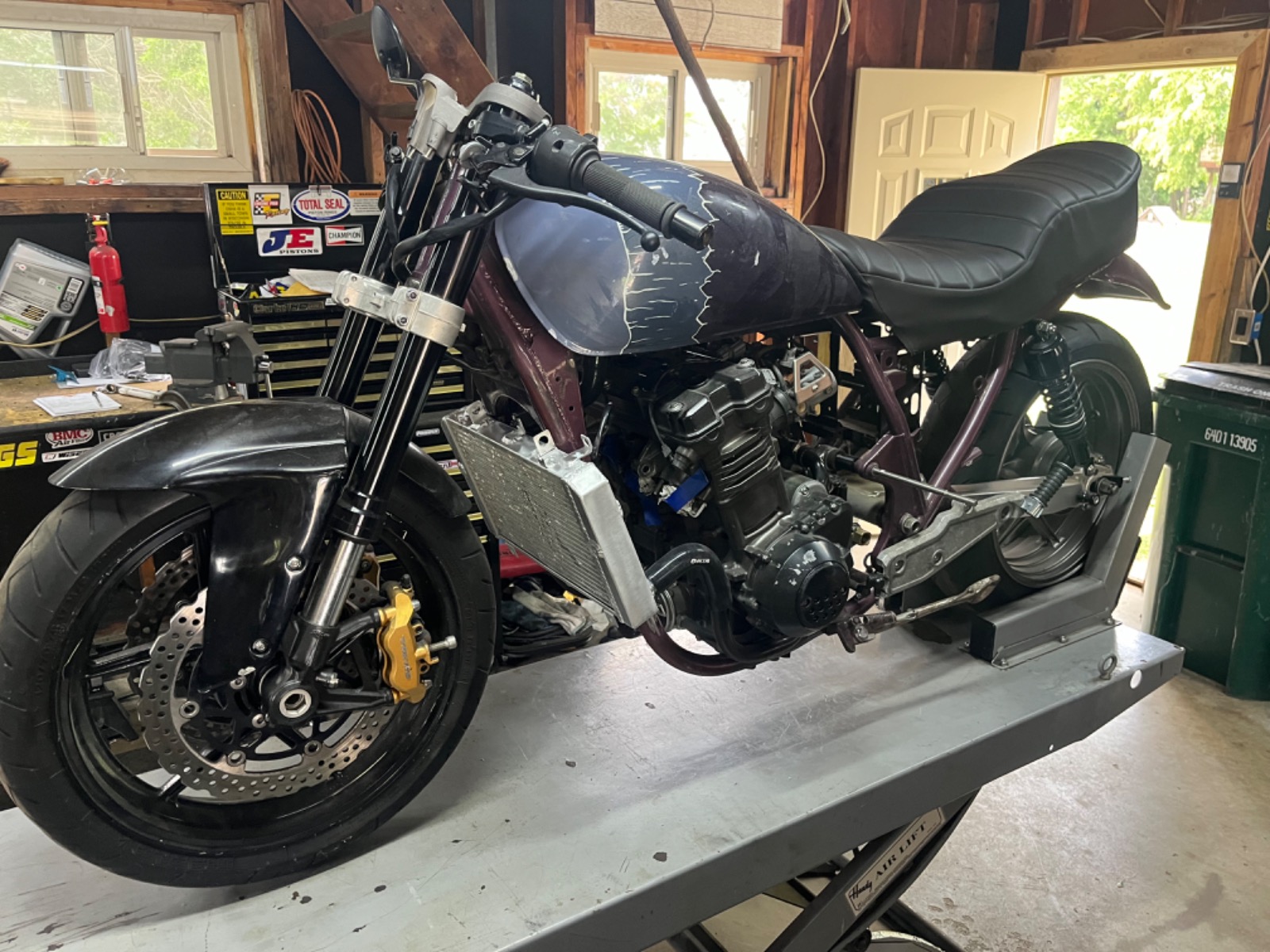

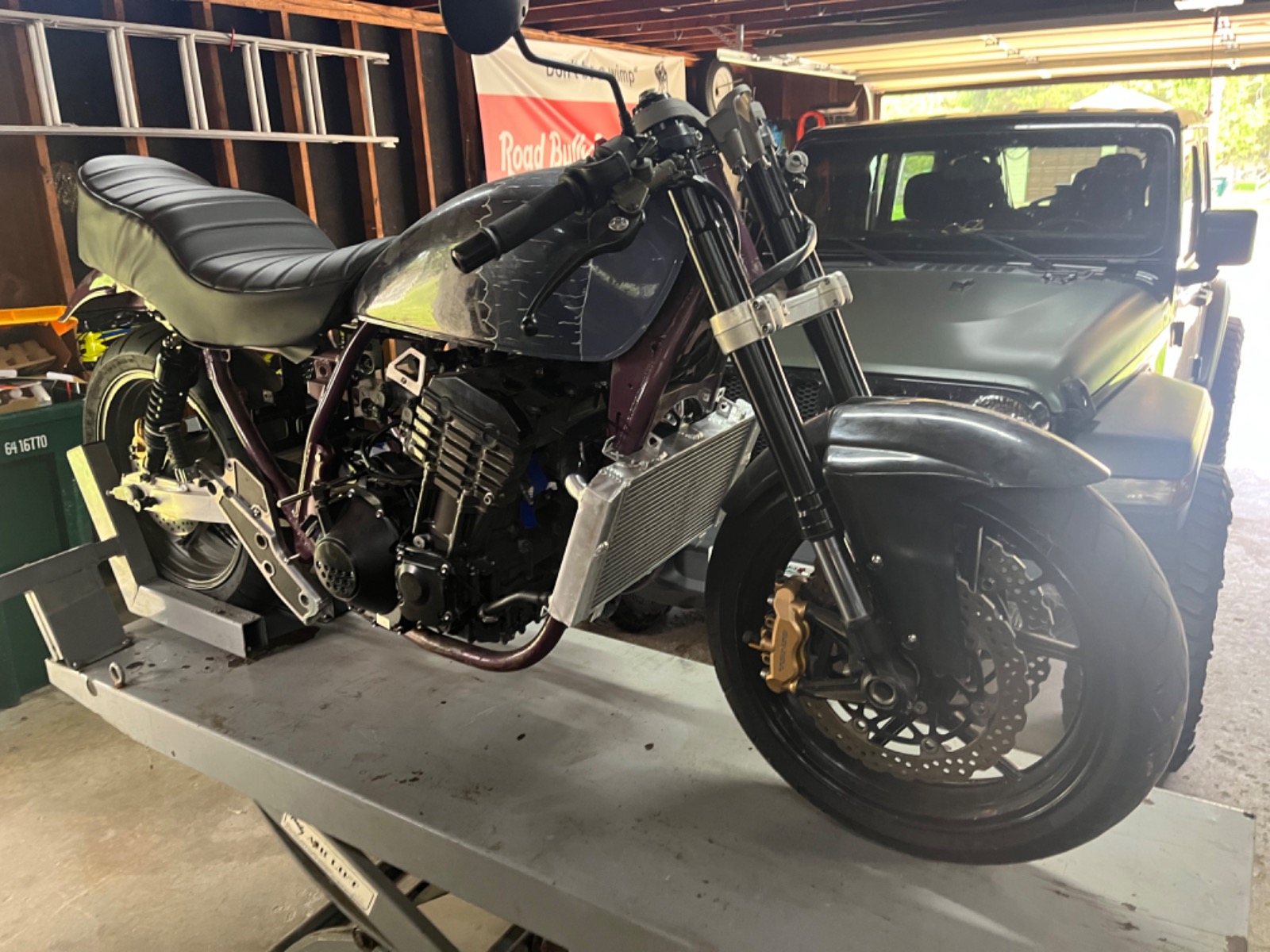

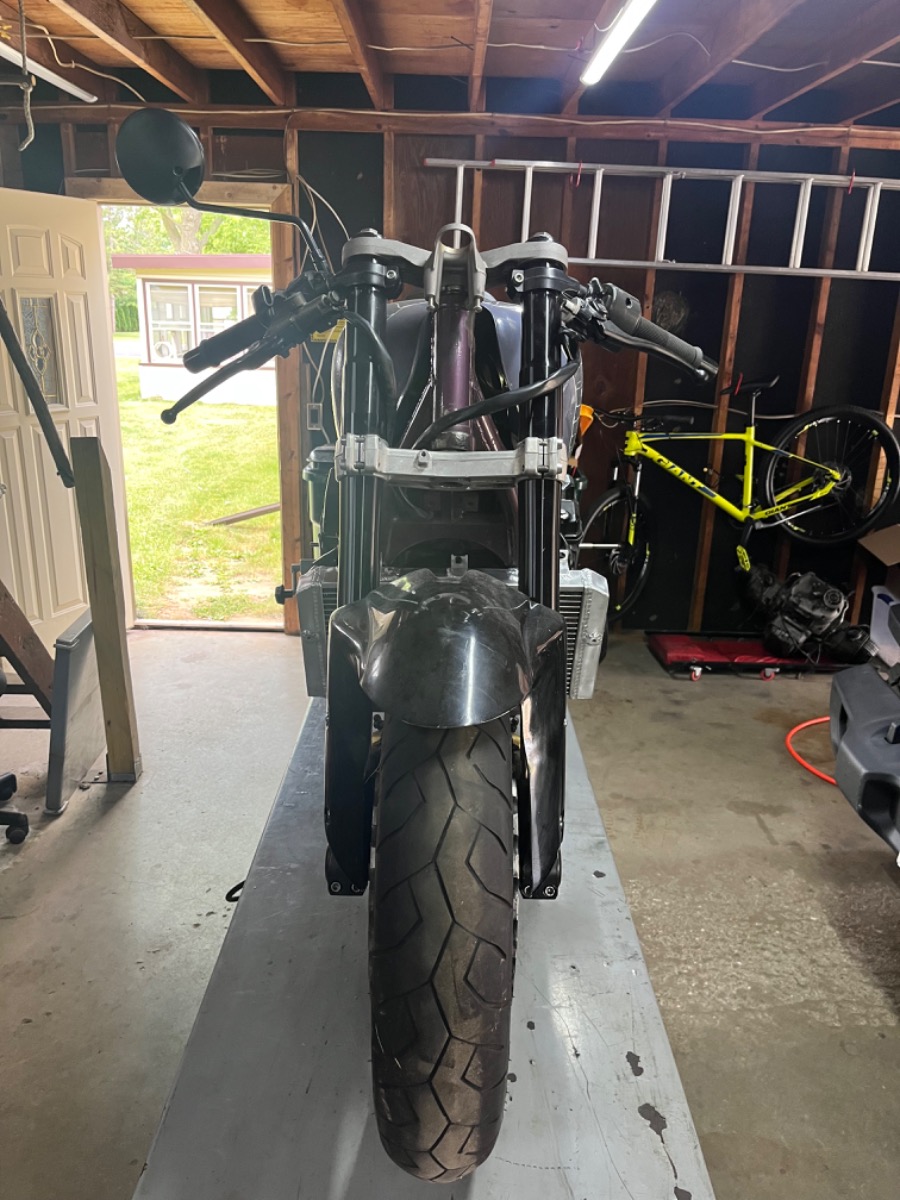

Engine and radiator mock up.
ready to weld on the real stuff now
Attachments:
The following user(s) said Thank You: sf4t7, Wookie58

Please Log in or Create an account to join the conversation.

82 kz1000 ground up build 06 Oct 2023 12:01 #890157

  • jowek70
  • jowek70's Avatar Topic Author
  • Offline
  • User
  • Posts: 142
  • Thank you received: 23
Lots going on with the build; will try to update with pics soon.

Please Log in or Create an account to join the conversation.

82 kz1000 ground up build 16 Oct 2023 11:17 #890548

  • jowek70
  • jowek70's Avatar Topic Author
  • Offline
  • User
  • Posts: 142
  • Thank you received: 23
Engine mounts getting welded onto the frame Thursday; dropping off bodywork for paint Thursday; parts going to powder coat today.  Have to modify the radiator a bit, get the header sorted out and then wait for everything to show up from powder/paint.
Gotta wait til after the holidays to order the remainder of the parts needed; chainline, seat, headlight and a few odds and ends.


Please Log in or Create an account to join the conversation.
