Neighbourdave's Z1-R resto

neighbourdave
Topic Author
Offline
User

31 Mar 2015 09:52 - 31 Mar 2015 09:53 #665923 by neighbourdave

The engine is now all apart and I have two questions.

Attachment IMG_20150329_134719.jpg not found

The odometer showed 44000km. Should the cam chain and idler gears be replaced?
The insides look rather clean. I have yet to measure up the pistons and bores.

And, upon reassembly, is the kickstart spring inserted after the cases are back together? I can't see how to keep the spring locating tab in its groove as the cases are joined.

Thanks

1998 Concours
1978 Z1-R
1975 H2C
1974 H1E
1973 S2A

Attachments:

Last edit: 31 Mar 2015 09:53 by neighbourdave.

Please Log in or Create an account to join the conversation.

neighbourdave
Topic Author
Offline
User

31 Mar 2015 11:28 - 31 Mar 2015 11:29 #665935 by neighbourdave

OK, what am I doing wrong?

Attachment IMG_20150330_170406.jpg not found

Attachment IMG_20150331_134850.jpg not found

I can not believe the chain has stretched 0.300" over 6".
I remember reading something about link measurement somewhere here recently, but I can not find it again.

1998 Concours
1978 Z1-R
1975 H2C
1974 H1E
1973 S2A

Attachments:

Last edit: 31 Mar 2015 11:29 by neighbourdave.

Please Log in or Create an account to join the conversation.

650ed
Offline
User

31 Mar 2015 12:09 #665942 by 650ed

It looks like the chain has not stretched at all. Your calipers show 6.20" and the right hand leg of the calipers looks like may actually be a little past the 20th pin. The service limit shown in your book is 6.21", so your chain looks like it is well within the service limit. Ed

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

neighbourdave
Topic Author
Offline
User

31 Mar 2015 12:29 #665944 by neighbourdave

650ed wrote: It looks like the chain has not stretched at all. Your calipers show 6.20" and the right hand leg of the calipers looks like may actually be a little past the 20th pin. The service limit shown in your book is 6.21", so your chain looks like it is well within the service limit. Ed

I would count the right hand leg of the calipers to be on the 21st pin.
I guess that is my error.
Thanks

1998 Concours
1978 Z1-R
1975 H2C
1974 H1E
1973 S2A

Please Log in or Create an account to join the conversation.

650ed
Offline
User

31 Mar 2015 12:39 #665947 by 650ed

I think Kawasaki does not count the pin on the left as pin #1. Here's a picture form the KZ650 Kawasaki Service Manual that shows the pin count. Ed

Attachment 00003a-5.jpg not found

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Attachments:

Please Log in or Create an account to join the conversation.

Kawboy74
Offline
User

05 Apr 2015 06:24 #666617 by Kawboy74

Hi Dave Hang some weight on it for a better measurement and try using the vernier from the edge of the link to the edge of spaced link as it is easier to hook it over for an accurate reading.
Good luck. David

1974 Z1A As original as I could get it
'88 ZX750R braided lines, mostly original
KZ1000 project on the bench
Burlington,Ontario,Canada

Please Log in or Create an account to join the conversation.

neighbourdave
Topic Author
Offline
User

21 Apr 2015 09:46 #669002 by neighbourdave

I have the cases back together now.

Attachment IMG_20150411_133315.jpg not found

Attachment IMG_20150411_170523.jpg not found

Attachment IMG_20150411_170534.jpg not found

And I bought some of the SS caliper bolts from Webike. They are quite nice.

Attachment IMG_20150410_155658.jpg not found

1998 Concours
1978 Z1-R
1975 H2C
1974 H1E
1973 S2A

Attachments:

Please Log in or Create an account to join the conversation.

neighbourdave
Topic Author
Offline
User

04 Feb 2016 07:05 - 04 Feb 2016 07:09 #709347 by neighbourdave

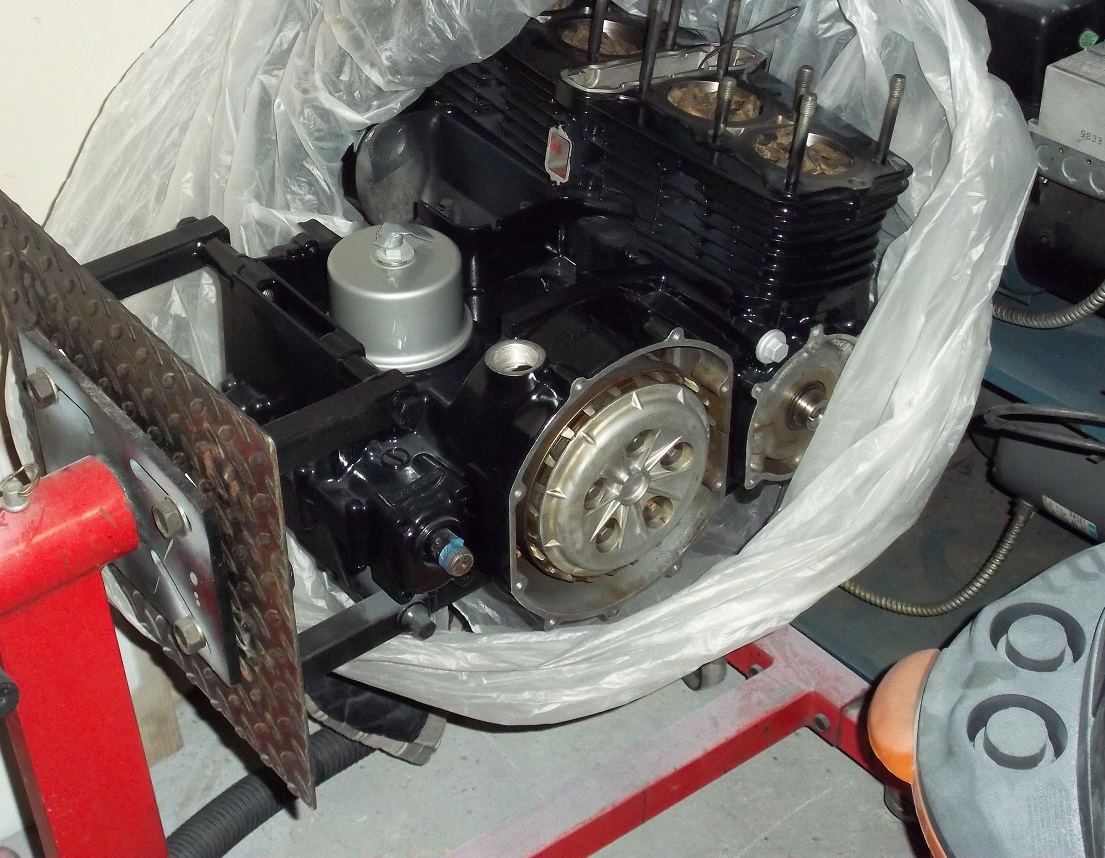

It has been a long time coming but the engine is now back in.

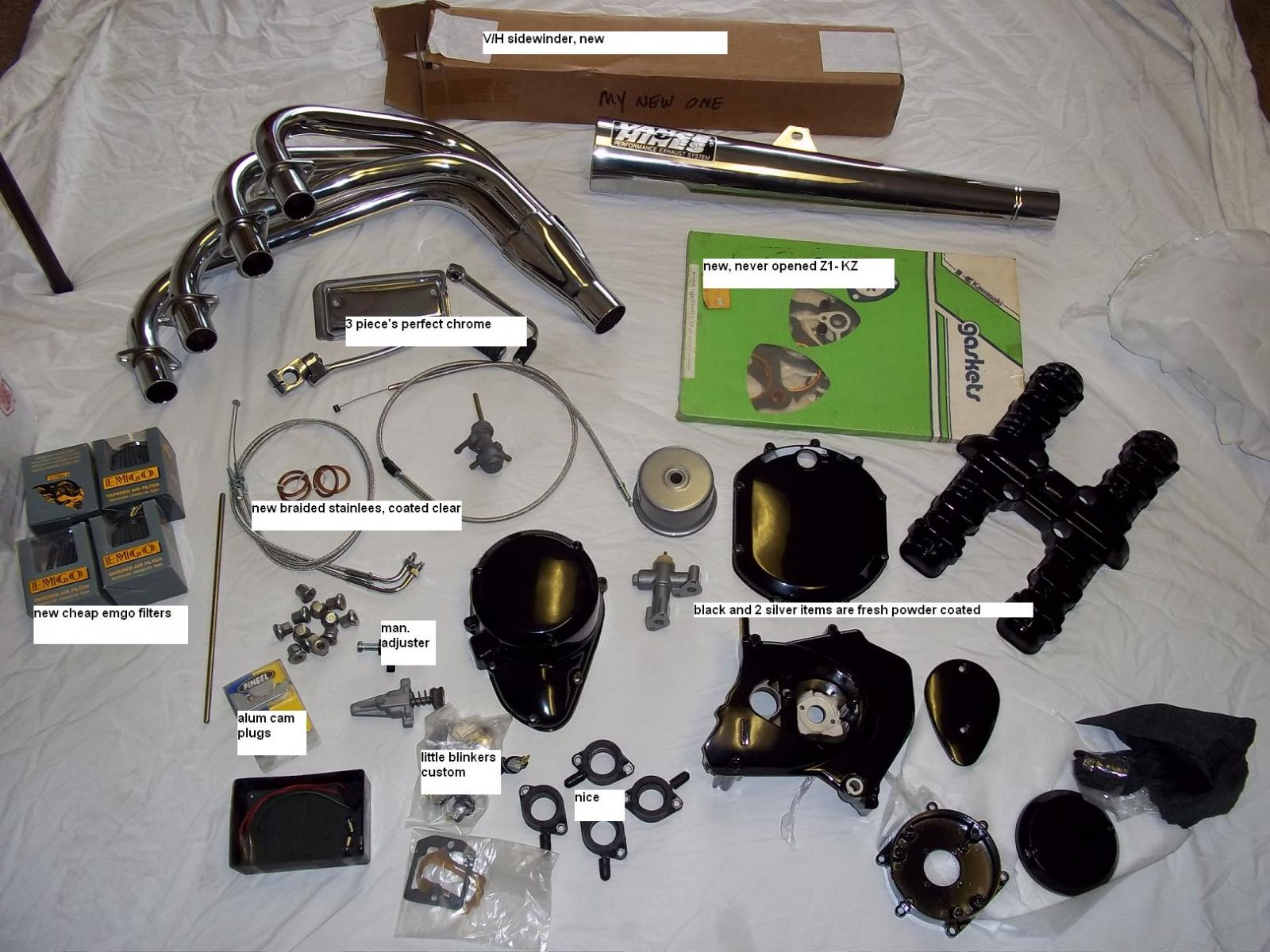

I bought the points cover and base from Kawasaki. The finish on them is like a brushed finish.
Is that correct for a Z1-R?
Also, has anyone bought the repo covers from Z1 Enterprises? What kind of finish do they have?

1998 Concours
1978 Z1-R
1975 H2C
1974 H1E
1973 S2A

Last edit: 04 Feb 2016 07:09 by neighbourdave.

Please Log in or Create an account to join the conversation.

z1kzonly
Offline
User
Sustaining Member

04 Feb 2016 11:05 #709379 by z1kzonly

Very nice work! That is a thing of beauty! "Art" to look and stare at! I have to ask? Are you going to sand the fins to bare aluminum?
I have a gloss black engine also, nothing stock or original. I powder coated all the engine covers and am using polished SS hardware.
I better finish this thing, before I kick the bucket. And my kids sell it all at an estate sale for $100 for all the motorcycle junk! :ohmy:

Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!

Attachments:

Please Log in or Create an account to join the conversation.

Dr. Gamma
Offline
Sustaining Member

04 Feb 2016 12:22 #709388 by Dr. Gamma

Kawasaki stopped producing that gasket kit in that green package sometime around 1981 or so. Do yourself a favor, and make sure the gaskets in that kit are not hard and brittle. Those gaskets are like 35 odd years old already. Most likely they must be like house bricks by now.

I worked in Kawasaki dealerships back then, and I remember when they closed out those gasket kits in the early 80's!!!!

1972 H2 750 Cafe Racer built in 1974.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!

Up in the hills near Prescott, Az.

Please Log in or Create an account to join the conversation.

neighbourdave
Topic Author
Offline
User

08 Feb 2016 07:26 #709962 by neighbourdave

z1kzonly wrote: Very nice work! That is a thing of beauty! "Art" to look and stare at! I have to ask? Are you going to sand the fins to bare aluminum?
I have a gloss black engine also, nothing stock or original. I powder coated all the engine covers and am using polished SS hardware.
I better finish this thing, before I kick the bucket. And my kids sell it all at an estate sale for $100 for all the motorcycle junk! :ohmy:

Yes, I do plan on sanding the fins.

1998 Concours
1978 Z1-R
1975 H2C
1974 H1E
1973 S2A

Please Log in or Create an account to join the conversation.

neighbourdave
Topic Author
Offline
User

19 Feb 2016 07:38 #711455 by neighbourdave

Does anyone know what the resistors in the lighting circuit are for?
Is Kawasaki trying to reduce the voltage to the lamps?
From 12 V at the battery, I have 9 V at the headlight and tail light.
I have measured all the switches in the system and non of them have a high resistance.
I have tried bypassing the Reserve Lighting System and end up with the same voltage drop.
Am I trouble shooting a non issue?

1998 Concours
1978 Z1-R
1975 H2C
1974 H1E
1973 S2A

Please Log in or Create an account to join the conversation.
