1100fighters build thread
- 1100fighter
- Topic Author
- Offline
- User
Kz1100 wire --- Koso wire
Brown --- brown 12+ ignition
Black/yellow --- Black Ground
white/blue --- Red 12+ battery +
dark grn --- Orange left turn
yellow --- Red/black High beam
Blue --- grey right turn
Light green --- Light Blue Neutral indicator
green --- white/yellow fuel
Grey --- Blue/red oil pressure
coil+ --- tach wire lead
The speedo works of a sensor and a magnet that goes into the center of a rotor bolt, very easy hook up. I cut the factory plugs off my stock gauges so I could solder all the connections and plug it in inside the headlight.
Attachment koso1-1774.jpg not found
Attachment koso2-1273.jpg not found
Attachment koso3-1439.jpg not found
Throttle junkie since 5
Please Log in or Create an account to join the conversation.
- mark1122
- Offline
- User
- Keep twisting it
- Posts: 5359
- Thank you received: 109
the spacing # i gave u for the zrx shock top mount, should be close. i got that # from a member who has a ZRX. i can get u the bottom mount distance off my arm if u need it.
76 KZ, frame gusset work,1200CC.Ported by Larry Cavanaugh, 1.5mm.over intakes, Carron Pipe, ZRX12 rear end, and seat,96zx9 front end.
01 CBR600F4i Track bike.
Cobourg, Ont. Can.
~ ~ ~_@
~ ~ _- \,
~ (k) / (z)
Please Log in or Create an account to join the conversation.
- 1100fighter
- Topic Author
- Offline
- User
- Posts: 47
- Thank you received: 3
Throttle junkie since 5
Please Log in or Create an account to join the conversation.
- mark1122
- Offline
- User
- Keep twisting it
- Posts: 5359
- Thank you received: 109
i am still waiting for fittings to tie in my new thermostat. so i am running without a cooler. i was surprised to hit 230*f the other day . it was about 24*c/75*f out side and i was just cruising around at about 60mph.
good thing i run synthetic oil.
76 KZ, frame gusset work,1200CC.Ported by Larry Cavanaugh, 1.5mm.over intakes, Carron Pipe, ZRX12 rear end, and seat,96zx9 front end.
01 CBR600F4i Track bike.
Cobourg, Ont. Can.
~ ~ ~_@
~ ~ _- \,
~ (k) / (z)
Please Log in or Create an account to join the conversation.
- mark1122
- Offline
- User
- Keep twisting it
- Posts: 5359
- Thank you received: 109
From the swing arm pivot bolt, back, to the bottom shock mount , its 17".
From the swing arm pivot bolt, up, to the top shock mount , its 15 5/8".
Hope that helps
76 KZ, frame gusset work,1200CC.Ported by Larry Cavanaugh, 1.5mm.over intakes, Carron Pipe, ZRX12 rear end, and seat,96zx9 front end.
01 CBR600F4i Track bike.
Cobourg, Ont. Can.
~ ~ ~_@
~ ~ _- \,
~ (k) / (z)
Please Log in or Create an account to join the conversation.
- 531blackbanshee
- Offline
- Vendor
- Posts: 7447
- Thank you received: 797
boyracer wrote: Nice Project.
With the Sanctuary Z have they holesawed the frame/brace and inserted the machined plug and welded both sides? To me that sounds correct.
yessir that is correct.

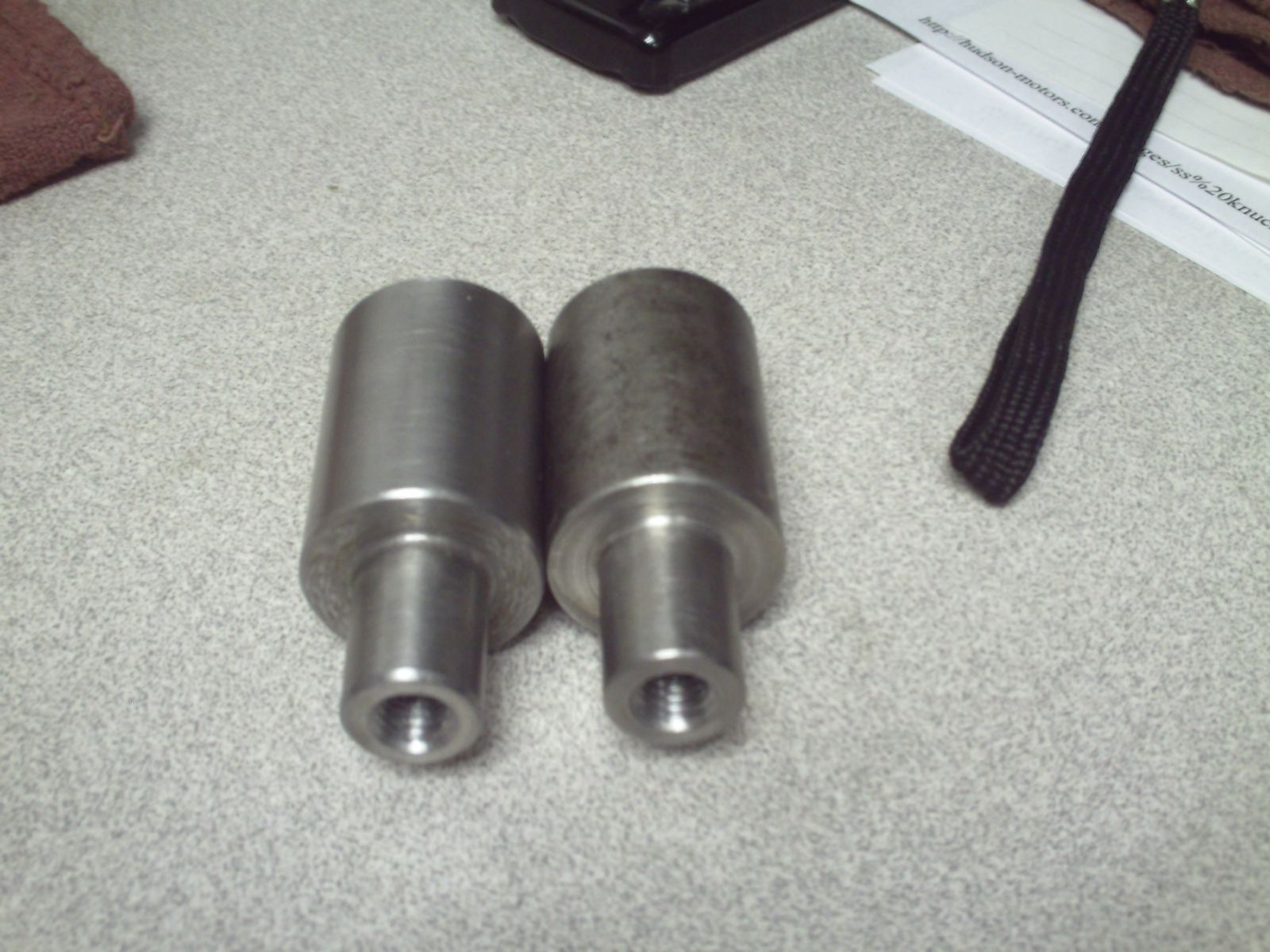

here is a shot of some before they get welded in.

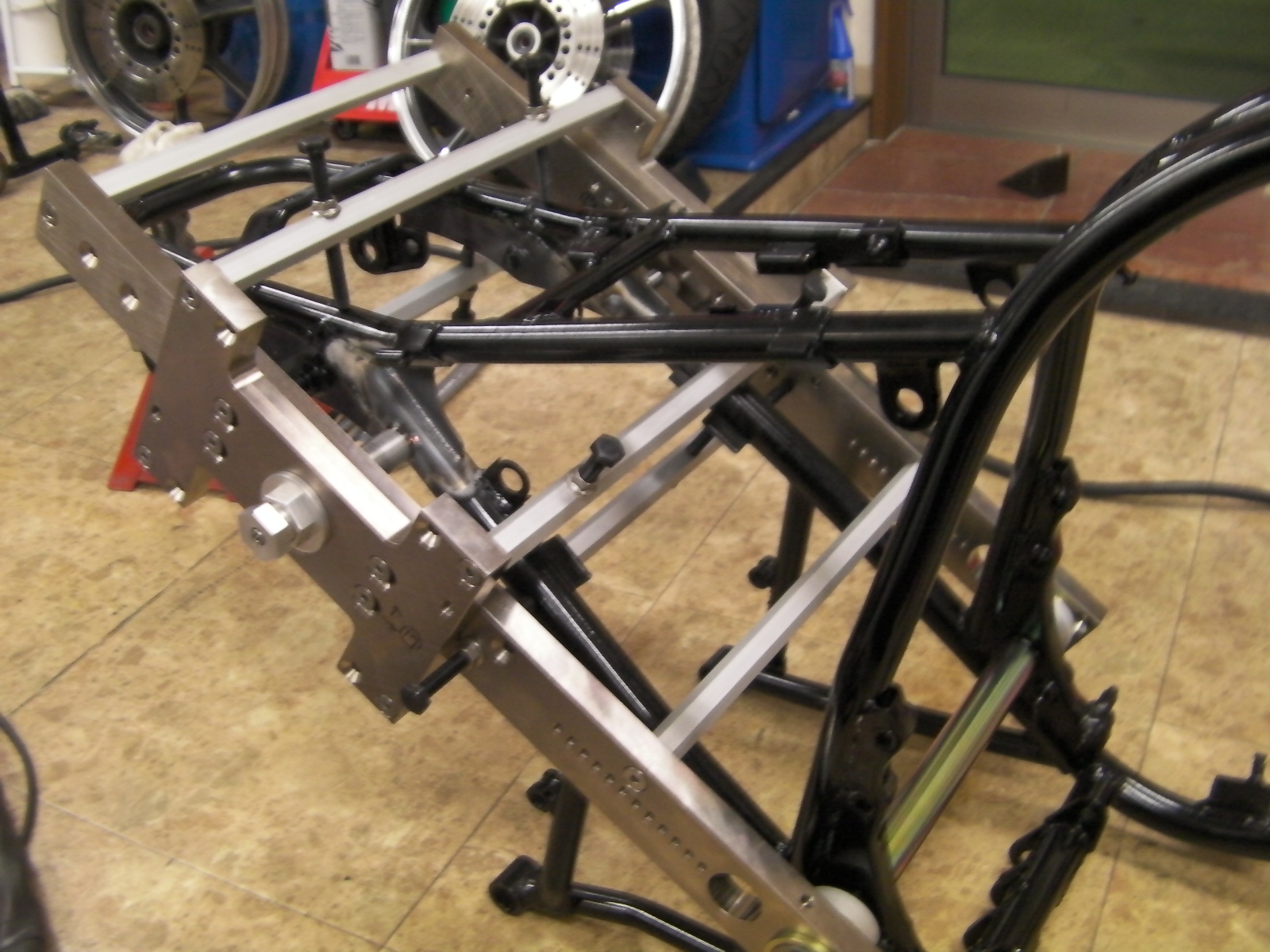

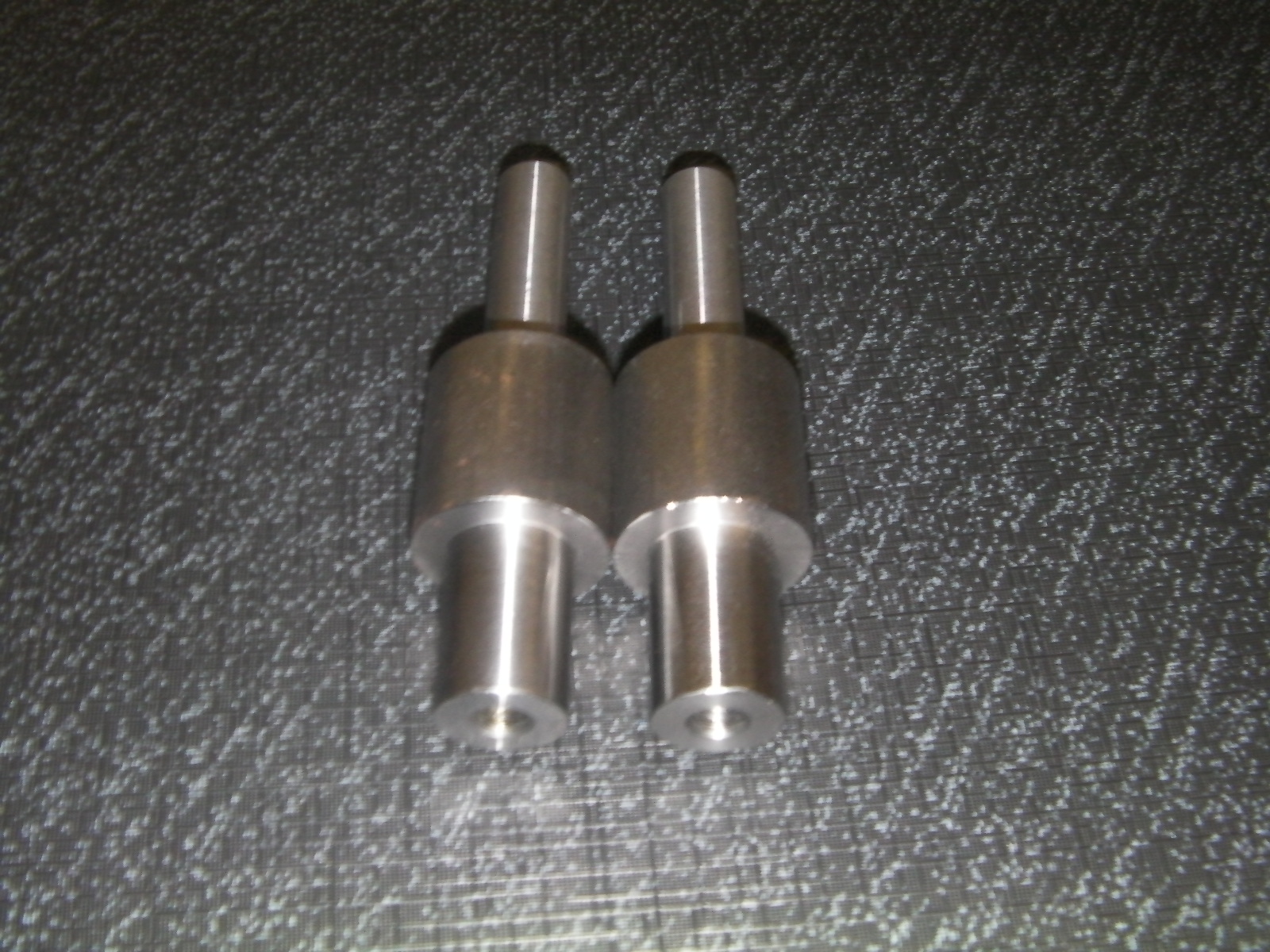

and they use this jig to make sure everything is right.
