TOPIC: Front brake reassemble help

Front brake reassemble help 11 Feb 2019 08:09 #798479

  • Bama704
  • Bama704's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 114
  • Thank you received: 8
I have a 77 kz900 that I am rebuilding the front caliper on. I can not get it back together for the life of me. I have tried assembling it with the piston fully seated (using c-clamp) but the caliper holder cant be put in when I do it this way. Can somebody shed some light. Also attaching a picture of my piston. Is this normal? Also should I get a new one since it is slightly pitted? I cant find any new ones online.
1977 KZ900
Carbs are late model 1975 28mm
Attachments:

Please Log in or Create an account to join the conversation.

Front brake reassemble help 11 Feb 2019 09:38 #798485

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 385
  • Thank you received: 104
You can buy new pistons from Z1E. Yours is pitted on the outside and I would trash it.

There should be an O ring inside the cylinder. Remove it and make extra efforts to ensure there is no dirt in the O ring groove. It should be absolutely clean before replacing the O ring. Before inserting the piston you should make sure both holes into the back of the cylinder are clean. Blow air into them from the outside.

Once the piston is back in place you can replace the dust cover and the steel ring holding it.

When installing the caliper on the wheel I put it over the brake disc, using a screw driver to hold the pads apart. Once on the disc I move it into place to be bolted down but I install the brake line first...then bolt the caliper in place. I find it easier to install the brake line if there is some play on the caliper.
I ride Z1's. I have a couple of '75's, plus an '80 KZ1000LTD. My lovely Sweetums rids a 1981 KZ550.

Please Log in or Create an account to join the conversation.

Front brake reassemble help 11 Feb 2019 11:27 #798486

  • Bama704
  • Bama704's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 114
  • Thank you received: 8
I will give z1 a call to get a piston ordered up.

Am hoping a new piston helps with my issue of not being able to assemble.
1977 KZ900
Carbs are late model 1975 28mm

Please Log in or Create an account to join the conversation.

Front brake reassemble help 11 Feb 2019 12:23 #798489

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 18344
  • Thank you received: 1634
The caliper floats on the bracket. Take the two bolts off and clean them as well. Replace the O rings.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

Front brake reassemble help 11 Feb 2019 12:27 #798490

  • Bama704
  • Bama704's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 114
  • Thank you received: 8
Everything has been taken apart and thoroughly cleaned. Got the caliper rebuild kit which has all new rubber and o rings.
1977 KZ900
Carbs are late model 1975 28mm

Please Log in or Create an account to join the conversation.

Front brake reassemble help 11 Feb 2019 15:14 #798494

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 385
  • Thank you received: 104
The sequence I described in my last post wasn't correct. After installing the piston, next is the metal ring. Place on the outside edge of the cylinder and tap it lightly, but not all the way into the cylinder. Then install the dust cover and then tap the metal ring all the way into the cylinder.

Attached photo is a Z1 brake with piston installed. It's not identical to yours but it should be similar.

The most common cause of the piston not fitting into the cylinder is dirt behind the O ring in the cylinder. When I rebuild them I use a pic to scrape around the edges to remove any dirt. The other thing that can build up there is dried brake fluid that needs to be removed. It's not easy to get in there but a few minutes with a pic and a toothbrush will do the trick.

I ride Z1's. I have a couple of '75's, plus an '80 KZ1000LTD. My lovely Sweetums rids a 1981 KZ550.
Attachments:

Please Log in or Create an account to join the conversation.

Front brake reassemble help 12 Feb 2019 10:05 #798542

  • Bama704
  • Bama704's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 114
  • Thank you received: 8
I wish my caliper would split instead of being cast, that would make this easier.
Since my piston is pitted I will be ordering a new one, but Z1enterprises does not carry the piston I need. The only company who has any is HVCcycle. Has anybody heard of them or had any experience dealing with them? hvccycle.net/kawasaki-brake-caliper-piston-43048-006/
1977 KZ900
Carbs are late model 1975 28mm

Please Log in or Create an account to join the conversation.

Front brake reassemble help 12 Feb 2019 10:14 #798543

  • 650ed
  • 650ed's Avatar
  • Offline
  • Member
  • Member
  • Posts: 14259
  • Thank you received: 2385

Bama704 wrote: ......... The only company who has any is HVCcycle. Has anybody heard of them or had any experience dealing with them?


I bought from HVCcycle several years ago, and I was very pleased with their service and prices. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

Front brake reassemble help 24 Mar 2019 08:19 #800957

  • Bama704
  • Bama704's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 114
  • Thank you received: 8
Still working on this damn caliper. I can get the hanger bracket mounted in one direction no problem, except for it's in the wrong position. My caliper is in front of the fork tubes, so when I try to install the hanger bracket in the correct orientation, it is impossible to install. I am extremely frustrated. Any tips on this?
1977 KZ900
Carbs are late model 1975 28mm

Please Log in or Create an account to join the conversation.

Front brake reassemble help 25 Mar 2019 07:48 #801006

  • Bama704
  • Bama704's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 114
  • Thank you received: 8

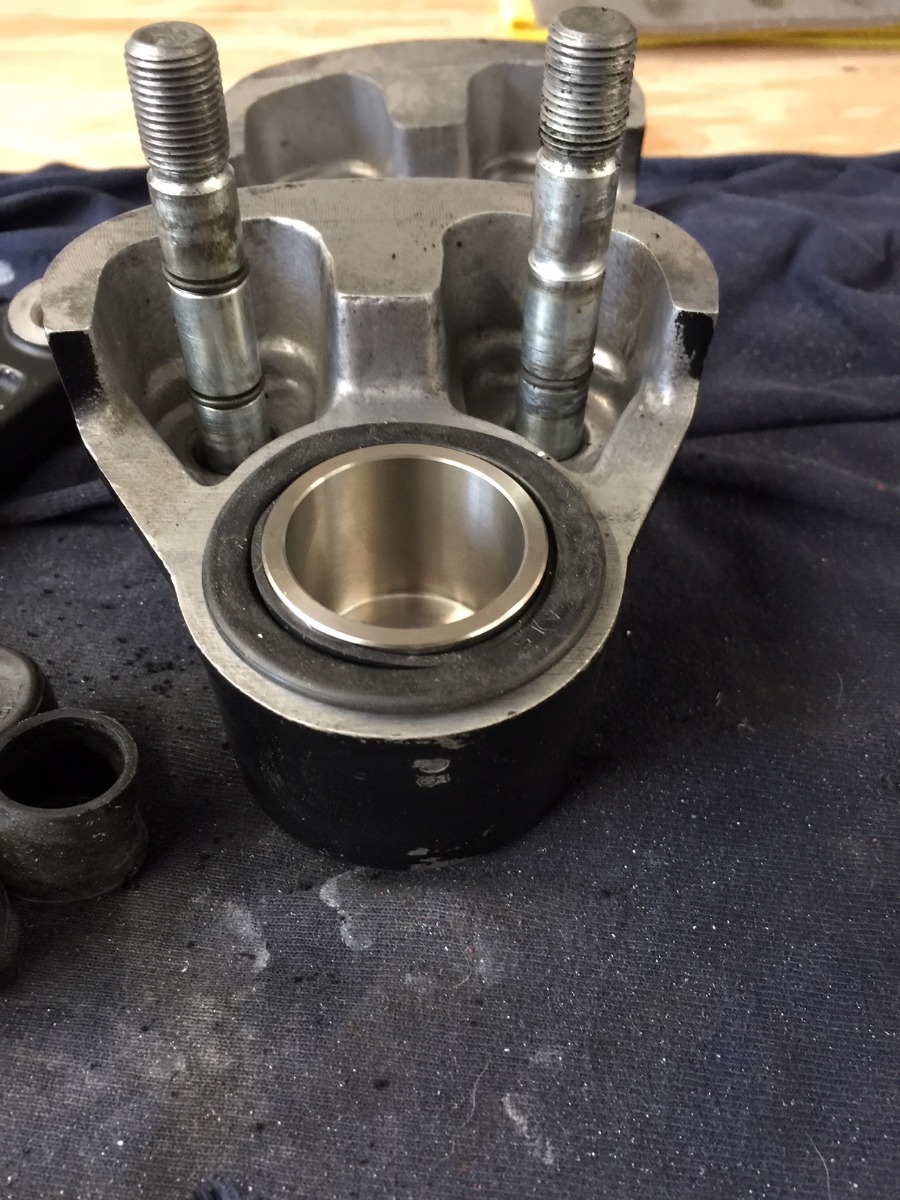

Pics hopefully to get somebody to have any ideas for me. Piston is fully seated.

1977 KZ900
Carbs are late model 1975 28mm
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Bama704.

Front brake reassemble help 25 Mar 2019 10:32 #801015

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • Member
  • Member
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 466
  • Thank you received: 205
Is the height of the new piston identical to that of the old piston?

This may be a dumb question; is the pad opening in the carrier large enough for the piston to pass through?

Can it be assembled if the carrier is placed in the caliper first, then the piston inserted through the back of the caliper, & through the carrier, then into the bore?

Good Ridin'
slmjim
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1973 Z1 x2
1973 Z1 "The Wounded Z" Resto project
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

Please Log in or Create an account to join the conversation.

Front brake reassemble help 25 Mar 2019 11:48 #801019

  • Bama704
  • Bama704's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 114
  • Thank you received: 8
It is the same height as old piston.

Also, not a dumb question. The piston will not fit through the opening, I have tried this about 20 different times all with the same result of me cussing of why it can't work.
1977 KZ900
Carbs are late model 1975 28mm

Please Log in or Create an account to join the conversation.

Front brake reassemble help 25 Mar 2019 12:49 #801025

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • Member
  • Member
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 466
  • Thank you received: 205
Well..., our experience is only on Z1's, so might not be able to help.

Only other suggestion we have is:
Will the small end of the piston fit into the pad opening of the carrier up to the shoulder of the piston, such that the piston and carrier could be inserted into the caliper as a loose "assembly", then inserting the piston in it's bore with the carrier in place? Other than that we got nuthin'.

We're assuming you disassembled it yourself? Perhaps a FSM would be of help.

BTW, there were no KZ900's in '77 AFAIK. '77's were KZ1000's.

EDIT: Just looked at the KZ1000 FSM. Should be the same caliper. It looks like things just go together the way you're going at it. Only other idea would be to check the bore of the caliper to make sure nothing is obstructing the ability of the piston to seat completely to the bottom of the bore. Remove the caliper's piston seal (not the outer dust cover) & make sure the piston bottoms completely in the bore.

Good luck & let us know what the solution is when you find it.

Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1973 Z1 x2
1973 Z1 "The Wounded Z" Resto project
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

Please Log in or Create an account to join the conversation.

Last edit: by slmjim+Z1BEBE.

Front brake reassemble help 25 Mar 2019 16:08 #801041

  • DOHC
  • DOHC's Avatar
  • Away
  • Sustaining Member
  • Sustaining Member
  • Those DOHCs really go!
  • Posts: 301
  • Thank you received: 91
It's been a few years since I rebuilt one of those, but have you tried sliding the bracket into the body with the boots off to one side of the body, and then rotating the bracket so the boots slide behind the piston, instead of trying to push the boots over the top of the piston?
'78 Z1-R in blue, '78 Z1-R in black, '78 Z1-R in pieces
'95 GPZ1100

Please Log in or Create an account to join the conversation.

Last edit: by DOHC.

Front brake reassemble help 25 Mar 2019 16:26 #801043

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 1778
  • Thank you received: 863
I can be wrong but your caliper piston looks a little to long. In my opinion the piston should be on the same high as the rubber dust seal.
I rebuild a lot of calipers but your piston high looks really strange.

Please Log in or Create an account to join the conversation.

Front brake reassemble help 27 Mar 2019 05:35 #801110

  • Bama704
  • Bama704's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 114
  • Thank you received: 8
I got it all sorted out. Should this have been easy, yes. Did I make it more difficult than it needed to be, probably.

I had trouble getting the dust seals over the piston, no matter the angle I put it in it wasn't working. Well, I lubed up the dust seals took another look at it and as I was sliding it in, much easier this time because of the lubrication, it was able to slide right in. It did not slide in at an angle, it slid in at a right angle just as the bracket would sit on the piston. The lubrication helped immensely.

I used Astroglide :)
1977 KZ900
Carbs are late model 1975 28mm

Please Log in or Create an account to join the conversation.
