t-dubs underbraced stock swingarm.

Looks nice and stout, Leon. Cool little trick with the mill, too.

If I may ask Leon, how do you come up with the geometry? I know that most of it is a matter of opportunity, but the distance from the swingarm pivot to the added hoop for example. Is that a specific measurement for a reason, experience or just what looks the best?

i like the tube diameter u choose. the arm will look very dimensional pleasing to the eye. Form and function.
Very nice Leon.

porchev,
the chain run dictates the main part of it the other part is getting from point A to point B that is already dictated by the existing shape,and the other part is how can i keep this from looking like a added on hunk of $hit :laugh: .it is a toss up because you want it to look nice but the main thing is it has to function and not crash into anything.experience is what has taught me how far from the pivot to the lower bar the chain will need in order to live a happy rub free life.:silly:
i also did some scaling off of rstnicks swingarm from some pics.
i have a much free-er brush,(design wise)when custom building a swingarm such as the one i built myself.

dutchz,
thanks for the kind words.how noticeable was your braced stock swingarm over the previous un-braced version?

mark1122,
the metric tube of the stock arms is around 38mm.thats an 1 1/2" to okies like me :laugh: .so the 1" .065 wall cro-mo nicely compliments the stock tube without being to over powering.3/4 just looks to damn spindly in my opinion .the 1" .065 seems to be my goto tubing for many projects.i have built a-arms for quads,swingarms for everything from 90cc's to 1000cc's out of it.with proper design it is very strong and lightweight.

i got the new one piece under tube bent last night,yay! no pics tho,
i had to chuck a (yamaha)blaster head up in the lathe and spin out the nicks it got from the last piston explosion.then throw another blaster cylinder in the boring bar and see what it was going to take to clean up the bore from the last piston meltdown.then bent the tube for t_dubs brace and figured i should reward myself by going for a ride down to my buddies to see what he had accomplished with his day.
i will get some pics tonight now that i have all the two stroke piston killers outta my hair for a minute.

leon

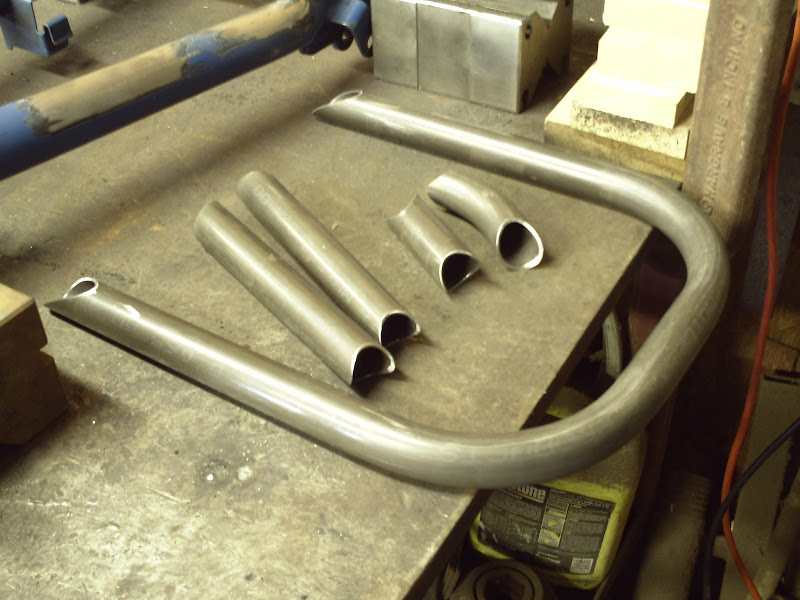

here is the new lower tube and the support tubes all fitted up and ready to tack in place.

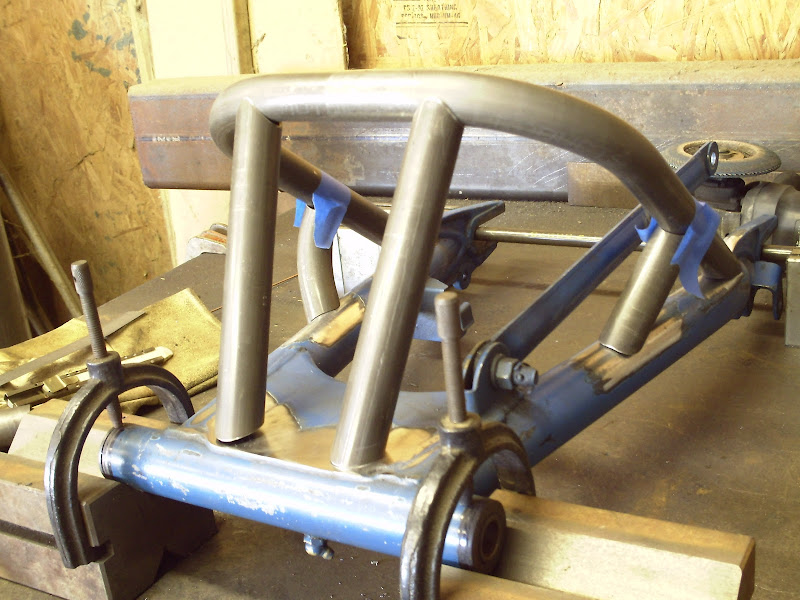

here is a shot from where i was fitting the front support tubes



i wanted the front tubes to form somewhat of a triangle.


leon

531blackbanshee wrote:

here is the new lower tube and the support tubes all fitted up and ready to tack in place.

here is a shot from where i was fitting the front support tubes

i wanted the front tubes to form somewhat of a triangle.

leon

Looks awesome!!

glad you like it tyler!
what pipe are you planning to run?

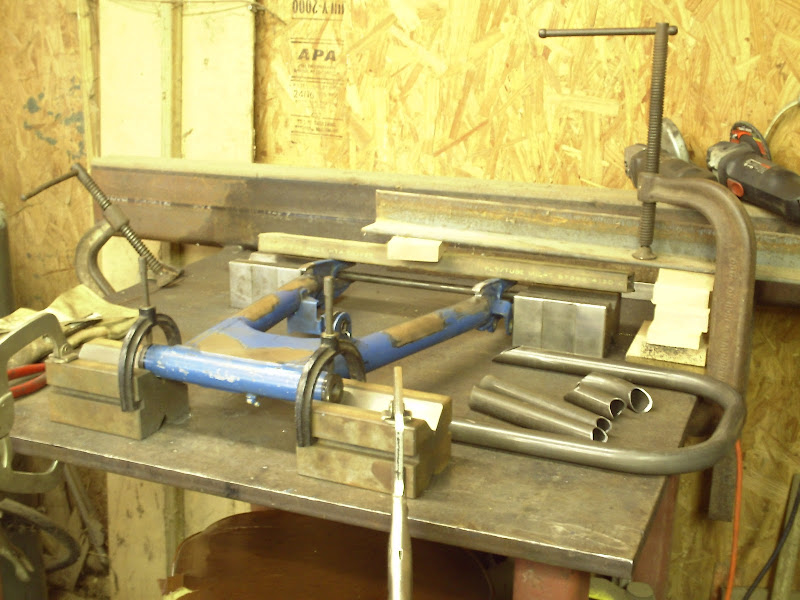

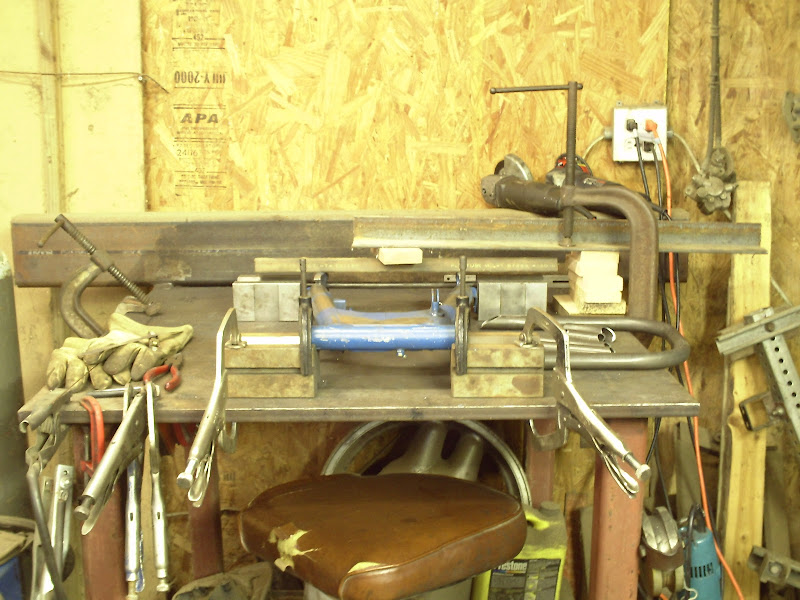

when you are doing a one off it is not feasible to spend the time and material to build a jig.so you brake out the clamps and v-blocks and square and clamp to the table and get to work. :ohmy:

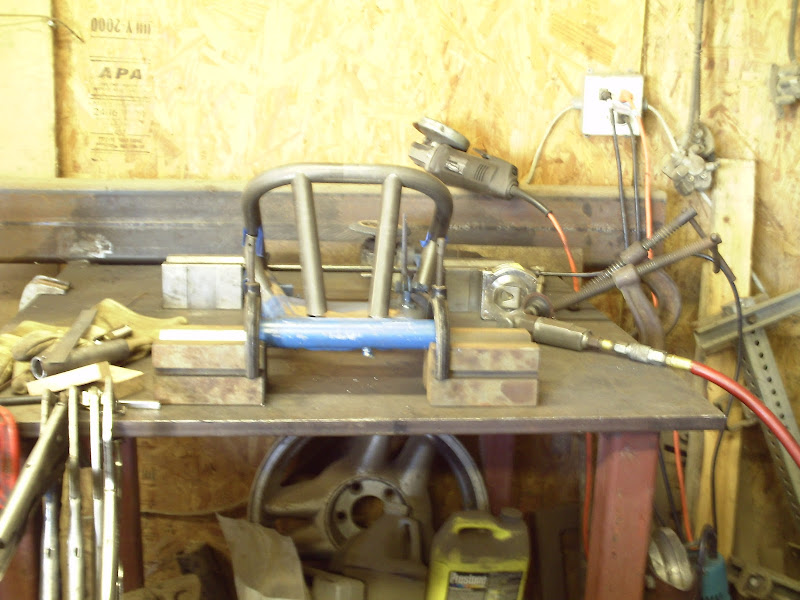

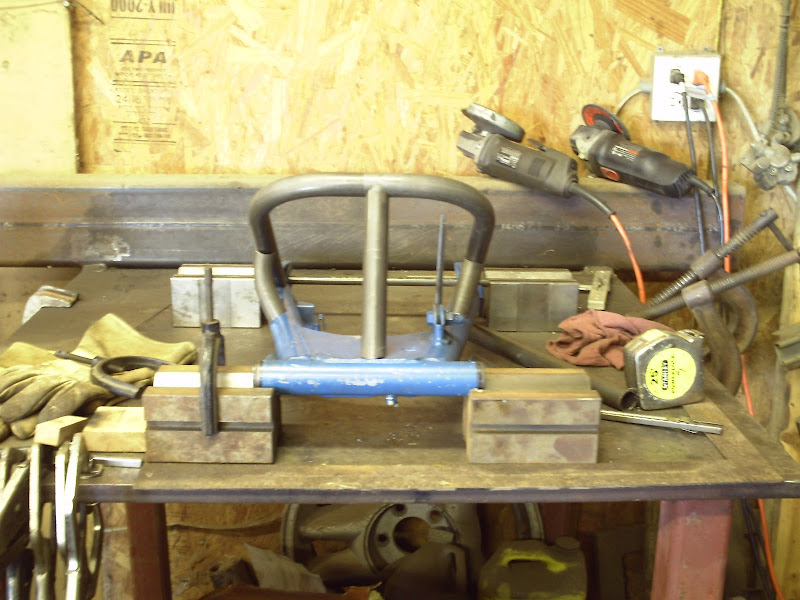

another shot of the setup/riggin whatever :laugh: .


leon

i ended up tig welding everything except the spot where the front support tubes meet the swingarm by the pivot tube.i had to mig those.

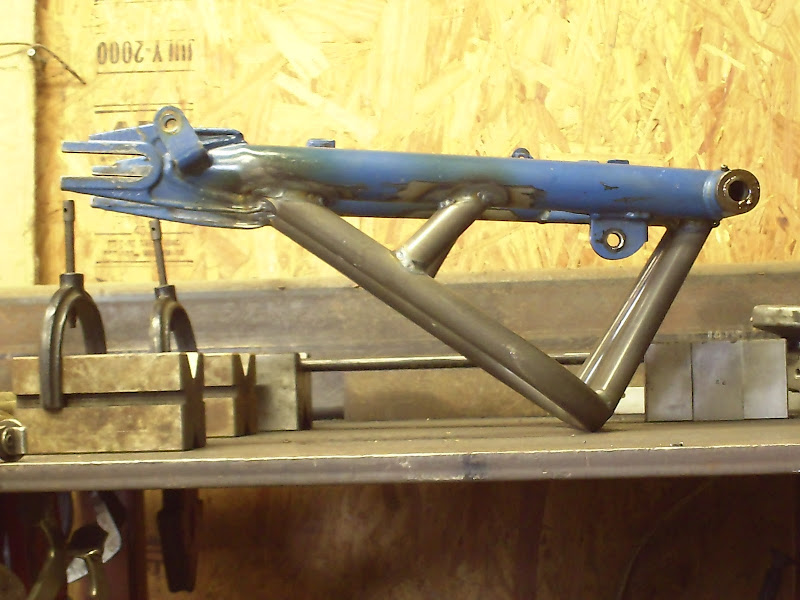

left side


right side

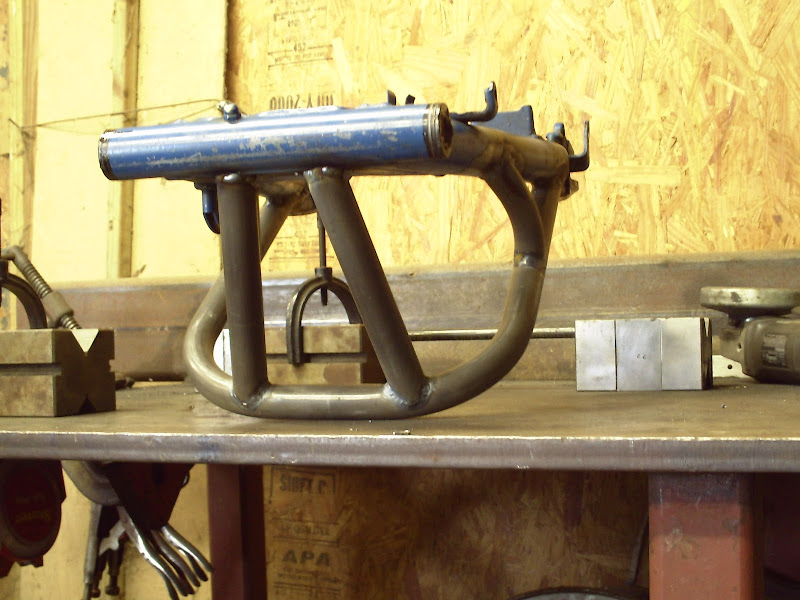

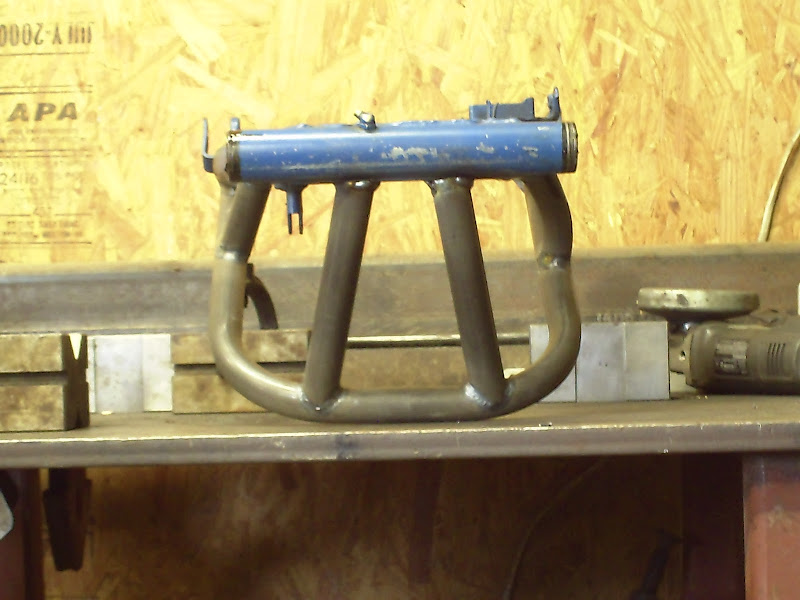

front


leon

lil different front view.


leon

531blackbanshee wrote:

dutchz,
thanks for the kind words.how noticeable was your braced stock swingarm over the previous un-braced version?
leon

That's hard to tell, because I simultaneously braced the hell out of the frame, raised the rear of the bike, lost 100lbs (the bike that is) and improved the suspension. All I can say is it works as a package - night and day. It's no secret the stock arms have flex in em and it will be a damn sight stiffer when you're done. Nice work.

[/quote]that's hard to tell, because I simultaneously braced the hell out of the frame, raised the rear of the bike, lost 100lbs (the bike that is) and improved the suspension. All I can say is it works as a package - night and day. It's no secret the stock arms have flex in em and it will be a damn sight stiffer when you're done. Nice work.[/quote]

dutchz
haha,i fully understand.i did not think about you doing all the changes at once.thanks for the reply,

hey t_dub i need to know how your exhaust routes so i can weld in the bungs for the spools.

leon
