ZN1100 Frankenbike with points ! 14 Jan 2019 17:28 #796778

  • jljim
  • jljim's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 27
  • Thank you received: 3
Just in case anyone else was wondering if it was possible. Kind of a crude conversion, but it starts and runs ok. Low budget fix I guess, lots of die grinder work on the housing and cover piece to make it all work. The wiring patch work inside the headlight was the surprise behind door #1, the point setup was the surprise behind door #2. A friend of mine warned my that the cheap ones are always the most expensive..........
1981 KZ650 CSR
1985 ZN 1100 LTD
Attachments:

Please Log in or Create an account to join the conversation.

ZN1100 Frankenbike with points ! 14 Jan 2019 18:05 #796782

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9356
  • Thank you received: 997
Wow that's a new one. You have to be pretty committed to points to do all that.

Please Log in or Create an account to join the conversation.

ZN1100 Frankenbike with points ! 14 Jan 2019 18:57 #796785

  • jljim
  • jljim's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 27
  • Thank you received: 3
Added a pic of the wiring patch work behind the headlight. Thought I did that the first time.
1981 KZ650 CSR
1985 ZN 1100 LTD
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by jljim.

ZN1100 Frankenbike with points ! 15 Jan 2019 07:06 #796802

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • Member
  • Member
  • Posts: 6094
  • Thank you received: 945
I know a guy who bought a custom chopper w S&S harley-type engine. I think from suckerpunchcycles or some place like that. He converted it to points or tried to anyway, because he got sick of the problems he kept having with the electronic ignition. :blink:



....

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

ZN1100 Frankenbike with points ! 19 Jan 2019 10:29 #797082

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Posts: 3868
  • Thank you received: 746
Die grinder?

Looks more like he unleashed a rabid beaver on the bike!

Wow!
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

ZN1100 Frankenbike with points ! 18 Feb 2019 15:44 #798864

  • jljim
  • jljim's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 27
  • Thank you received: 3
Looking ahead on the Frankenbike project, any ZN owners out there that have installed a Dyna system on their bike ? I'm pretty sure the points were mounted in the modified original housing, I have another uncut housing to use if I need it. An email to the Dyna tech line got a pretty vague reply. Hoping to use the system that's all inside and a lot less money......
1981 KZ650 CSR
1985 ZN 1100 LTD

Please Log in or Create an account to join the conversation.

ZN1100 Frankenbike with points ! 19 Feb 2019 09:54 #798886

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9356
  • Thank you received: 997
If your ZN1100 had a mechanical advancer unit, then a KZ1000 Dyna S should work without much trouble.

If your ZN1100 had electronic-advance, then you will probably need to find an advancer unit from a Kz1000 and want to confirm the timing plate of the Kz1000 will fit into the ZN1100 housing. The electronic-advance timing plate will look very different, but the older style plate might still fit, and in that case a Dyna S plate should fit.

I'll post a drawing of the timing plate.

You want to make sure you have 3 ohm or higher coils. The stock coils would have been less than 3 ohms, and not compatible with the Dyna S, so you'd need non-stock coils.

This drawing will show you the Kz1000 timing plate and where the mounting bolts will be etc. so you can compare it with the housing on your ZN1100.

Note the Kz900/1000 timing plates have those cutouts along the edge. The smaller bikes have timing plates that are plain circles.

Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

ZN1100 Frankenbike with points ! 19 Feb 2019 11:43 #798891

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 18159
  • Thank you received: 1597
By the pic it looks like a Z1/KZ plate so the Dyna S should work. Measure the diameter and post it and I can post my extra plate measurements to compare.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

Last edit: by SWest.

ZN1100 Frankenbike with points ! 19 Feb 2019 16:43 #798901

  • jljim
  • jljim's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 27
  • Thank you received: 3

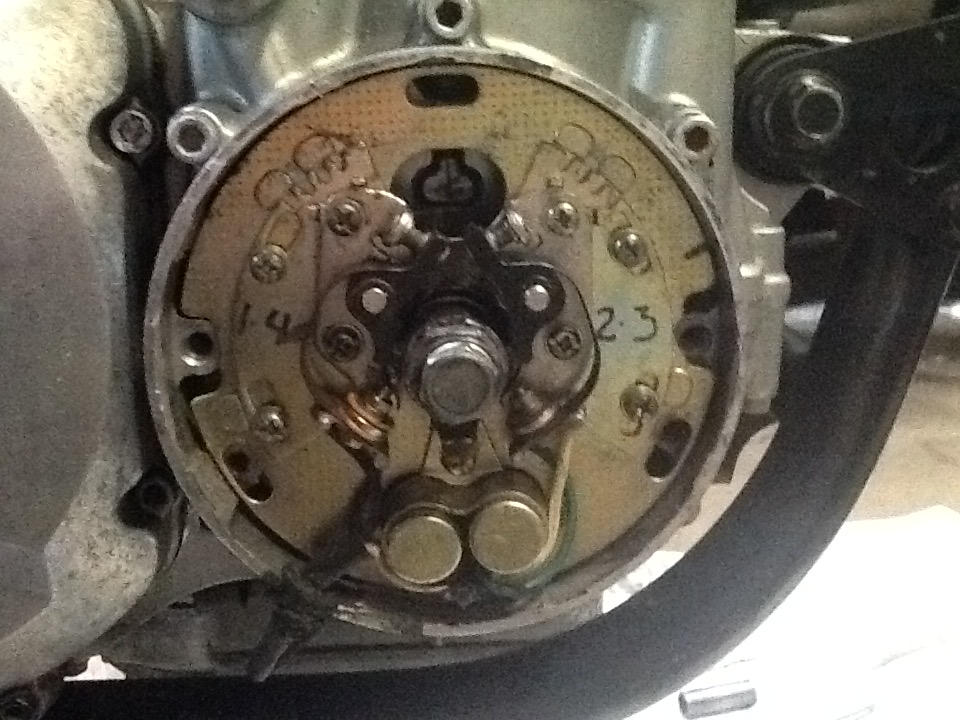

The email I got back from Dyna suggested the DDK2-1C. I found more info on the Z1 site that indicated a different housing from a J model would be needed for that kit to fit the ZN. I attached a picture of the points plate and the mechanical advance unit that was installed with the points. The original housing was rather crudely modified to fit the plate and is probably not usable. I have a spare ZN housing, but should I be looking for a pre electronic KZ 1000 housing and cover to use with the mechanical advance ? I might be able to use the less expensive DS2 system then.
1981 KZ650 CSR
1985 ZN 1100 LTD
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by jljim.

ZN1100 Frankenbike with points ! 19 Feb 2019 18:02 #798904

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 18159
  • Thank you received: 1597

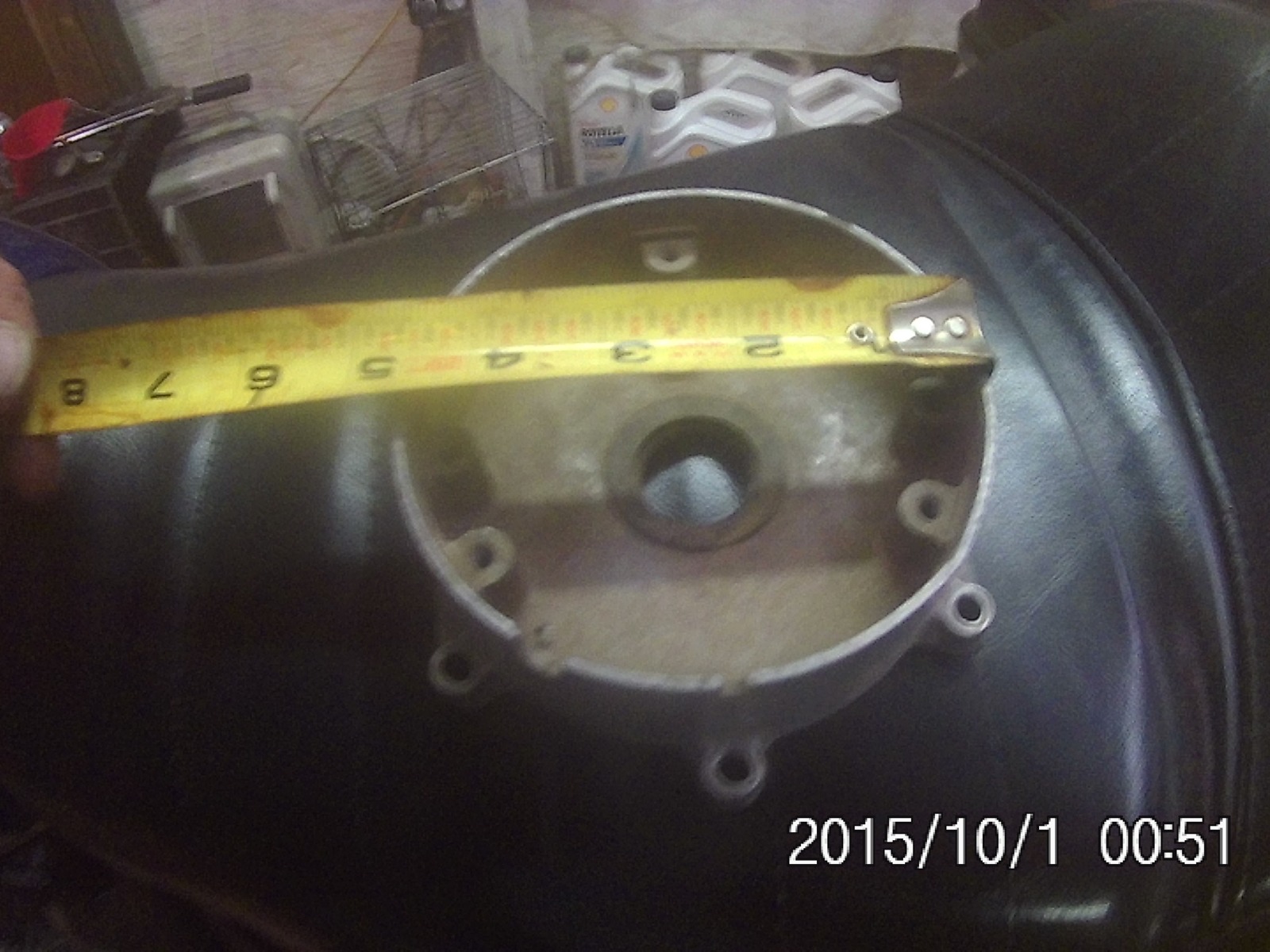

Would the early housing bolt on? Mine looks deeper than that. Here's one I took off the bike.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
Attachments:

Please Log in or Create an account to join the conversation.

ZN1100 Frankenbike with points ! 19 Feb 2019 18:22 #798906

  • jljim
  • jljim's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 27
  • Thank you received: 3
The housing gasket # for the '79-80 A3/A4 engine shares the same ending part number -1071. The ZN housing measures 1.540 deep and 4.650 od. They sure look like the same bolt pattern.
1981 KZ650 CSR
1985 ZN 1100 LTD
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by jljim.

ZN1100 Frankenbike with points ! 19 Feb 2019 18:42 #798908

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 18159
  • Thank you received: 1597
The crank seal looks larger. I'll take more and better measurements tomorrow using my caliper and tape.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

ZN1100 Frankenbike with points ! 20 Feb 2019 06:27 #798925

  • jljim
  • jljim's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 27
  • Thank you received: 3
The ZN seal od is about 1.185, the id about 1.250. The seal is an NGK AC1803F.

The od number I posted isn't right, I'll measure it again in the morning. My dyslexia is acting up again........
1981 KZ650 CSR
1985 ZN 1100 LTD

Please Log in or Create an account to join the conversation.

Last edit: by jljim.

ZN1100 Frankenbike with points ! 20 Feb 2019 15:10 #798947

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 18159
  • Thank you received: 1597
I measured in MM's. I'll use the calipers and set it to inches. I'll post them a little later.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

ZN1100 Frankenbike with points ! 20 Feb 2019 16:51 #798952

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 18159
  • Thank you received: 1597
The seal OD is 1.573" , ID is .965" +/- .
Steve
Spare one
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
Attachments:

Please Log in or Create an account to join the conversation.

ZN1100 Frankenbike with points ! 20 Feb 2019 17:01 #798953

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Posts: 3868
  • Thank you received: 746
If you scroll down the figment chart, you will see that the ZN uses the very same seal as all the J model engines , that is all KZ1000 and 1100 from 1981 onward. It also fits all the 1000 Concours and others.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

ZN1100 Frankenbike with points ! 20 Feb 2019 17:44 #798954

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 18159
  • Thank you received: 1597
The crank pins are larger right?
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

ZN1100 Frankenbike with points ! 20 Feb 2019 18:45 #798959

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Posts: 3868
  • Thank you received: 746
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

ZN1100 Frankenbike with points ! 21 Feb 2019 03:54 #798977

  • jljim
  • jljim's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 27
  • Thank you received: 3
Measured the seal again this morning. The ID listed is about right, 1.250" or about 32 mm. The OD is about 1.890" or 48 mm. The seal part number is listed for a lot of other models but maybe not for the r/h housing ?
1981 KZ650 CSR
1985 ZN 1100 LTD

Please Log in or Create an account to join the conversation.
