dizl27 wrote: My coils like all have 2 wires which are black and yellow plus the spark plug wires. I tie the two points wires to the black and the yellow to the positive feed off the battery? Sorry if i am asking too much. I just dont feel like frying anything. Also as soon as i place these lines all together will or should i see a spark at the ends?
When sitting on the bike in normal riding position and looking toward the front, there are two ignition coils under the fuel tank.
One of the coils is the "left-hand" coil toward the shift lever side of the bike.
The other coil is the "right-hand" coil toward the brake pedal side of the bike.
Each coil has two primary terminals.
Two small wires go to each coil.
The left-hand coil should have a small wire attached to each primary terminal.
The right-hand coil should have a small wire attached to each primary terminal.
To help identify which small wires go where ---
What are the colors of the two small wires attached to the left-hand coil's primary terminals?
What are the colors of the two small wires attached to the right-hand coil's primary terminals?
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- dizl27
- Topic Author
- Offline
- User
- Posts: 47
- Thank you received: 0
1977 650 Hardtail Bobber
1996 250 Yamaha Virago Bobber
Please Log in or Create an account to join the conversation.
- verbl
- Offline
- User
- Posts: 10
- Thank you received: 0
Please Log in or Create an account to join the conversation.
- dizl27
- Topic Author
- Offline
- User
- Posts: 47
- Thank you received: 0
1977 650 Hardtail Bobber
1996 250 Yamaha Virago Bobber
Please Log in or Create an account to join the conversation.
- dizl27
- Topic Author
- Offline
- User
- Posts: 47
- Thank you received: 0
1977 650 Hardtail Bobber
1996 250 Yamaha Virago Bobber
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
dizl27 wrote: both coils have a yellow and a black small wire(2 connections). They are connected on one end. On the other end are the spark plug wires which are hardlined in.This is where im confused because im not sure where to attach the battery. The yellow or the black. These wires could have easily been swapped around by past owner. there are no marks on the coil to represent a positive or negative.
To confirm --
The spark plug wires from the left-hand coil are attached to WHICH two plugs? [Probably the two inside plugs #2 and #3.]
The spark plug wires from the right-hand coil are attached to WHICH two plugs? [Probably the two outside plugs #1 and #4.]
This info is needed to determine where the small wires go from each coil.
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098

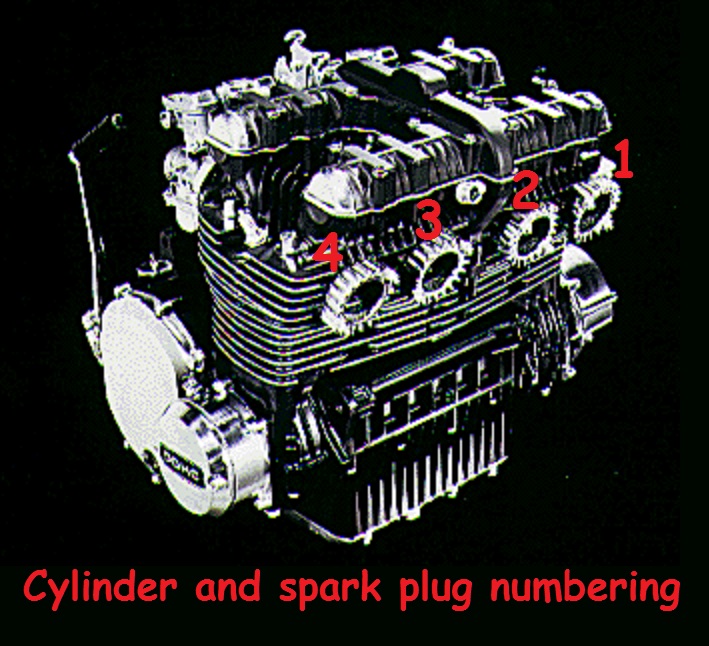

#1 is on the bike's shift lever side.
#4 is on the bike's brake lever side.
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- dizl27
- Topic Author
- Offline
- User
- Posts: 47
- Thank you received: 0
1977 650 Hardtail Bobber
1996 250 Yamaha Virago Bobber
Please Log in or Create an account to join the conversation.
- dizl27
- Topic Author
- Offline
- User
- Posts: 47
- Thank you received: 0
1977 650 Hardtail Bobber
1996 250 Yamaha Virago Bobber
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
dizl27 wrote: i had my left side coil running the 1 and 4 and the right running the 2 and 3
This would be okay provided the left side coil running 1 and 4 has a small wire from the left-side points' black wire.
And provided the right side coil running 2 and 3 has a small wire from the right-side points' green wire.

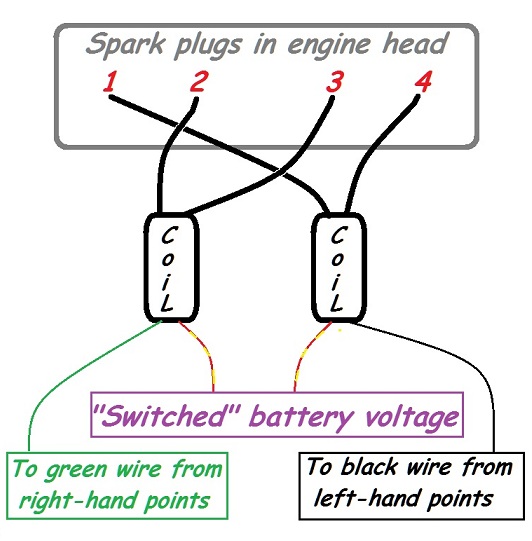

Here is the "usual" set up on KZ650:

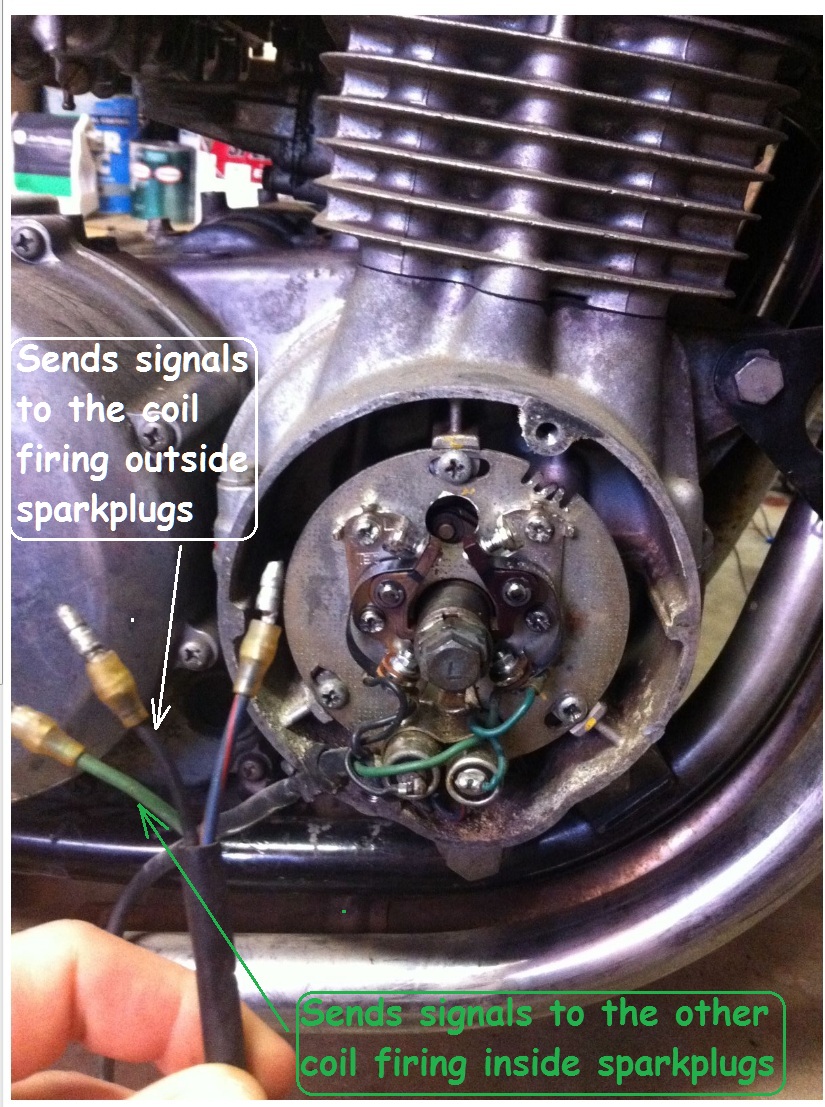

The important thing is that the black wire from left-side points goes to whichever coil is firing outside plugs 1 and 4. And that the green wire from right-side points goes to whichever coil is firing inside plugs 2 and 3.
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
Given correct small wires to correct coil, it doesn't matter which small wire is attached to which coil primary terminal.
