Lubricant for VM28 carbs

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 3120
  • Thanks: 1721

Re: Lubricant for VM28 carbs

22 May 2024 02:26 - 22 May 2024 02:35
#899505
Vinsky wrote:
I'm in the process of rebuilding the VM28's for my 78 z1r and noticed the felt o-rings on either side of the control shaft are all but gone. There isn't a part number but I imagine someone has found a source for replacing them.
Part number VM28/403.
They are the same for all VM four cylinder carb banks.
Buy from the link below or get some felt sheet and a couple of hole punches and make them yourself.
Mikuni VM33 Throttle Shaft Felt Seal VM28/403 Genuine Genuine Mikuni Gaskets & Seals (nichecycle.com)
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
www.kzrider.com/23-for-sale/611992-air-c...lide-mikunis?start=0





Last edit: 22 May 2024 02:35 by zed1015.
The following user(s) said Thank You: Vinsky, sf4t7

Please Log in or Create an account to join the conversation.

  • Vinsky
  • Vinsky's Avatar
  • Offline
  • User
  • Posts: 107
  • Thanks: 111

Re: Lubricant for VM28 carbs

22 May 2024 06:22
#899511
At the size posted on their website I can't see how they will fit. I think I will try to make them as you suggested.
  • 4.25mm outer diameter
  • 10mm inner diameter
Vinsky

Please Log in or Create an account to join the conversation.

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 3120
  • Thanks: 1721

Re: Lubricant for VM28 carbs

22 May 2024 06:58 - 22 May 2024 07:00
#899512
Vinsky wrote:
At the size posted on their website I can't see how they will fit. I think I will try to make them as you suggested.
  • 4.25mm outer diameter
  • 10mm inner diameter
????
The size of 14.25mm outer and 10mm inner is clearly quoted on their site and is correct.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
www.kzrider.com/23-for-sale/611992-air-c...lide-mikunis?start=0





Last edit: 22 May 2024 07:00 by zed1015.

Please Log in or Create an account to join the conversation.

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1261
  • Thanks: 570

Re: Lubricant for VM28 carbs

22 May 2024 10:17 - 22 May 2024 18:18
#899525
Vinsky wrote:
...the VM28's for my 78 z1r and noticed the felt o-rings on either side of the control shaft are all but gone.



Where do those felt orings go? I've pulled apart 4-6 sets of the 77-80 Kawasaki VM carbs and never found any felt rings. I don't see them in the Kawasaki diagrams, or the VM29 exploded diagram.

I'm not saying they aren't supposed to be there, I just never knew about then and don't know where they go.

Anyone have photos?
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Last edit: 22 May 2024 18:18 by DOHC.

Please Log in or Create an account to join the conversation.

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 3120
  • Thanks: 1721

Re: Lubricant for VM28 carbs

22 May 2024 10:22 - 22 May 2024 10:36
#899527
DOHC wrote:
Vinsky wrote:
...the VM28's for my 78 z1r and noticed the felt o-rings on either side of the control shaft are all but gone.






Where do those felt orings go? I've pulled apart 4-6 sets of the 77-80 Kawasaki VM carbs and never found any felt rings. I don't see them in the Kawasaki diagrams for the VM29 exploded diagram.

I'm not saying they aren't supposed to be there, I just never knew about then and don't know where they go.

Anyone have photos?
They go on the backplate .
Either side of the brass bushes for the throttle shaft.
There's six of them.
They are not usually highlighted on the carb schematics as they form part of the backplate assembly which if purchased would have come with them already fitted.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
www.kzrider.com/23-for-sale/611992-air-c...lide-mikunis?start=0





Last edit: 22 May 2024 10:36 by zed1015.
The following user(s) said Thank You: Vinsky

Please Log in or Create an account to join the conversation.

  • Vinsky
  • Vinsky's Avatar
  • Offline
  • User
  • Posts: 107
  • Thanks: 111

Re: Lubricant for VM28 carbs

22 May 2024 18:43
#899539

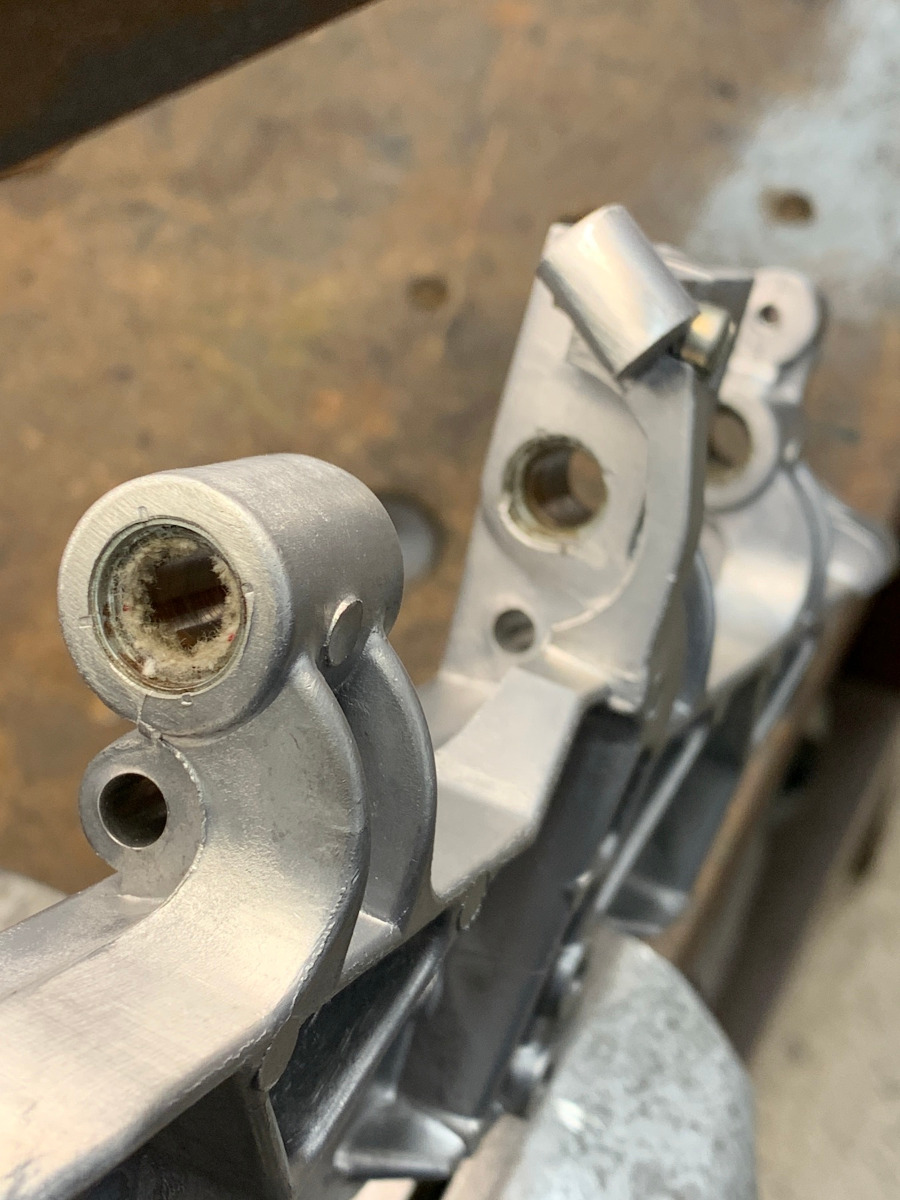

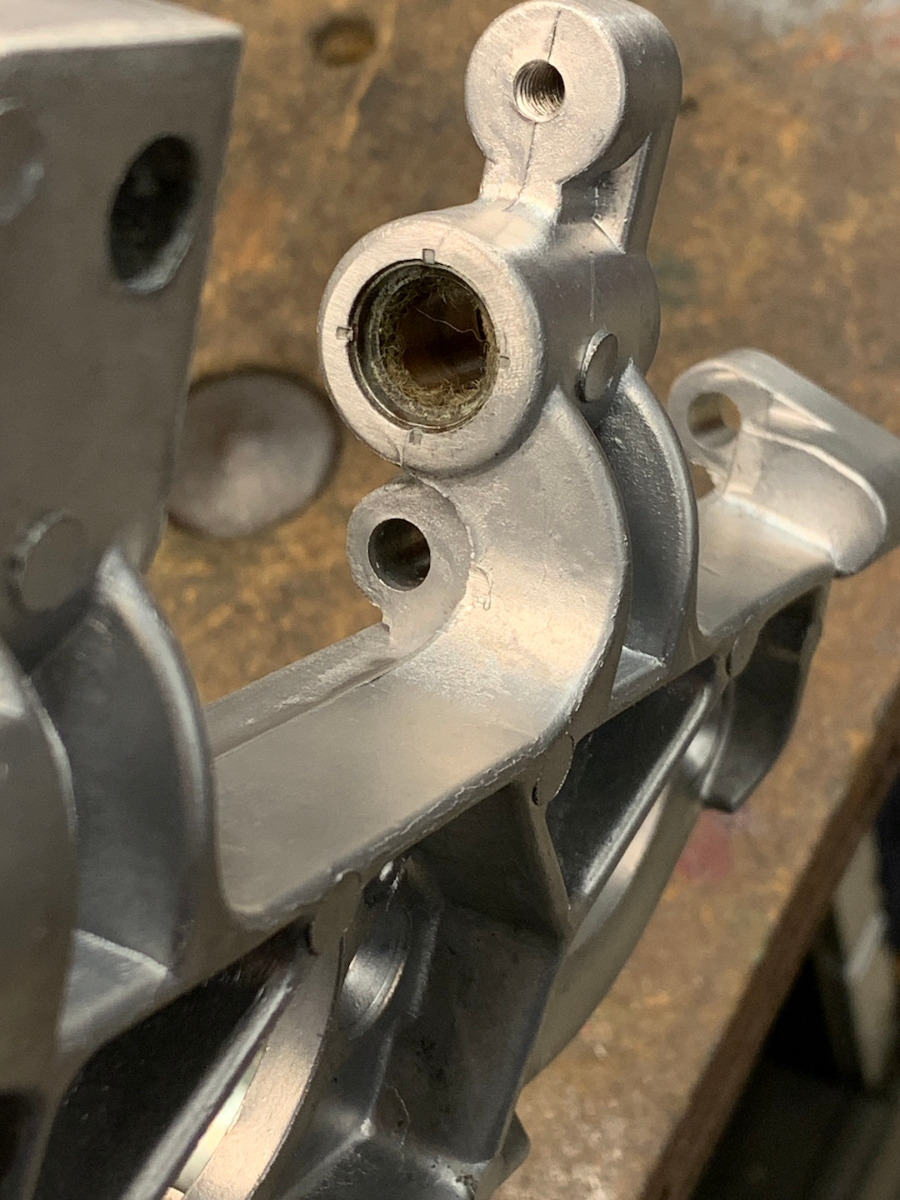

The felt o'rings are in the carb mounting frame. 6 required. Looks like a tobacco pipe cleaner is going to to the job.

Vinsky
The following user(s) said Thank You: Nessism, howardhb

Please Log in or Create an account to join the conversation.

  • sf4t7
  • sf4t7's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 729
  • Thanks: 535

Re: Lubricant for VM28 carbs

22 May 2024 20:00
#899545
I've used the felt seals from Nichecycle referenced by Zed1015 and they fit perfectly on the throttle shaft and also in the upper carb bodies for the slide linkages.
Scotty

1974 Z1A
Yoshimura 987
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1
Superbike bars
530 conversion
The following user(s) said Thank You: Vinsky

Please Log in or Create an account to join the conversation.

  • Vinsky
  • Vinsky's Avatar
  • Offline
  • User
  • Posts: 107
  • Thanks: 111

Re: Lubricant for VM28 carbs

23 May 2024 06:25
#899565
Call me thrifty but five bucks each plus shipping for the felt o'ring is a bit much.
Where would you use the felt o'rings in "upper carb bodies for the slide linkage"?
Vinsky

Please Log in or Create an account to join the conversation.

  • sf4t7
  • sf4t7's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 729
  • Thanks: 535

Re: Lubricant for VM28 carbs

23 May 2024 16:26 - 23 May 2024 16:27
#899593

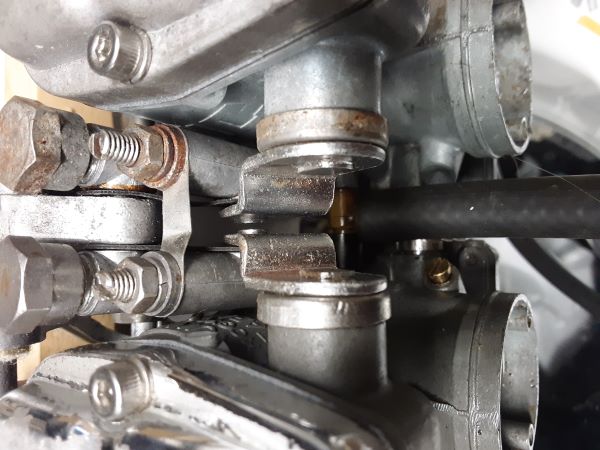

Sorry Vinsky, my boo-boo.  I was thinking of the plastic washer that goes next to the spring inside that metal cup on the linkage.  And it was only 4 months ago I had them apart !  Guess we can call that a "senior moment"  haha
[img


Scotty

1974 Z1A
Yoshimura 987
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1
Superbike bars
530 conversion
Last edit: 23 May 2024 16:27 by sf4t7.

Please Log in or Create an account to join the conversation.

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1261
  • Thanks: 570

Re: Lubricant for VM28 carbs

23 May 2024 17:29
#899597
Vinsky wrote:
Call me thrifty but five bucks each plus shipping for the felt o'ring is a bit much.

JetsRus has then for $2.14 each. Still expensive, but less so...

www.jetsrus.com/individual_parts/002-640_su.html
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
The following user(s) said Thank You: Vinsky

Please Log in or Create an account to join the conversation.

  • Vinsky
  • Vinsky's Avatar
  • Offline
  • User
  • Posts: 107
  • Thanks: 111

Re: Lubricant for VM28 carbs

25 May 2024 09:47 - 25 May 2024 09:49
#899703

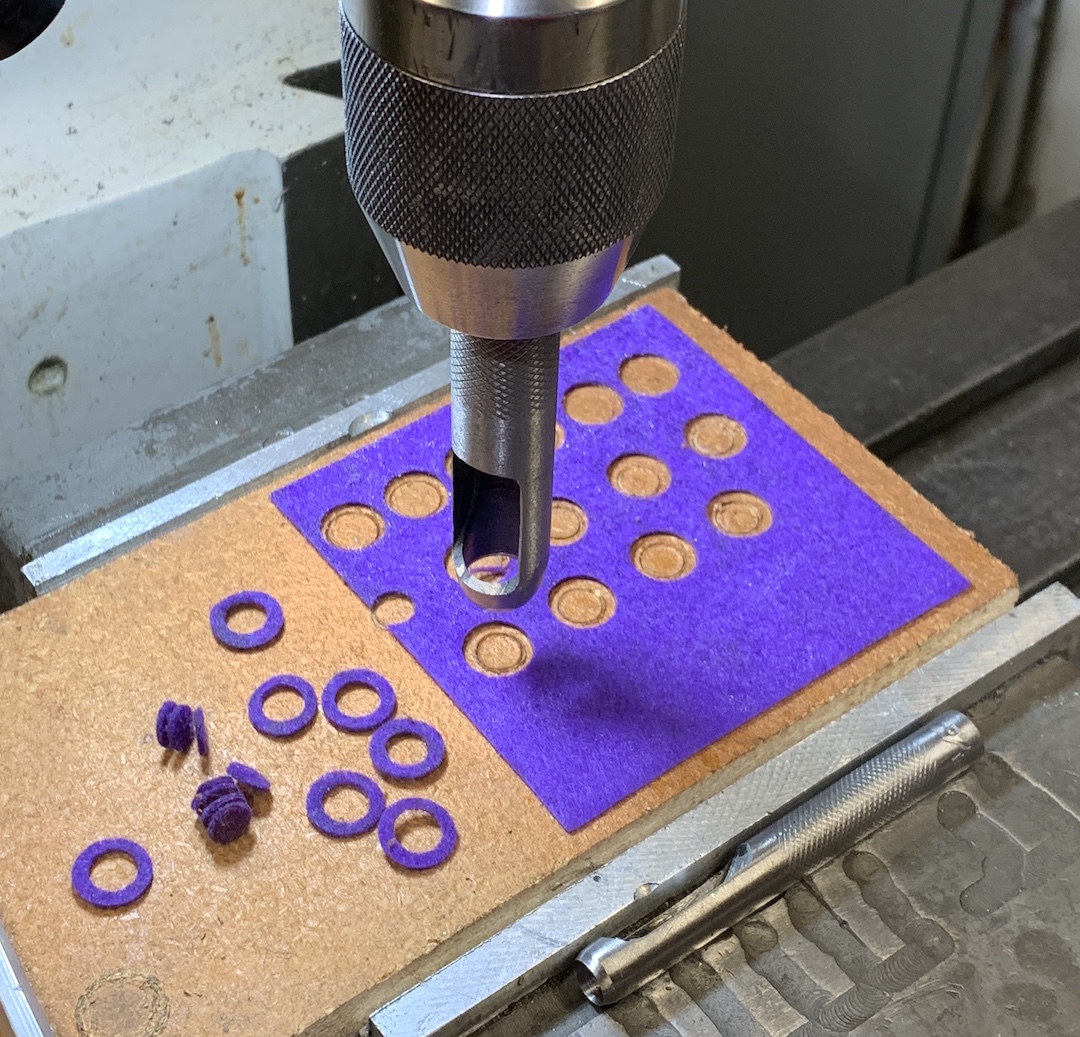

Wife had these felt pads to put under nic-nacs so had to experiment.
