TOPIC:

O-ring needed for TK26 carbs 23 Oct 2022 07:58 #875860

  • GpzGreen
  • GpzGreen's Avatar Topic Author
  • Offline
  • User
  • Posts: 25
  • Thank you received: 3

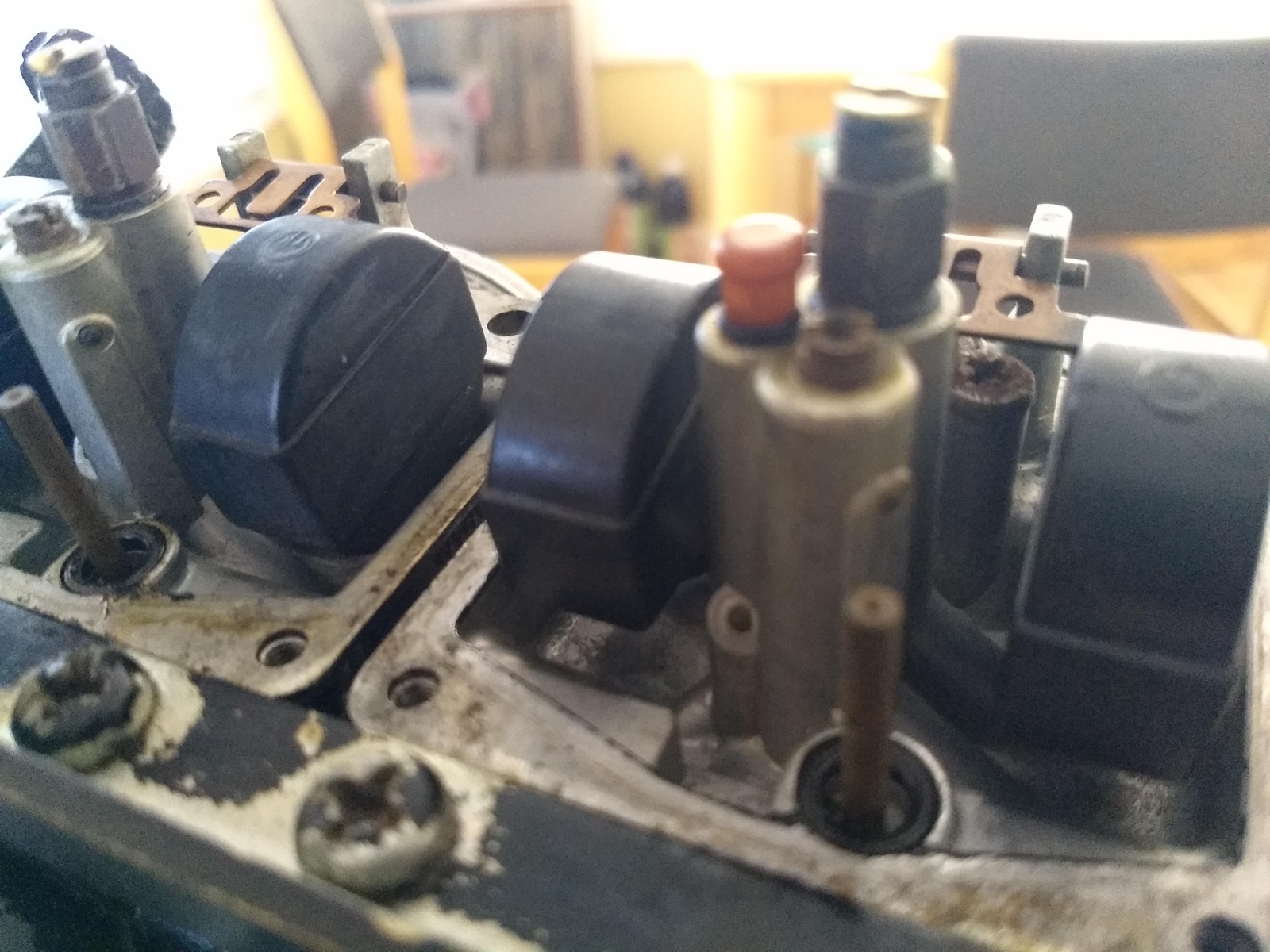

Gone through the 1982 GPZ-550 carburetors and they are clean as a whistle now but the O-rings on the pilot jet plug have disintegrated.
The plugs, original orange in color, are good, but I am not having any luck finding replacement O-rings.  I think the part number is 92055-1337.
The dimensions need to be about 3.5 mm inner diameter and 4,6 to 4.7 outer diameter.

The originals were, I believe, a bit tapered like a cork in a bottle.  Not sure if this specification really matters.
Also, a possibly silly question as I am not very knowledgeable on carbs but is this O-ring exposed to gasoline so needs to be fuel rated?  I think so.

I have done some searches but anything I find says out of stock and I am guessing they have been for a while.
Thank you for any help.


1982 GPZ-550
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by GpzGreen. Reason: Adding image

O-ring needed for TK26 carbs 23 Oct 2022 11:51 #875868

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3667
  • Thank you received: 1686
Any pneumatic or hydraulic service center or hardware store sales o-rings in the size you need.
The following user(s) said Thank You: GpzGreen

Please Log in or Create an account to join the conversation.

O-ring needed for TK26 carbs 23 Oct 2022 12:07 #875871

  • GpzGreen
  • GpzGreen's Avatar Topic Author
  • Offline
  • User
  • Posts: 25
  • Thank you received: 3
I have tried 3 sets so far.  The inner diameter of 3.5 mm seems doable, but the 4.6 to 4.7 overall diameter seems to be the challenge.
Don't they need to be fuel resistant as well?
1982 GPZ-550

Please Log in or Create an account to join the conversation.

O-ring needed for TK26 carbs 23 Oct 2022 12:12 #875873

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 6581
  • Thank you received: 2196
What is the size of the passage in the carb?

BTW, O-rings are sized by ID and thickness.

As for material, Buna N (nitrial) or viton will work.
Ed

Carburetor O-ring Kits For Sale: Mikuni VM & BS/CV, and Keihin CV34 (as used on KZ750E/H/N/Spectre, 400)

www.kzrider.com/forum/forum-index/faq-wi...owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
The following user(s) said Thank You: GpzGreen

Please Log in or Create an account to join the conversation.

Last edit: by Nessism.

O-ring needed for TK26 carbs 23 Oct 2022 12:34 #875875

  • GpzGreen
  • GpzGreen's Avatar Topic Author
  • Offline
  • User
  • Posts: 25
  • Thank you received: 3

What is the size of the passage in the carb?

BTW, O-rings are sized by ID and thickness.


The size where the plug needs to go in is a bit loose without an O-ring and measures 4.8mm using calipers.
The outer diameter of the plug is 4.7.  O-rings with an outer diameter of 5.2 to 5.3 are a no go.  So maybe 4.9 to 5.0 is a better size to shoot for.

My understanding of the dimensions provided on web sites are the outer diameter plus the cross section of the thickness of the rubber.
So, I would need 3.5 ID with a thickness of .7 times 2 to get to 4.9mm overall.  Is this correct?
1982 GPZ-550

Please Log in or Create an account to join the conversation.

Last edit: by GpzGreen.

O-ring needed for TK26 carbs 23 Oct 2022 13:04 #875880

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 6581
  • Thank you received: 2196

What is the size of the passage in the carb?

BTW, O-rings are sized by ID and thickness.



The size where the plug needs to go in is a bit loose without an O-ring and measures 4.8mm using calipers.
The outer diameter of the plug is 4.7.  O-rings with an outer diameter of 5.2 to 5.3 are a no go.  So maybe 4.9 to 5.0 is a better size to shoot for.

My understanding of the dimensions provided on web sites are the outer diameter plus the cross section of the thickness of the rubber.
So, I would need 3.5 ID with a thickness of .7 times 2 to get to 4.9mm overall.  Is this correct?
ID + thickness is the industrial standard when it comes to sizing O-rings.

I've got some 3.5 x .9mm O-rings.  Those might work.  Use some slicone grease before install.





Ed

Carburetor O-ring Kits For Sale: Mikuni VM & BS/CV, and Keihin CV34 (as used on KZ750E/H/N/Spectre, 400)

www.kzrider.com/forum/forum-index/faq-wi...owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
The following user(s) said Thank You: GpzGreen

Please Log in or Create an account to join the conversation.

O-ring needed for TK26 carbs 23 Oct 2022 13:14 #875881

  • GpzGreen
  • GpzGreen's Avatar Topic Author
  • Offline
  • User
  • Posts: 25
  • Thank you received: 3

I've got some 3.5 x .9mm O-rings.  Those might work.  Use some silicone grease before install.

So, is my math correct?  The OD diameter of these would be 3.5 + .9 + .9 = 5.3mm.
We have a few this size and even with silicone they will not go in evenly.

Do they need to be rated for fuel/gasoline?

1982 GPZ-550
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by GpzGreen.

O-ring needed for TK26 carbs 23 Oct 2022 13:18 #875882

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 6581
  • Thank you received: 2196

I've got some 3.5 x .9mm O-rings.  Those might work.  Use some silicone grease before install.

So, is my math correct?  The OD diameter of these would be 3.5 + .9 + .9 = 5.3mm.
We have a few this size and even with silicone they will not go in evenly.

Do they need to be rated for fuel/gasoline?

Of course they need to be rated for gasoline.  As I said previously, you need Buna N or viton.

The only other O-rings I'm aware of that may work are .8 x 3.2.

www.theoringstore.com/store/index.php?ma...60&products_id=43927
Ed

Carburetor O-ring Kits For Sale: Mikuni VM & BS/CV, and Keihin CV34 (as used on KZ750E/H/N/Spectre, 400)

www.kzrider.com/forum/forum-index/faq-wi...owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
The following user(s) said Thank You: GpzGreen

Please Log in or Create an account to join the conversation.

O-ring needed for TK26 carbs 23 Oct 2022 16:27 #875893

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 6581
  • Thank you received: 2196

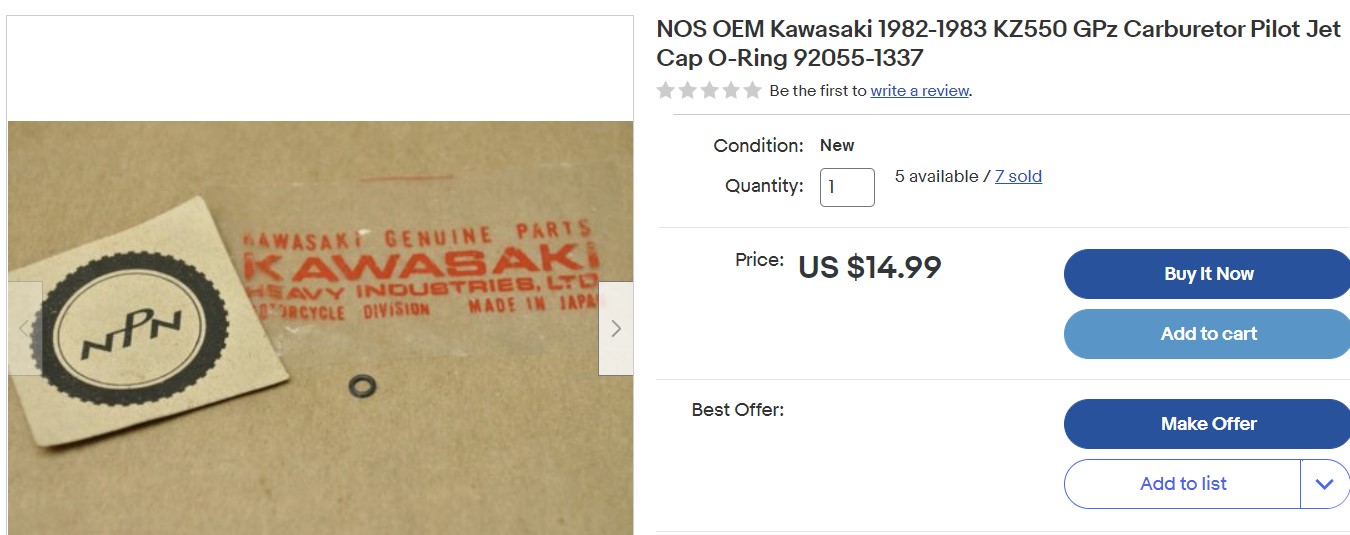

Screenshot from ebay of the O-ring in question.

This is not a super skinny O-ring.  It's very similar to the O-rings I've got here.


Ed

Carburetor O-ring Kits For Sale: Mikuni VM & BS/CV, and Keihin CV34 (as used on KZ750E/H/N/Spectre, 400)

www.kzrider.com/forum/forum-index/faq-wi...owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Attachments:
The following user(s) said Thank You: GpzGreen

Please Log in or Create an account to join the conversation.

Last edit: by Nessism.

O-ring needed for TK26 carbs 23 Oct 2022 18:09 #875896

  • GpzGreen
  • GpzGreen's Avatar Topic Author
  • Offline
  • User
  • Posts: 25
  • Thank you received: 3
Yes, I did find those but not sure about the part number and they look a little fat around the cross-section.
It seems Kawasaki used the same part number for things then added some more numbers or letters for different O-rings.
I am getting the impression the Gpz550 is a tough find these days.
Thank you for looking for me.

1982 GPZ-550

Please Log in or Create an account to join the conversation.

O-ring needed for TK26 carbs 24 Oct 2022 06:27 #875910

  • martin_csr
  • martin_csr's Avatar
  • Away
  • User
  • Posts: 7765
  • Thank you received: 1541
Some auto parts stores sell individual o-rings out of a kit. If you find one of the correct ID but the OD is too large, maybe go with a smaller ID & make it fit. You could use silicone spray lubricant to install or heat it in hot hot water beforehand.  It's just a static plug o-ring, so it only needs to seal & a perfect fit probably isn't necessary.

Please Log in or Create an account to join the conversation.

O-ring needed for TK26 carbs 24 Oct 2022 06:35 #875912

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 6581
  • Thank you received: 2196
The O-ring for the Keihin CV34 pilot plug are quite large, and get smashed down significantly during install.  The first time I rebuilt a set of those carbs, I thought the seal was a cylindrical sleeve, instead of an O-ring, because the O-ring formed that shape.  My guess is that in this application it's similar.

And realize, if the carb hole is 4.8mm, you want the "as installed" O-ring to be about 5.2, since the O-ring must crush on install to affect a seal.

Ed

Carburetor O-ring Kits For Sale: Mikuni VM & BS/CV, and Keihin CV34 (as used on KZ750E/H/N/Spectre, 400)

www.kzrider.com/forum/forum-index/faq-wi...owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

Last edit: by Nessism.
