TOPIC:

1976 KZ900 26mm Carb Rebuild 05 Sep 2022 18:22 #873404

  • sflesch94
  • sflesch94's Avatar Topic Author
  • Offline
  • User
  • Posts: 36
  • Thank you received: 2
Hi Everyone,

Wondering if anyone can suggest an online guide or best manual to guide me through fully restoring 26mm carbs I have for my KZ650. I started opening them and they look pretty rough and looks like I will have to dismantle them fully. See photos of the years of grunge!

Thanks!

Stephen
Attachments:

Please Log in or Create an account to join the conversation.

1976 KZ900 26mm Carb Rebuild 05 Sep 2022 18:58 #873405

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4880
  • Thank you received: 1843
Here members.dslextreme.com/users/bikecliff/i.../vm_carb_rebuild.pdf

Yes those are going to be a challenge. They will need to be taken completely apart and soak in chemdip. The carb with the bowl off is missing the emulsion tube and main jet. Check the choke tube for cracks. The bore that tube goes into in the bowl has a non removable jet that needs to be cleaned. I highly recommend getting the choke plungers rebuilt.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

1976 KZ900 26mm Carb Rebuild 05 Sep 2022 18:59 #873406

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7257
  • Thank you received: 2659
gsarchive.bwringer.com/bikecliff/images/vm_carb_rebuild.pdf

Did you remove the needle jets and main jets?  Hope so, otherwise you are missing parts.

I've got an O-ring kit for those carbs.  Don't waste your money on "carb kits" unless you are missing all the jets.

Please Log in or Create an account to join the conversation.

1976 KZ900 26mm Carb Rebuild 05 Sep 2022 19:01 #873407

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4880
  • Thank you received: 1843
Post a picture of the front (airbox side) of those. I don’t recognize the spring loaded slide arm mechanism
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

1976 KZ900 26mm Carb Rebuild 05 Sep 2022 21:04 #873412

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892

Post a picture of the front (airbox side) of those. I don’t recognize the spring loaded slide arm mechanism

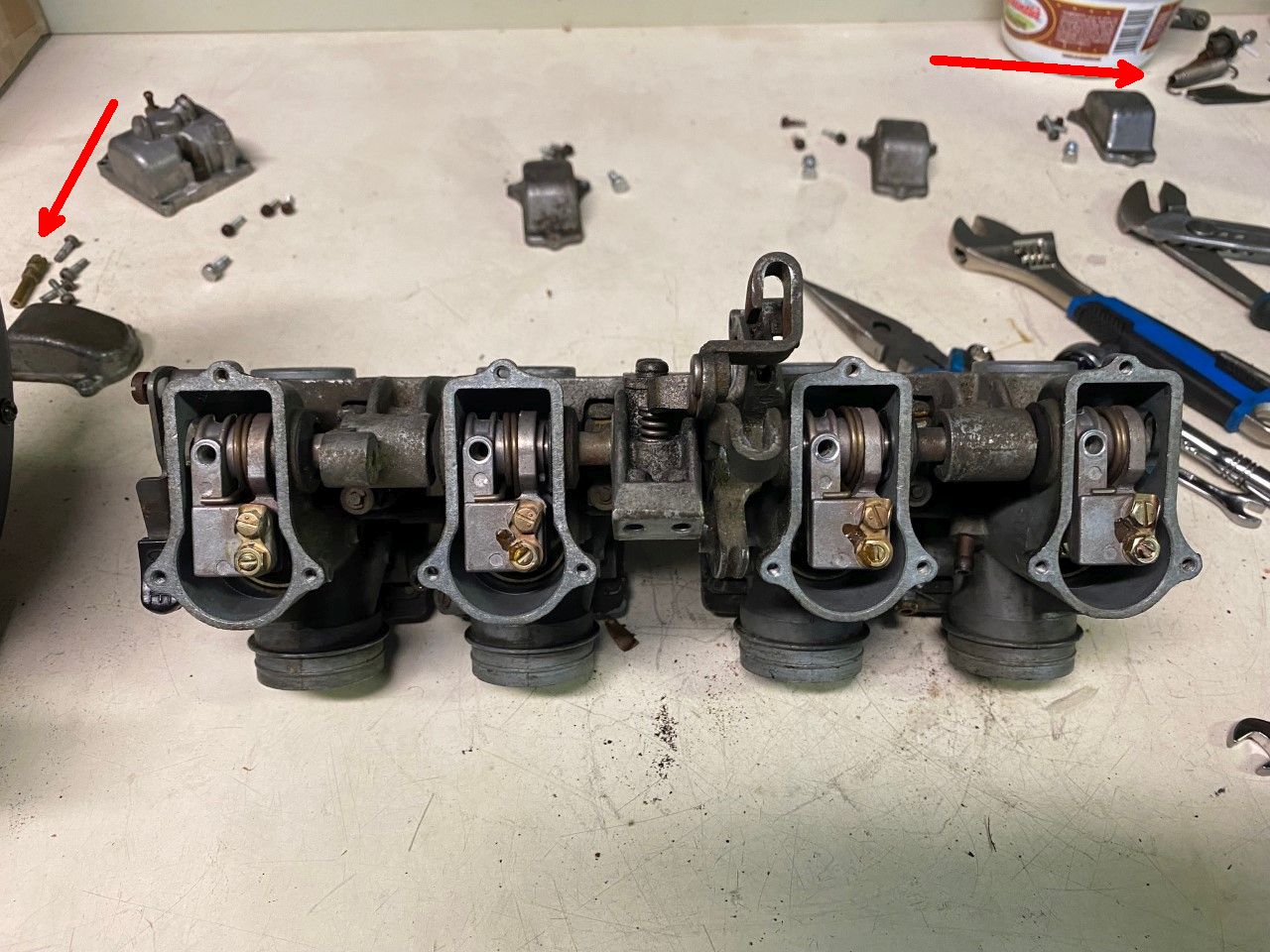

Matt, no missing parts like emulsion tube, main jet or spring loaded slide arm mechanism.


Attachments:

Please Log in or Create an account to join the conversation.

1976 KZ900 26mm Carb Rebuild 06 Sep 2022 01:08 #873416

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2885
  • Thank you received: 1441

Post a picture of the front (airbox side) of those. I don’t recognize the spring loaded slide arm mechanism
They are z1000 VM26 carbs.
1 or 2 years only with smoothbore style slide lifters.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

Last edit: by zed1015.

1976 KZ900 26mm Carb Rebuild 06 Sep 2022 02:55 #873417

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2885
  • Thank you received: 1441

Hi Everyone,

Wondering if anyone can suggest an online guide or best manual to guide me through fully restoring 26mm carbs I have for my KZ650. I started opening them and they look pretty rough and looks like I will have to dismantle them fully. See photos of the years of grunge!

Thanks!

Stephen
If all the brass is undamaged and just needs a clean then all you will need is new gaskets, 'O' rings, float valves ,choke plunger seals and possibly fuel tees .
If any brass needs replacing then only use genuine Mikuni or Keyster parts.
It is common on carbs with the fuel mixture screws underneath for the screw tips to be badly worn or broken off so they may need replacing also.
Again preferably use only Mikuni items but in the case of the fuel mix screws there are quality replacements available individually for these.
As for online guides or manuals there really isn't anything specific aimed at restoring these but they are so simple to dismantle and rebuild a guide isn't needed.
If you post the jet sizes, jet needle and slide cutaway numbers the exact model these carbs came off can be identified and the recommended float heights and stock settings can be supplied.

AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





Please Log in or Create an account to join the conversation.

1976 KZ900 26mm Carb Rebuild 06 Sep 2022 04:59 #873425

  • sflesch94
  • sflesch94's Avatar Topic Author
  • Offline
  • User
  • Posts: 36
  • Thank you received: 2
Yes, I dismantled the one partially, but you guys already figured that out haha! I don’t think I am missing any parts so far. Will have to the check for that fuel mixture screw and the other specifications after work today. These carbs came off a 76 KZ900 my dad is working on, who knows if they are original though.

Please Log in or Create an account to join the conversation.

1976 KZ900 26mm Carb Rebuild 06 Sep 2022 05:21 #873426

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4880
  • Thank you received: 1843

Post a picture of the front (airbox side) of those. I don’t recognize the spring loaded slide arm mechanism
They are z1000 VM26 carbs.
1 or 2 years only with smoothbore style slide lifters.
Thank you, do the also use the jet block like the true smoothbores?
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

1976 KZ900 26mm Carb Rebuild 06 Sep 2022 05:22 #873428

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2885
  • Thank you received: 1441

Post a picture of the front (airbox side) of those. I don’t recognize the spring loaded slide arm mechanism
They are z1000 VM26 carbs.
1 or 2 years only with smoothbore style slide lifters.
Thank you, do the also use the jet block like the true smoothbores?
No. They are the same as other stock VM's.
It's just the lifters and some other parts such as the back plate where the cable bracket attaches etc that differ.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

Last edit: by zed1015.

1976 KZ900 26mm Carb Rebuild 06 Sep 2022 05:25 #873429

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7257
  • Thank you received: 2659

Post a picture of the front (airbox side) of those. I don’t recognize the spring loaded slide arm mechanism
They are z1000 VM26 carbs.
1 or 2 years only with smoothbore style slide lifters.
Thank you, do the also use the jet block like the true smoothbores?
No jet block.  They are common VM26's, but with a couple of small detail changes.  These carbs have the plastic handle choke lever, so that dates them as on the early side of that family of carbs.  I'm surprised they don't have the joining plate across the top caps.  Maybe it's been removed already?
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

Last edit: by Nessism.

1976 KZ900 26mm Carb Rebuild 06 Sep 2022 05:26 #873430

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4880
  • Thank you received: 1843

Yes, I dismantled the one partially, but you guys already figured that out haha! I don’t think I am missing any parts so far. Will have to the check for that fuel mixture screw and the other specifications after work today. These carbs came off a 76 KZ900 my dad is working on, who knows if they are original though.

We could use your help. Another member in compiling a list of VM26/28 carbs. Knowing the specs on your would be a big benefit. Look on the rear flange where they bolt to the bracket, please post that number. Also please document the jet sizes, the slide cutout size, the needle jet/needle size. Thank you.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.
