Does anyone know what these wires connect to? This is my only issue with the wire harness currently. I am used to vehicle wiring where everything has an identifiable and unique plug not just little pins that could go anywhere.
Okay roger on all of that. The brown wire, does it connect to the gauges or what? The bike was laid on its side so I had to order a replacement gauge set and it’s not here yet so I’m unsure if there is a brown wire that will match it on the cluster. The only light that works is the rear running light right now.
brown wire is 12 volt positive when key is turned to run
the brown wire connects to: neutral light
oil pressure warning light
low fuel warning/brake light failure light
front brake light switch
rear brake light switch
The items are above ground switched. The brown wire supplies +12V and the switch supplies the ground through another wire.

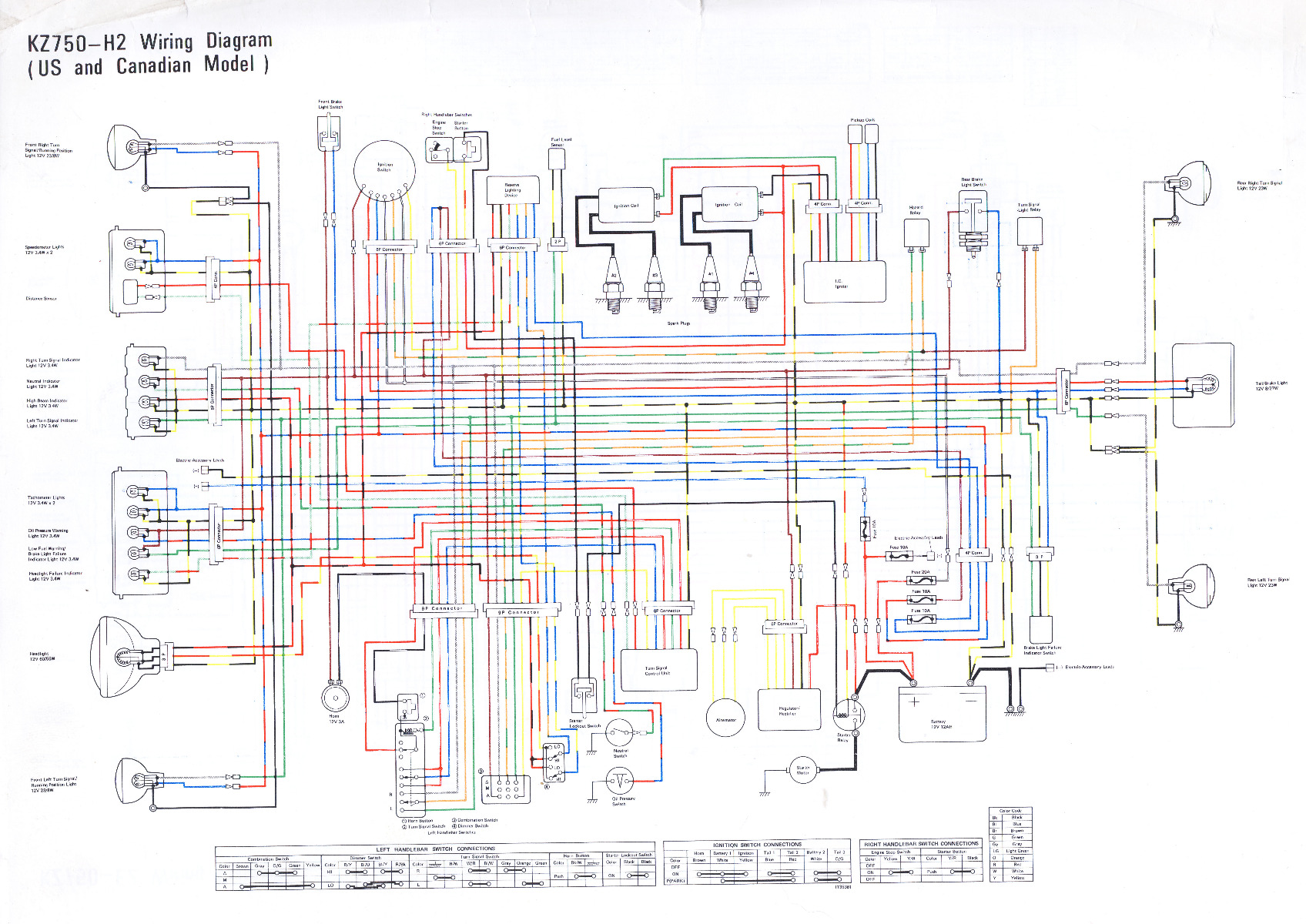

The brown wire appears deep maroon on the schematic.
