BS34 - Missing plug and o-ring - part search 21 Jan 2021 07:27 #842113

  • OkieZ1000
  • OkieZ1000's Avatar Topic Author
  • Offline
  • User
  • Posts: 47
  • Thank you received: 5
Greetings,

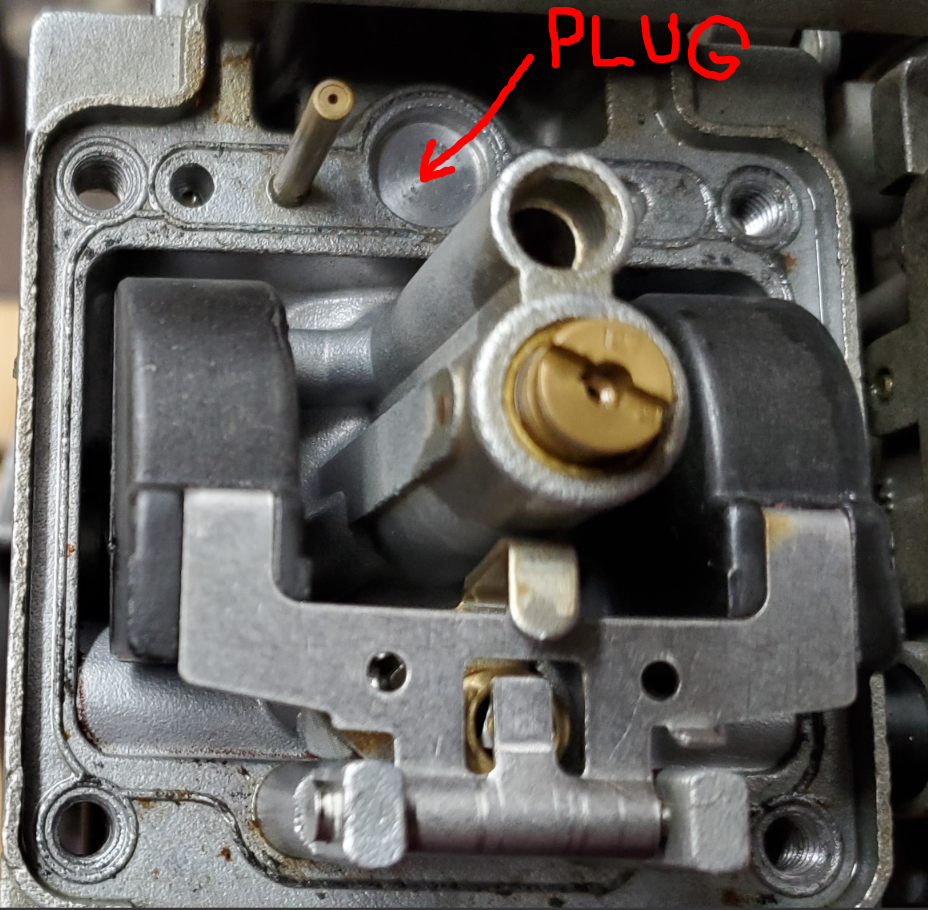

I'm looking for some advice on how to replace a couple of parts on my BS34s on my 82 LTD1000. When I took the carbs apart (chasing another issue) for cleaning, I noticed that the plug and o-ring circled on the image attached were not in the carbs. I don't have any fuel leakage, but would like for them to be "right" if possible. I did some searching based on the part numbers (92066 - 92066-1086 and 11009 - 11009-1240) but didn't have any luck.

So I guess the question is two-fold. If I don't have any leakage, do these need to be replaced, and if they need to be replaced........with what?

Any info is appreciated.
Thanks
Scott
Attachments:

Please Log in or Create an account to join the conversation.

BS34 - Missing plug and o-ring - part search 21 Jan 2021 19:03 #842142

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7257
  • Thank you received: 2659
Edit: I erased the info previously posted because I misunderstood the problem.

The plugs you mention are to seal a passage up into the carb throat. I think you need those plugs or you can get vacuum leaks or fuel can leak through. I've never seen those plugs sold anywhere. I've hacked apart old scrap carb bodies to get the plugs to fix carbs like yours. Sorry, I don't have any suggestions other than buying a couple of old bodies. Maybe try the Parts Wanted forum?
The following user(s) said Thank You: OkieZ1000

Please Log in or Create an account to join the conversation.

Last edit: by Nessism.

BS34 - Missing plug and o-ring - part search 22 Jan 2021 04:34 #842149

  • asphalt900
  • asphalt900's Avatar
  • Offline
  • User
  • Posts: 491
  • Thank you received: 166
Those are just aluminum slugs to plug the hole when they drilled the bypass holes for the pilot system in the venturi. The rubber o-ring is actually a distancing/sealing flat rubber o-ring to keep the slug in place and seal off the slug to casting. Probably stuck to the gasket in the past and got pitched. But double check your old gaskets to see if they are there. Any BS32-34 slug will work. A thick-er snug fitting conventional o-ring will suffice to replace the previous square one. I should have some of these laying around, how many do you need?

Please Log in or Create an account to join the conversation.

BS34 - Missing plug and o-ring - part search 22 Jan 2021 06:09 #842151

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 7976
  • Thank you received: 1620
That plug seems like another good candidate for 3D printing. It probably doesn't need to be aluminum.
