TOPIC:

CV 36 help 01 Dec 2020 12:29 #839267

  • Peanuthead
  • Peanuthead's Avatar Topic Author
  • Offline
  • User
  • Posts: 64
  • Thank you received: 0

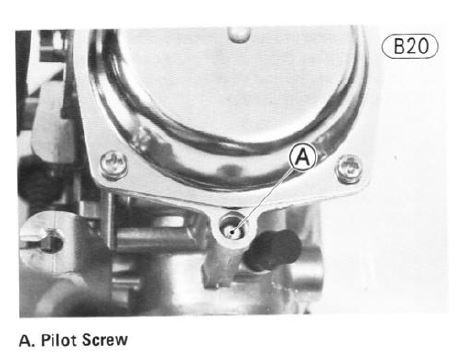

So I'm having a slight problem with my carbs. My pilot screws are capped off and I was wondering how do I get the plug out to access the pilot screw?

Thanks in advance.
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Peanuthead.

CV 36 help 01 Dec 2020 13:44 #839270

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 5649
  • Thank you received: 1670
This tutorial is not specific to those carbs but there is some specific information on how to remove the cap over the pilot screw.

zeus.mtsac.edu/~cliff/storage/gs/Mikuni_...Rebuild_Tutorial.pdf
The following user(s) said Thank You: slayer61, Peanuthead

Please Log in or Create an account to join the conversation.

CV 36 help 01 Dec 2020 17:07 #839276

  • JR
  • JR's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2755
  • Thank you received: 345
I just measured one of those caps from a Keihin CV34 at 2.35mm thick.
1980 kz750E1, Delkevic exhaust

Please Log in or Create an account to join the conversation.

Last edit: by JR.

CV 36 help 01 Dec 2020 17:41 #839280

  • Peanuthead
  • Peanuthead's Avatar Topic Author
  • Offline
  • User
  • Posts: 64
  • Thank you received: 0
Finally read the PDF and I had a feeling I’d have to drill out the plug. Guess that’s gonna be a weekend/late night project. Thanks

Please Log in or Create an account to join the conversation.

Last edit: by Peanuthead.

CV 36 help 29 Mar 2021 08:09 #845728

  • Peanuthead
  • Peanuthead's Avatar Topic Author
  • Offline
  • User
  • Posts: 64
  • Thank you received: 0
It's been a few months and I hadn't touched the carbs. Finally had the opportunity to pull the carbs and replace the pilot screws, springs, o-rings, and washers.  Backed them out 2.5 turns and fired her up. She was idling a little smoother but still backfired/popping and was still smelling fuel. So I tried 1.5 turns and she ran a little rougher and popped more.

Today I tired to adjust the pilot screws again. Tried 3 different adjustments, all having the same result. 2.5 turns, 1.5 turns, 2 turns, and finally 2.75 turns= revving to 5k, no popping/backfiring at idle; test ride resulted in bogging down (almost shutting down) at WOT, slowly rolling throttle only gets me to ~4k rpms.

So, do I need to back the screws out 3 or more turns? Do I need to rejet the carbs now?

Please Log in or Create an account to join the conversation.

CV 36 help 29 Mar 2021 09:52 #845733

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 5649
  • Thank you received: 1670
The pilot screws are for setting the idle mixture.  A good tuning method is to tweak them until the highest idle speed is achieved.  These screws have an effective range of 1-4 turns out and the further out the richer the mixture.

FYI (in case this applies): If you are running pod filters the carbs will need drastic rejetting.  The pilot screws won't help you much there.

Please Log in or Create an account to join the conversation.

CV 36 help 29 Mar 2021 17:33 #845775

  • Peanuthead
  • Peanuthead's Avatar Topic Author
  • Offline
  • User
  • Posts: 64
  • Thank you received: 0
Then I'll go back to 2 turns since she seemed happiest there. And no, I'm not running pods. Still need to figure out why she's bogging down. Grrrrrrrr.

Please Log in or Create an account to join the conversation.

CV 36 help 24 Apr 2021 20:07 #847385

  • Peanuthead
  • Peanuthead's Avatar Topic Author
  • Offline
  • User
  • Posts: 64
  • Thank you received: 0
Been a while since I messed with the 440.  Bought a sync tool from Amazon and used it tonight.  I was hoping that all I really needed to do was resync the carbs but, that wasn't the case. They were already synced! So now I think it's either a jetting issue, not enough back pressure in the exhaust, or both. What do y'all think?

Please Log in or Create an account to join the conversation.

CV 36 help 25 Apr 2021 06:19 #847405

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 5771
  • Thank you received: 1366
The pilot screws are for adjusting the low speed mixture, from idle to about 1/8 throttle opening. As the throttle is opened father, the other circuits come into play and the pilot screws have less and less influence. Since you are having problems throughout the rev range, either there are multiple problems with the carbs, or the problem is elsewhere. You mentioned back pressure in the exhaust system. Has it been modified?
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

CV 36 help 25 Apr 2021 06:36 #847406

  • Nebr_Rex
  • Nebr_Rex's Avatar
  • Offline
  • User
  • Posts: 1769
  • Thank you received: 250
Clean your carbs.
2002 ZRX1200R
81 GPz1100
79 KZ1000st daily ride
79 KZ1000mk2 prodject
78 KZ650sr
78 KZ650b
81 KZ750e
80 KZ750ltd
77 KZ400/440 cafe project
76 KZ400/440 Fuel Injected

www.dotheton.com/forum/index.php?topic=39120.0


.

Please Log in or Create an account to join the conversation.

CV 36 help 25 Apr 2021 10:42 #847414

  • Peanuthead
  • Peanuthead's Avatar Topic Author
  • Offline
  • User
  • Posts: 64
  • Thank you received: 0
The carbs have been cleaned twice already.  As for the exhaust, its a 2 into 1 (Mac I think) without/missing the baffle. I installed 2 small universal baffles in the end of the header tubes hoping it would help.

I should also add that I swapped the modified air box I made for a stock one and the idle was a little smoother.

Please Log in or Create an account to join the conversation.

Last edit: by Peanuthead.

CV 36 help 25 Apr 2021 21:21 #847467

  • Peanuthead
  • Peanuthead's Avatar Topic Author
  • Offline
  • User
  • Posts: 64
  • Thank you received: 0
Spent a lot of time today looking around eBay, Amazon, and a ton of parts dealers for a carb jet kit and baffle to fit in the exhaust. Finally found a baffle that might be an actual MAC replacement! As for a jet kit, I'm still looking. I've found a few that look promising but I'm still not sure.

Please Log in or Create an account to join the conversation.
