Mystery plug 27 Jul 2020 13:50 #831626

  • Davey b
  • Davey b's Avatar Topic Author
  • Offline
  • User
  • Posts: 71
  • Thank you received: 0
the manual for my bike ,81 kz1000 csr

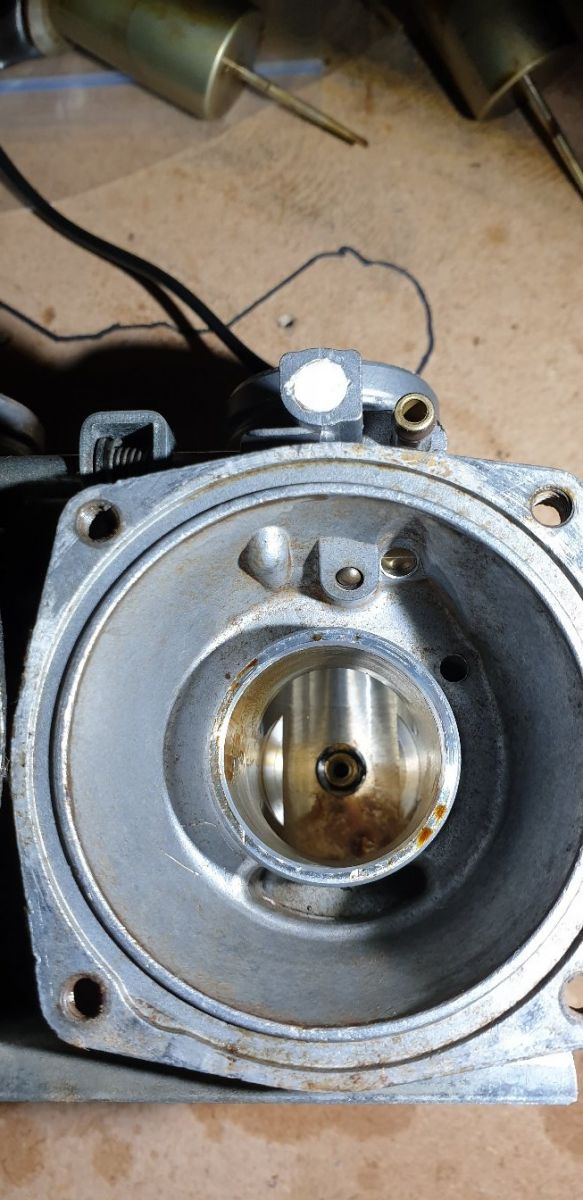

USA model, states that the pilot Air screw is non adjustable. Question is, what's under the white rubbery plug.
If there's nothing under there how do I adjust the fuel/air mixture ?
1981 kawasaki kz1000 m1 csr
Attachments:

Please Log in or Create an account to join the conversation.

Mystery plug 27 Jul 2020 15:14 #831632

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
Remove plug carefully so to not damage the screw underneath.
The following user(s) said Thank You: Davey b

Please Log in or Create an account to join the conversation.

Mystery plug 27 Jul 2020 15:15 #831633

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2885
  • Thank you received: 1441
The pilot mixture screw is set and sealed at the factory for US emissions purposes ( usually on the lean side ) and no setting is given to deter tampering.
If you pull the bung you will be able to adjust as normal.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





Please Log in or Create an account to join the conversation.

Mystery plug 27 Jul 2020 15:38 #831636

  • Davey b
  • Davey b's Avatar Topic Author
  • Offline
  • User
  • Posts: 71
  • Thank you received: 0
The manual states 1 1/4 turns out for non US models. Even though mine is a US model should I start with that, I'm trying to achieve a standard base setting. Everything on the bike is totally standard.. the bike is running lean, currently has 112.5 main jets, they should be 122.5 so I'm gonna change them !
By the way, I'm in the UK and at sea level..
1981 kawasaki kz1000 m1 csr

Please Log in or Create an account to join the conversation.

Mystery plug 27 Jul 2020 15:51 #831637

  • Davey b
  • Davey b's Avatar Topic Author
  • Offline
  • User
  • Posts: 71
  • Thank you received: 0
Also, as its at the top front of the carbs ie between the carbs and the engine, doesn't that make it a fuel mixture screw rather than an air pilot screw ?
1981 kawasaki kz1000 m1 csr

Please Log in or Create an account to join the conversation.

Mystery plug 27 Jul 2020 16:04 #831640

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7257
  • Thank you received: 2658
Looks like someone removed the original plug and replaced it with white RTV.

2.5 turns open is what I use as a starting point for those pilot screws. Once the bike is up and running tweak them until you achieve the highest idle and smoothest running during tip in.

Please Log in or Create an account to join the conversation.

Mystery plug 27 Jul 2020 16:51 #831644

  • krazee1
  • krazee1's Avatar
  • Away
  • User
  • Posts: 365
  • Thank you received: 196

Davey b wrote: Also, as its at the top front of the carbs ie between the carbs and the engine, doesn't that make it a fuel mixture screw rather than an air pilot screw ?


Yes!

Mike
Former M.E. at Kawasaki Motors Manufacturing, Lincoln, NE
1966 W1 (the Z1 of 1966-50H.P. and 100mph!)
1974 Z1
1978 KZ1000 LTD
1976 KZ900B pile O parts
1980 KZ750E
1980 Honda XL250S (I know, wrong flavor!)

Please Log in or Create an account to join the conversation.

Mystery plug 27 Jul 2020 23:54 #831676

  • Davey b
  • Davey b's Avatar Topic Author
  • Offline
  • User
  • Posts: 71
  • Thank you received: 0
Thanks for all your help guys. The bike already runs pretty well, especially from 3000 rpm all the way through the revs from there. Its just a little vague / fluffy at low revs.
Have got new jets on order to get it back to standard and have also ordered a set of new carb holders as I suspect a minor leak there. Will report back when all is fitted. Thanks again, any more ideas gratefully welcomed..
1981 kawasaki kz1000 m1 csr

Please Log in or Create an account to join the conversation.

Mystery plug 28 Jul 2020 02:04 #831679

  • Mc Tavish
  • Mc Tavish's Avatar
  • Offline
  • User
  • Posts: 103
  • Thank you received: 35
Well said Nessism, it's just a starting point. It seems a fair few people here seem to think that 2 turns or 2.5 or 4 etc is to be rigidly adhered to. Bollocks.
Idle mix screws are there for a reason, not even the best built engine has the same characteristics in every cylinder so fine adjustments have to be made to achieve a steady consistent idle state. Especially when multiple carbs are in play.
They tried that shit on us here in Australia in the late 70's, it didn't work. People were spewing that they had to pay to have the plugs knocked out just to have their reasonably new cars behave nicely. Should have been a recall in my opinion. Rochester quadrajets and Carter thermo quads were the worst followed closely by Stromberg single and duel throat carbs.
Interestingly, Aussie Z bikes never had idle mix plugs in that era.
I do understand that some of you in the US have to face emission tests and quite rightly don't want to be seen as having the plugs removed. Just before your test reatard the ign timing, works a treat!
1978 z650C

Please Log in or Create an account to join the conversation.

Mystery plug 28 Jul 2020 03:03 #831680

  • Davey b
  • Davey b's Avatar Topic Author
  • Offline
  • User
  • Posts: 71
  • Thank you received: 0
Bit of a newbie to carbs, so after I've fitted the correct jets and holders is it a case of warming the bike up first, then playing with the mixture screws one at a time until I get what ? A nice even tickover and low rev response ??
I guess make a note of the current screw positions on each carb first as a default setting ?
1981 kawasaki kz1000 m1 csr

Please Log in or Create an account to join the conversation.

Mystery plug 28 Jul 2020 04:39 #831681

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2885
  • Thank you received: 1441
Those fuel mix screws are richer as you turn out.
So that's the way you should be going.
You are after smooth response as you say and no popping which would indicate a lean mix..
Set them initially the same at the UK manual setting and you won't be far off.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





Please Log in or Create an account to join the conversation.

Mystery plug 28 Jul 2020 05:19 #831683

  • Mc Tavish
  • Mc Tavish's Avatar
  • Offline
  • User
  • Posts: 103
  • Thank you received: 35
Is your motorcycle totally standard as manufactured? Air box, filter, exhaust? Have you adjusted valve clearance and checked and adjusted ign timing? Is cam chain tension adjusted correctly? If so that's great, next, do the slides move freely up and down the bore, are the diaphragms soft and flexible as opposed to hard and possibly cracked.
Jets as per FSM? If so you are good to go. Yes ,wait until bike is up to normal operating temp then adjust idle mix to achieve steady idle.
Please don't let anyone talk you into buying a colourtune, biggest load of wank ever. Bit like indexing your lawnmower spark plug!
1978 z650C

Please Log in or Create an account to join the conversation.
