Need carburetor advice on my 80 kz1000

  • Bulletkz
  • Topic Author
  • Offline
  • Sustaining Member
More
28 Feb 2019 15:23 #799414 by Bulletkz
Need carburetor advice on my 80 kz1000 was created by Bulletkz
I got my 80 kz1000 ltd up and running.
It seems to run good except for a few things.
It has a random carb caugh at times , it's popping on deceleration and it's running hot.
I know it's lean.
I am waiting on another carburetor synchronize tool, the first one I just bought off amazon only had one working gauge !
The other problem is I don't know much about the bike or what has been done to it.
I know it's not stock .
It has a vance and hines exhaust with no real baffle yet.
K&n filters, electronic stator and the head looks aftermarket.
I drained the carb bowls and it looks very clean.
I don't know what it has for jets.
I was thinking of ordering a jet kit until I saw the cost , can I just order the jets separate?
Should I tear them apart or just synchronize them ?
Attachments:

Please Log in or Create an account to join the conversation.

More
28 Feb 2019 17:46 #799422 by Nessism
Replied by Nessism on topic Need carburetor advice on my 80 kz1000
The first thing I do when bringing back any 35+ year old bike to running condition is to remove the carbs and fully rebuild them. A full tear down, soaking of carb bodies and all the piece parts in carb dip, replacing all the soft parts like O-rings and gaskets, then reassemble and check fuel level using the clear tube method. Oh, and check the carb jets against what came stock (as detailed in the factory service manual) and make sure the jetting is correct (if stock) or at least close if there are pods and a header. Once the bike is up and running I do a carb sync. 40 year old O-rings are evil things and the only way to properly clean carbs is by tearing them down.
The following user(s) said Thank You: Bulletkz

Please Log in or Create an account to join the conversation.

  • Bulletkz
  • Topic Author
  • Offline
  • Sustaining Member
More
01 Mar 2019 05:30 #799441 by Bulletkz
Replied by Bulletkz on topic Need carburetor advice on my 80 kz1000
Thanks. Do you buy the gaskets ,o rings and jets separate or buy a rebuild kit?
Seems like a waste if I'm not using the stock size jets anyways.

Please Log in or Create an account to join the conversation.

More
01 Mar 2019 06:10 - 01 Mar 2019 06:21 #799448 by Patton
Replied by Patton on topic Need carburetor advice on my 80 kz1000

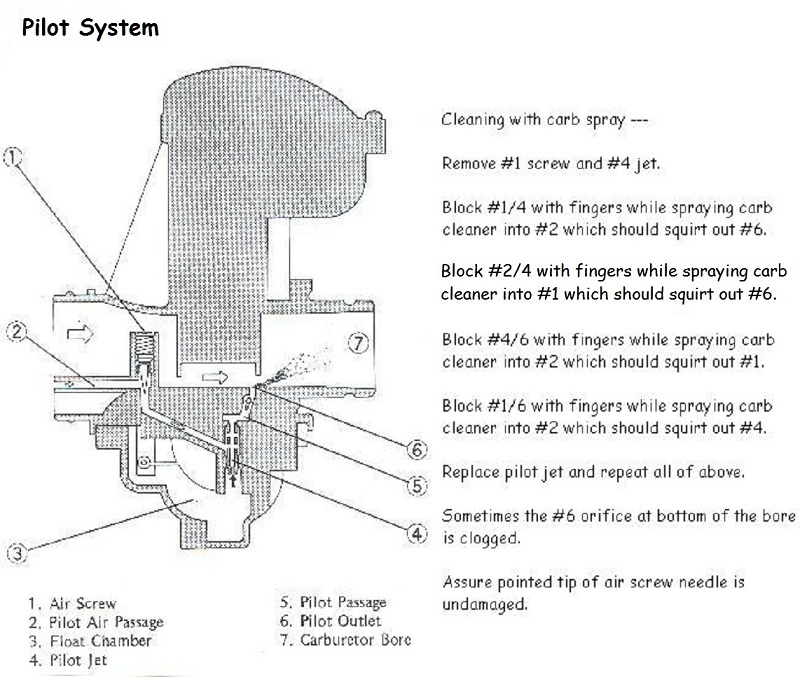

Would suspect obstructed pilot circuits.

First remove, clean and reinstall pilot jets.
Then clean the pilot circuits.



And assure that the pilot jets are stock size.

With properly functioning pilot circuits, usually popping on decel may be reduced or eliminated by slightly enriching the pilot circuit. For example, could turn each pilot air screw 1/8 turn clockwise.

Good Fortune! :)

1973 Z1
KZ900 LTD
Attachments:
Last edit: 01 Mar 2019 06:21 by Patton.

Please Log in or Create an account to join the conversation.

  • SWest
  • Offline
  • Sustaining Member
  • 10 22 2014
More
01 Mar 2019 07:33 #799457 by SWest
Replied by SWest on topic Need carburetor advice on my 80 kz1000
I use a guitar string or strand from a wire brush to clean the pilot jets. Yes, they're that small.
Steve

Please Log in or Create an account to join the conversation.

  • Bulletkz
  • Topic Author
  • Offline
  • Sustaining Member
More
05 Mar 2019 15:08 #799787 by Bulletkz
Replied by Bulletkz on topic Need carburetor advice on my 80 kz1000
Thanks for the info.
The parts are soaking now.
I bought a gasket and o-ring kit.
The jets are 17.5 and 20 .
Should I re-assemble with those jets or ?

Please Log in or Create an account to join the conversation.

  • hardrockminer
  • Offline
  • Sustaining Member
More
05 Mar 2019 16:32 #799797 by hardrockminer
Replied by hardrockminer on topic Need carburetor advice on my 80 kz1000
I think Nessism was suggesting you reuse the jets but replace the soft parts. I would agree with that.

I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: Nessism

Please Log in or Create an account to join the conversation.

More
05 Mar 2019 16:58 #799800 by Nessism
Replied by Nessism on topic Need carburetor advice on my 80 kz1000
Sorry, I'm not a jetting guy so I can't offer hard advice. For the most part though a good starting point is to keep the stock pilot jets and bump the mains 3 or 4 steps for pods and header. You can also raise the needle a smig.

Please Log in or Create an account to join the conversation.
