ZX550 /GPZ550 Carbs? 12 Jan 2019 11:18 #796595

  • scristina
  • scristina's Avatar Topic Author
  • Offline
  • User
  • Posts: 24
  • Thank you received: 0
Hi.

Can anyone tell me the origin of these carbs? Believed they were for a ZX550/GPZ550 but the throat diameter is 38mm (see attached pictures) and believe the one for the GPZ550 is only 32 /33 mm. Additionally what are those electrical wires protruding out of the bottom? What are those for?

Thanking you in advance for your help.

Best Regards

SC
Attachments:

Please Log in or Create an account to join the conversation.

ZX550 /GPZ550 Carbs? 12 Jan 2019 15:03 #796610

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
The Zx550's would have been CV TeiKei brand carbs.

Not sure what those Keihins are from.
The following user(s) said Thank You: scristina

Please Log in or Create an account to join the conversation.

ZX550 /GPZ550 Carbs? 12 Jan 2019 16:08 #796614

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
You have ZR550 Zephyr carbs with an electric heater System



Throat diameter is the ID not the OD

Attachments:
The following user(s) said Thank You: scristina

Please Log in or Create an account to join the conversation.

ZX550 /GPZ550 Carbs? 13 Jan 2019 01:45 #796651

  • scristina
  • scristina's Avatar Topic Author
  • Offline
  • User
  • Posts: 24
  • Thank you received: 0
Thank you Scirocco. Greatly appreciated.

Best Regards

SC

Please Log in or Create an account to join the conversation.

ZX550 /GPZ550 Carbs? 13 Jan 2019 05:55 #796659

  • CoreyClough
  • CoreyClough's Avatar
  • Offline
  • User
  • GPz550 Addiction
  • Posts: 1094
  • Thank you received: 80
The ZX550 Carbs used only one cable, and had a 3 position choke knob. Looks like those carbs have a manual choke??? The CV30 Carbs from the ZR550, use 2 cables (push and pull), and also used a cable operated choke(enrichment) operated from the left handlebar switch. Would be interesting to see the number stamped on the slide needles, and also the number on the main jets. Also, on the CV30 Zephyr ZR550, carbs 2 and 3 had the same main jets, but 1 and 4 were different. Needles were the same in all, and so were the pilots.
'85 GPz550(ZX550-A2)

GPz550 Base Manual --> tinyurl.com/ze5b3qo
GPz550 Supplement Manual --> tinyurl.com/h34d2o6
GPz550.com --> www.nwsca.com/scripts/gpz_forum_2005/default.asp
First Race Win GPz550 --> tinyurl.com/o5y3ftp

Please Log in or Create an account to join the conversation.

ZX550 /GPZ550 Carbs? 13 Jan 2019 09:33 #796681

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892

CoreyClough is right.
Would be interesting to see the number stamped on the slide needles, and also the number on the main jets. Also, on the CV30 Zephyr ZR550, carbs 2 and 3 had the same main jets, but 1 and 4 were different. Needles were the same in all, and so were the pilots.

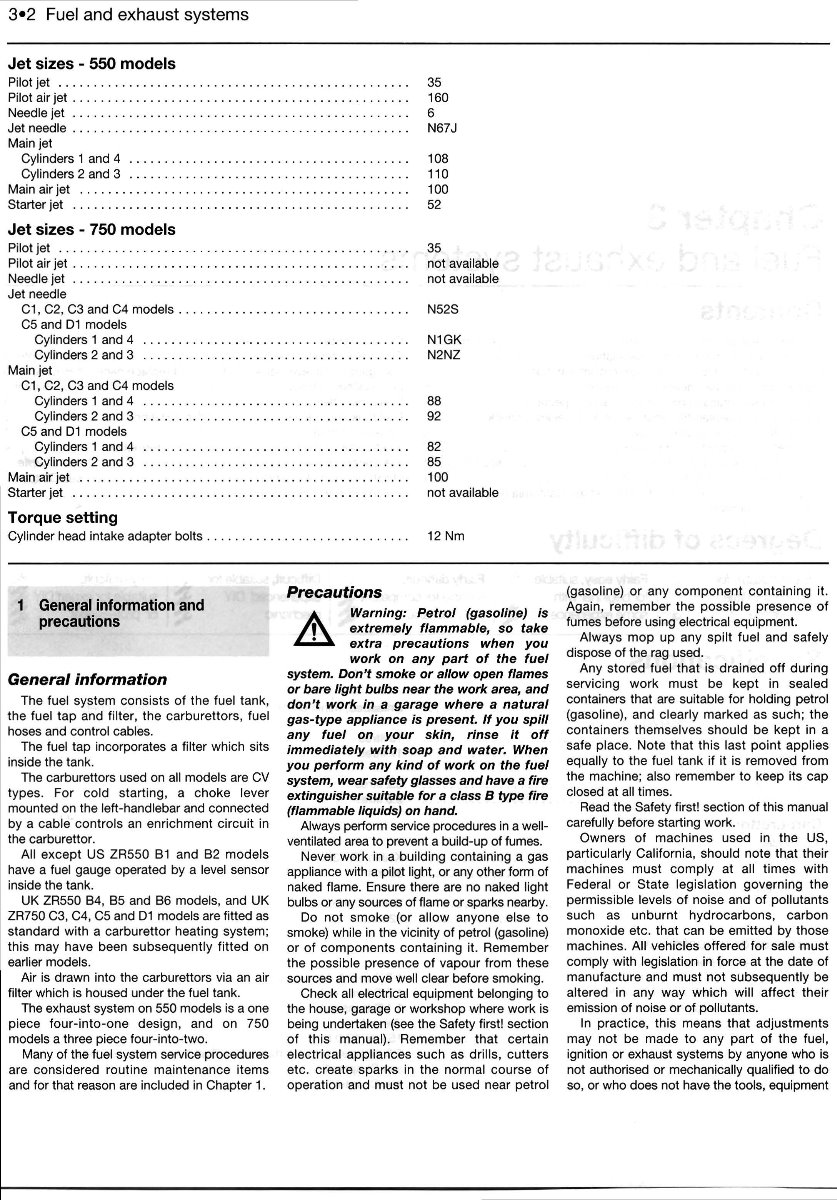

Some ZR550 carb specs



The ZR750 main Jet size 82-85-85-82 are way too lean, due to European emission regulations,
The ZR750 engine run powerless over 6000 rpm!!!
The ZR550 main Jet size (108-110-110-108) are the best for the ZR750 engine.
Don´t ask why i know it.
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

ZX550 /GPZ550 Carbs? 13 Jan 2019 10:13 #796692

  • Daftrusty
  • Daftrusty's Avatar
  • Offline
  • User
  • Posts: 358
  • Thank you received: 182
The Zephyrs and zx/gpz600’s never had a choke (enrichment circuit) that was a manual slide. They were all cable actuated.
Those are from either a late model gt550 or gt750. The 550’s will be 30mm and the 750 will be 32mm. So the needle and jet info from the Zephyrs will likely not apply but the GT jetting will surely be appropriate as long as they are used with an air box. (Like-for-like as in gt550 carbs on a gpz550 engine...etc)

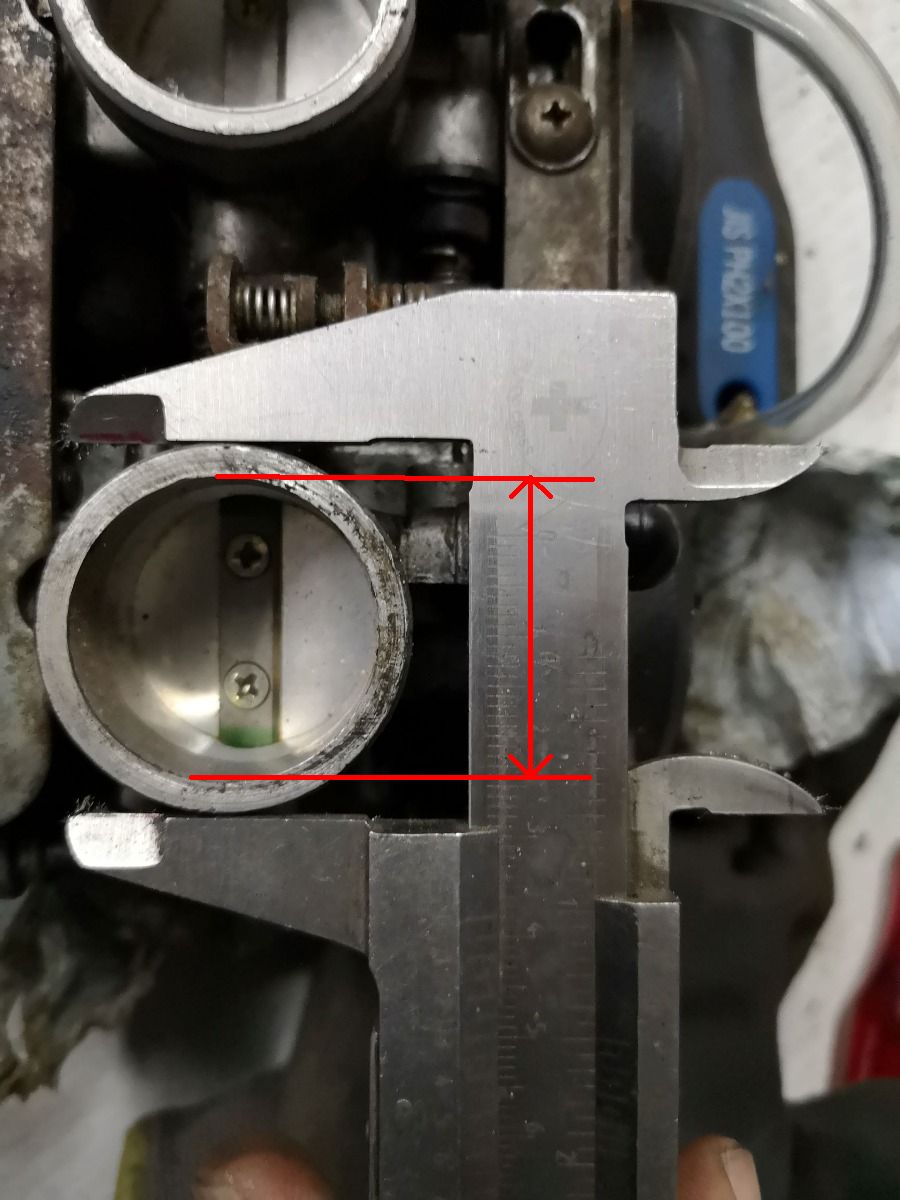

As mentioned before, the size of the carbs are determined by measuring the inner diameter of the carb where it attaches to the intake manifold.
The CVK carb spacing is different than the gpz factory carbs, so zephyr or GT intake manifolds will be required to adapt them to an older bike.

Please Log in or Create an account to join the conversation.

ZX550 /GPZ550 Carbs? 13 Jan 2019 18:28 #796729

  • CoreyClough
  • CoreyClough's Avatar
  • Offline
  • User
  • GPz550 Addiction
  • Posts: 1094
  • Thank you received: 80
Because the 3rd Picture in the first post shows a lever with the word "choke" on it, and I have never seen that on a set of CV30 or CV32 Carbs, it would be interesting to find out what they came off. I have seen bowl heater holes like also pictured. Getting the numbers off those needles, might help with the model search. We a like this stuff.
'85 GPz550(ZX550-A2)

GPz550 Base Manual --> tinyurl.com/ze5b3qo
GPz550 Supplement Manual --> tinyurl.com/h34d2o6
GPz550.com --> www.nwsca.com/scripts/gpz_forum_2005/default.asp
First Race Win GPz550 --> tinyurl.com/o5y3ftp

Please Log in or Create an account to join the conversation.

ZX550 /GPZ550 Carbs? 16 Jan 2019 00:59 #796859

  • scristina
  • scristina's Avatar Topic Author
  • Offline
  • User
  • Posts: 24
  • Thank you received: 0
Good Morning.

Currently traveling, but will send all the requested information on my return. :)

SC

Please Log in or Create an account to join the conversation.

ZX550 /GPZ550 Carbs? 19 Jan 2019 06:16 #797068

  • scristina
  • scristina's Avatar Topic Author
  • Offline
  • User
  • Posts: 24
  • Thank you received: 0
Good Morning.

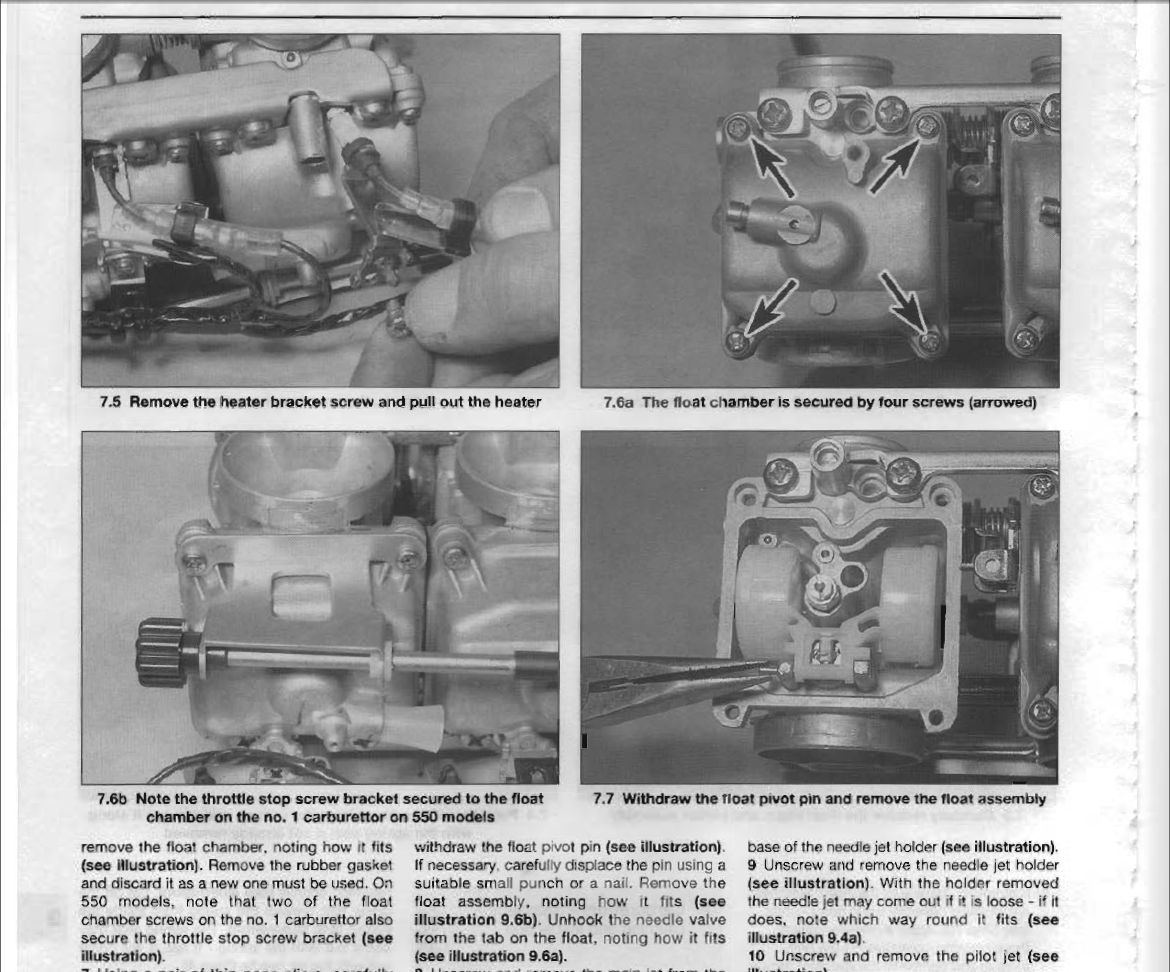

Have added in attach a few more pictures of the carbs. Unfortunately the majority of the bolts on these carbs have damaged heads and as I'm returning them, was not able to open to check.

Hope this helps.

Best Regards

SC

Please Log in or Create an account to join the conversation.

ZX550 /GPZ550 Carbs? 19 Jan 2019 07:05 #797073

  • CoreyClough
  • CoreyClough's Avatar
  • Offline
  • User
  • GPz550 Addiction
  • Posts: 1094
  • Thank you received: 80

Have added in attach a few more pictures of the carbs. Unfortunately the majority of the bolts on these carbs have damaged heads and as I'm returning them, was not able to open to check.

Thanks for trying.

Here is an old not-so-clear picture of the difference between the CV32 on the left, and CV30 on the right. The CV32 ID is larger than the CV30, but the OD of them are the same.



Here is that picture showing a few sets of CV32 Carbs and the set in the middle has these heating element holes.

'85 GPz550(ZX550-A2)

GPz550 Base Manual --> tinyurl.com/ze5b3qo
GPz550 Supplement Manual --> tinyurl.com/h34d2o6
GPz550.com --> www.nwsca.com/scripts/gpz_forum_2005/default.asp
First Race Win GPz550 --> tinyurl.com/o5y3ftp

Please Log in or Create an account to join the conversation.

Last edit: by CoreyClough.

ZX550 /GPZ550 Carbs? 20 Jan 2019 14:40 #797158

  • scristina
  • scristina's Avatar Topic Author
  • Offline
  • User
  • Posts: 24
  • Thank you received: 0
Thank you.

So these should be CV30. Does that number on the side of the carb mean anything (4th picture that i've sent - V687...)?
