VM24 carburetors float needle?

VM24 carburetors float needle? was created by gordone

I have VM24 carburetors from a 650 engine used on my 750cc engine.
I need some help to find correct float needle, I want to purchase new one...

These is the only part when it comes to wear and tear for keeping correct float height?

How can I find part number ?

---

1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.

Replied by Warren3200gt on topic VM24 carburetors float needle?

16032-003
www.kawasakipartshouse.com/oemparts/p/ka.../16032-003/pin-float

---

Z1000J2 somewhat modified!

Please Log in or Create an account to join the conversation.

Replied by gordone on topic VM24 carburetors float needle?

Warren3200gt wrote: 16032-003
www.kawasakipartshouse.com/oemparts/p/ka.../16032-003/pin-float

Thank you, but I`m not looking for the pin, but the needle with needle (rubber/spring/)

Please see attached photo, these picture is not picture of the needle I has, but they looks to be almost identical,
but the previous owner can have installed wrong needle so I hope somebody can help me with correct one to my carb?

---

1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.

Replied by Warren3200gt on topic VM24 carburetors float needle?

Float valve assembly ? 16030-1001

---

Z1000J2 somewhat modified!

Please Log in or Create an account to join the conversation.

Replied by gordone on topic VM24 carburetors float needle?

Warren3200gt wrote: Float valve assembly ? 16030-1001

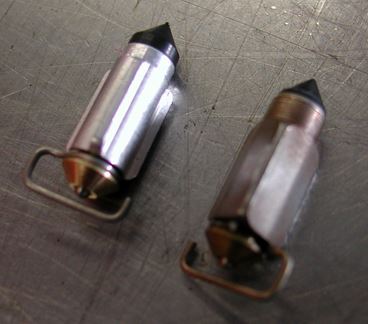

These part I`m looking for, the picture is not taken of my needle, but a random pi cure I found on internet, but it looks to be identical.

Please see photo:

---

1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.

Replied by Warren3200gt on topic VM24 carburetors float needle?

VM 24's use this part number 16030-1001 this is for both the needle and seat which come as a set. The picture you have posted shows a wire piece which is not present on mikuni vm24's float valves
goo.gl/images/rxbpmm

---

Z1000J2 somewhat modified!

Please Log in or Create an account to join the conversation.

Replied by Scirocco on topic VM24 carburetors float needle?

Take look here

Article No.: KYV-03R25

Z650 float valve set for original Keihin carburetor from Keyster carburetor parts

•Keyster = KYV-03R25
•special valve with rubber top
•#2,5

www.motorradbay.de/z650-kyv-03r25_5-floa...6e1769fe4384b9c23a36

---

My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode

Please Log in or Create an account to join the conversation.

Replied by Warren3200gt on topic VM24 carburetors float needle?

What carbs are they from Michael? I've never seen float valves with that wire assembly on them. OP has mikuni so wrong part fitted?

---

Z1000J2 somewhat modified!

Please Log in or Create an account to join the conversation.

Replied by 650ed on topic VM24 carburetors float needle?

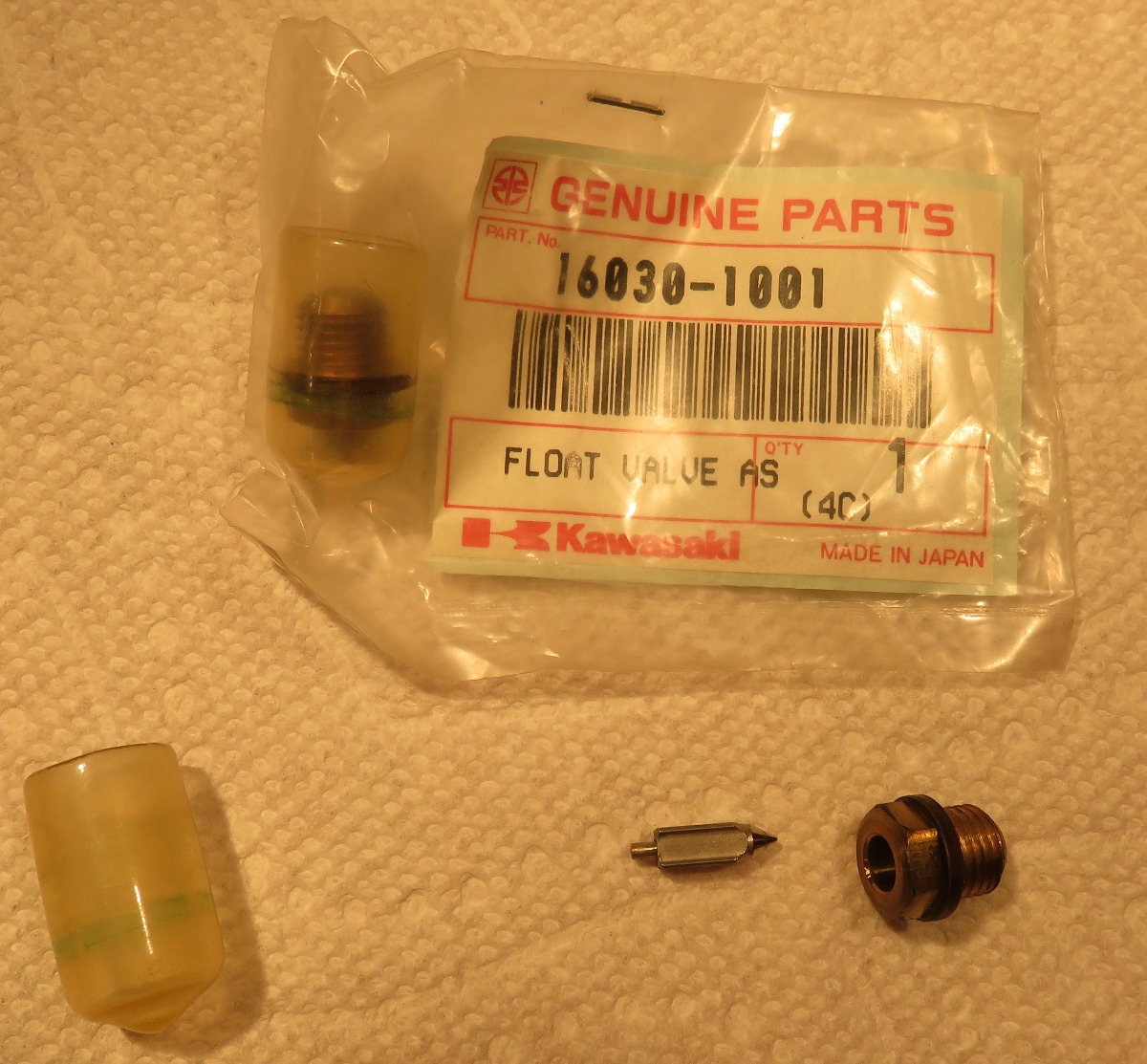

Warren3200gt is correct. Kawasaki never sold the VM24 float needle as a separate item and there was no rubber tip. It comes as part of the float valve assembly (needle and seat). The part number for the VM24 float valve assembly is 16030-1001. The needle does not look like the one in your picture because it does not have the wire you show. See images below. Ed

---

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

Please Log in or Create an account to join the conversation.

Replied by Scirocco on topic VM24 carburetors float needle?

These float needles are for the 1980 and later carbs like gordon need.

Here the float needles for the early Z650 year 77-79

www.motorradbay.de/z650__br_year_77-79-k...6e1769fe4384b9c23a36

---

My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
