- Posts: 209
- Thank you received: 37
And, and? Bend the tab ..
- chopper1963
- Topic Author
- Offline
- User
Less
More
18 Jan 2017 08:51 #752424
by chopper1963
And, and? Bend the tab .. was created by chopper1963
Please Log in or Create an account to join the conversation.
- missionkz
- Offline
- Sustaining Member
18 Jan 2017 10:03 - 18 Jan 2017 10:05 #752427
by missionkz
Bruce
1977 KZ1000A1
2016 Triumph T120 Bonneville
Far North East Metro Denver Colorado
Replied by missionkz on topic And, and? Bend the tab ..
Probably something like ... lowers the fuel level in the float fuel bowl.
Bending the tab away from the needle will raise the fuel level in the bowl.
Bending the tab away from the needle will raise the fuel level in the bowl.
Bruce
1977 KZ1000A1
2016 Triumph T120 Bonneville
Far North East Metro Denver Colorado
Last edit: 18 Jan 2017 10:05 by missionkz.
Please Log in or Create an account to join the conversation.
- martin_csr
- Offline
- User
Less
More
- Posts: 8068
- Thank you received: 1656
18 Jan 2017 10:11 - 18 Jan 2017 10:12 #752428
by martin_csr
Replied by martin_csr on topic And, and? Bend the tab ..
Here's a better version of the 750-4 manual. It's scanned very good & has a yellow/gold cover w color wiring diagrams.
Manual. 1980-84 KZ750-4. 1983-85 ZX750. 750turbo.com --- Index .
The pdf manual link is near the bottom of the list -->> GPz750 Base Manual.pdf. good scans.
PS: instead of bending the tangs, I would flex them x number of times. using a screwdriver to push on the tang & with the float bracket supported so that it wouldn't get mangled.
Manual. 1980-84 KZ750-4. 1983-85 ZX750. 750turbo.com --- Index .
The pdf manual link is near the bottom of the list -->> GPz750 Base Manual.pdf. good scans.
PS: instead of bending the tangs, I would flex them x number of times. using a screwdriver to push on the tang & with the float bracket supported so that it wouldn't get mangled.
Last edit: 18 Jan 2017 10:12 by martin_csr.
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 23008
- Thank you received: 2755
18 Jan 2017 10:19 #752430
by SWest
Replied by SWest on topic And, and? Bend the tab ..
Be careful not to bend them too much. Bend the float arms then the tang for fine adjustment. Too much and the needle will cock sideways and not seal.
Steve
Steve
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
Less
More
- Posts: 7527
- Thank you received: 2839
18 Jan 2017 11:03 #752435
by Nessism
Replied by Nessism on topic And, and? Bend the tab ..

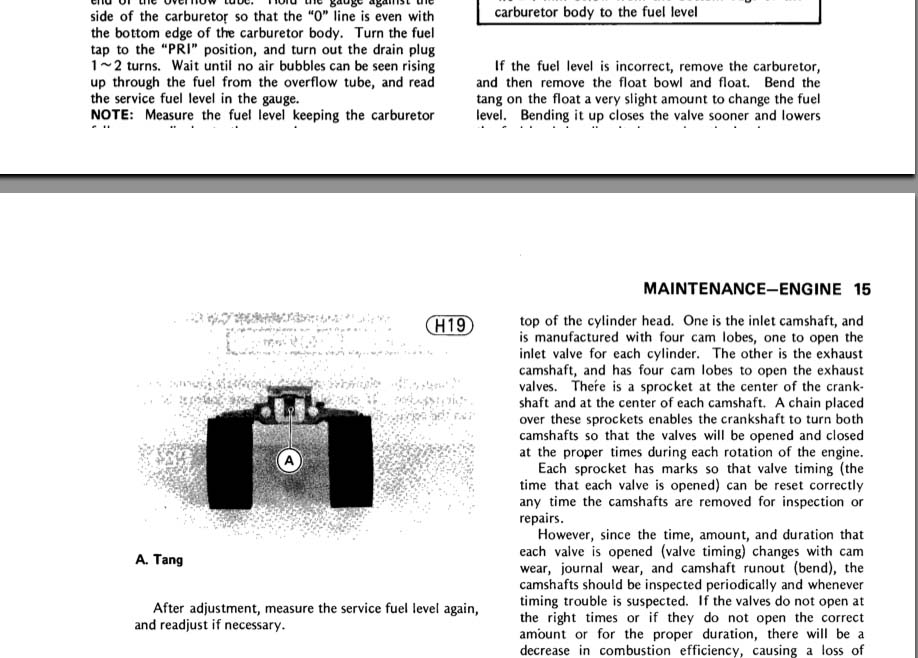

The fuel level is supposed to be 2-4mm below the gasket surface. Bend the little float tang until you achieve that level. I use a small screwdriver to bend the tang. When you work on the carbs upside down on the workbench the tang should be bend down by a small amount (5-10* down or so).
I'd start by setting the float height. Be careful to check to see if the weight of the float is compressing the needle though, and if it is you need to hold up the float before measuring. To measure you need to remove the gasket and measure to the carb surface as shown
I'd start by setting the float height. Be careful to check to see if the weight of the float is compressing the needle though, and if it is you need to hold up the float before measuring. To measure you need to remove the gasket and measure to the carb surface as shown
Please Log in or Create an account to join the conversation.
