It appears he has good stuff (new quality o-rings) but I cannot tell if the o-rings will fit my carbs or not.
(btw.. I am only looking at internal O-rings) I will order the manufacture float bowl gasket/O-ring)
Thanks,
Lee
-Lee
'84 GPZ550
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
- Posts: 7527
- Thank you received: 2840
Please Log in or Create an account to join the conversation.
- khungerf
- Topic Author
- Offline
- User
- Posts: 74
- Thank you received: 2
Considering risking it for the price. OEM will cost me around $50 or more, and who knows if those have been sitting around 20 years! From the research, I don't trust the K&L kit either.
I will wait till I pull the carbs apart to order though, Then I can measure to verify.
I did order the OEM float bowl O-ring today.
-Lee
'84 GPZ550
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
- Posts: 7527
- Thank you received: 2840
For example (fictional):
Diameter of pilot screw = 3.4 mm, and the ID of the hole 5.0 mm.
An O-ring with 3.0mm ID and 1mm thick should work.
Please Log in or Create an account to join the conversation.
- khungerf
- Topic Author
- Offline
- User
- Posts: 74
- Thank you received: 2
once I get them off and apart, I will take you up on that.
Should be able to focus a bit more time in coming weeks now that hunting season is over.
-Lee
'84 GPZ550
Please Log in or Create an account to join the conversation.
- khungerf
- Topic Author
- Offline
- User
- Posts: 74
- Thank you received: 2
I am hoping to take you up on the O ring offer.
the O-rings I need are for the fuel mixture screw and the vacuum connection (same Oring according the parts diagram) part# 9055-1134
OD of my current Oring 6.22 mm
ID of used Oring 3.33 mm
OD or screw = 3.67 mm
have anything like that?
I need 8 of them.
thanks!
-Lee
'84 GPZ550
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 23008
- Thank you received: 2755
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
- Posts: 7527
- Thank you received: 2840
khungerf wrote: Hello Nessism,
I am hoping to take you up on the O ring offer.
the O-rings I need are for the fuel mixture screw and the vacuum connection (same Oring according the parts diagram) part# 9055-1134
OD of my current Oring 6.22 mm
ID of used Oring 3.33 mm
OD or screw = 3.67 mm
have anything like that?
I need 8 of them.
thanks!
Okay, so if I'm reading this correct the "OD of screw = 3.67 mm". What is the ID of the hole this screw goes into?
Please Log in or Create an account to join the conversation.
- khungerf
- Topic Author
- Offline
- User
- Posts: 74
- Thank you received: 2
Nessism wrote:
khungerf wrote: Hello Nessism,
I am hoping to take you up on the O ring offer.
the O-rings I need are for the fuel mixture screw and the vacuum connection (same Oring according the parts diagram) part# 9055-1134
OD of my current Oring 6.22 mm
ID of used Oring 3.33 mm
OD or screw = 3.67 mm
have anything like that?
I need 8 of them.
thanks!
Okay, so if I'm reading this correct the "OD of screw = 3.67 mm". What is the ID of the hole this screw goes into?
Lots of detail here; (all re-measured so if you see varaince that is why)
OD hole: 6.6mm
OD of the screw head: 6mm
OD of the 'inset' where the O ring fits: 3.64mm
ID of the worn O ring I pulled off: 3.38mm
removed O ring thickness: 1.37mm (where it looks 'healthiest)
And... as long as you are looking....
Also looking needing some fuel supply O rings ;
OD of 'inset' for O ring: 6.95mm
OD of 'head' of aluminum fuel supply: 9.74mm
ID of removed O ring: 6.71mm
Thickeness of removed O ring: 1.5mm
-Lee
'84 GPZ550
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
- Posts: 7527
- Thank you received: 2840
khungerf wrote:
Nessism wrote:
khungerf wrote: Hello Nessism,
I am hoping to take you up on the O ring offer.
the O-rings I need are for the fuel mixture screw and the vacuum connection (same Oring according the parts diagram) part# 9055-1134
OD of my current Oring 6.22 mm
ID of used Oring 3.33 mm
OD or screw = 3.67 mm
have anything like that?
I need 8 of them.
thanks!
Okay, so if I'm reading this correct the "OD of screw = 3.67 mm". What is the ID of the hole this screw goes into?
Lots of detail here; (all re-measured so if you see varaince that is why)
OD hole: 6.6mm
OD of the screw head: 6mm
OD of the 'inset' where the O ring fits: 3.64mm
ID of the worn O ring I pulled off: 3.38mm
removed O ring thickness: 1.37mm (where it looks 'healthiest)
And... as long as you are looking....
Also looking needing some fuel supply O rings ;
OD of 'inset' for O ring: 6.95mm
OD of 'head' of aluminum fuel supply: 9.74mm
ID of removed O ring: 6.71mm
Thickeness of removed O ring: 1.5mm
OD hole: 6.6mm (Shouldn't this be ID, not OD?)
For the fuel supply O-rings I need the ID of the hole.
In general I need two things: ID of hole & OD of the "inset" where the O-ring sits.

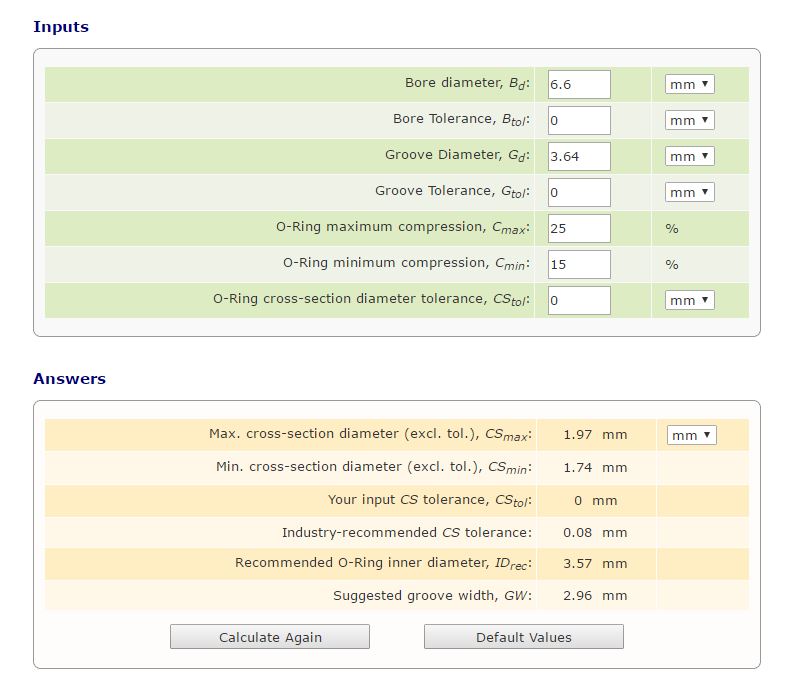

Edit: check out this link... www.efunda.com/designstandards/oring/calc_oring_radial.cfm
