Need help with 1100 ltd carbs

08 Sep 2016 05:08

Hello to all im in new inn the site and a huge fan of anything Kawasaki. i recently acquired a 1984 Kawasaki ltd 1100 ,the bikes has been customized has a front end from a zx9 and the bike has been completely /. so my issue is it has to carbs on it and ebay only has a few for sale at very high prices. my question is do any carbs from a kz or gpz fit?
thanks

Please Log in or Create an account to join the conversation.

SWest
Offline
Sustaining Member
10 22 2014
Posts: 23174
Thanks: 2805

Re: Need help with 1100 ltd carbs

08 Sep 2016 05:15

#741507

What's wrong with the ones you have?

Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

martin_csr
Offline
User
Posts: 8019
Thanks: 1645

Re: Need help with 1100 ltd carbs

08 Sep 2016 05:46 - 08 Sep 2016 05:48

#741509

You can probably use the carburetors from any KZ1100 or 81-on KZ1000, including the 82-2005 1000P police bikes.
(but not the 81 1000C police). You'd probably have to rejet the 1000 carbs.

1981 KZ650 Competition Sports and Road

Last edit: 08 Sep 2016 05:48 by martin_csr.

Please Log in or Create an account to join the conversation.

dano582
Topic Author
Offline
User
Posts: 9
Thanks: 0

Re: Need help with 1100 ltd carbs

08 Sep 2016 05:51

#741510

It doesn't have any carbs the bike is not 100 % complete

Please Log in or Create an account to join the conversation.

dano582
Topic Author
Offline
User
Posts: 9
Thanks: 0

Re: Need help with 1100 ltd carbs

08 Sep 2016 07:03

#741520

Would I have to jet to lean or rich? I want to to to be as fast as possible since it now looks more like a sport bike and not a cruiser

Please Log in or Create an account to join the conversation.

SWest
Offline
Sustaining Member
10 22 2014
Posts: 23174
Thanks: 2805

Re: Need help with 1100 ltd carbs

08 Sep 2016 07:22

#741523

Pics?
Steve

Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

dano582
Topic Author
Offline
User
Posts: 9
Thanks: 0

Re: Need help with 1100 ltd carbs

08 Sep 2016 07:24

#741524

I've tried to post some pics that I took with my phone but it says there to large . Any idea's?

Please Log in or Create an account to join the conversation.

Julian_Boolean
Offline
User
Posts: 55
Thanks: 8

Re: Re:Need help with 1100 ltd carbs

08 Sep 2016 10:49

#741549

Any Mikuni BS34s will replace the originals, I bought a set for £140 including postage, but to get it running you could use BS32s, you can get them for less than 34s.

Please Log in or Create an account to join the conversation.

dano582
Topic Author
Offline
User
Posts: 9
Thanks: 0

Re: Need help with 1100 ltd carbs

08 Sep 2016 11:04

#741552

Will the brackets that hold the 4 carbs together always be the same as long as there bs34 or there are specific to the engine. i want to make sure if I buy them and they line up correctly to the boots

Please Log in or Create an account to join the conversation.

Julian_Boolean
Offline
User
Posts: 55
Thanks: 8

Re: Re:Need help with 1100 ltd carbs

08 Sep 2016 13:15

#741569

They would be engine specific, but for the Z1100 you could use any J type Z1000 carbs, the 1100 has exactly the same head as the Z1000J, Z1000R or Z1000P models, the carbs are jetted differently but not massively different.

Please Log in or Create an account to join the conversation.

Patton
Offline
KZr Legend
Posts: 18640
Thanks: 2099

Re: Need help with 1100 ltd carbs

08 Sep 2016 13:20

#741572

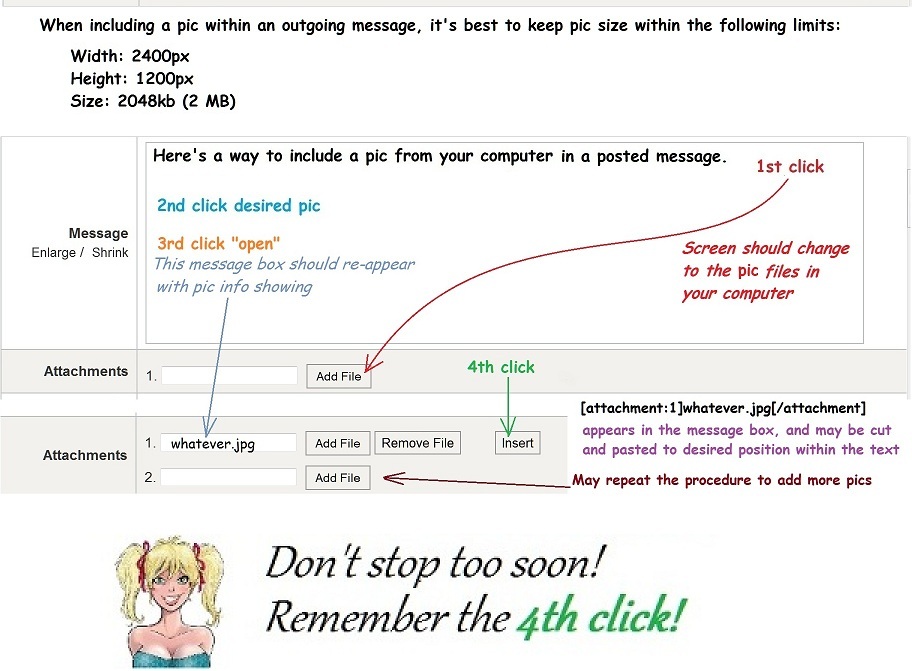

Note size limitations.
Resize the pic if necessary before including it in the message to be submitted.
Various resizing applications are available, such as MSPaint.

Good Fortune!

1973 Z1
KZ900 LTD

Attachments:

Please Log in or Create an account to join the conversation.

dano582
Topic Author
Offline
User
Posts: 9
Thanks: 0

Re: Need help with 1100 ltd carbs

08 Sep 2016 18:08 - 08 Sep 2016 18:08

#741619

Hope this works

Attachments:

Last edit: 08 Sep 2016 18:08 by dano582.
