Mikuni carburetor recommendations wanted
- daveo
-
Topic Author
- Offline
- Premium Member
-
Registered
- Posts: 2972
- Thanks: 769
Mikuni carburetor recommendations wanted
22 May 2015 18:19
Thinking about upgrading the carburetion from the BS34, original to my bike.
The engine was freshened up in February with brand new pistons/rings, a low-mile cylinder block, and a nice stock 84 ZN1100 Bathtub head with a set of 84 GPZ cams.
I'm very happy with how it runs, but if a better suited carburetor set is available (considering the modifications I've made), I'd like to know what the forum members suggest as the best choice to go with.
The bike is stock, except for the above head/cams, a Dyna 2000 ignition, and V&H header, with street baffle.

The engine was freshened up in February with brand new pistons/rings, a low-mile cylinder block, and a nice stock 84 ZN1100 Bathtub head with a set of 84 GPZ cams.
I'm very happy with how it runs, but if a better suited carburetor set is available (considering the modifications I've made), I'd like to know what the forum members suggest as the best choice to go with.
The bike is stock, except for the above head/cams, a Dyna 2000 ignition, and V&H header, with street baffle.
1982 KZ1100-A2
Please Log in or Create an account to join the conversation.
- 80B4
-
- Offline
- User
-
Registered
- Posts: 447
- Thanks: 105
Re: Mikuni carburetor recommendations wanted
22 May 2015 18:25
I have had very good results using Mikuni RS36 carbs on my FJ1200. They are easy to tune and parts are easy to find.
1980B4 1000
1978 Z1R
1978 B3 750
1978 Z1R
1978 B3 750
The following user(s) said Thank You: daveo
Please Log in or Create an account to join the conversation.
- daveo
-
Topic Author
- Offline
- Premium Member
-
Registered
- Posts: 2972
- Thanks: 769
Re: Mikuni carburetor recommendations wanted
22 May 2015 19:5580B4 wrote: I have had very good results using Mikuni RS36 carbs on my FJ1200. They are easy to tune and parts are easy to find.
Can I maintain the use of my factory air box with those? Also, I may have to change the throttle system, since what it has is a single pull-cable.
1982 KZ1100-A2
Please Log in or Create an account to join the conversation.
- daveo
-
Topic Author
- Offline
- Premium Member
-
Registered
- Posts: 2972
- Thanks: 769
Re: Mikuni carburetor recommendations wanted
23 May 2015 15:3180B4 wrote: I have had very good results using Mikuni RS36 carbs on my FJ1200. They are easy to tune and parts are easy to find.
Well...must be everyone is out riding :huh:
Once properly adjusted, would I notice a significant performance gain with a set of these, over the BS34? So, the air box won't work, so I'd need to use pod filters instead? Would RS34's be too small?
Are they designed to work ONLY with individual filters, or would air box use be preferable, if a method of attachment was available?
1982 KZ1100-A2
Please Log in or Create an account to join the conversation.
- SWest
-
- Offline
- Sustaining Member
-
Registered
- 10 22 2014
- Posts: 23574
- Thanks: 2954
Re: Mikuni carburetor recommendations wanted
23 May 2015 16:13

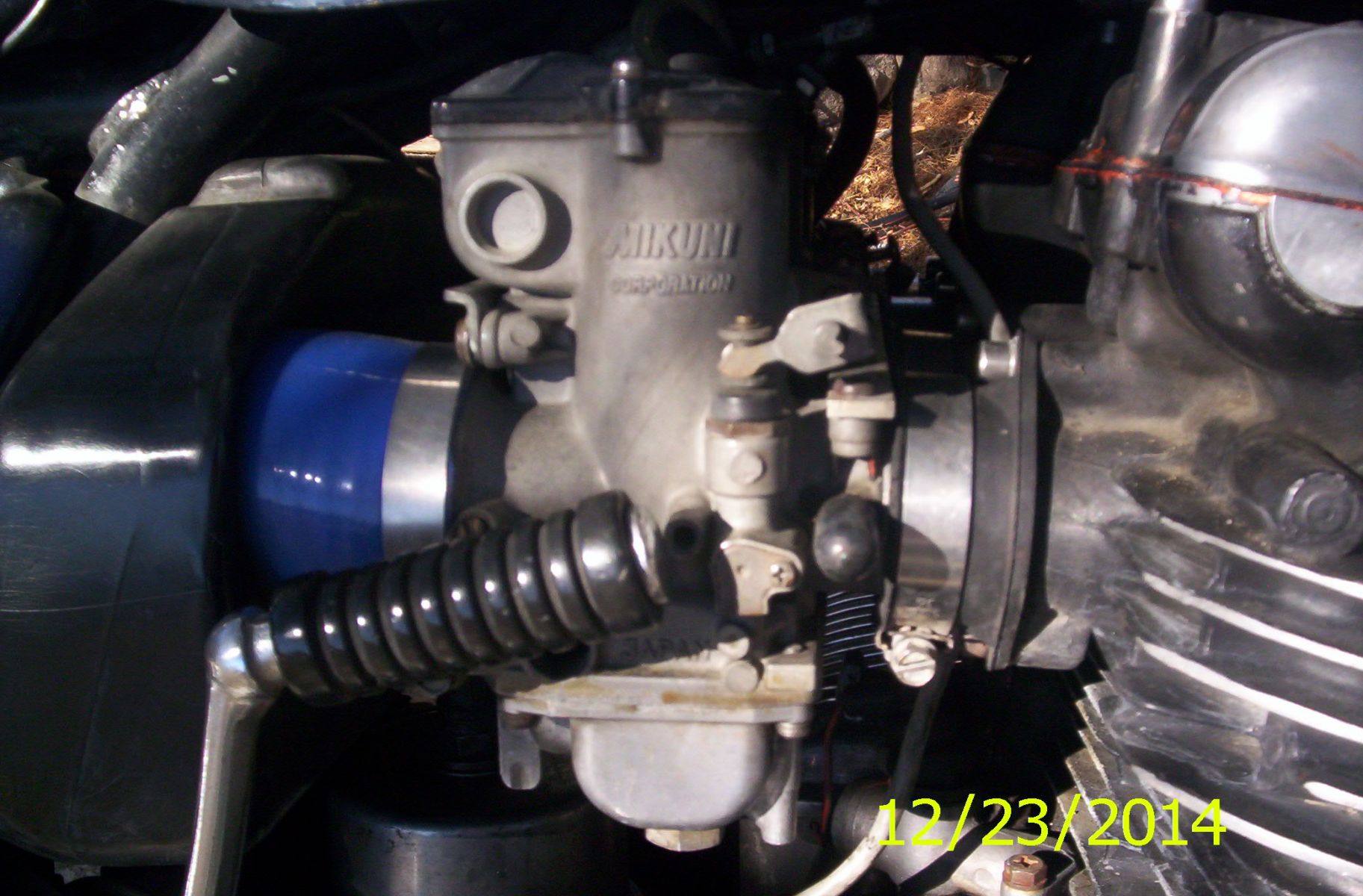

Measure the bell size and the intake size. If you have CV carbs, they should work. On my Z1, I had to get late model carb boots and open up a KZ 900 air box. The Z1 box wouldn't fit unless I spliced with a larger hose and that would've looked stupid. I'm pro air box.
Steve
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
Attachments:
The following user(s) said Thank You: daveo
Please Log in or Create an account to join the conversation.
- 80B4
-
- Offline
- User
-
Registered
- Posts: 447
- Thanks: 105
Re: Mikuni carburetor recommendations wanted
23 May 2015 16:20
I use individual filters on my FJ, I've never seen any that use any type of airbox. Yes, you will notice a significant difference over the stock CV carbs. You will need to use a push / pull throttle system. Motion Pro makes the system I use. The RS34's will work very well. If you were using the bike at the track and or going bigger with the motor you could use the RS36. My set came front the Carburetor Parts Warehouse.
1980B4 1000
1978 Z1R
1978 B3 750
1978 Z1R
1978 B3 750
The following user(s) said Thank You: daveo
Please Log in or Create an account to join the conversation.
- daveo
-
Topic Author
- Offline
- Premium Member
-
Registered
- Posts: 2972
- Thanks: 769
Re: Mikuni carburetor recommendations wanted
27 Jun 2015 09:2680B4 wrote: I use individual filters on my FJ, I've never seen any that use any type of airbox. Yes, you will notice a significant difference over the stock CV carbs. You will need to use a push / pull throttle system. Motion Pro makes the system I use. The RS34's will work very well. If you were using the bike at the track and or going bigger with the motor you could use the RS36. My set came front the Carburetor Parts Warehouse.
For street use, would the RS36 would be too big, or difficult to jet/tune for my application? Please elaborate...thanks!

I have 84 GPZ cams on the bathtub head, with 132.5 main jets working well in the CV carbs.
1982 KZ1100-A2
Please Log in or Create an account to join the conversation.
- 80B4
-
- Offline
- User
-
Registered
- Posts: 447
- Thanks: 105
Re: Mikuni carburetor recommendations wanted
27 Jun 2015 12:34
The RS36 will work and might be the better way to go if you see the possibility of eventually building a bigger motor or building a motor with more compression. The bigger carbs may not deliver as good a mpg as the RS34 and you may loose some bottom end response but your engine will keep making power all the way to Redline. My FJ would make power up to 8,500 and then run out of breath with the stock BS36 mikunis. Now it keeps making power untill the Rev limiter at 9,500.
Good luck.
Good luck.
1980B4 1000
1978 Z1R
1978 B3 750
1978 Z1R
1978 B3 750
Please Log in or Create an account to join the conversation.
- daveo
-
Topic Author
- Offline
- Premium Member
-
Registered
- Posts: 2972
- Thanks: 769
Re: Mikuni carburetor recommendations wanted
03 Jul 2015 08:16
Will my stock vacuum fuel petcock operate properly with Flat Slide Mikuni carburetors? It works very well with the BS34 set, currently on the bike.
1982 KZ1100-A2
Please Log in or Create an account to join the conversation.
- TexasKZ
-
- Offline
- Platinum Member
-
Registered
- Posts: 8070
- Thanks: 2591
Re: Mikuni carburetor recommendations wanted
03 Jul 2015 08:51
Some interesting comments here, with links to more. I hope you are well stocked with adult beverages......
kzrider.com/forum/3-carburetor/593263-mi...m-33-question#627020
kzrider.com/forum/3-carburetor/593263-mi...m-33-question#627020
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
Please Log in or Create an account to join the conversation.
- SWest
-
- Offline
- Sustaining Member
-
Registered
- 10 22 2014
- Posts: 23574
- Thanks: 2954
Re: Mikuni carburetor recommendations wanted
03 Jul 2015 15:40
Very helpful with my 33's. Thanks.
Steve
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
Please Log in or Create an account to join the conversation.
