75 Z1B - fuel joint pipe replacement

More
22 Jan 2012 22:58 - 22 Jan 2012 22:59 #499504 by LukeMacPU
75 Z1B - fuel joint pipe replacement was created by LukeMacPU
In process of reviving a 1975 Z1B. This is my first Z1 and I just retrieved it from 8 years of storage. I had the carbs off for cleaning, and just put them back on... got my tank cleaned out, petcock fixed and added fuel.

Looks like fuel is leaking from the fuel joint pipes. Any tips on replacing those? Can the 1 & 4 carbs be removed from the rail without taking them all back off the bike? I've seen the replacement on Z1E. Seems like I should use those if I'm going to got to the trouble of getting them back apart.

Any tips would be much appreciated.

'75 Z1B - work in progress
Last edit: 22 Jan 2012 22:59 by LukeMacPU.

Please Log in or Create an account to join the conversation.

  • TeK9iNe
  • Offline
  • User
  • What did you do!?!
More
22 Jan 2012 23:10 #499507 by TeK9iNe
Replied by TeK9iNe on topic 75 Z1B - fuel joint pipe replacement
Not sure... but I think those just have some o-rings that can be replaced.

That or just use new.

B)

Motorcycle Shop Owner/Operator

79 Kawie Z1000 LTD
81 Kawie Z1000 CSR
83 Honda VT750C A
85 Kawie GPZ900 A2
86 Zukie GS1150 EG
93 Yamie XV1100 E
Lucky to have rolled many old bikes through my doors ;)

Please Log in or Create an account to join the conversation.

More
23 Jan 2012 07:54 - 23 Jan 2012 07:58 #499568 by Garn
Replied by Garn on topic 75 Z1B - fuel joint pipe replacement
You are better off, dropping the whole rack of four carbs.... It's a bit of a pain in the Ass, however, you then will be able to replace the tee-pieces easily. The tee-pieces are molded, however, there are brass or aluminium tee-pieces with o-ring that are an excellent replacement, these are, as you say available from Z1E.
RegardZ.

1 x 73 Z1 (Jaffa), 74 Z1A, 76 Z900-A4
1 x 73 Yamaha TX500 & 98 fzx250 Zeal
Sydney Australia
Last edit: 23 Jan 2012 07:58 by Garn.

Please Log in or Create an account to join the conversation.

More
23 Jan 2012 08:14 #499569 by Old Man Rock
Replied by Old Man Rock on topic 75 Z1B - fuel joint pipe replacement
Maybe these will help.... ;)

VM-Carb_Rebuild

1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter

Phoenix, Az

Please Log in or Create an account to join the conversation.

More
23 Jan 2012 09:58 - 23 Jan 2012 09:59 #499573 by LukeMacPU
Replied by LukeMacPU on topic 75 Z1B - fuel joint pipe replacement
So this may be wishful thinking, but I took a look at the carbs this morning to make sure the leak was at the fuel joint pipes before I ordered the parts. Couldn't really see well before, may have been leaking at bowl gaskets? I know fuel was running down the side of the bowls and dripping off the drain screws.

Anyway, this morning, no leaking at all? Turned the fuel on, watched fuel fill up the lines (must have continued to leak slowly last night), then it stopped. Didn't have much time, but watched for 60 seconds and not a single drip...

Cured or just waiting to bite me later, we'll see.

'75 Z1B - work in progress
Last edit: 23 Jan 2012 09:59 by LukeMacPU.

Please Log in or Create an account to join the conversation.

More
23 Jan 2012 10:51 #499585 by 650ed
Replied by 650ed on topic 75 Z1B - fuel joint pipe replacement

LukeMacPU wrote: So this may be wishful thinking, but I took a look at the carbs this morning to make sure the leak was at the fuel joint pipes before I ordered the parts. Couldn't really see well before, may have been leaking at bowl gaskets? I know fuel was running down the side of the bowls and dripping off the drain screws.

Anyway, this morning, no leaking at all? Turned the fuel on, watched fuel fill up the lines (must have continued to leak slowly last night), then it stopped. Didn't have much time, but watched for 60 seconds and not a single drip...

Cured or just waiting to bite me later, we'll see.


You may be ok. A while back I drained my carbs and had the bike in my basement all winter while changing steering stem bearings and doing loads of other stuff. In the Spring when I took the bike ouside and put the tank on the "T" leaked bigtime. I shut off the petcock and searched online for a new old stock "T" with no luck. The next day I was fiddling with the bike and when I turn the petcock on - no leak. It has been 5 years and it hasn't dripped a single drop since. I can only guess that something swelled up after being exposed to gas and sealed the leak. Just keep an eye on it for a while. Ed

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

More
23 Jan 2012 11:00 #499586 by KZJOE900
Replied by KZJOE900 on topic 75 Z1B - fuel joint pipe replacement
If your original joint pipes looked to be in good shape then you may be in luck. These originals are an aluminum tee with molded rubber covering the whole tee. As Ed said, it may be that once you applied gas they swelled and therefore sealed. Mine were in awful shape with deep groves in them and some kind of silicone repair gunk applied to them by the PO. Therefore, in my case it was best to replace with the aftermarket ones that use the o-rings. Ordered some extra o-rings for the new tee's as well.

Current project 76 KZ900 (This was a Vetter model)
76 KZ900
81 XJ550H SECA (Current Project)
82 XJ550R SECA
Past:
86 FJ1200
74 Z1900
72 CB450

Please Log in or Create an account to join the conversation.

More
23 Jan 2012 11:32 - 23 Jan 2012 11:42 #499592 by Patton
Replied by Patton on topic 75 Z1B - fuel joint pipe replacement

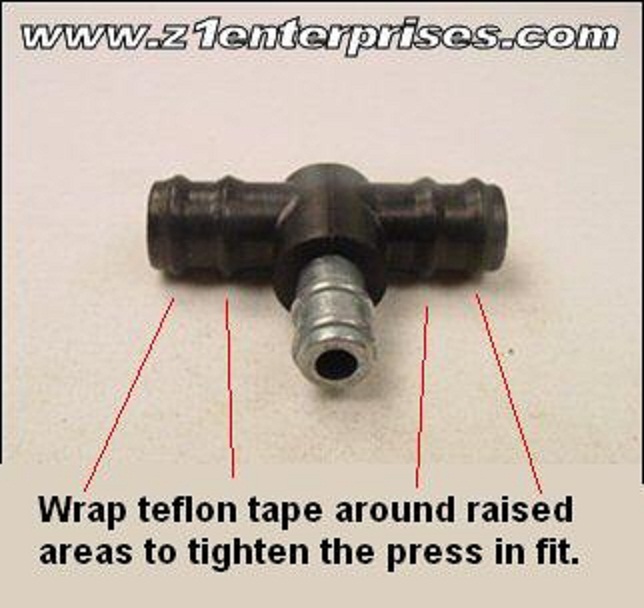

If an el'cheapo fix is needed for the original style fuel pipe with the raised rubber ridges (no separate o'rings), may wrap the fuel pipe's raised areas with teflon tape to tighten the fit. Yellow teflon tape is supposedly more gasoline tolerant than is the more common white teflon tape.

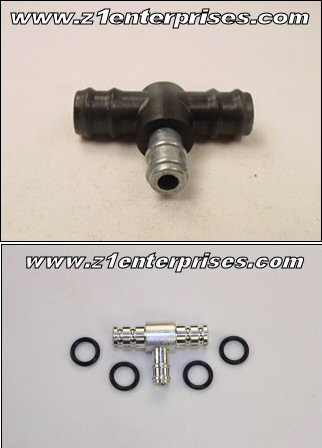

www.z1enterprises.com/detail.aspx?ID=1910







Single fuel line carbs usually have a single fuel pipe situated between #2 and #3 carbs.




Dual fuel line carbs usually have two fuel pipes situated between #1 and #2 carbs and between #3 and #4 carbs.

Good Fortune! :)

1973 Z1
KZ900 LTD
Attachments:
Last edit: 23 Jan 2012 11:42 by Patton.

Please Log in or Create an account to join the conversation.

More
23 Jan 2012 12:57 - 19 Feb 2013 13:55 #499605 by martin_csr
Replied by martin_csr on topic -
.
Last edit: 19 Feb 2013 13:55 by martin_csr.

Please Log in or Create an account to join the conversation.

More
23 Jan 2012 15:12 - 23 Jan 2012 15:44 #499624 by LukeMacPU
Replied by LukeMacPU on topic 75 Z1B - fuel joint pipe replacement

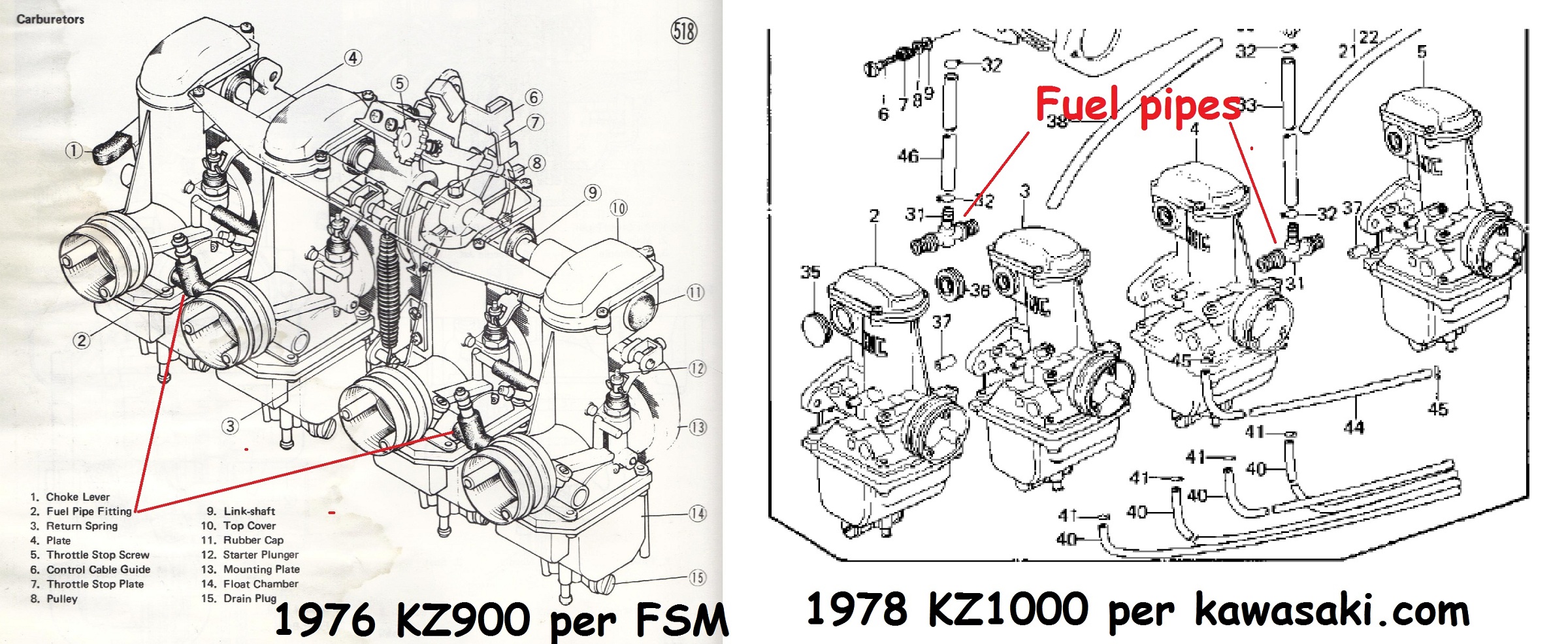

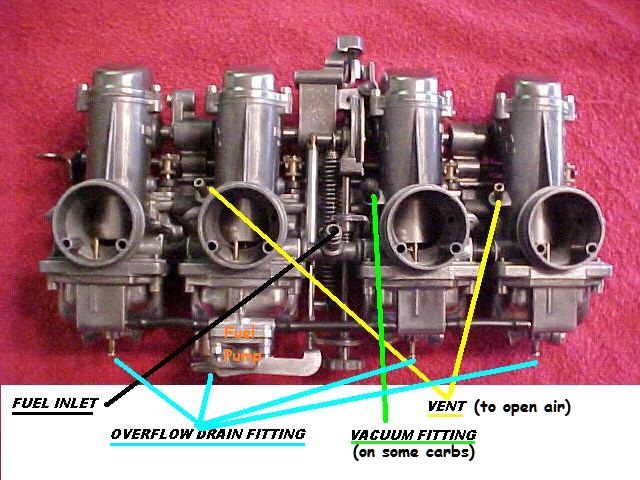

Nice photos to clear things up. I've got 2 fuel supply lines. Now I've got a good understanding of the fuel joint pipes, just don't know if they were the leak. I'll keep checking it out and buy the metal/o-ring replacements if needed. Seems like a better option than the stock set up.

Almost hope it was float bowl gaskets, should be able to swap those out without taking the carbs back off the bike. Best case, I'm lucky like Ed and never see the issue again!

'75 Z1B - work in progress
Last edit: 23 Jan 2012 15:44 by LukeMacPU.

Please Log in or Create an account to join the conversation.

  • bluej58
  • Offline
  • Sustaining Member
  • The chrome don't get you home
More
02 Feb 2012 01:05 #501474 by bluej58
Replied by bluej58 on topic 75 Z1B - fuel joint pipe replacement
I don't know how I missed this post.
I too had the pipe joints leak 2 years ago when I turned her over after 18 years of sitting.
But as Ed said they swelled up and still seem to be tight.
I bought the replacements but now I may wait to put them in.

Or not ?

JD

78 KZ1000 A2A

Please Log in or Create an account to join the conversation.

More
02 Feb 2012 10:29 #501522 by 650ed
Replied by 650ed on topic 75 Z1B - fuel joint pipe replacement
I recommend not replacing the joints if they stopped leaking. Mine stopped 5 years ago and are still bone dry. I'm of the "quit while I'm ahead" school of thought. :laugh: Ed

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.
