Re: KZ750 Four Cam Install Help
04 Jun 2025 08:18You beat me to it. That was my next thing to try. Will pull the tensioner body off and try it.if you poke your finger in the tensioner hole (carefully) to apply pressure to the chain and rotate manually does it still make a noise ? (this should prove or eliminate the tensioner as the source of the noise)
Regards,
SnyperX
====================
1981 KZ750H2 LTD
SnyperX
====================
1981 KZ750H2 LTD
Please Log in or Create an account to join the conversation.
- SnyperX
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Posts: 112
- Thanks: 26
Re: KZ750 Four Cam Install Help
04 Jun 2025 12:00 - 04 Jun 2025 12:25Ok, so over lunch I tried this. With the auto-tensioner completely removed I put my finger in and applied some pressure to the tensioner. I attempted to hand crank the engine clockwise. During the cranking I got to a point where the tensioner pushed back against my finger. I could not counteract the force against my finger at all. I continued to crank with my finger applying pressure. The tensioner eventually gave and went back to the initial location with my finger pressure from when I started. I continued to crank a couple more time with the tensioner doing the same thing. its almost like the chain has kink in it or something, but no kink is seen after I cranked a couple times. Could it be that after setting up the timing I left slack that I am hitting that the tensioner is not able to take up? I am so so puzzled by all this.if you poke your finger in the tensioner hole (carefully) to apply pressure to the chain and rotate manually does it still make a noise ? (this should prove or eliminate the tensioner as the source of the noise)
Regards,
SnyperX
====================
1981 KZ750H2 LTD
SnyperX
====================
1981 KZ750H2 LTD
Last edit: 04 Jun 2025 12:25 by SnyperX.
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Away
- Moderator
-
Registered
- Posts: 5023
- Thanks: 3064
Re: KZ750 Four Cam Install Help
04 Jun 2025 13:26
That doesn't sound right - is there and sideways movement or rotational movement in the guide blade or does it only move forward s and backwards
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Please Log in or Create an account to join the conversation.
- SnyperX
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Posts: 112
- Thanks: 26
Re: KZ750 Four Cam Install Help
04 Jun 2025 13:32From what I could tell it was only moving forward and backward as would be expected.That doesn't sound right - is there and sideways movement or rotational movement in the guide blade or does it only move forward s and backwards
Regards,
SnyperX
====================
1981 KZ750H2 LTD
SnyperX
====================
1981 KZ750H2 LTD
Please Log in or Create an account to join the conversation.
- SnyperX
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Posts: 112
- Thanks: 26
Re: KZ750 Four Cam Install Help
04 Jun 2025 15:44Nothing binding. I pulled the tensioner apart and cleaned everything, added new grease and reassembled.Are any parts locked on your tensioner or not moving properly?
Regards,
SnyperX
====================
1981 KZ750H2 LTD
SnyperX
====================
1981 KZ750H2 LTD
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Away
- Moderator
-
Registered
- Posts: 5023
- Thanks: 3064
Re: KZ750 Four Cam Install Help
04 Jun 2025 16:23 - 04 Jun 2025 16:28
I would suggest you go back to the beginning and re-check your cam timing, with the plugs out it should turn smoothly and easily. It sounds like at least one cam is out and it’s loading up against a valve. Operating the guide with your finger should simply take the slack out of the chain (it’s the front run of the chain that should be under load) I assume when you say you are rotating the motor clockwise that you are turning it from the ignition side of the crank?
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Last edit: 04 Jun 2025 16:28 by Wookie58.
Please Log in or Create an account to join the conversation.
- SnyperX
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Posts: 112
- Thanks: 26
Re: KZ750 Four Cam Install Help
04 Jun 2025 17:02 - 04 Jun 2025 17:20Thanks @Wookie58. Appreciate all your responses so far and everyone else as well. So I just came in from the garage after pulling the cams....again.....and resetting up the timing. I took pictures so people see what I did and where I had the various marks after finishing. No tensioner installed at all.I would suggest you go back to the beginning and re-check your cam timing, with the plugs out it should turn smoothly and easily. It sounds like at least one cam is out and it’s loading up against a valve. Operating the guide with your finger should simply take the slack out of the chain (it’s the front run of the chain that should be under load) I assume when you say you are rotating the motor clockwise that you are turning it from the ignition side of the crank?
Timing Mark
Exhaust Side:
Intake Side
Regards,
SnyperX
====================
1981 KZ750H2 LTD
SnyperX
====================
1981 KZ750H2 LTD
Last edit: 04 Jun 2025 17:20 by SnyperX.
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Away
- Moderator
-
Registered
- Posts: 5023
- Thanks: 3064
Re: KZ750 Four Cam Install Help
04 Jun 2025 23:57 - 04 Jun 2025 23:58
Can you post a pick "straight on" from the right where we can see both cam sprockets (chain looks a bit slack between the cams to me - I know there is a buffer in the cover)
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Last edit: 04 Jun 2025 23:58 by Wookie58.
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Away
- Moderator
-
Registered
- Posts: 5023
- Thanks: 3064
Re: KZ750 Four Cam Install Help
05 Jun 2025 02:00 - 05 Jun 2025 06:26
So, I just managed to watch your video on page 1 - I have seen this "tight-loose-tight" scenario on the chain between the cams before on a diesel jaguar (this was being caused by slightly bent valve stems)

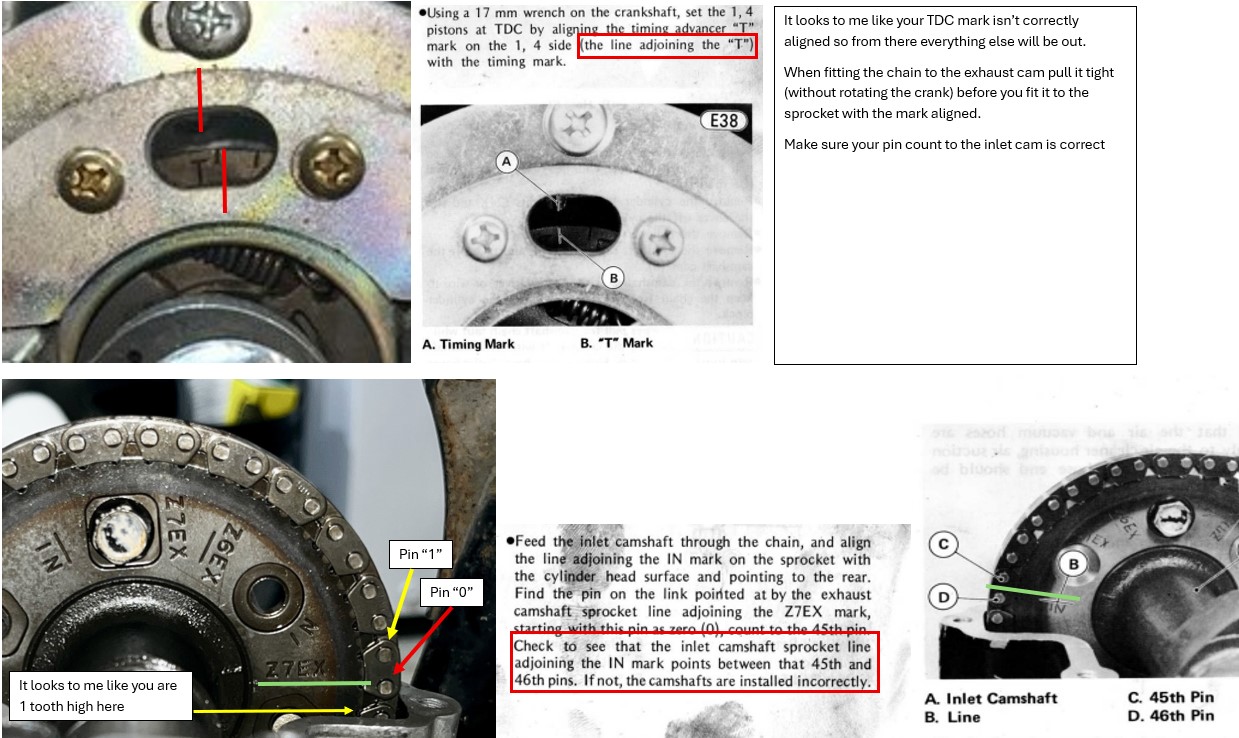

In the first instance re-set the timing (the below pic may help) then as Nessism said, re-install the tensioner with the cover off and rotate the engine 2 full rotations - now re-check the timing and if happy remove the tensioner - re-fit the cover then re-install the tensioner. If the chain is still kicking between the cams the I suspect you have a bent valve or two
In the first instance re-set the timing (the below pic may help) then as Nessism said, re-install the tensioner with the cover off and rotate the engine 2 full rotations - now re-check the timing and if happy remove the tensioner - re-fit the cover then re-install the tensioner. If the chain is still kicking between the cams the I suspect you have a bent valve or two

1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Last edit: 05 Jun 2025 06:26 by Wookie58.
The following user(s) said Thank You: SnyperX
Please Log in or Create an account to join the conversation.
- SnyperX
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Posts: 112
- Thanks: 26
Re: KZ750 Four Cam Install Help
05 Jun 2025 10:20 - 05 Jun 2025 10:21How would the valves got bent? I have only been hand cranking since I have checked the valve clearances and changed shims. If it is bent valves I might look at parting out the bike ($1,000 in so far) as I am not going down that path, I just don't have it in me.Can you post a pick "straight on" from the right where we can see both cam sprockets (chain looks a bit slack between the cams to me - I know there is a buffer in the cover)
Both Cams
Regards,
SnyperX
====================
1981 KZ750H2 LTD
SnyperX
====================
1981 KZ750H2 LTD
Last edit: 05 Jun 2025 10:21 by SnyperX.
Please Log in or Create an account to join the conversation.
- rangeroy
-
- Offline
- User
-
Registered
- Posts: 47
- Thanks: 23
Re: KZ750 Four Cam Install Help
05 Jun 2025 12:10 - 05 Jun 2025 12:11
the chain on the exhaust is 1 pin out, remove cams & lift chain up to keep on crank sprocket then turn over 1 complete turn then exhaust mark should align between cam chain plates then recount pins & fit inlet cam you will never get everything to line up as in manual but if pin count correct good to go. when you turn motor over with cambox removed you must press down on cam chain between cams to keep the slack otherwise you cannot refit cambox cover correctly only after fitting the cambox do you fit tensioner then turn motor over to get the tensioner to sort the correct tension on cam chain & if you stop motor at 1/4 T on the timing mark then remove cambox you will see just how much droop there is on the camchain when the cambox cover is fitted.
good luck
good luck
1977 z650
Last edit: 05 Jun 2025 12:11 by rangeroy. Reason: spelling correction
The following user(s) said Thank You: SnyperX
Please Log in or Create an account to join the conversation.
- SnyperX
-
Topic Author
- Offline
- Sustaining Member
-
Registered
- Posts: 112
- Thanks: 26
Re: KZ750 Four Cam Install Help
05 Jun 2025 12:17 - 05 Jun 2025 12:22I am thinking that maybe the timing mark was shifting a bit when I was trying to get the timing right. This time around I had the tick mark next to the "T" perfectly inline this time. I then made sure when aligning the exhaust cam to not pull as hard as I was to prevent the crank from moving. I then moved to the intake cam doing the same. Counted the links a few times. Reverified that the crank had not moved off the "T" tick mark. All good. Reinstalled the cam caps starting with #2 and #3 then installed #6 and #7. All hand tight initially. I then went and tightened down #2 and #3 and then #6 and #7 cap bolts with a torque wrench (104 inch/lbs). Then finished by tightening the outer cap bolts. After that I installed the tensioner then the wedge. I then cranked the engine 2 times putting the crank back to the tick mark next to the "T". I had NO chain jump this time. I will note that I cranked the engine SLOWLY. Rechecked the IN and Z7EX marks and counted the links again. I "might" be good now.....might being the key word. I need to re-check valve clearances. If those are still in spec I would think that I am good to go. I'll pull the tensioner wedge off and reinstall the cam cover then reinstall the tensioner wedge.So, I just managed to watch your video on page 1 - I have seen this "tight-loose-tight" scenario on the chain between the cams before on a diesel jaguar (this was being caused by slightly bent valve stems)
In the first instance re-set the timing (the below pic may help) then as Nessism said, re-install the tensioner with the cover off and rotate the engine 2 full rotations - now re-check the timing and if happy remove the tensioner - re-fit the cover then re-install the tensioner. If the chain is still kicking between the cams the I suspect you have a bent valve or two
Regards,
SnyperX
====================
1981 KZ750H2 LTD
SnyperX
====================
1981 KZ750H2 LTD
Last edit: 05 Jun 2025 12:22 by SnyperX.
The following user(s) said Thank You: Nessism
Please Log in or Create an account to join the conversation.
