Timing Chain
- Deon
-
Topic Author
- Offline
- User
- 1964/07/20
- Posts: 56
- Thanks: 5
Timing Chain
12 Mar 2025 13:05
When changing the carb holders which were leaking i had three studs break so had to remove the head to get it sorted. I marked the cams and chain before removing them. When putting it all together I turned the engine manually. I heard the chain jump on the crank a few times as the tensioner was not against the chain. When putting it back together i set the chain as per the Clymer manual which shows from the intake cam T count back 36 pins. I just checked the manual on here for the kz650 and it says count back 33 pins.
Can anyone confirm which is the right amount of pins it should be set at. Help greatly appreciated.
Can anyone confirm which is the right amount of pins it should be set at. Help greatly appreciated.
Hello from the UK
NC750X
KZ650E1
NC750X
KZ650E1
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Offline
- Moderator
- Posts: 4599
- Thanks: 2726
Re: Timing Chain
12 Mar 2025 13:36
I would suggest you use the factory manual in the "file-base" section of the forum rather than the "Clymer" and "NEVER" rotate the engine without the chain being tensioned
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
The following user(s) said Thank You: Nessism
Please Log in or Create an account to join the conversation.
- Deon
-
Topic Author
- Offline
- User
- 1964/07/20
- Posts: 56
- Thanks: 5
Re: Timing Chain
12 Mar 2025 13:58
Thanks Wookie. Yes, unfortunately I have learnt that lesson. Do you not rate the Clymer manual. The torque settings for the cam caps were definitely not right in the clymer.
Hello from the UK
NC750X
KZ650E1
NC750X
KZ650E1
Please Log in or Create an account to join the conversation.
- Warren3200gt
-
- Offline
- User
- Posts: 1540
- Thanks: 752
Re: Timing Chain
12 Mar 2025 14:05 - 12 Mar 2025 14:13

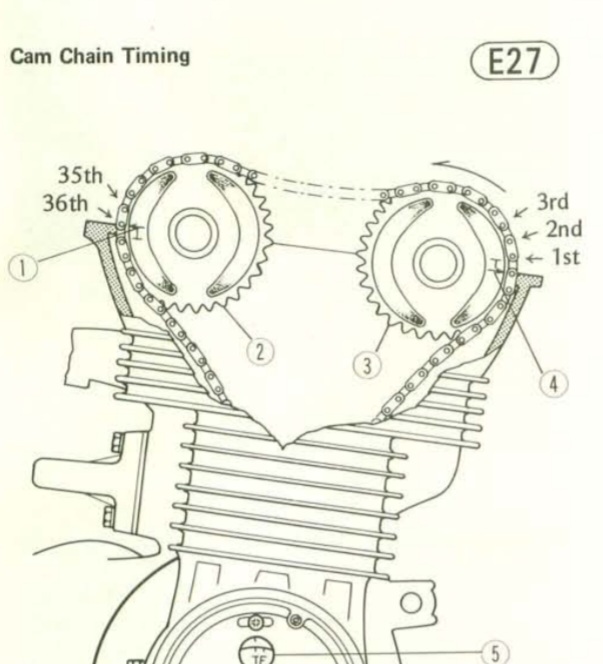

Z650 is 36 pins not 36 teeth. First pin is the one above the sprocket timing mark.
Here's a link to the factory manual in my drop box.
www.dropbox.com/scl/fi/dswlumxskrh4om7uz...gna&st=8jz1rz9p&dl=0
Here's a link to the factory manual in my drop box.
www.dropbox.com/scl/fi/dswlumxskrh4om7uz...gna&st=8jz1rz9p&dl=0
Last edit: 12 Mar 2025 14:13 by Warren3200gt.
The following user(s) said Thank You: kimchella
Please Log in or Create an account to join the conversation.
- Deon
-
Topic Author
- Offline
- User
- 1964/07/20
- Posts: 56
- Thanks: 5
Re: Timing Chain
12 Mar 2025 14:44
Thanks Warren, yes that is the same image as shown in the Clymer manual, 36 pins
Hello from the UK
NC750X
KZ650E1
NC750X
KZ650E1
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Offline
- Moderator
- Posts: 4599
- Thanks: 2726
Re: Timing Chain
12 Mar 2025 16:21Generally on the forum the more experienced guys don't speak highly of Clymer, ultimately the factory manuals are available here so have to be the "go to" source of informationThanks Wookie. Yes, unfortunately I have learnt that lesson. Do you not rate the Clymer manual. The torque settings for the cam caps were definitely not right in the clymer.
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
The following user(s) said Thank You: Nessism, kimchella
Please Log in or Create an account to join the conversation.
- Nessism
-
- Away
- Sustaining Member
- Posts: 7567
- Thanks: 2934
Re: Timing Chain
12 Mar 2025 20:29
Clymer manuals make good fire starter. Tear out a few pages, crumple up, and cover in kindling.
My dad, who grew up in rural Alaska, used to talk about using sears roebuck catalog pages to wipe the bum in the outhouse. I'll bet a Clymer would be equally useful in that regard.
My dad, who grew up in rural Alaska, used to talk about using sears roebuck catalog pages to wipe the bum in the outhouse. I'll bet a Clymer would be equally useful in that regard.
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
The following user(s) said Thank You: SWest, Wookie58, kimchella
Please Log in or Create an account to join the conversation.
- hardrockminer
-
- Away
- Sustaining Member
- Posts: 3011
- Thanks: 1107
Re: Timing Chain
13 Mar 2025 03:49
I'm not that hard on Clymer. I have them in my library. Sometimes the official manual doesn't give a good description and the Clymer will do it differently and make it clear.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Offline
- Moderator
- Posts: 4599
- Thanks: 2726
Re: Timing Chain
13 Mar 2025 04:16 - 13 Mar 2025 04:19Always good to get a balance of opinions, FSM's are generally written for dealership techs whereas the likes of Clymer and Haynes are written more for the home mechanic so your point is a valid one.I'm not that hard on Clymer. I have them in my library. Sometimes the official manual doesn't give a good description and the Clymer will do it differently and make it clear.
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Last edit: 13 Mar 2025 04:19 by Wookie58.
Please Log in or Create an account to join the conversation.
- Deon
-
Topic Author
- Offline
- User
- 1964/07/20
- Posts: 56
- Thanks: 5
Re: Timing Chain
13 Mar 2025 08:19
Good call with the timing chain setup. Put it all together today as per workshop manual and it started up straight away.
Something a bit strange as for some reason the engine sounds like a bag of nails. Turned it all off for now. Will check the tensioner when I get a minute.
Something a bit strange as for some reason the engine sounds like a bag of nails. Turned it all off for now. Will check the tensioner when I get a minute.
Hello from the UK
NC750X
KZ650E1
NC750X
KZ650E1
Please Log in or Create an account to join the conversation.
- Warren3200gt
-
- Offline
- User
- Posts: 1540
- Thanks: 752
Re: Timing Chain
13 Mar 2025 10:42 - 13 Mar 2025 10:47
OK, as long as you're 100% sure you have the cam timing correct, valve lashed correctly and chain tensioned correctly it's time to set the carbs up properly.
Firstly check for any air leaks at the inlets. If you have a vacuum tap the vac tube from the carbs MUST be blocked if using a remote tank (often overlooked). Balance sync using vacuum guages. Check bowl fuel height. Colour tune to ensure burn mixture is correct.
Chances are both your primary chain and clutch hub damper rubbers are at best only partly worn so any unbalance in the carbs will cause unbalanced combustion between cylinders which will make the primary chain and clutch hub whiplash and that makes a lot of noise. Generally it smooths out at about 1200rpm so set your idle at the lowest smooth rpm.
Firstly check for any air leaks at the inlets. If you have a vacuum tap the vac tube from the carbs MUST be blocked if using a remote tank (often overlooked). Balance sync using vacuum guages. Check bowl fuel height. Colour tune to ensure burn mixture is correct.
Chances are both your primary chain and clutch hub damper rubbers are at best only partly worn so any unbalance in the carbs will cause unbalanced combustion between cylinders which will make the primary chain and clutch hub whiplash and that makes a lot of noise. Generally it smooths out at about 1200rpm so set your idle at the lowest smooth rpm.
Last edit: 13 Mar 2025 10:47 by Warren3200gt.
The following user(s) said Thank You: kimchella
Please Log in or Create an account to join the conversation.
- Deon
-
Topic Author
- Offline
- User
- 1964/07/20
- Posts: 56
- Thanks: 5
Re: Timing Chain
13 Mar 2025 11:18
Timing chain and valves 100% correct. I got the normal tank on the bike so the vacuum should not be a problem. I just need to check that the tensioner is doing its job correctly.
Some very good pointers will go through and check.
Some very good pointers will go through and check.
