Oil Coolers

06 Mar 2021 07:35
#844476
Anyone know if an oil cooler is needed for my engine ( 76 Kawasaki KZ900 ) and if so, what oil lines go to what port on the cooler. The output port fittings are there for a cooler but there was no cooler on the bike when I got it. I cannot find anything in my service manual regarding this. Thanks

Please Log in or Create an account to join the conversation.

  • Street Fighter LTD
  • Street Fighter LTD's Avatar
  • Offline
  • Moderator
  • TURBO, Its Better to be Blown than Injected
  • Posts: 4944
  • Thanks: 2090

Re: Oil Coolers

06 Mar 2021 09:21 - 06 Mar 2021 09:47
#844480
A oil cooler is NOT normally needed on a 900.
Where do you ride ?
Hilly, Flat ?
Hot or Cold weather ?
Is the bike stock ?
Do you sit in traffic where there is no airflow ?
Pictures of your bike and existing fittings can help us help you figure out what you have .
A cooler is hooked up to a NON stock fitting behind the motor that directs oil from the pump, thru the cooler, and then thru the main oil gallery
Dave

Original owner 78 1000 LTD
Mr Turbo Race Kit, MTC 1075 Turbo pistons by PitStop Performance , Falicon Ultra Lite Super Crank, APE everything. Les Holt @ PDM's Billet Goodies . Frame by Chuck Kurzawa @ Logghe Chassis . Deep sump 5qt oil pan. RIP Bill Hahn
Last edit: 06 Mar 2021 09:47 by Street Fighter LTD.

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4837
  • Thanks: 1851

Re: Oil Coolers

06 Mar 2021 09:43 - 06 Mar 2021 09:45
#844484

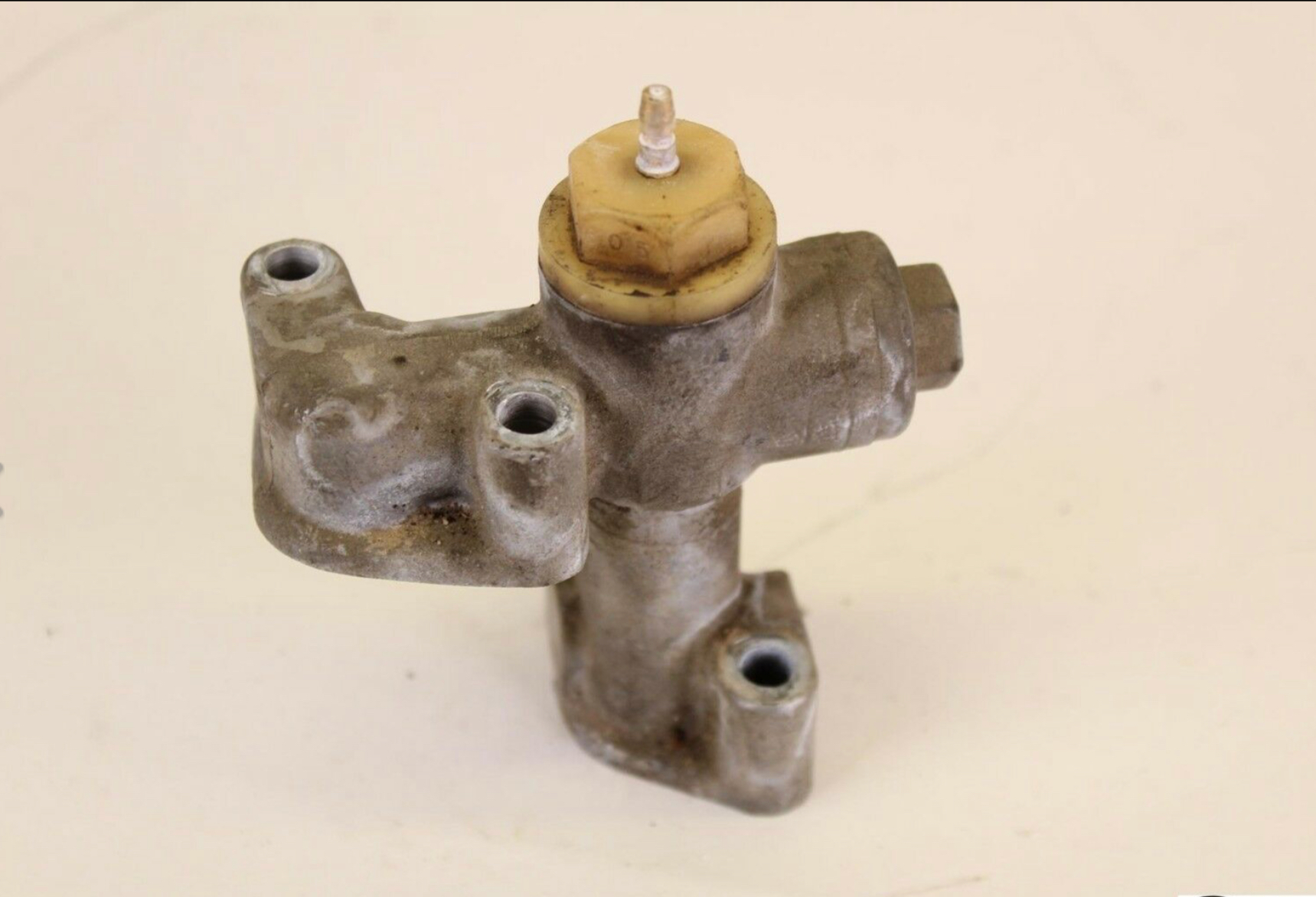

This is the stock oil tube, with oil pressure sending unit.



This is after market oil cooler adapters. If you have these with a hose jumpered between them then you can easily mount a cooler to the front down tubes and route hoses to these fittings. These fittings fit n place of the stock oil tube and will need screw in hose barb fittings



Pictures of what you have will help us help you.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Attachments:

Last edit: 06 Mar 2021 09:45 by Mikaw.

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4837
  • Thanks: 1851

Re: Oil Coolers

06 Mar 2021 09:47 - 06 Mar 2021 09:49
#844485
An example of the barb fittings



1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Attachments:

Last edit: 06 Mar 2021 09:49 by Mikaw.

Please Log in or Create an account to join the conversation.

  • KennyJ
  • KennyJ's Avatar Topic Author
  • Offline
  • User
  • Posts: 32
  • Thanks: 3

Re: Oil Coolers

07 Mar 2021 09:43
#844517
I have the after market fittings on the bike but no cooler. For now, I have joined the two oil ports with a length of hose. Can i plug off both ports if I decide not to install a cooler?

Please Log in or Create an account to join the conversation.

  • Street Fighter LTD
  • Street Fighter LTD's Avatar
  • Offline
  • Moderator
  • TURBO, Its Better to be Blown than Injected
  • Posts: 4944
  • Thanks: 2090

Re: Oil Coolers

07 Mar 2021 09:53
#844518
KennyJ wrote: I have the after market fittings on the bike but no cooler. For now, I have joined the two oil ports with a length of hose. Can i plug off both ports if I decide not to install a cooler?

NO, NO NO

Get the stock piece shown by MIKAW

If you plug both as you suggest the oil pump is cut off from the motor
Catastrophic failure will result
Dave

Original owner 78 1000 LTD
Mr Turbo Race Kit, MTC 1075 Turbo pistons by PitStop Performance , Falicon Ultra Lite Super Crank, APE everything. Les Holt @ PDM's Billet Goodies . Frame by Chuck Kurzawa @ Logghe Chassis . Deep sump 5qt oil pan. RIP Bill Hahn

Please Log in or Create an account to join the conversation.

  • KennyJ
  • KennyJ's Avatar Topic Author
  • Offline
  • User
  • Posts: 32
  • Thanks: 3

Re: Oil Coolers

09 Mar 2021 15:29
#844640
Thanks for the info. It does not mention anything about this in the manual. Since the oil cooler adapters are on the bike, I may as well in stall a cooler. Any particular brand I should look for?

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 23286
  • Thanks: 2854

Re: Oil Coolers

09 Mar 2021 15:41
#844642
Pics of the adapters?
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • Street Fighter LTD
  • Street Fighter LTD's Avatar
  • Offline
  • Moderator
  • TURBO, Its Better to be Blown than Injected
  • Posts: 4944
  • Thanks: 2090

Re: Oil Coolers

09 Mar 2021 17:02
#844647


Here is a example of a Earls cooler These are top shelf items
Lots of choice's . styles and sizes and fitting options too..
. Holley distributes them among others
Dave

Original owner 78 1000 LTD
Mr Turbo Race Kit, MTC 1075 Turbo pistons by PitStop Performance , Falicon Ultra Lite Super Crank, APE everything. Les Holt @ PDM's Billet Goodies . Frame by Chuck Kurzawa @ Logghe Chassis . Deep sump 5qt oil pan. RIP Bill Hahn

Attachments:

Please Log in or Create an account to join the conversation.

  • Dr. Gamma
  • Dr. Gamma's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1230
  • Thanks: 689

Re: Oil Coolers

09 Mar 2021 17:45 - 09 Mar 2021 17:48
#844651
Like Mr. Dave said, Earl's Supply coolers are one of the best you can buy. They like to be rubber mounted to keep the amount of vibration to the cooler to a minimum.

The Earl's coolers are also set up to use braided steel line and AN fittings. No Mickey Mouse rubber oil lines!!!!

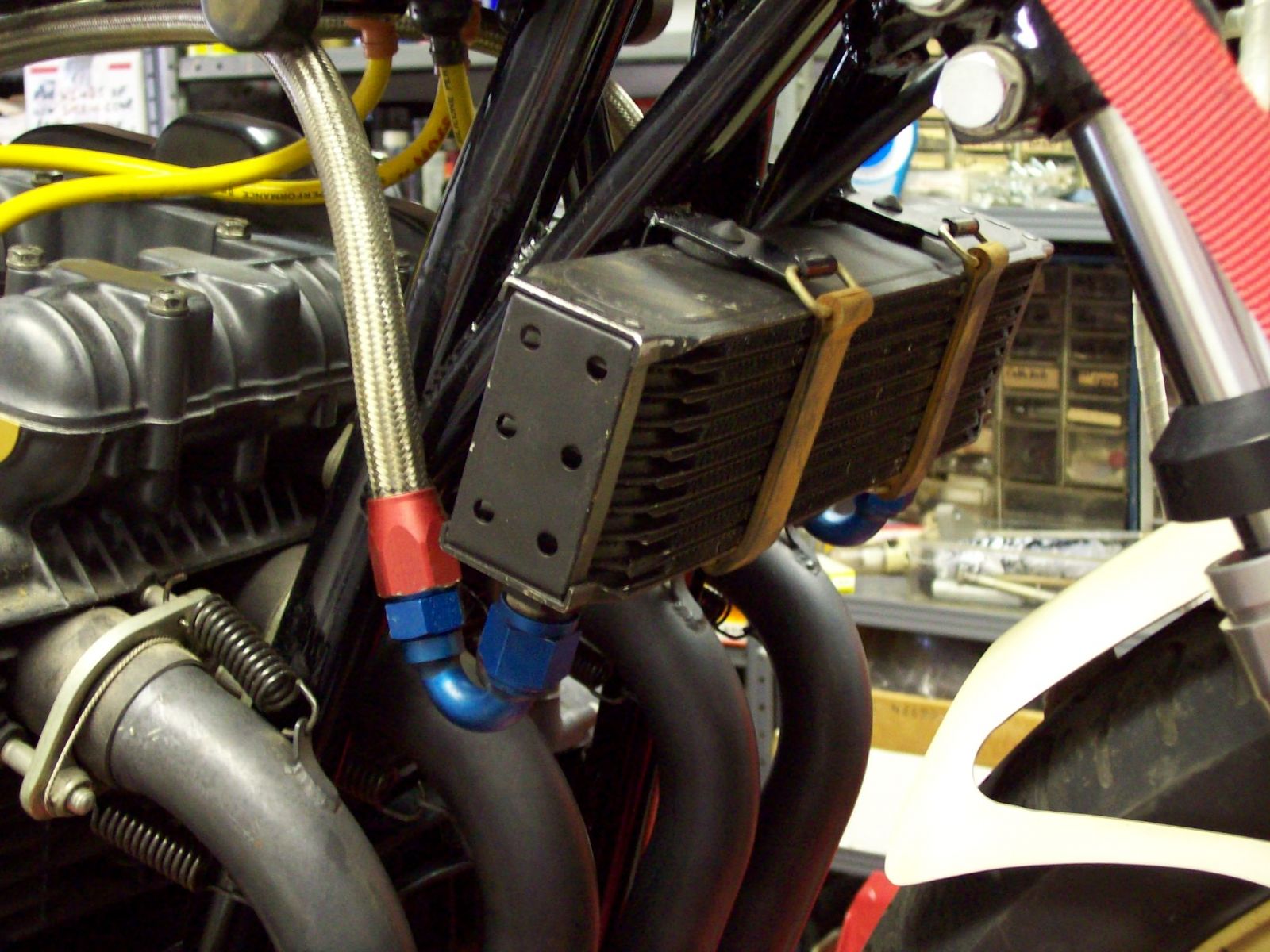

This Earl's cooler has been on my bike since back in 1982. You can see how it sits on rubber grommets inside the cooler mount.
