KZ650 Crankshaft Bearings & Con Rod Bearings Identification
- Charleslabri
- Topic Author
- Offline
- User
Long time KZ lurker.
Rebuilding the bottom end of the KZ, wanted to get new bearings, but found that.. whoa. There are different sizes, and its seemingly difficult to find out what part numbers you need to replace bearings with if you dont already know which bearings are in the bike.
Ive got a KZ that I cannot seem to identify the needed bearings for the connecting rods or the main bearings.
Information I do know:
- On one of the connecting rod journals I see a black mark on the side, others are worn.
- I dont seem to see any distinguishing marks on the upper or lower crankcases front side (looking for a 1 or a 0 somewhere, or maybe no mark?)
- Existing main crank bearings when measured with a caliper measurement tool read about 1.46mm across the board
- Existing main crank journals read out about ~36mm with the exception of one being ~35.97mm.

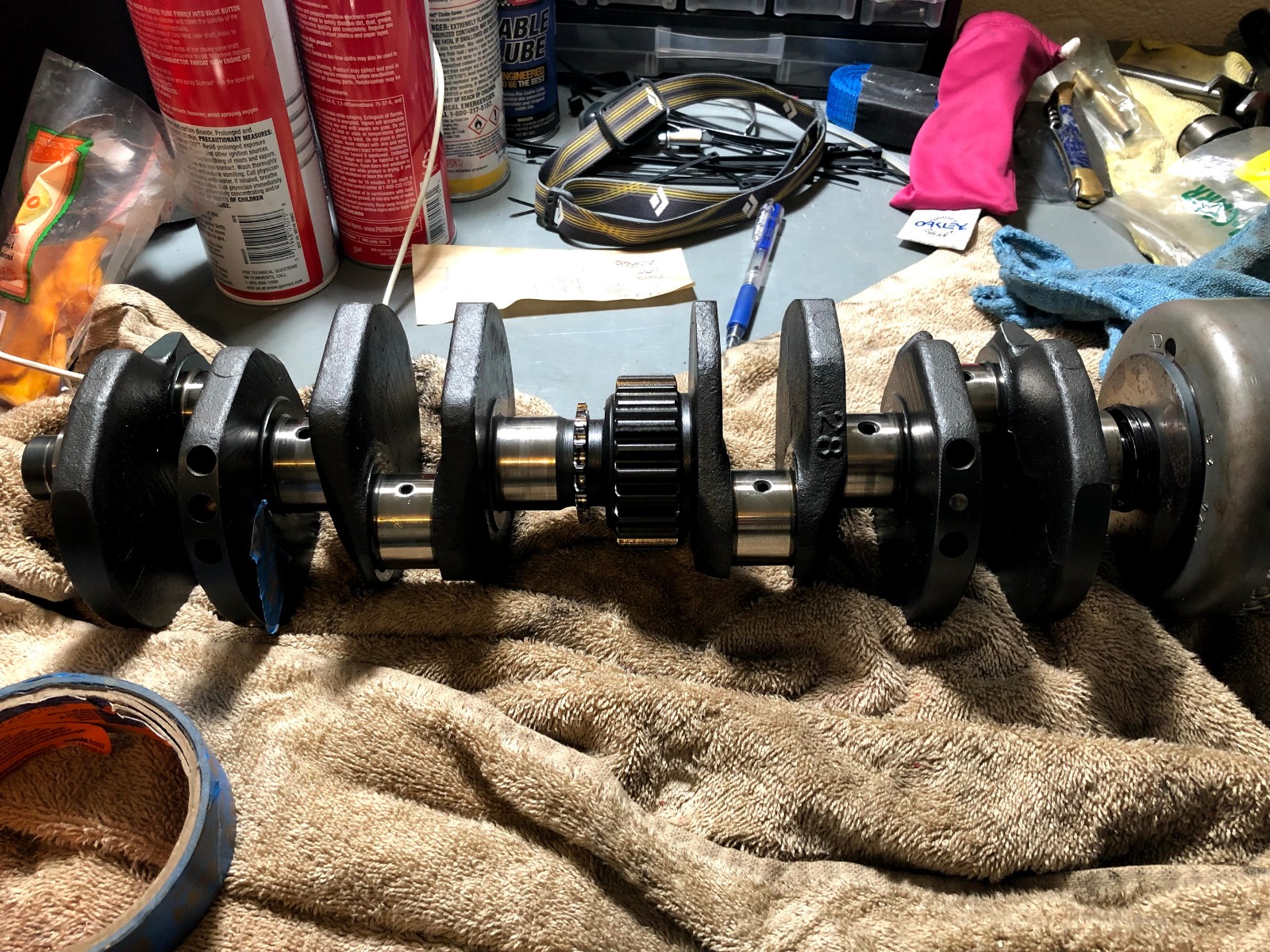

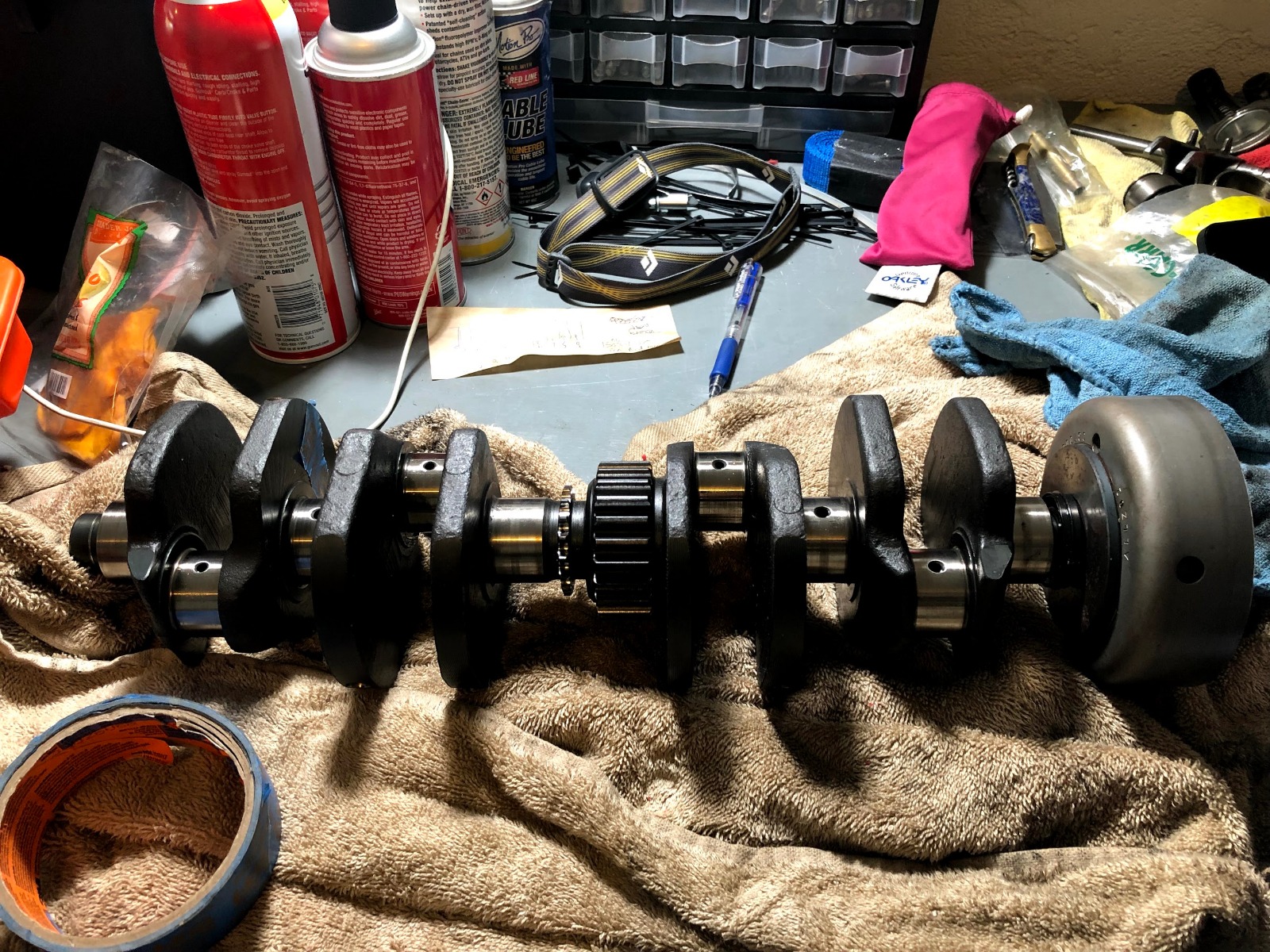

- There is a #28 stamped on the crankshaft, not sure if this means anything
Information I dont know:
- Any color markings are completely worn off on the main crank bearings, so unable to identify
- Am I looking in the right places for these/any marks on the crankshaft or case? Ive looked on the crankshaft and on the front side of the lower and upper cases
- Since I do see a black mark on the side of one of the con rod bearings, does that mean that they are all the same black part number, or do the installed part numbers vary by journal?
- Are there marks on the con rods themselves I am missing?
- when selecting bearings, is it a mixture of a marking on the con rod and a mixture of a marking on the crankshaft?
- 35.97 seems awfully close to wear limit, should I just get another new crankshaft? Can other crankshafts fit in the case, or are they matched?
Anyone have any pictures of these markings (0 or 1)? Or any good diagrams? Its my intention that once I get this figured out, I am going to make a video/article explaining this so that future nubs like me can figure this out a whole lot easier.
