Valve shim replacement one cam at a time?
- 650ed
- Offline
- User
Pagala wrote: Thanks guys for the valve tool information. I think it might be more trouble than it's worth to buy and adapt a tool to use in that way, so I'll just remove the cams instead.

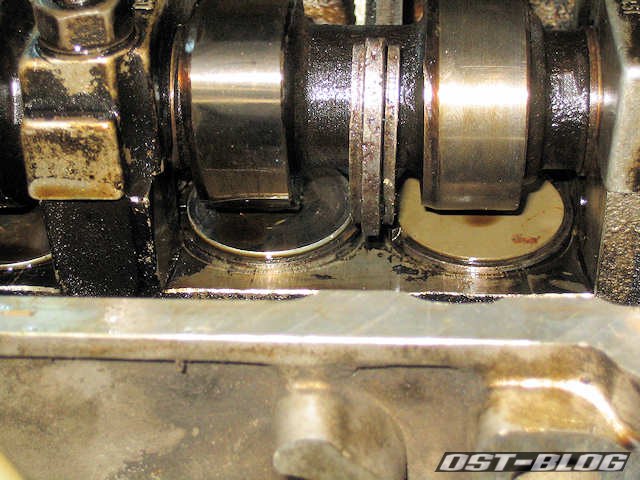

650ed wrote: Take a look at your engine. I believe you will find that the shims are UNDER the buckets. Given that, there is no way to replace a shim without first removing the bucket
That's where you're wrong.

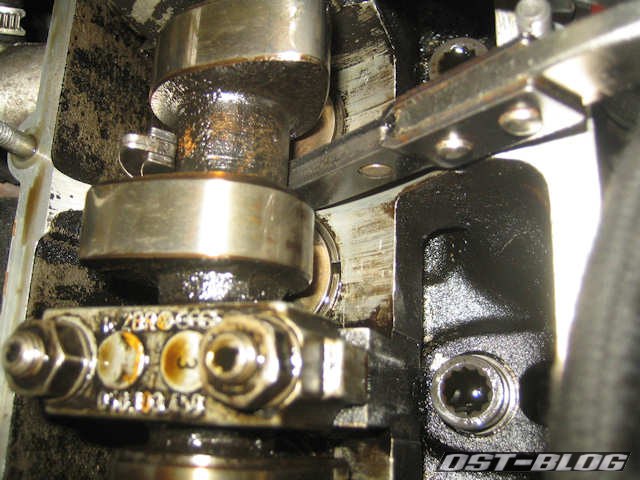

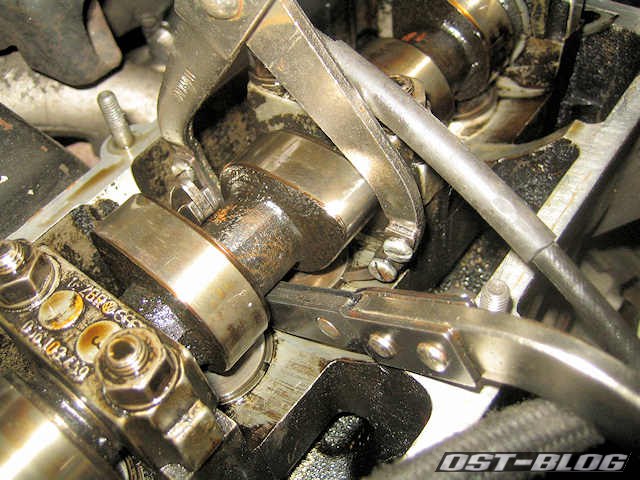

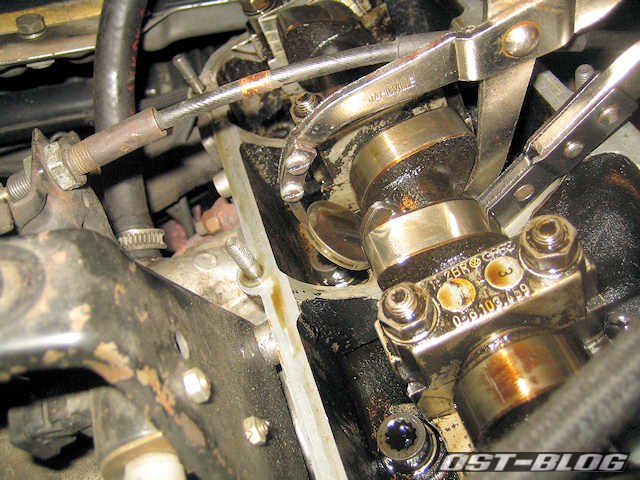

Apart from the tool I posted, which works on bigger buckets and bigger shims on bigger engines, a dexterous person (not me) could do it on this engine using a lever and a metal sliver to push and hold down the edge of the bucket. Alternatively, some people do it by stuffing something like a folded ziptie down the spark plug hole to trap the returning valve (in between the back of the valve face and the cylinder head). Either method would result in holding the bucket down sufficiently to pop the shim out with the edge of a small flathead screwdriver.
I do not believe I am wrong; the bigger engines are not the same as the smaller engines. The big engines have the shims on top of the buckets; the smaller engines have the shims under the buckets. I urge you to buy a Kawasaki Service Manual for your bike's exact year and model before you go any further. Also, before buying any special tools you should remove the valve cover and take a look at the task at hand, I believe the truth will become obvious. Good luck. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- Pagala
- Topic Author
- Offline
- User
- Posts: 127
- Thank you received: 6
I'll have to have another look at the engine because if the shim is UNDER the bucket, then, as you say, you couldn't remove it either with the tool I posted or the ziptie trick.
1̶9̶8̶3̶ ̶K̶a̶w̶a̶s̶a̶k̶i̶ ̶G̶T̶5̶5̶0̶ ̶(̶U̶K̶-̶o̶n̶l̶y̶ ̶m̶o̶d̶e̶l̶)̶,̶ ̶a̶l̶s̶o̶ ̶k̶n̶o̶w̶n̶ ̶a̶s̶ ̶t̶h̶e̶ ̶Z̶5̶5̶0̶ ̶G̶1̶,̶ ̶r̶e̶g̶i̶s̶t̶e̶r̶e̶d̶ ̶i̶n̶ ̶1̶9̶8̶4̶.̶
1981 Kawasaki Z440 (KZ440C1)
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22963
- Thank you received: 2748
Pagala wrote:
SWest wrote: If shim under buckets the cams MUST be removed.
Steve
If you're saying that whenever you have shims under buckets you have to remove the cams to remove the shims I can meet that "challenge" if you're saying that's the ONLY way to do it.
PROVE IT
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
- Posts: 7561
- Thank you received: 2234
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Please Log in or Create an account to join the conversation.
- Dr. Gamma
- Offline
- Sustaining Member
- Posts: 1227
- Thank you received: 676

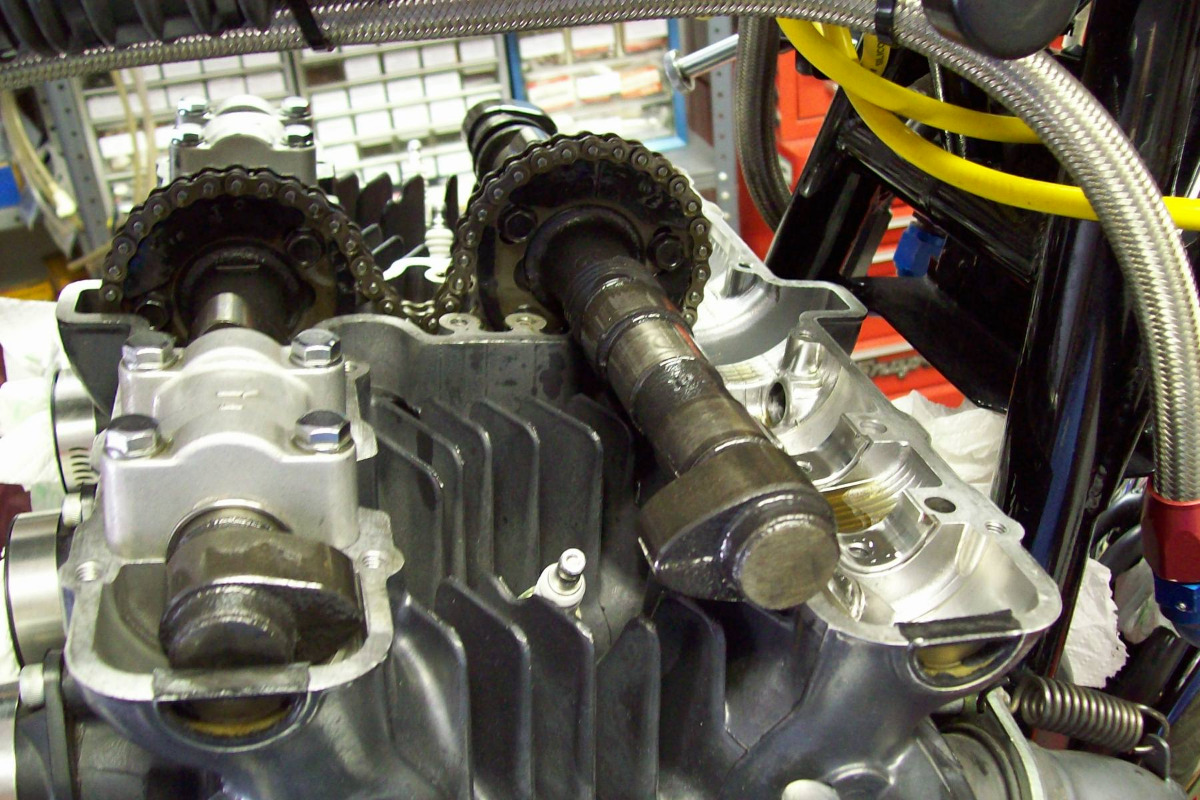

Oh Yea, by the way you can pull one cam at a time to get to the shim buckets!!!
Do it all the time!!!!
1972 H2 750 Cafe Racer built in 1974.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!
Up in the hills near Prescott, Az.
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22963
- Thank you received: 2748
Pagala wrote: Aha, shim-under-bucket not shim-on-top-of-bucket... OK, my mistake.
I'll have to have another look at the engine because if the shim is UNDER the bucket, then, as you say, you couldn't remove it either with the tool I posted or the ziptie trick.
Must have posted this before I posted mine. :whistle:
Steve
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4193
- Thank you received: 2063
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- Pagala
- Topic Author
- Offline
- User
- Posts: 127
- Thank you received: 6

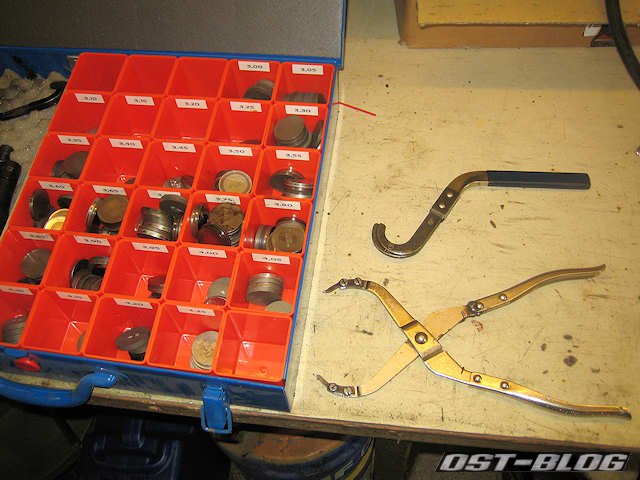

Scirocco, thanks for your post. I don't understand exactly what you're saying. You're saying that the valve depressor (the hook/spoon-like tool) which you have cannot be used with the 550, correct?
1̶9̶8̶3̶ ̶K̶a̶w̶a̶s̶a̶k̶i̶ ̶G̶T̶5̶5̶0̶ ̶(̶U̶K̶-̶o̶n̶l̶y̶ ̶m̶o̶d̶e̶l̶)̶,̶ ̶a̶l̶s̶o̶ ̶k̶n̶o̶w̶n̶ ̶a̶s̶ ̶t̶h̶e̶ ̶Z̶5̶5̶0̶ ̶G̶1̶,̶ ̶r̶e̶g̶i̶s̶t̶e̶r̶e̶d̶ ̶i̶n̶ ̶1̶9̶8̶4̶.̶
1981 Kawasaki Z440 (KZ440C1)
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22963
- Thank you received: 2748
Steve
kzrider.com/forum/2-engine/605981-valve-adjustment-z1-kz-1000
Please Log in or Create an account to join the conversation.
- JR
- Offline
- Sustaining Member
- Posts: 2937
- Thank you received: 448
loufhvx has a KZ550 Valve Train Warning in his signature
www.kzrider.com/forum/2-engine/610950-80...in-first-gear#806446
Which may or may not be relevant depending on what type of cam chain tensioner you have but worth looking at just in case.
1980 kz750E1, Delkevic exhaust
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
And, please, read the valve train warning as JR posted. Getting the timing is not hard on a 550.
I do it by removing the sprockets from the shafts when the shafts are near to where they should be. The sprockets slide down off their bosses giving you tons of slack and clearance. Then you can time the sprocket with the chain and slide the sprocket back up onto it's boss and align the cam to the sprocket.
Others do it different ways. You can ziptie the chain to the sprockets, just make sure the chain does not jump a tooth on the crank.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
