Valve shim replacement one cam at a time?
- Pagala
- Topic Author
- Offline
- User
I understand that because the shims are so small, the only really easy and convenient way to change valve shims is by removing cams. I don't want to skip a tooth on the valve timing, and I'm not a fan of counting the cam chain links to make it line up, so I thought of this idea. How about tying a zip tie between one of the cam gears and the cam chain, and then painting a mark on a point crossing the cam chain and the other cam gear. Then removing that other (not tied) cam, inspecting the shims, ordering replacements for that side. Then putting the cam back in, lining it up with the painted mark, then doing the same with the other side? Does this sound feasible?
Thanks in advance
1̶9̶8̶3̶ ̶K̶a̶w̶a̶s̶a̶k̶i̶ ̶G̶T̶5̶5̶0̶ ̶(̶U̶K̶-̶o̶n̶l̶y̶ ̶m̶o̶d̶e̶l̶)̶,̶ ̶a̶l̶s̶o̶ ̶k̶n̶o̶w̶n̶ ̶a̶s̶ ̶t̶h̶e̶ ̶Z̶5̶5̶0̶ ̶G̶1̶,̶ ̶r̶e̶g̶i̶s̶t̶e̶r̶e̶d̶ ̶i̶n̶ ̶1̶9̶8̶4̶.̶
1981 Kawasaki Z440 (KZ440C1)
Please Log in or Create an account to join the conversation.
- RonKZ650
- Offline
- User
- Posts: 3701
- Thank you received: 240
321,000 miles on KZ's that I can remember. Not going to see any more.
Please Log in or Create an account to join the conversation.
- Pagala
- Topic Author
- Offline
- User
- Posts: 127
- Thank you received: 6
Just out of interest, do you know of any equivalent to this sort of valve-depressor tool (which let's you take shims out without removing cams) which I use on my Yamaha?
www.lasertools.co.uk/product/6519
It wouldn't fit on my Kawasaki 550, but I'm just wondering if there's a tool, perhaps a screw-down one, which will do the same job.
1̶9̶8̶3̶ ̶K̶a̶w̶a̶s̶a̶k̶i̶ ̶G̶T̶5̶5̶0̶ ̶(̶U̶K̶-̶o̶n̶l̶y̶ ̶m̶o̶d̶e̶l̶)̶,̶ ̶a̶l̶s̶o̶ ̶k̶n̶o̶w̶n̶ ̶a̶s̶ ̶t̶h̶e̶ ̶Z̶5̶5̶0̶ ̶G̶1̶,̶ ̶r̶e̶g̶i̶s̶t̶e̶r̶e̶d̶ ̶i̶n̶ ̶1̶9̶8̶4̶.̶
1981 Kawasaki Z440 (KZ440C1)
Please Log in or Create an account to join the conversation.
- Greybeard
- Offline
- Sustaining Member
- Posts: 113
- Thank you received: 26
1982 KZ1100 D-1
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4193
- Thank you received: 2063

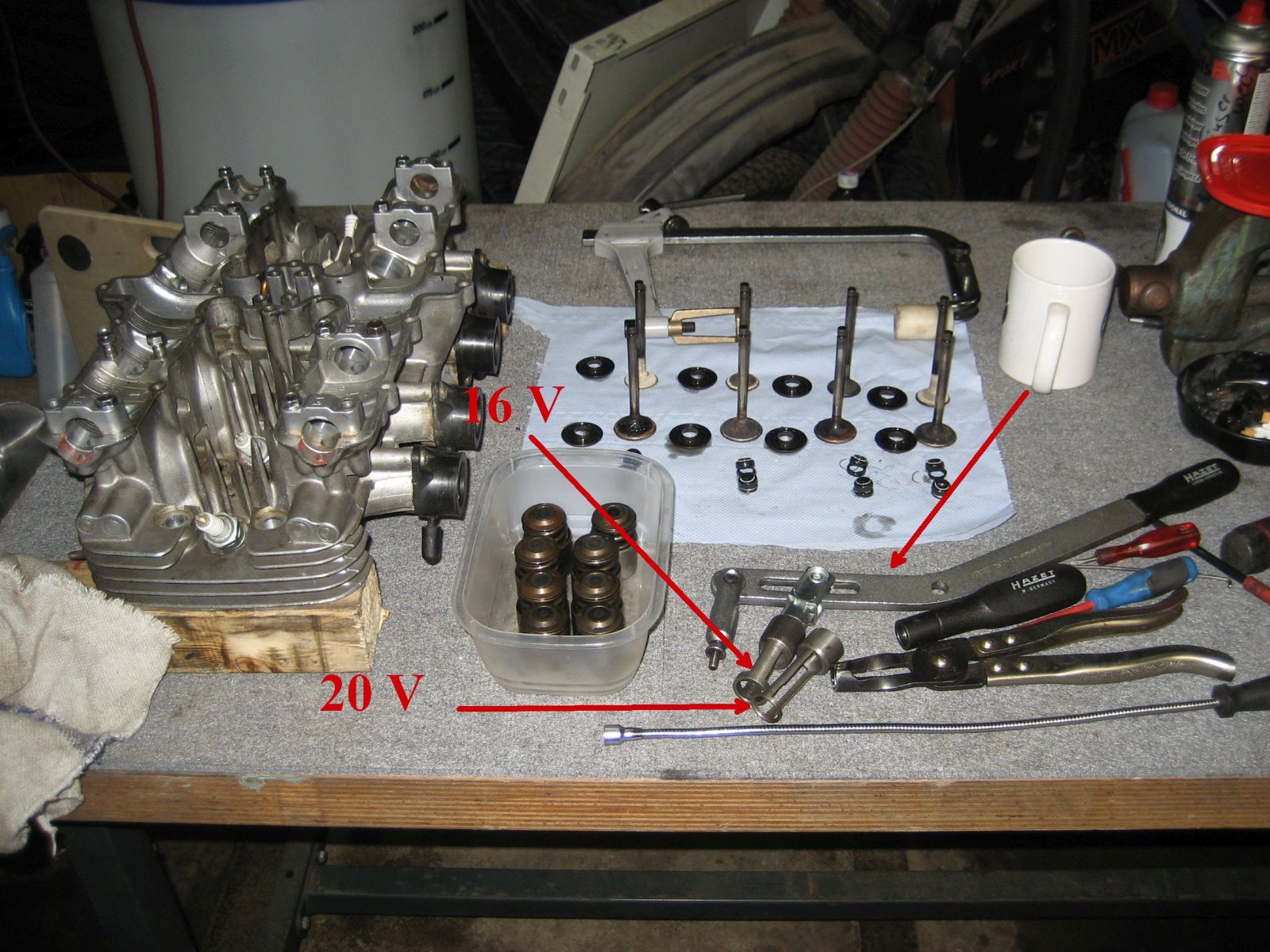

My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
Pagala wrote: Excellent. Just like I imagined, then. That's going to be how I'm going to do it.
Just out of interest, do you know of any equivalent to this sort of valve-depressor tool (which let's you take shims out without removing cams) which I use on my Yamaha?
www.lasertools.co.uk/product/6519
It wouldn't fit on my Kawasaki 550, but I'm just wondering if there's a tool, perhaps a screw-down one, which will do the same job.
Take a look at your engine. I believe you will find that the shims are UNDER the buckets. Given that, there is no way to replace a shim without first removing the bucket and there is no way to remove the bucket without first removing the cam. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4193
- Thank you received: 2063
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- Pagala
- Topic Author
- Offline
- User
- Posts: 127
- Thank you received: 6
650ed wrote: Take a look at your engine. I believe you will find that the shims are UNDER the buckets. Given that, there is no way to replace a shim without first removing the bucket
That's where you're wrong.
Apart from the tool I posted, which works on bigger buckets and bigger shims on bigger engines, a dexterous person (not me) could do it on this engine using a lever and a metal sliver to push and hold down the edge of the bucket. Alternatively, some people do it by stuffing something like a folded ziptie down the spark plug hole to trap the returning valve (in between the back of the valve face and the cylinder head). Either method would result in holding the bucket down sufficiently to pop the shim out with the edge of a small flathead screwdriver.
1̶9̶8̶3̶ ̶K̶a̶w̶a̶s̶a̶k̶i̶ ̶G̶T̶5̶5̶0̶ ̶(̶U̶K̶-̶o̶n̶l̶y̶ ̶m̶o̶d̶e̶l̶)̶,̶ ̶a̶l̶s̶o̶ ̶k̶n̶o̶w̶n̶ ̶a̶s̶ ̶t̶h̶e̶ ̶Z̶5̶5̶0̶ ̶G̶1̶,̶ ̶r̶e̶g̶i̶s̶t̶e̶r̶e̶d̶ ̶i̶n̶ ̶1̶9̶8̶4̶.̶
1981 Kawasaki Z440 (KZ440C1)
Please Log in or Create an account to join the conversation.
- baldy110
- Offline
- User
- Posts: 2272
- Thank you received: 512
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22963
- Thank you received: 2748
Steve
Please Log in or Create an account to join the conversation.
- Pagala
- Topic Author
- Offline
- User
- Posts: 127
- Thank you received: 6
baldy110 wrote: On a shim under bucket style engine the cams HAVE TO REMOVED to get at the shims period unless you beam the shims out. And if you ever manage to remove the the shims leaving the cams in place please record the procedure and post it.
That's a pretty stupid position to hold for ALL shim-under-bucket-style engines. What do you think that device I posted is for?
1̶9̶8̶3̶ ̶K̶a̶w̶a̶s̶a̶k̶i̶ ̶G̶T̶5̶5̶0̶ ̶(̶U̶K̶-̶o̶n̶l̶y̶ ̶m̶o̶d̶e̶l̶)̶,̶ ̶a̶l̶s̶o̶ ̶k̶n̶o̶w̶n̶ ̶a̶s̶ ̶t̶h̶e̶ ̶Z̶5̶5̶0̶ ̶G̶1̶,̶ ̶r̶e̶g̶i̶s̶t̶e̶r̶e̶d̶ ̶i̶n̶ ̶1̶9̶8̶4̶.̶
1981 Kawasaki Z440 (KZ440C1)
Please Log in or Create an account to join the conversation.
- Pagala
- Topic Author
- Offline
- User
- Posts: 127
- Thank you received: 6
SWest wrote: If shim under buckets the cams MUST be removed.
Steve
If you're saying that whenever you have shims under buckets you have to remove the cams to remove the shims I can meet that "challenge" if you're saying that's the ONLY way to do it.
1̶9̶8̶3̶ ̶K̶a̶w̶a̶s̶a̶k̶i̶ ̶G̶T̶5̶5̶0̶ ̶(̶U̶K̶-̶o̶n̶l̶y̶ ̶m̶o̶d̶e̶l̶)̶,̶ ̶a̶l̶s̶o̶ ̶k̶n̶o̶w̶n̶ ̶a̶s̶ ̶t̶h̶e̶ ̶Z̶5̶5̶0̶ ̶G̶1̶,̶ ̶r̶e̶g̶i̶s̶t̶e̶r̶e̶d̶ ̶i̶n̶ ̶1̶9̶8̶4̶.̶
1981 Kawasaki Z440 (KZ440C1)
