Ignition Timing won't synch with contact breaker plate
- newkzrider18
- Topic Author
- Offline
- User
I'm adjusting my timing and following the instructions on page 19 of the manual. It states if the timing is incorrect (which it was as determined previously) to move the crankshaft to the timing mark for the 'F' mark , then adjust the contact breaker mounting plate so the contacts are 'just at the point of opening' or watching an ohmmeter needle flicker.
In the contact breaker mounting plates full range of motion, the points are always opening too early, so before the F timing mark, i.e., it doesn't matter where I put the contact breaker plate the points always open early. (plate all the way to the right, all the way to the left, in the middle, points open early!)
Could there be another reason for this?
Thanks!

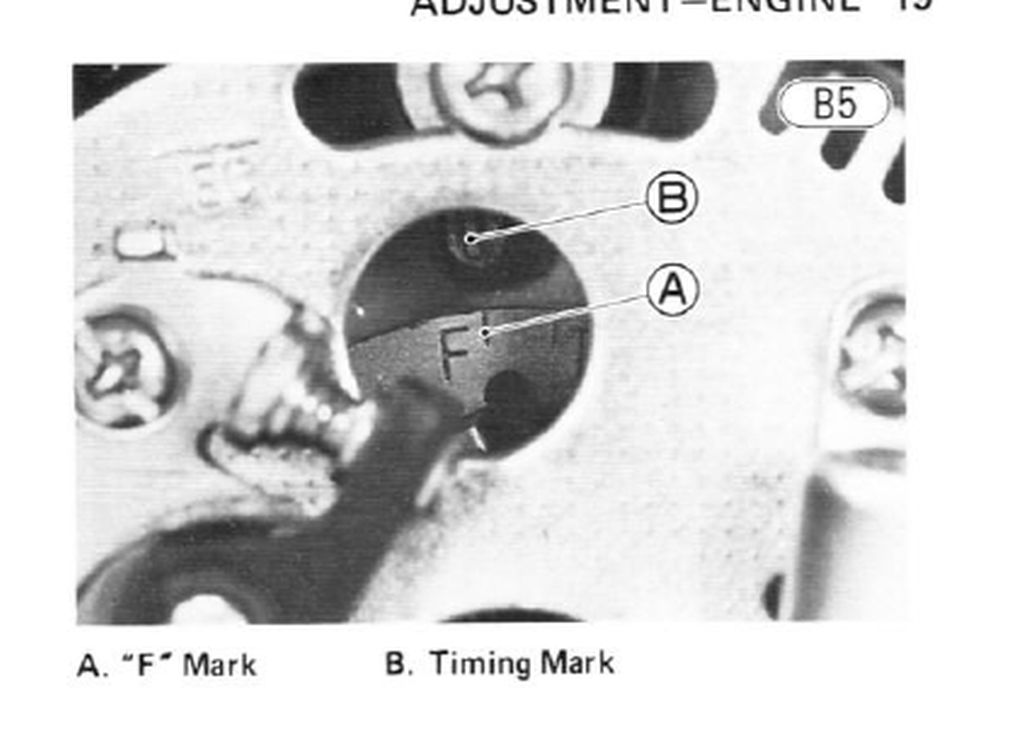

I have attached the page of the manual I am using.
1980 KZ 440 LTD Model A
Please Log in or Create an account to join the conversation.
- Warren3200gt
- Offline
- User
- Posts: 1507
- Thank you received: 714
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4193
- Thank you received: 2063
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
--- The GAP – this is the distance the points spread apart when fully open. This is set by adjusting the points. The GAP is the element that determines the DWELL. In essence, the DWELL is the number of degrees of points cam rotation that the points are closed and this controls the amount of time the coils receive a charge before firing the spark plugs. The gap MUST be set before you set the timing.
--- The TIMING of the initial opening of the points (the point at which the continuity across the points breaks) controls the precise instant that the coils receive the signal to fire the spark plugs. This is set by turning the backplate AFTER the gap is set. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- z1kzonly
- Offline
- User
- Sustaining Member
- Posts: 2890
- Thank you received: 540
With that tiny speck of a mark at around 4:00 o'clock position?
Did not read too much in to this?
Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!
Please Log in or Create an account to join the conversation.
- newkzrider18
- Topic Author
- Offline
- User
- Posts: 61
- Thank you received: 1
Yes, in following the manual I have already set the point gap; it was to spec as per the manual and then I continued on to the static timing. No I hadn't taken off the timing advancer at the time.
Also after I move the plate, I make sure that the it is tight on before doing the static test.
I did take it off when checking the slack in my primary chain and when I reinstalled I made sure that the counter breaker fit back into the contact breaker base pin on the starter plate (manual pg 77.)
1980 KZ 440 LTD Model A
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4193
- Thank you received: 2063
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- newkzrider18
- Topic Author
- Offline
- User
- Posts: 61
- Thank you received: 1
Attached is a video of a continuity test.
The beeping stops when the points are no longer touching. In the video this happens when what I think is well before the 'F' timing mark.
EDIT:
Ok for some reason the forum won't let me upload the video even though I tried twice with supported file attachments (mov and wmv)
so I guess a picture will do.

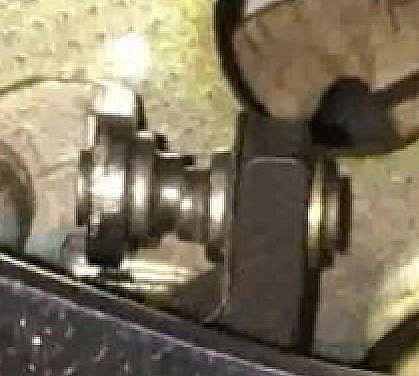

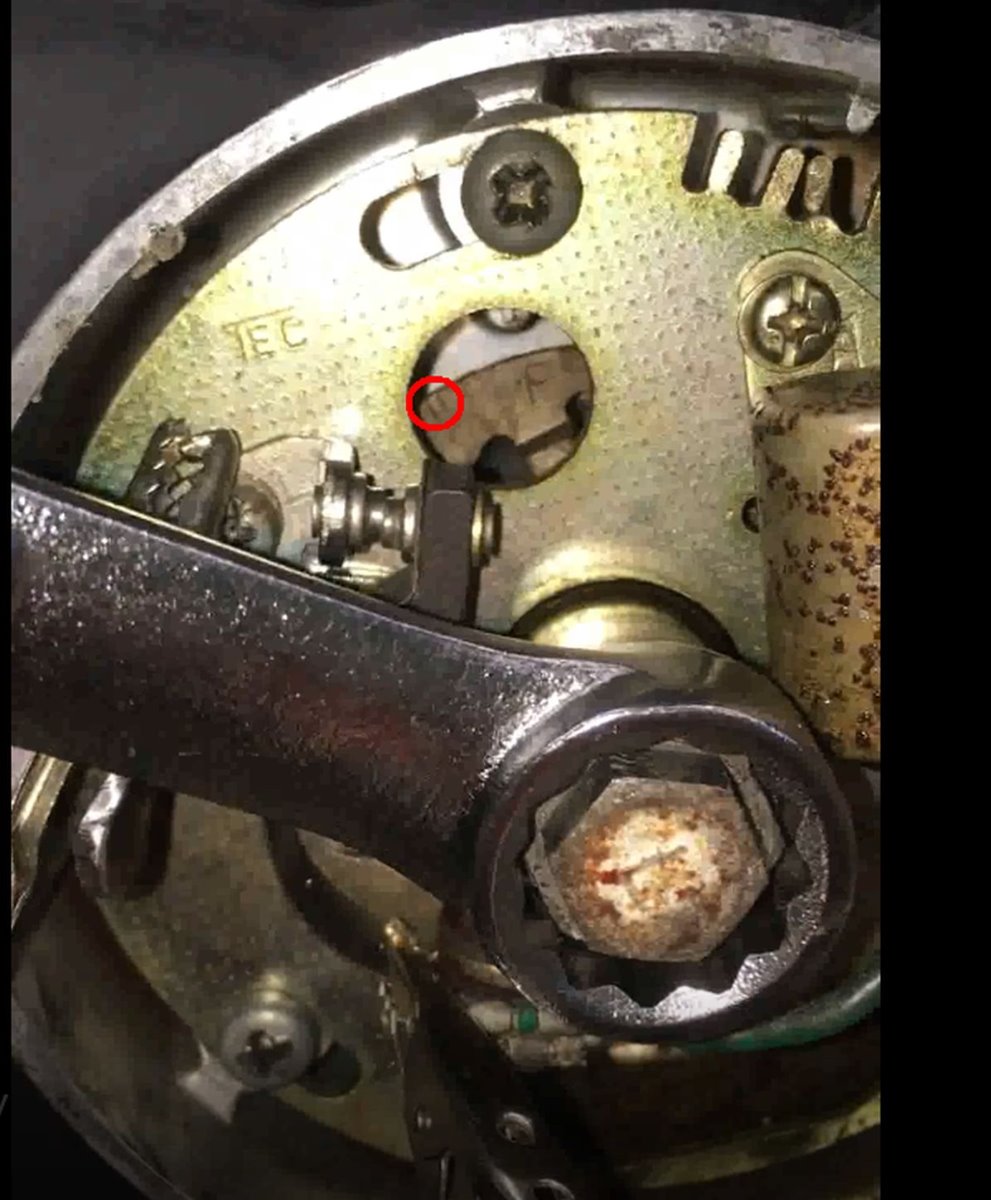

The picture is the point where the beeping stops and the points begin to open.
1980 KZ 440 LTD Model A
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4193
- Thank you received: 2063

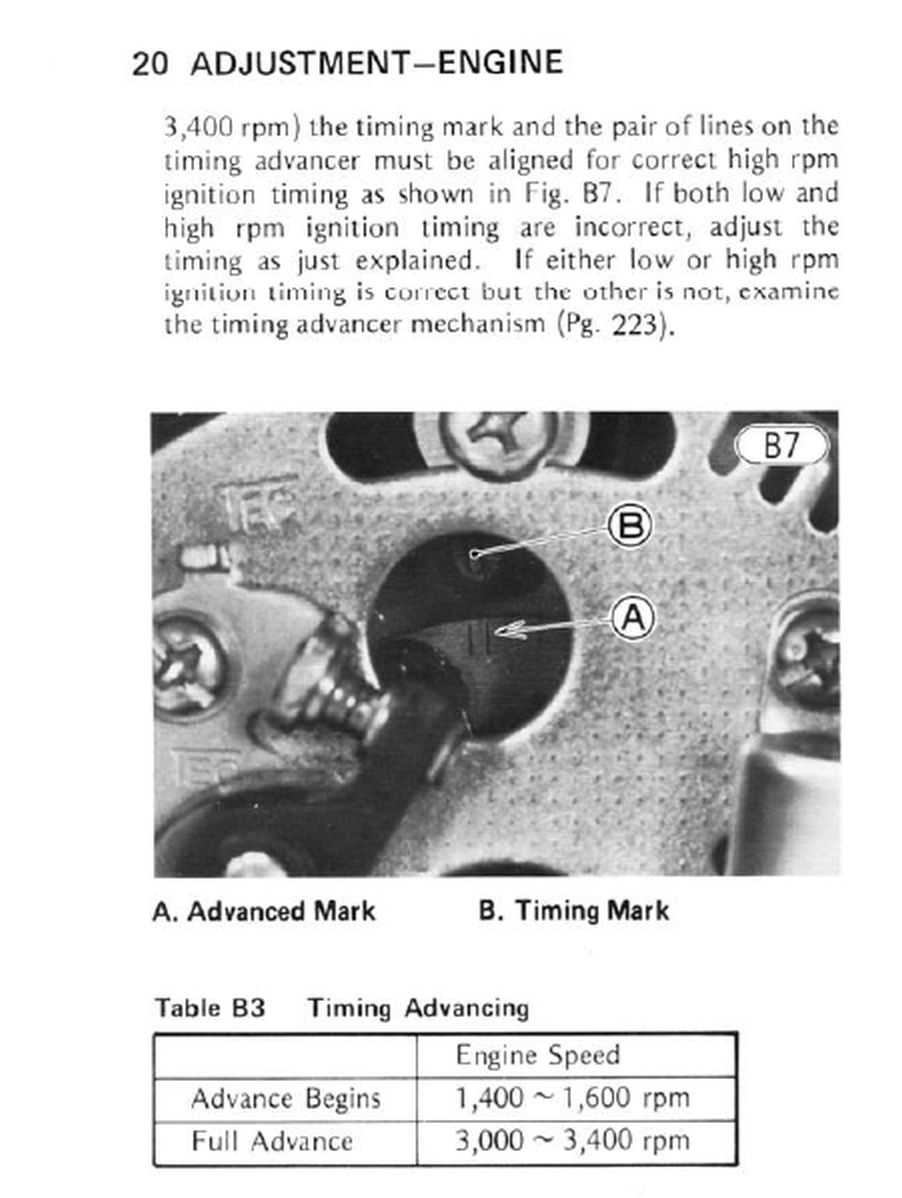

and the full advance Timing mark @ 3400 rpm
