Pin in the output shaft (Z1-KZ900-KZ1000)

  • Scirocco
  • Topic Author
  • Away
  • Premium Member
  • Never change a running system
More
24 Aug 2017 17:09 #769678 by Scirocco
Pin in the output shaft (Z1-KZ900-KZ1000) was created by Scirocco
I answered a lot of questions for other members but now i have to ask here about this.

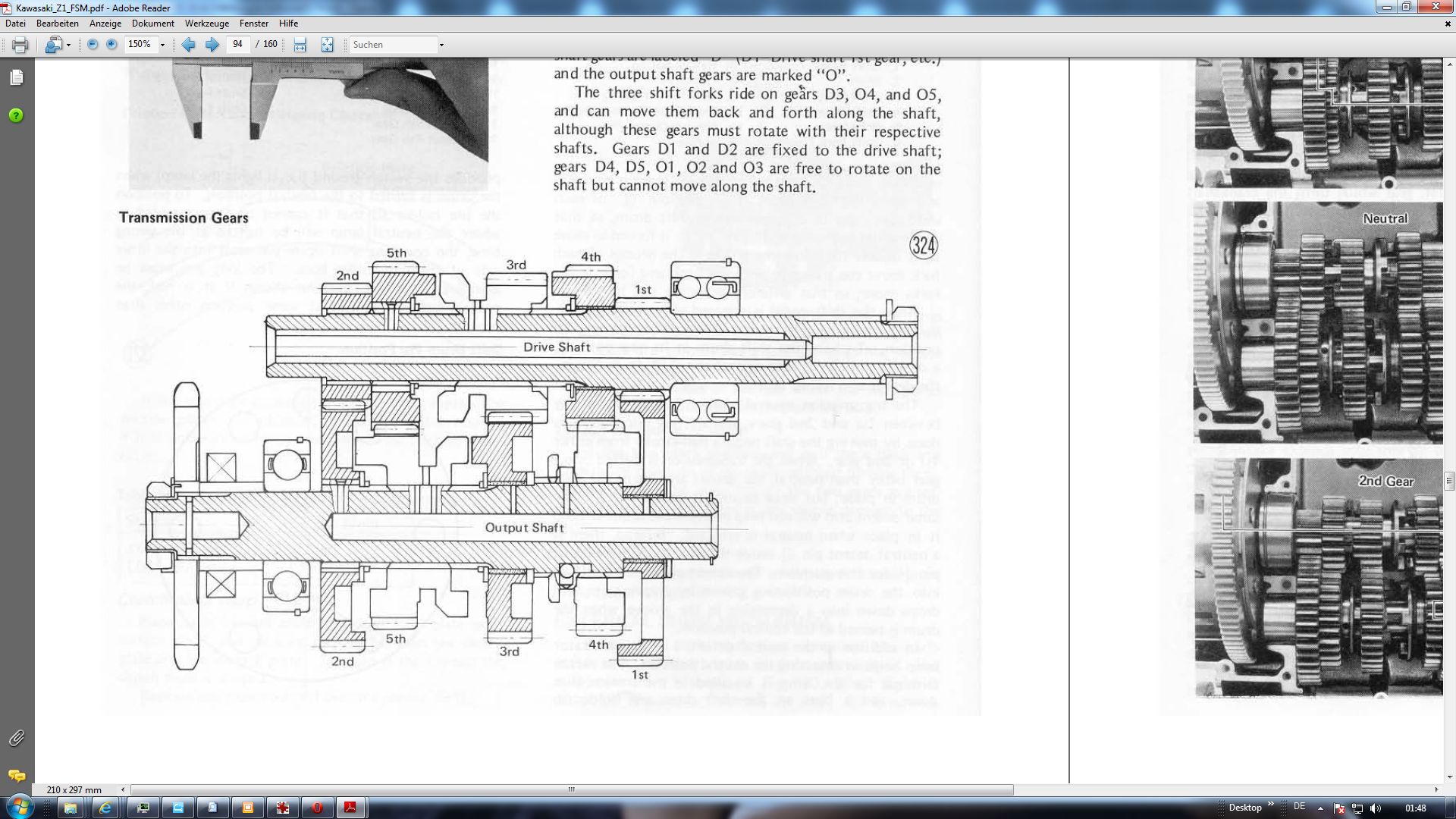

Do some readings in a Haynes manual for the 72 - 78 Zed models and found a pic with a mysterious pin
in the output shaft. Does anybody knows something about this pin and his function?

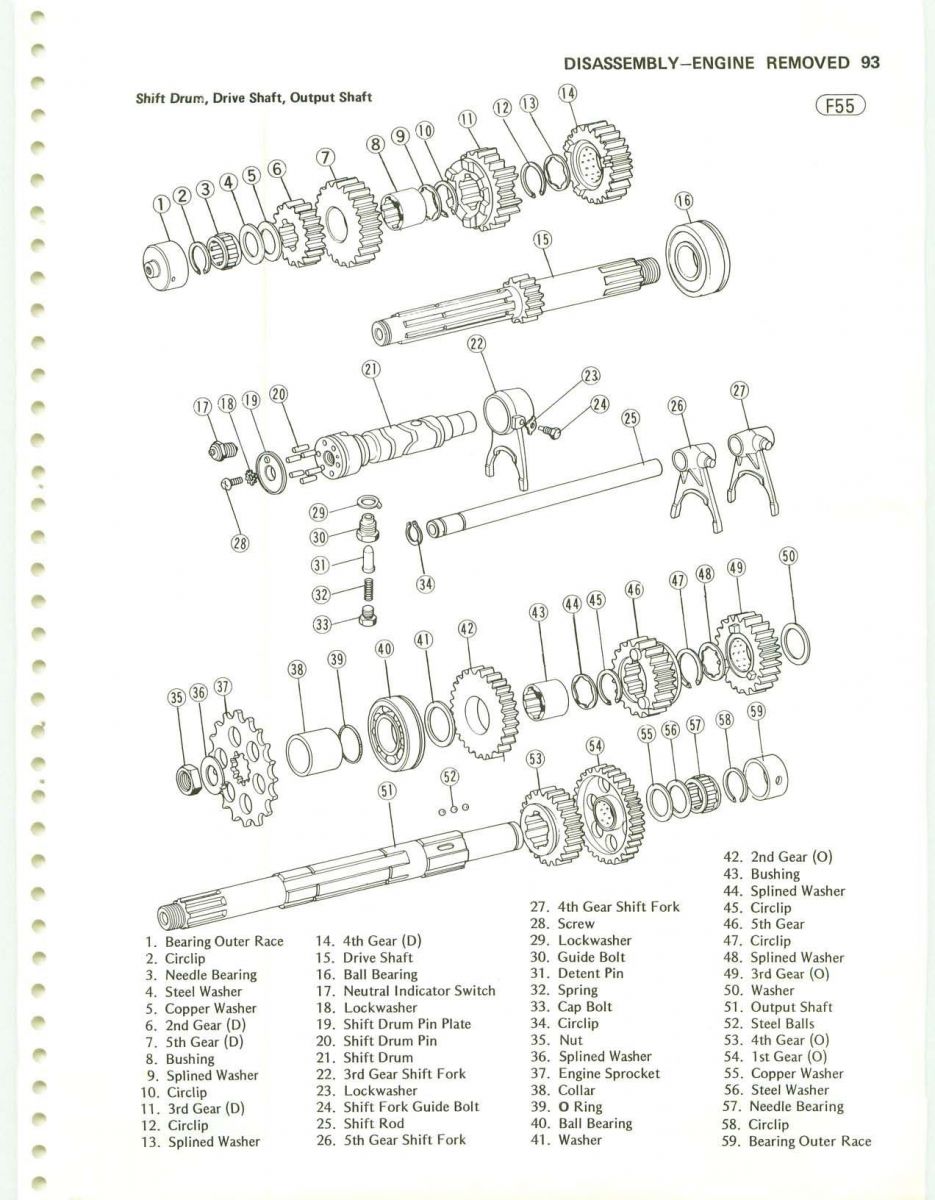

The Kawasaki service manuals shown nothing about this pin in the output shaft.

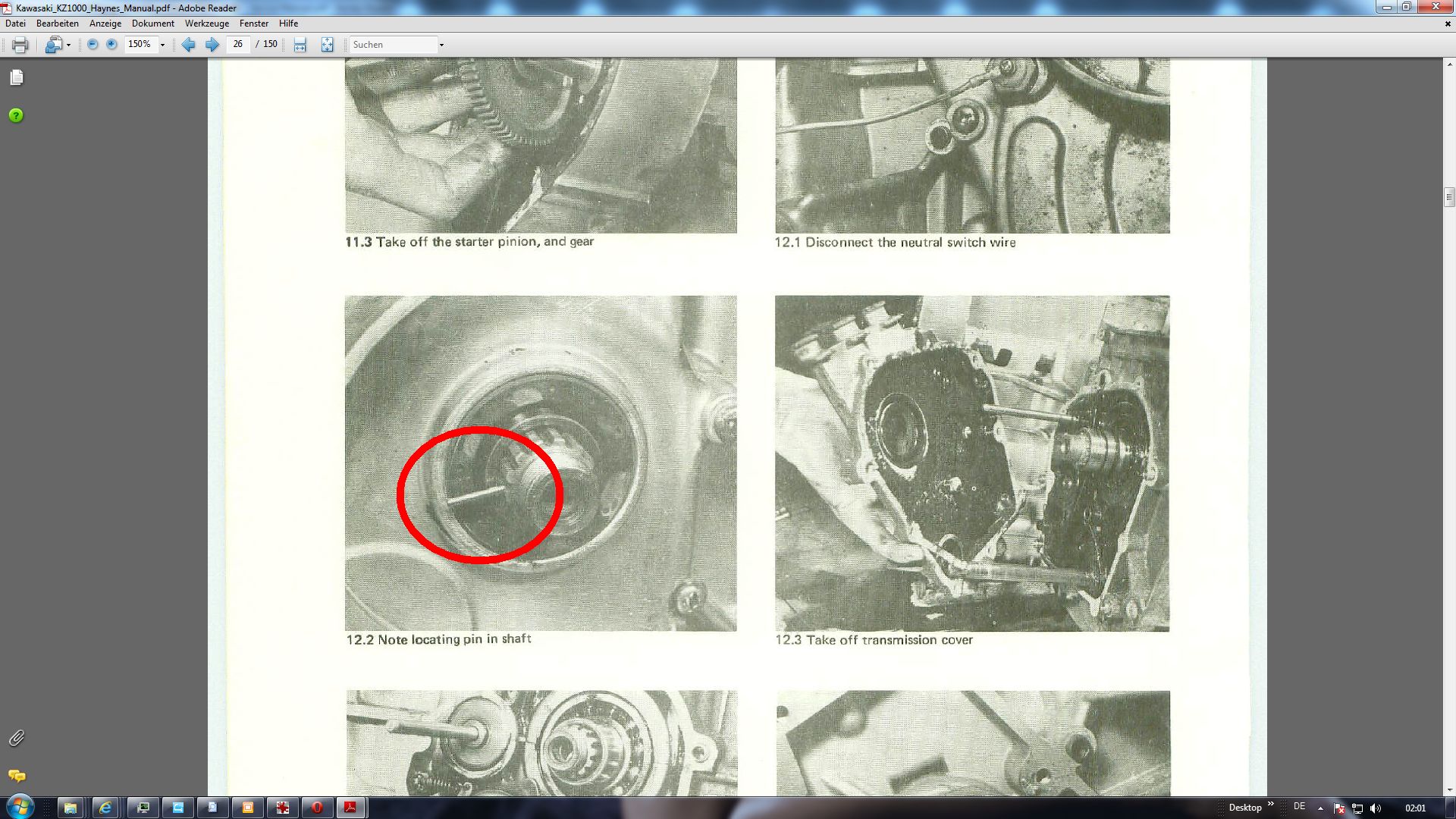

The mysterious pin



KZ900



KZ1000

My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Attachments:

Please Log in or Create an account to join the conversation.

  • SWest
  • Offline
  • Sustaining Member
  • 10 22 2014
More
24 Aug 2017 17:18 #769681 by SWest
Replied by SWest on topic Pin in the output shaft (Z1-KZ900-KZ1000)
Never seen that before. Must be another bike. Notorious for being inaccurate.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

More
24 Aug 2017 17:26 #769683 by Dr. Gamma
Replied by Dr. Gamma on topic Pin in the output shaft (Z1-KZ900-KZ1000)
Thats how Kawasaki drives the chain lube oil pump on '73 Z1.
1972 H2 750 Cafe Racer built in 1974.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!

Up in the hills near Prescott, Az.
The following user(s) said Thank You: Scirocco

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Topic Author
  • Away
  • Premium Member
  • Never change a running system
More
24 Aug 2017 17:29 - 24 Aug 2017 17:32 #769686 by Scirocco
Replied by Scirocco on topic Pin in the output shaft (Z1-KZ900-KZ1000)
AHHH, thats the answer, never seen a chain pump assembly
Lesson learned, thank you Dr. Gamma
My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Last edit: 24 Aug 2017 17:32 by Scirocco.

Please Log in or Create an account to join the conversation.

  • SWest
  • Offline
  • Sustaining Member
  • 10 22 2014
More
24 Aug 2017 17:39 #769687 by SWest
Replied by SWest on topic Pin in the output shaft (Z1-KZ900-KZ1000)
That's right. The pump is driven by the countershaft. Never had one. There was always a oil spot under Jim's bike but not mine or Larry's. Leaked like a Harley. :lol:
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.
