KZ1000 Cam Timing - Strange Alignment Issues
- missionkz
- Offline
- Sustaining Member
looks just like +90% of all the 900s and 1000's that I've messed withFrankenKZ650 wrote:
swest wrote: I set my arrow just below the surface. 35000 miles is just broken in.
Steve
Hello,
I've attached a close-up of the cam mark. I added an arrow over the arrow mark on the cam. To me, it looks like if I go 1 tooth down, the mark would be way below the surface of the head.
What do you all think?
Thanks!
over the last 40years.
Bruce
1977 KZ1000A1
2016 Triumph T120 Bonneville
Far North East Metro Denver Colorado
Please Log in or Create an account to join the conversation.
- Kapahulu
- Offline
- User
Not very scientific but I wouldn't go very far, probably not more than 1mm on each hole to make sure things don't get messed up.
1978 KZ1000, 1976 KZ900, 1975 H2, 1973 H1, 1973 H2, 1978 RD400, 1977 RD400, 1974 RD350
2strokeworld.com
Please Log in or Create an account to join the conversation.
- zed1015
- Offline
- User
- Posts: 3023
- Thank you received: 1554
Kapahulu wrote: You can slot the cam sprocket with a round file then adjust it so that the carrot is closer to level with the cylinder head.
Sorry Kapahulu but slotting the sprocket won't move the mark as it's position is fixed in relation to the crank by the camchain.
Franken ! Those timing marks hardly ever line up perfectly due to factory build tolerances, camchain stretch, Deck height. gasket thickness etc and the bike will run just fine as is.
The only way to get perfect factory spec timing is to slot or buy slotted sprockets and degree in the cams.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-
Please Log in or Create an account to join the conversation.
- Kapahulu
- Offline
- User
Ooh that's right, thank you!zed1015 wrote: Sorry Kapahulu but slotting the sprocket won't move the mark as it's position is fixed in relation to the crank by the camchain.
BTW ZED1015 your Super Mod bike is fantastic! I usually like classic bikes looking closer to stock but yours is really nice, looking all business.
1978 KZ1000, 1976 KZ900, 1975 H2, 1973 H1, 1973 H2, 1978 RD400, 1977 RD400, 1974 RD350
2strokeworld.com
Please Log in or Create an account to join the conversation.
- etbike3135
- Offline
- User
- Posts: 381
- Thank you received: 50
There is another reason this could be and thats someone milled your head. Less likely but at that point someone should have been decreeing the cams anyway.
1973 Kawasaki Z1
18 years in dragbikes
Please Log in or Create an account to join the conversation.
- FrankenKZ650
- Topic Author
- Offline
- User
- Posts: 24
- Thank you received: 2
Thanks again!
Dustin
1977 KZ650 (1982 KZ750-4 Engine)
Vance & Hines 4:1
K&N Pods
1977 KZ1000
Kerker 4:1
K&N Pods
Please Log in or Create an account to join the conversation.
- missionkz
- Offline
- Sustaining Member
My head is milled about .012" and with a +42,000 mile cam chain and old sprockets, the exhaust cam "carrot" is about where yours is now.
However, with my slightly lower drive chain sprocket ratio, the 10.25:1 1075cc kit, Denco headers, stock but correctly jetted 26mm carbs... well, trust me, ... the bike still hauls ass like it should, blowing all my buddy's modern bikes in the weeds.... much to their total disgust! LOL
Bruce
1977 KZ1000A1
2016 Triumph T120 Bonneville
Far North East Metro Denver Colorado
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22971
- Thank you received: 2749
Please Log in or Create an account to join the conversation.
- Tyrell Corp
- Offline
- User
- "You were made as well as we could make you"
- Posts: 1650
- Thank you received: 261
What difference isn't enough to bend valves is just enough to make a difference...just might be an improvement.
Even if was worst case scenario cam mark is 10 degrees out -that is just 5 degrees on the crank.
Think just 5 degrees between (for example) 105 and 110 lobe centres for fast road or drag racing... that 5 degrees makes a big difference between bottom end grunt and rpm power.
I guess even on "stock" motors, variances in head and gasket thickness plus camchain and guide wear could be several degrees difference. these motors tend to have quite generous clearances, I had one which was 1 tooth out on the cam timing once.
1980 Gpz550 D1, 1981 GPz550 D1. 1982 GPz750R1. 1983 z1000R R2. all four aces
Please Log in or Create an account to join the conversation.
- FrankenKZ650
- Topic Author
- Offline
- User
- Posts: 24
- Thank you received: 2
missionkz wrote: Keep in mind that when setting the cams and chain up.... per the manual, you are pulling the "slack" chain away from the crankshaft sprocket and towards the head. So the exhaust cam sprocket is rotating a little further towards the intake cam sprocket.
My head is milled about .012" and with a +42,000 mile cam chain and old sprockets, the exhaust cam "carrot" is about where yours is now.
However, with my slightly lower drive chain sprocket ratio, the 10.25:1 1075cc kit, Denco headers, stock but correctly jetted 26mm carbs... well, trust me, ... the bike still hauls ass like it should, blowing all my buddy's modern bikes in the weeds.... much to their total disgust! LOL

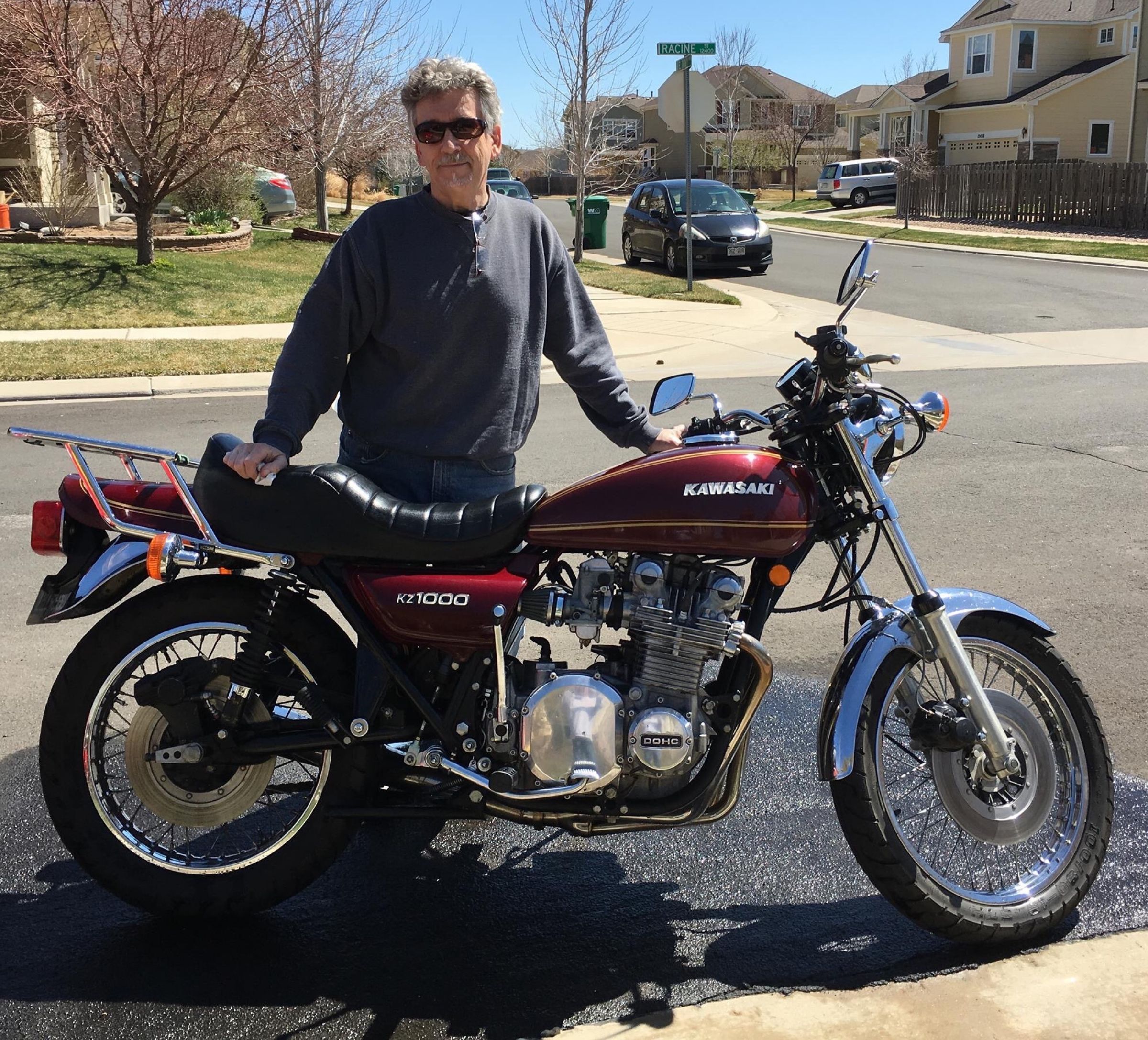

Beautiful kz!
1977 KZ650 (1982 KZ750-4 Engine)
Vance & Hines 4:1
K&N Pods
1977 KZ1000
Kerker 4:1
K&N Pods
Please Log in or Create an account to join the conversation.
- Z1Driver
- Offline
- User
- love the smell of triple smoke
- Posts: 301
- Thank you received: 55
What finally helped was one night I sat turning the motor over with cams installed and clearances set. I watched where the timing mark on the exhaust cam gear landed on the head when the timing marks came up on the crank a bunch of times. Everything came apart again. I set the exhaust cam sprocket mark to where it was repeatedly landing when the crank timing marks were dead on. I then counted the 28 pins back to the intake sprocket timing mark. I put everything back together and low and behold she runs like a 900 again.
I think what was messing me up is the fact with 27k on the speedo the cam chain is stretched a little. It's stretched just enough to make setting the marks up per the FSM is not going to happen.
Blue 1975 Z1B
Red 2009 Concours 14
