ThatGPzGuy wrote: Where is the sensor installed? In the crossover pipe?
I see where it is installed in TexasKZ's link but is there a fitting that needs to welded in then this screws on or will it just screw into a drilled and tapped hole? And can it be installed on the inside so its hidden ?
Bought a color tune that I hav'nt used yet and you guys got me thinkin on this.
I see in the Apsx add it has a nut so I guess you just drill a hole and connect it this way...... problem with that is my collector has been on for 32 years and I could not even budge it a few years back. :pinch:
1978 KZ650 b-2
700cc Wiseco kit 10 to 1.
1980 KZ750 cam, ape springs, stock clutch/ Barnett springs.
Vance and Hines Header w/ comp baffle and Ape pods, Dyna S and green coils, copper wires.
29MM smooth bores W/ 17.5 pilots, 0-6s and 117.5 main
16/42 gearing X ring chain and alum rear JT sprocket.
Please Log in or Create an account to join the conversation.
- jackleberry
- Offline
- User
- Posts: 394
- Thank you received: 56
ThatGPzGuy wrote: Where is the sensor installed? In the crossover pipe?
I haven't decided that. Personally, I was just going to shove the sensor in the tailpipe. The AFM is only needed to tune things up---I'm not sure I'd want to install it permanently.
To get the best results with tuning idle mixtures, you'd want to be able to do one cylinder at a time--and that would require installing
bungs in each header.
[strike]On the other hand, on a bike with a 4 into 2 exhaust, it seems that by unplugging cylinders 2 & 3, you could tune #1 by sticking the sensor in the left tail pipe and then #4 by sticking it in the right. Then plug 2 & 3 back in and unplug 1 & 4 and repeat for tuning 2 & 3. May sound like a hassle, but that's really no worse than all the fiddling with the colortune (assuming you only buy one and not a set of 4 which would be crazy expensive).[/strike]
(EDIT: nevermind... not enough coffee. the disabled cylinders would screw up the reading)
Tuning jets could be one with an overall reading. So yeah, I think installing in the crossover would be good for that.
1997 KZ1000P (P16)
2001 KZ1000P (P20)
Please Log in or Create an account to join the conversation.
- zukdave
- Offline
- User
- Posts: 1685
- Thank you received: 229
A wide band with one 02 sensor will only work in a 4 to 1 exhaust system
and the sensor needs to be installed in the collector so it reads all 4 cylinders.
1980 KZ650 F1
ZX750A1 motor.
Wiseco 810cc kit.
Zukiworks racing ported head.
VM 29 smooth bore's.
Dyna 2000 Ign. w/Dyna mini coil's
APE cylinder stud's and nut's.
APE valve spring's.
APE Track King clutch.
V/H KZ1000 sidewinder.
3.5x18 laced to a KZ1000 disk hub.
150/60/18 Shinko 006 Podium.
63" wheel base.
Please Log in or Create an account to join the conversation.
- SWest
- Topic Author
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22974
- Thank you received: 2749
Steve
Please Log in or Create an account to join the conversation.
- Old Man Rock
- Offline
- User
- Posts: 6224
- Thank you received: 225

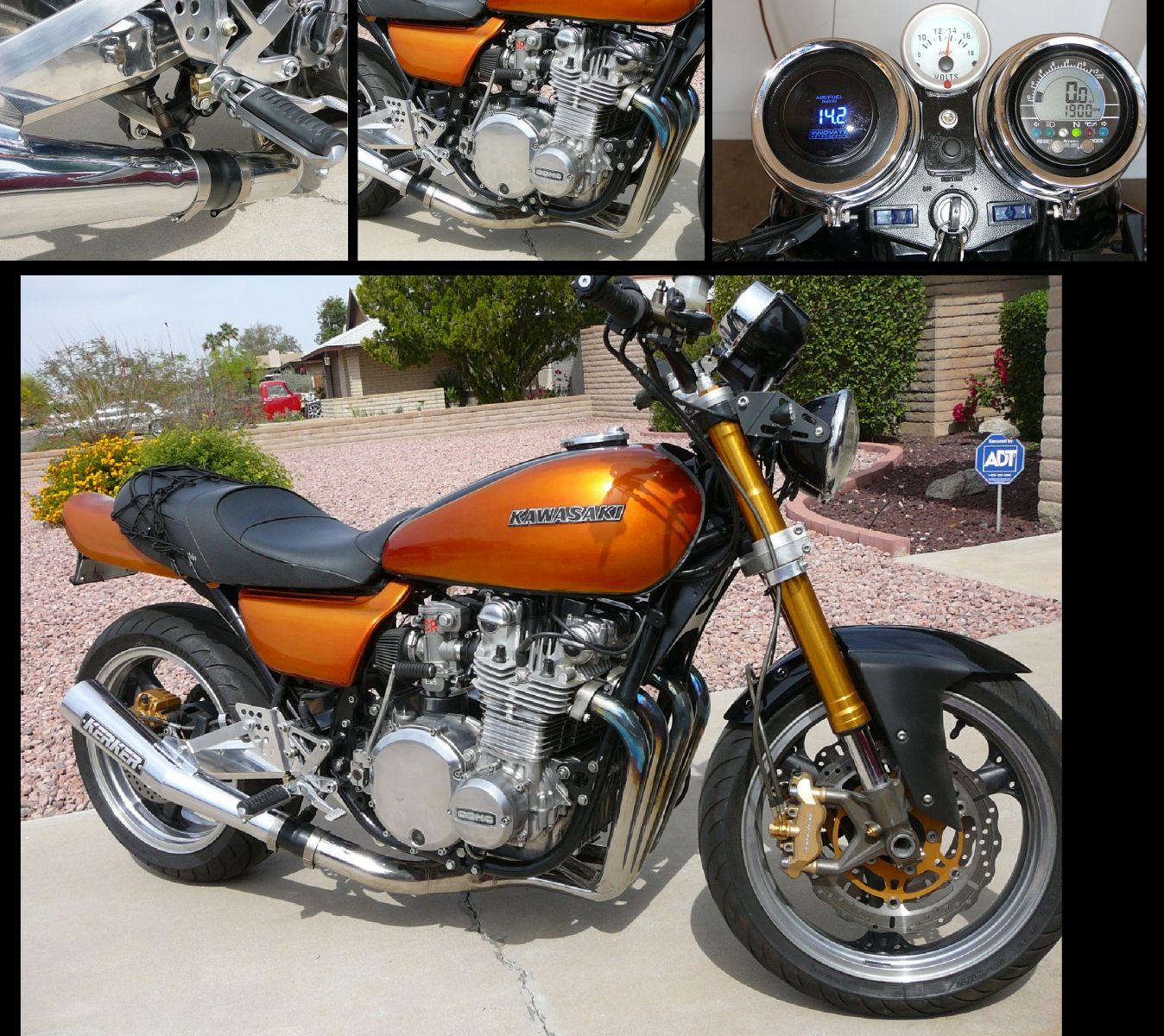

1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter
Phoenix, Az
Please Log in or Create an account to join the conversation.
- Old Man Rock
- Offline
- User
- Posts: 6224
- Thank you received: 225
Video of operation I did years ago on my KZ900....
Crank up the volume where you can hear by adjusting your carb the RPM response...

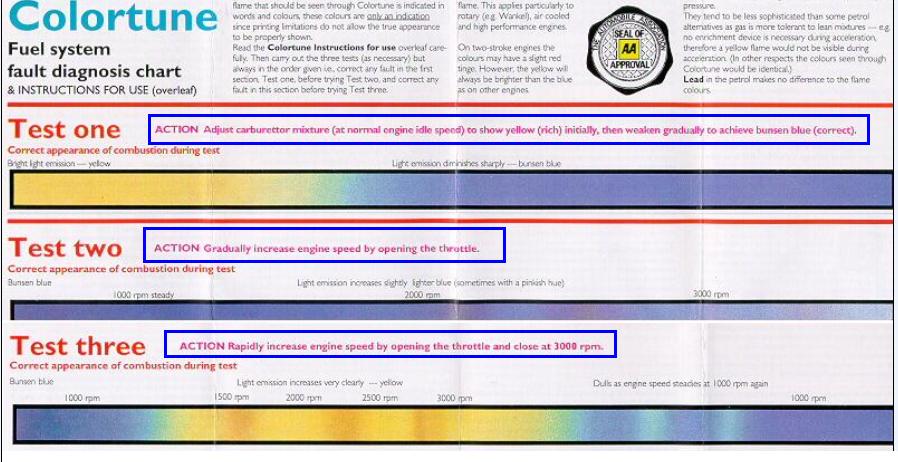

Operation & Tunning Steps Chart:
