O rings and seals for a 77 KZ1000 engine
- bluej58
- Topic Author
- Offline
- Sustaining Member
- The chrome don't get you home
I am ready to put this motor back together and I don't need any 11th hour surprises.
Thanks,
JD
78 KZ1000 A2A
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- Mcdroid
- Offline
- User
- Gone Kwackers
- Posts: 6634
- Thank you received: 317
Michael
Victoria, Texas
1982 GPz750
1977 KZ1000A
1978 KZ1000A
1982 GPz1100
1975 Z2A
Please Log in or Create an account to join the conversation.
- moneypit
- Offline
- User
- Posts: 390
- Thank you received: 35
+1650ed wrote: Not a list exactly, but if you check out the parts diagrams on Kawasaki.com you should be able to compile a list. Ed
Thats what I did. Print the diagram out and had it at the bench. Found them all and ordered from Z-1
2-76 kz900
St Paul MN
Please Log in or Create an account to join the conversation.
- TomW
- Offline
- User
- Keep the blue side up.
- Posts: 502
- Thank you received: 52
There aren't too many. Seals on the countershaft, the right end of the crank behind the centrifigal advancer, 3 on the shifter shaft, I think one on the kicker or maybe thats an O ring. There is an O ring between the case haves that seals the main oil passage . Z-1 sells a seal kit that covers all the seals. The O rings are seperate part#s. I may have forgot something, it's been 3 years since I put my engine together. Check the service manual and parts diagrams.bluej58 wrote: Does anyone know where I can find a complete list of O rings and seals for the 77 KZ1000 engine ?
I am ready to put this motor back together and I don't need any 11th hour surprises.
Thanks,
JD
'78 KZ1000B2 LTD stock + Vetter Fairing & luggage
'91 ZG1200B5 Voyager XII, stock
Please Log in or Create an account to join the conversation.
- LarryC
- Offline
- User
Z1E probably has everything you need right on the shelf.
Larry C.
Please Log in or Create an account to join the conversation.
- bluej58
- Topic Author
- Offline
- Sustaining Member
- The chrome don't get you home
- Posts: 2484
- Thank you received: 511
I'm going to go back over everything from the diagrams off of Kawasaki.com site but I think that is the count, I'll post an itemized list with Kaw's PO numbers soon hopefully.
Got the box from Z1 today with all the seals today along with a bunch of other stuff.
I plan on calling the local Kaw shop for the rings using their numbers , I did a lot of running around trying to get the right O rings for the 650 ,
I want to do this right the first time :dry:
There is actually 4 rings for the pipe with 3 different sizes
JD
78 KZ1000 A2A
Please Log in or Create an account to join the conversation.
- bluej58
- Topic Author
- Offline
- Sustaining Member
- The chrome don't get you home
- Posts: 2484
- Thank you received: 511
The only one not available is the one on the starter motor shaft.

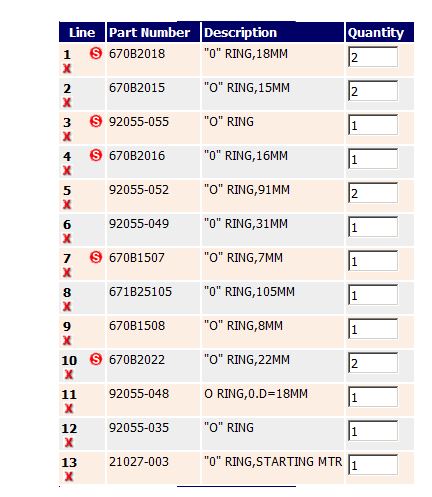

I ordered them through the local Kaw shop for $ 55.87 tax included
They are good on 77-78 A1, A2, A2A
78 KZ1000 A2A
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
www.themotorcyclepartsoutlet.com/cgi-bin/store/index.cgi
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- Zedone
- Offline
- User
- Posts: 397
- Thank you received: 14
Thanks
1977 KZ1000A1
1977 KZ1000A1 (Superbike Project)
1969 Chevrolet C/10 Short Fleet
Please Log in or Create an account to join the conversation.
- bountyhunter
- Offline
- User
- Posts: 7246
- Thank you received: 337
bluej58 wrote: Does anyone know where I can find a complete list of O rings and seals for the 77 KZ1000 engine ?
I am ready to put this motor back together and I don't need any 11th hour surprises.
Thanks,
JD
Some bizarre advice I got from the young guy at the parts counter at the local Kawi stealership: for O rings, think plumbing supply. The places that supply O rings for plumbing use have every O ring size on earth in every material.
When I rebuilt my engine, the Athena gaskets were bad and some failed almost immediately (including the cylinder base gasket) so I ended up having to tear it apart again and I needed some new O rings to put it back together.
The kawi dealer wanted about $12 EACH for O rings (any size) and that was when the parts guy took pity on me and told me to go to a plumbing supply place. I found a local warehouse that supplied O rings and went there and they had every size I needed in VITON material. I told the guy why I needed them and he just handed them to me and wrote 'customer sample" on the bill sheet (no charge). That probably saved me at least $00 compared to what I would have had to pay the stealership.
1979 KZ-750 Twin
Please Log in or Create an account to join the conversation.
- bountyhunter
- Offline
- User
- Posts: 7246
- Thank you received: 337
I'll wager it's the pipe that goes between the cylinder and head with a restrictor orifice that feeds oil up to the camshafts. Those pipes have two O rings on them and are a bugger to get out of the cylinder. I had to knock mine out with a wooden dowel. mandatory to change those O rings.Zedone wrote: Larry, what oil pipe are you talking about? Do you have a pic?
