1977 KZ1000 Restomod 17 Jul 2022 08:14 #870492

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 1101
  • Thank you received: 369
So, I have a few questions for you guys...

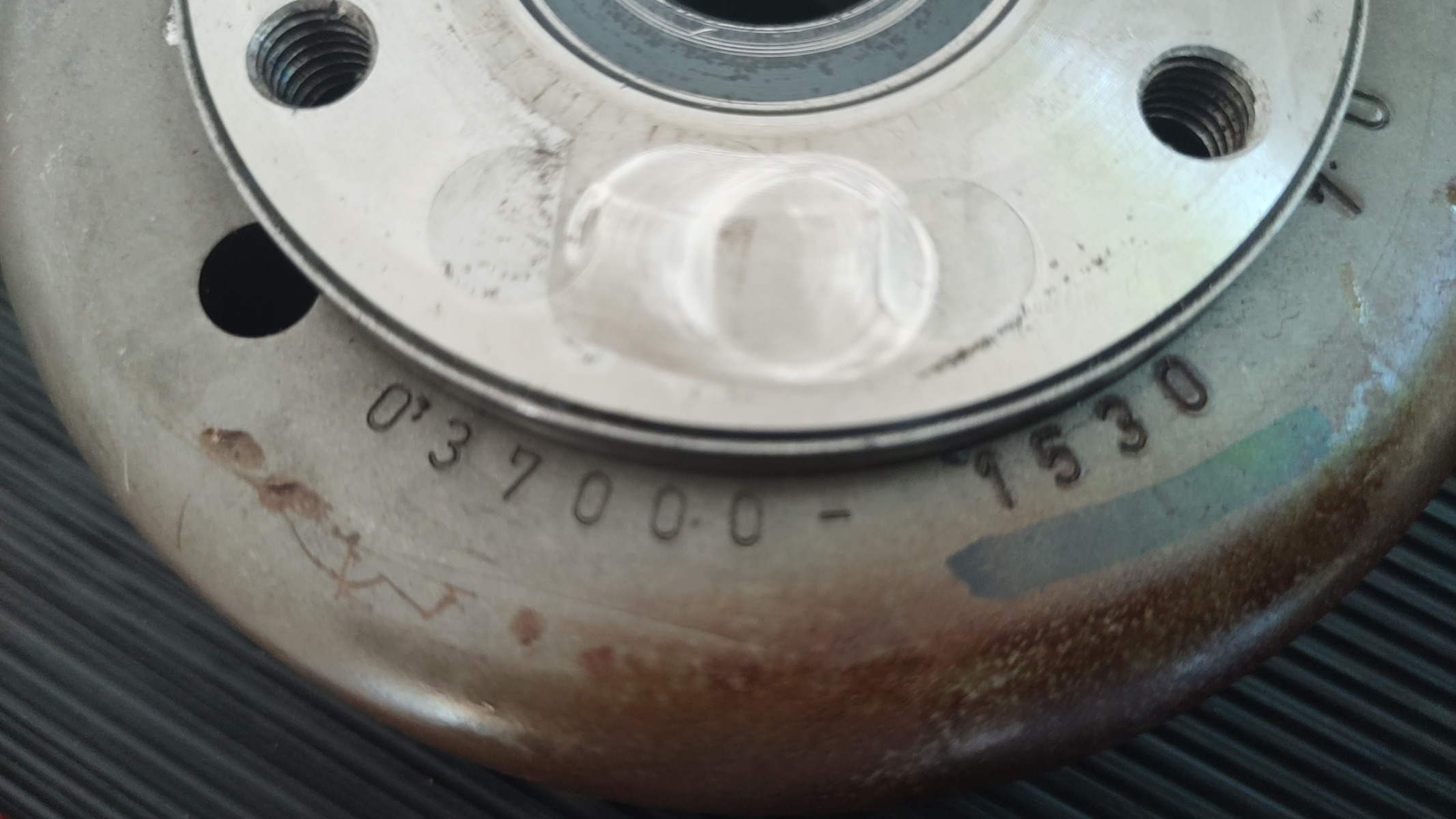

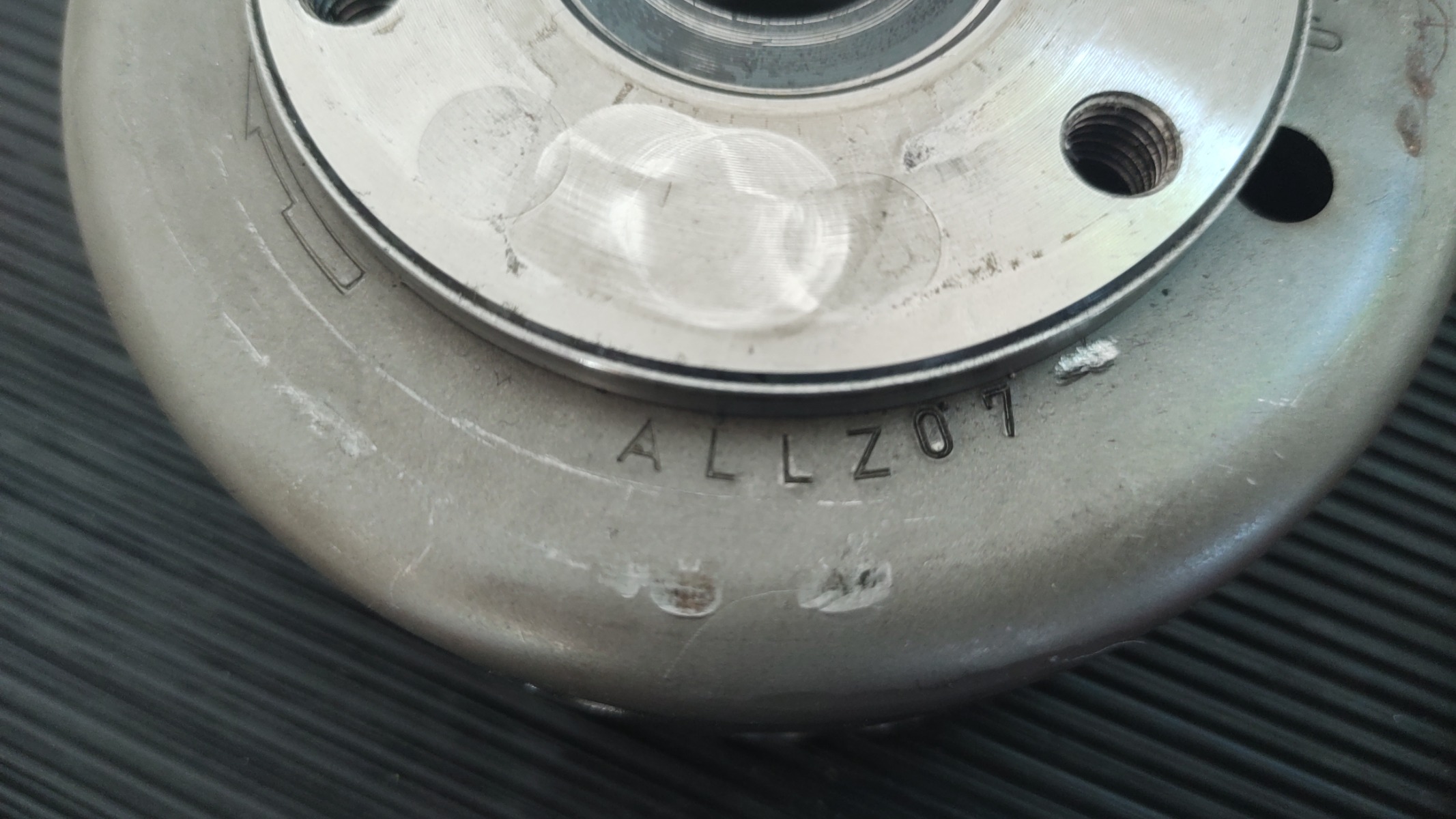

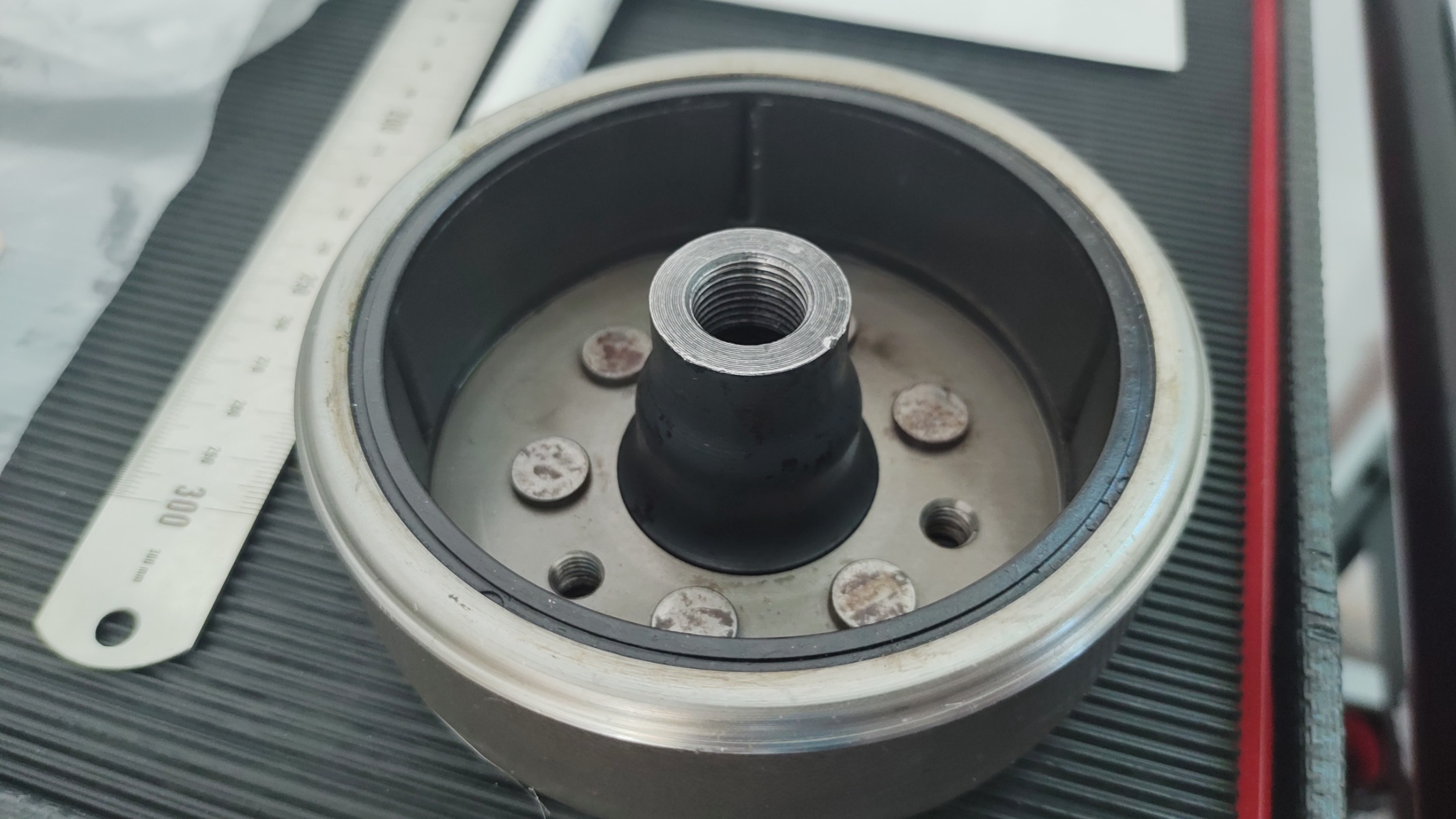

- The rotor I was talking about in my last post is pictured below. It fits onto the 900A4/1000A1 crank - the starter clutch ends up in the same position as with the original rotor. There is no pin for the starter clutch housing but I figure the three M8 bolts should be fine. I added some photos of the markings, does anyone know what model this is from?
- It looks like the rotor I have has been scraping along the side of the aluminium adapter plate from my last post. Given the number of balancing divets I assume it's pretty assymetrical. It doesn't look too bad though (was scraping against aluminium), seems more like the outside has been polished up a bit by the adapter  . Thoughts? Still usable without balancing?
- The bottom gear in the oil pump looks to be symmetrical. On one pump there were markings on the back of both gears so I knew which way round they went (see the photos below). On the other pump there were no markings. Does it matter which way round I assemble it?

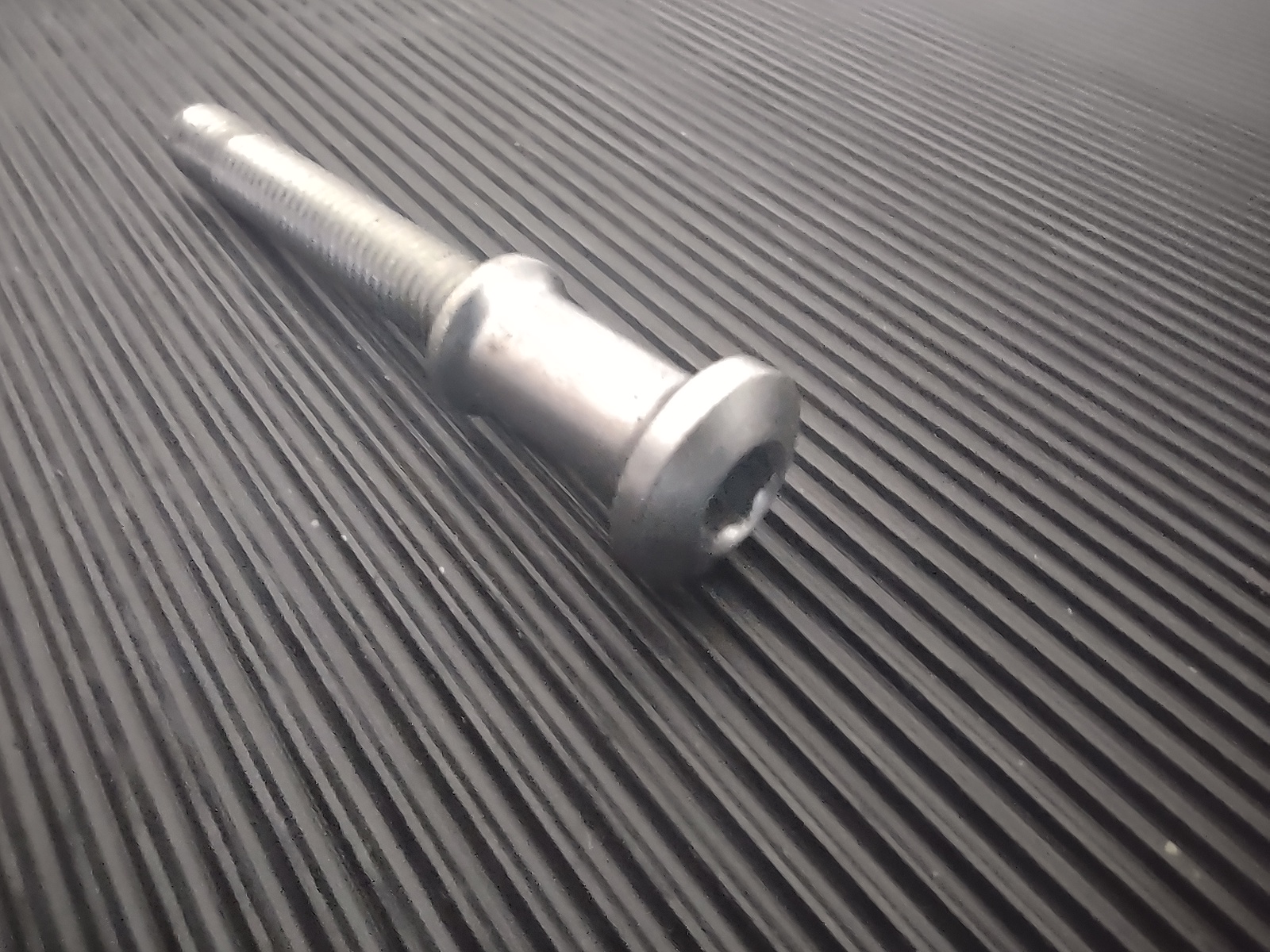

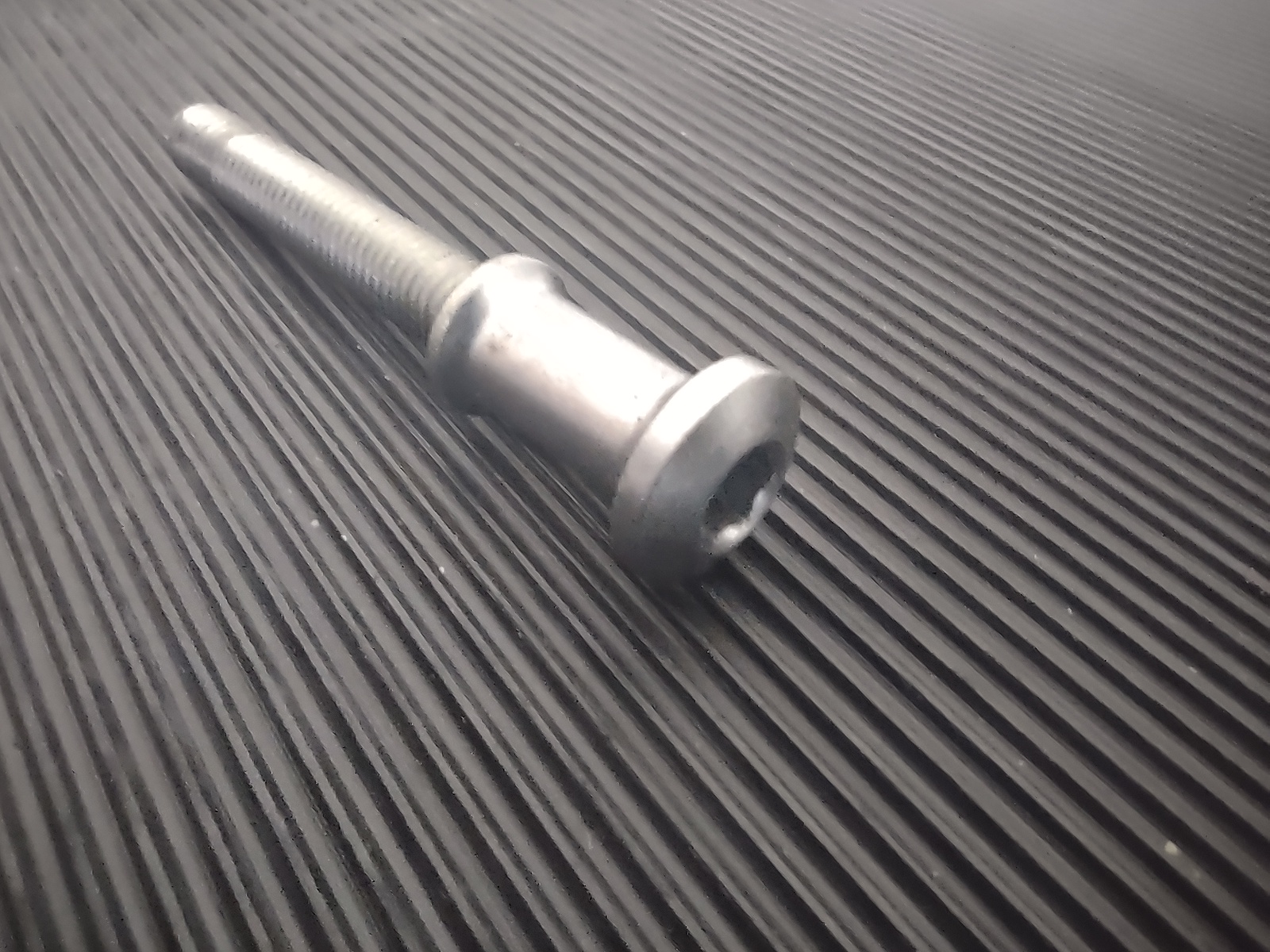

- Lastly, I found a random bolt in a box of parts, does anyone recognize it?

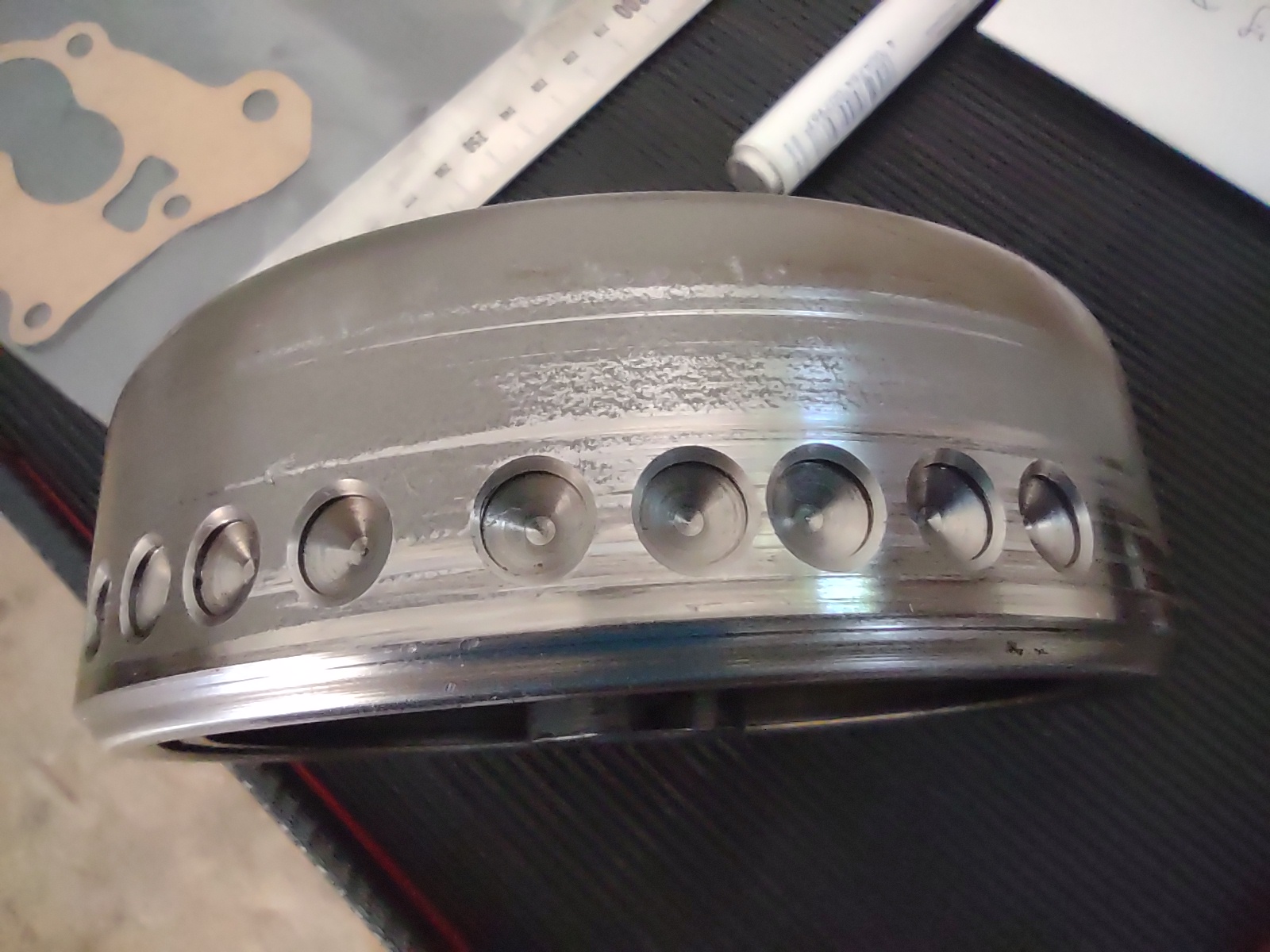

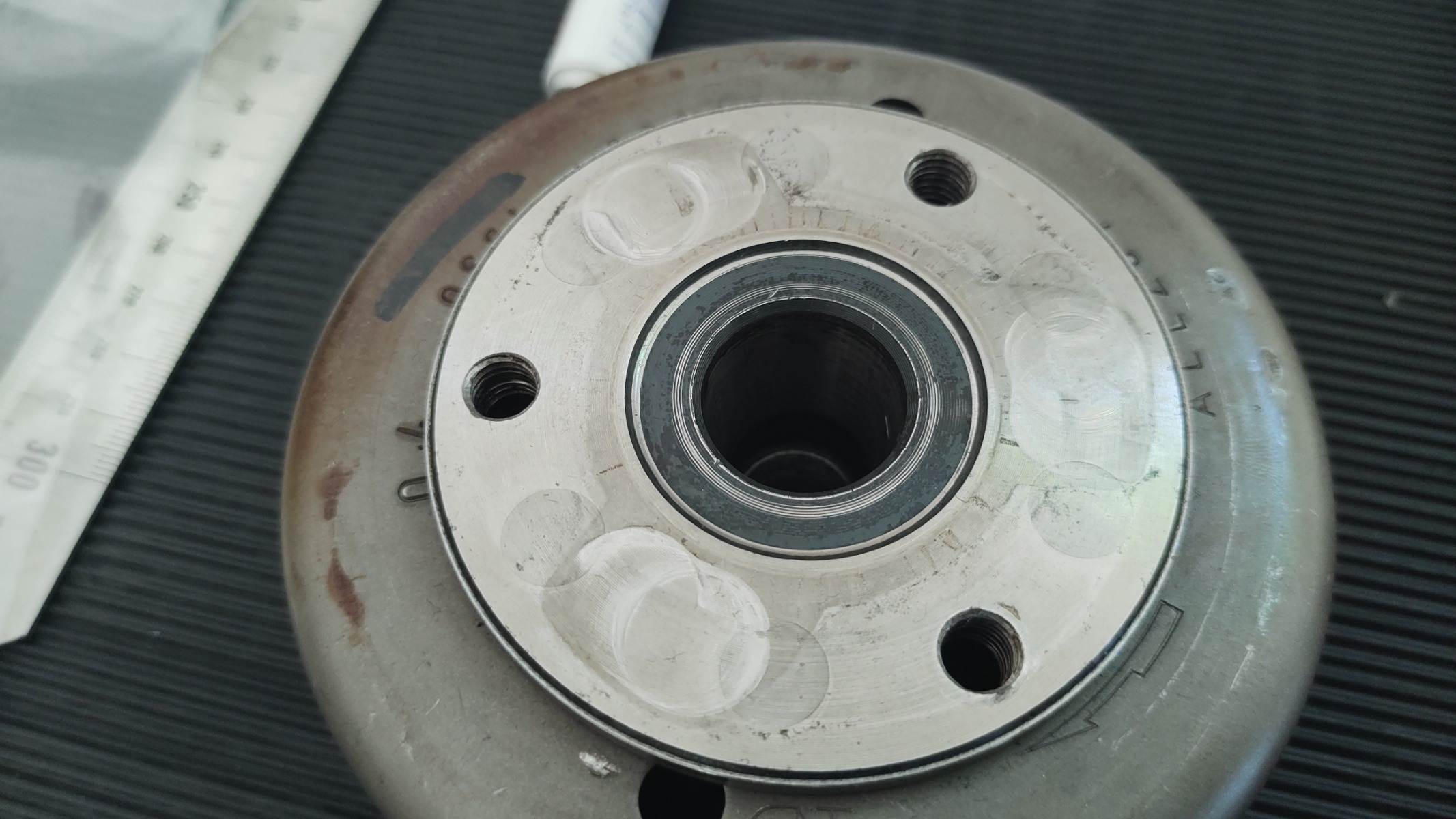

Rotor:

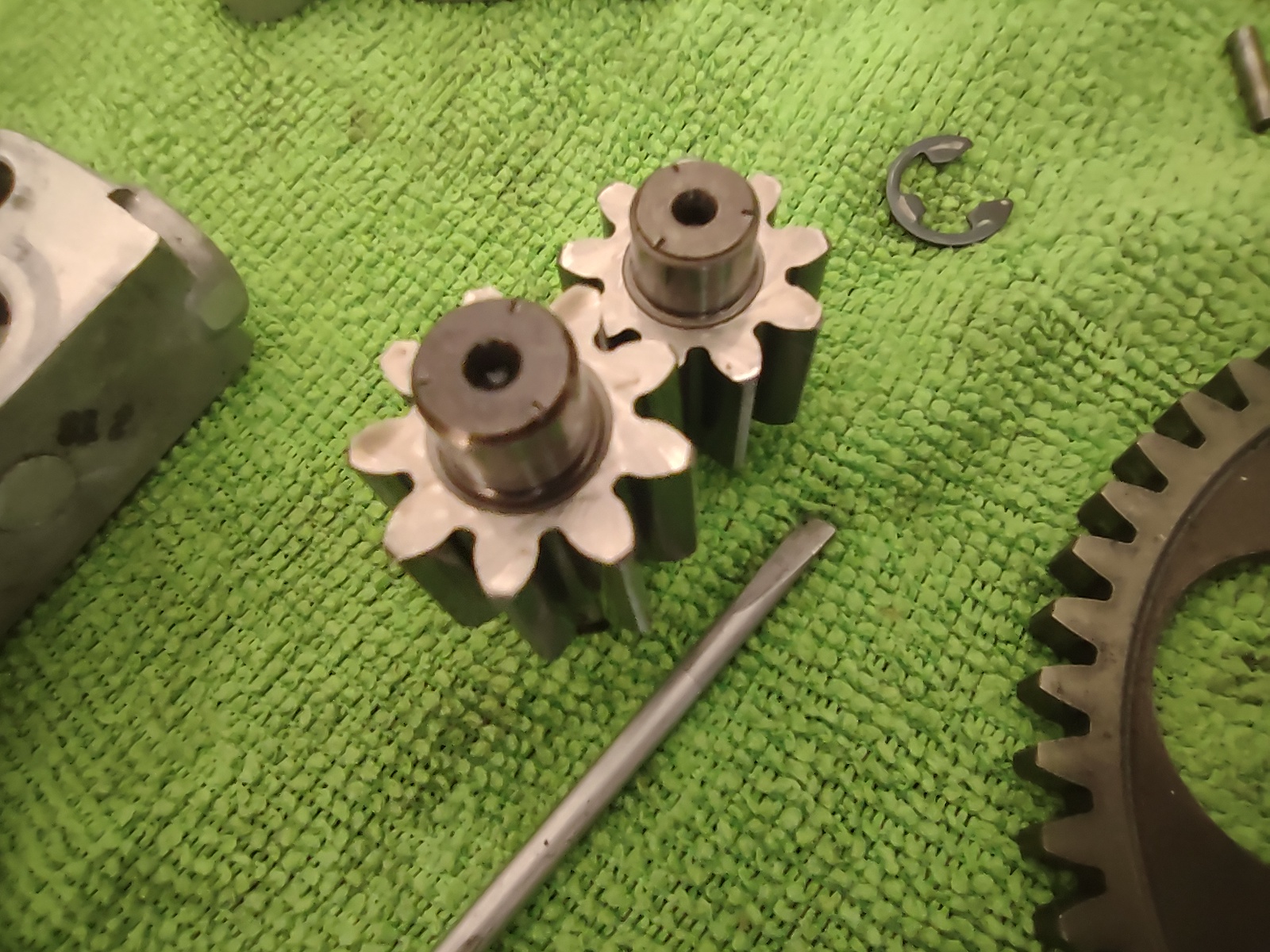

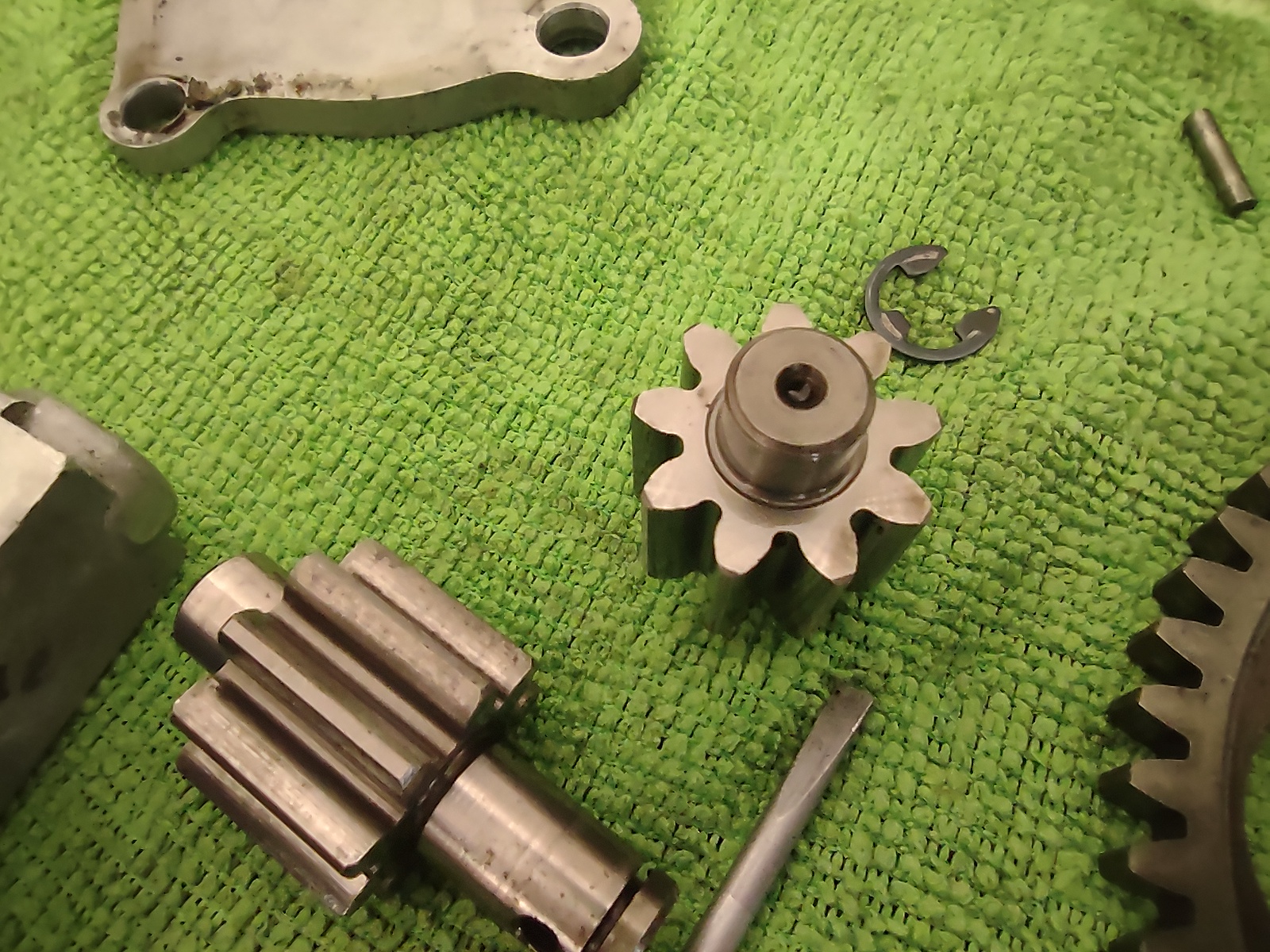

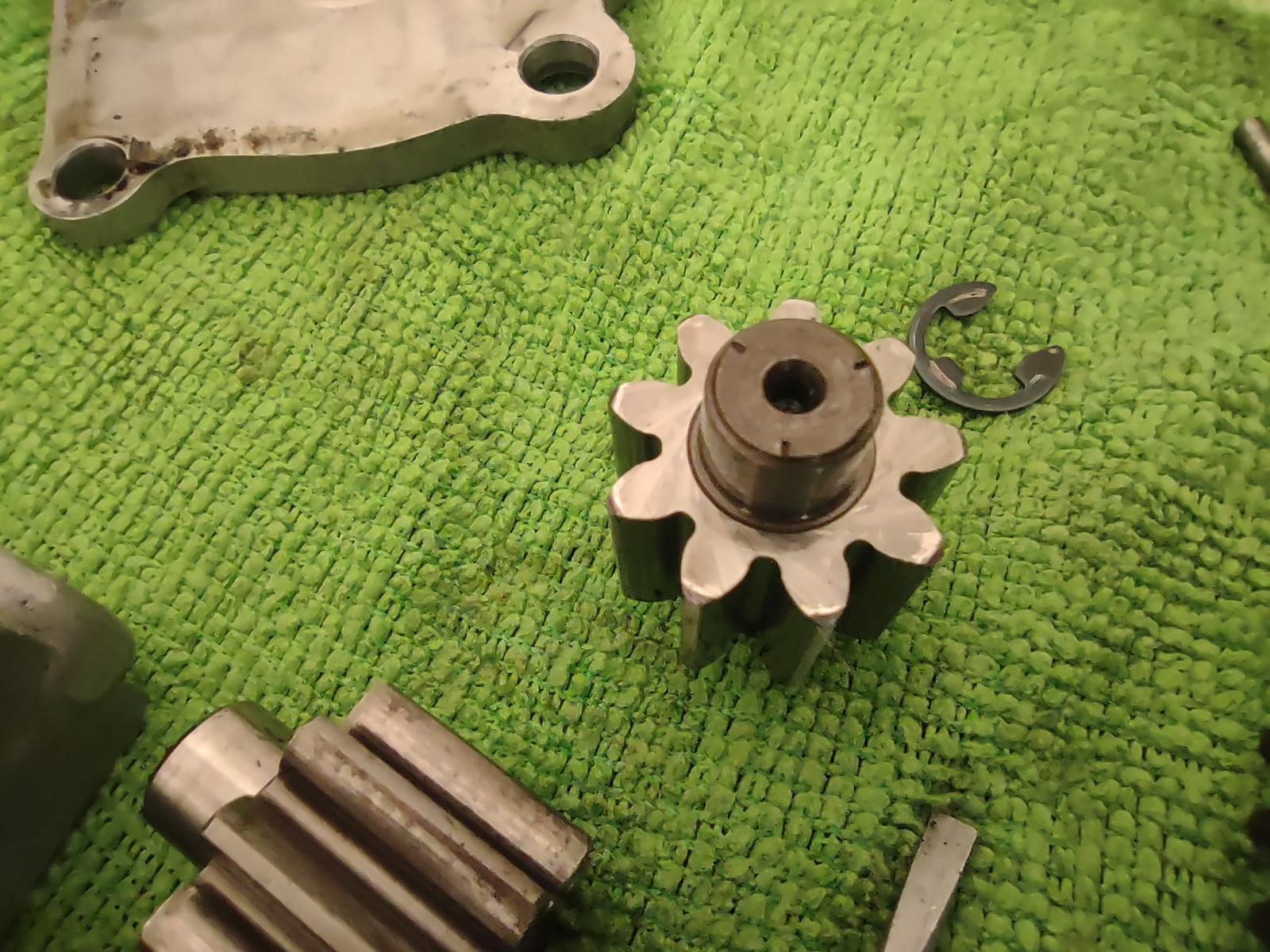

Oil pump gear:








Random bolt:


Attachments:

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 17 Jul 2022 09:18 #870494

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
Rotor is Kawasaki Z 750 E KZ750E LTD and useable.

ebay.de/itm/402687669856

The marks on the oil pump gears are only imprints from the lathe tool (Stirnseitenmitnehmer).



Attachments:
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 17 Jul 2022 10:19 #870495

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 1101
  • Thank you received: 369
Thanks. I thought it might be from a 750 but they don't have the threads for the starter clutch. I guess our friend at RF drills and taps them.

Thanks for the info on the gears. The bottom one must be symmetrical then. I guess they changed the manufacturing process sometime between the two pumps.

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 17 Jul 2022 13:08 #870498

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3093
  • Thank you received: 1720
If the gears are identical then stopping them around would be a good thing as you would switch the "thrust" to the virgin side of the teeth
Did I say virgin and thrust in the same sentence
The following user(s) said Thank You: 750 R1

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 17 Jul 2022 14:42 #870505

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 1101
  • Thank you received: 369
Yes sir, yes you did

The question came about due to me holding the gear in my hand and asking myself which way around it was when I disassembled it  guess I can't lose either way.
The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 01 Aug 2022 07:56 #871447

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 1101
  • Thank you received: 369

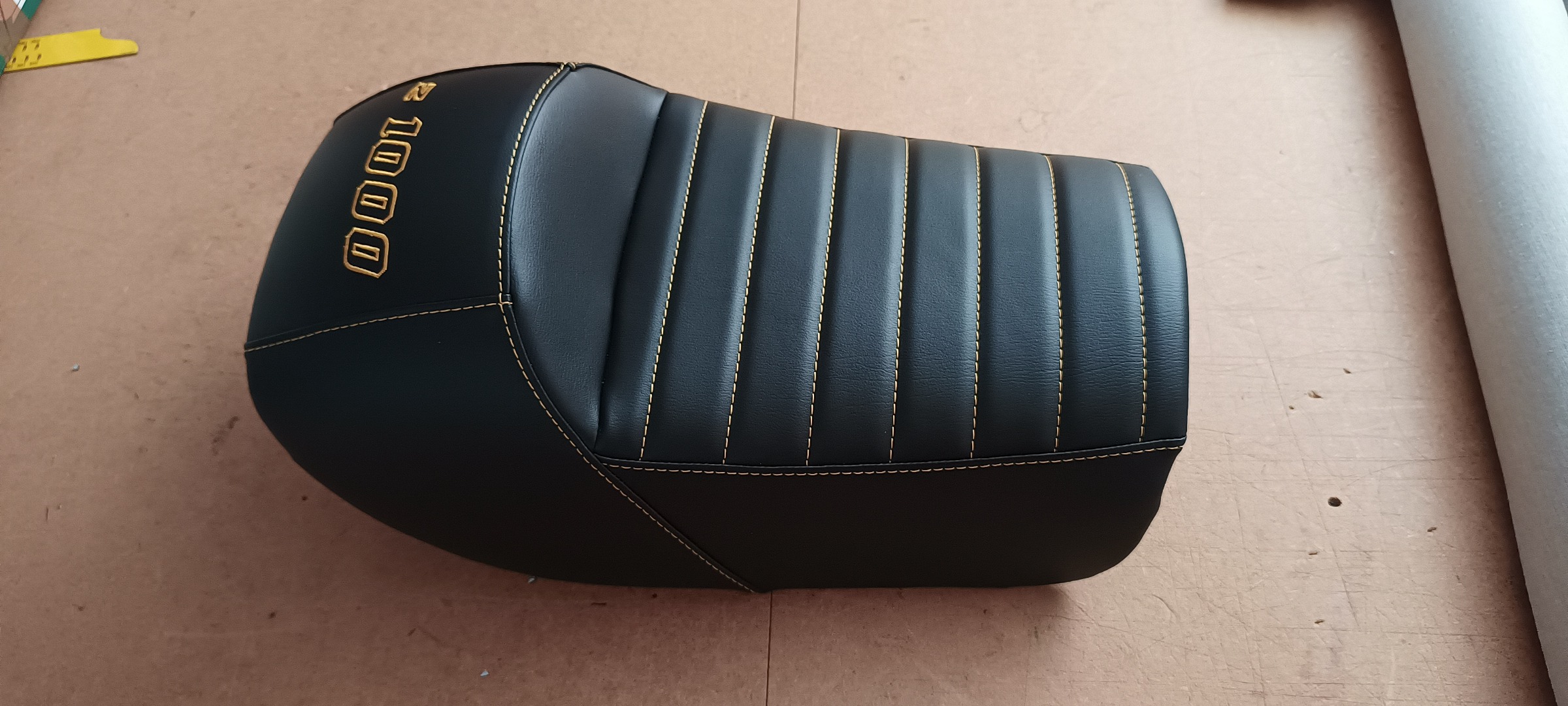

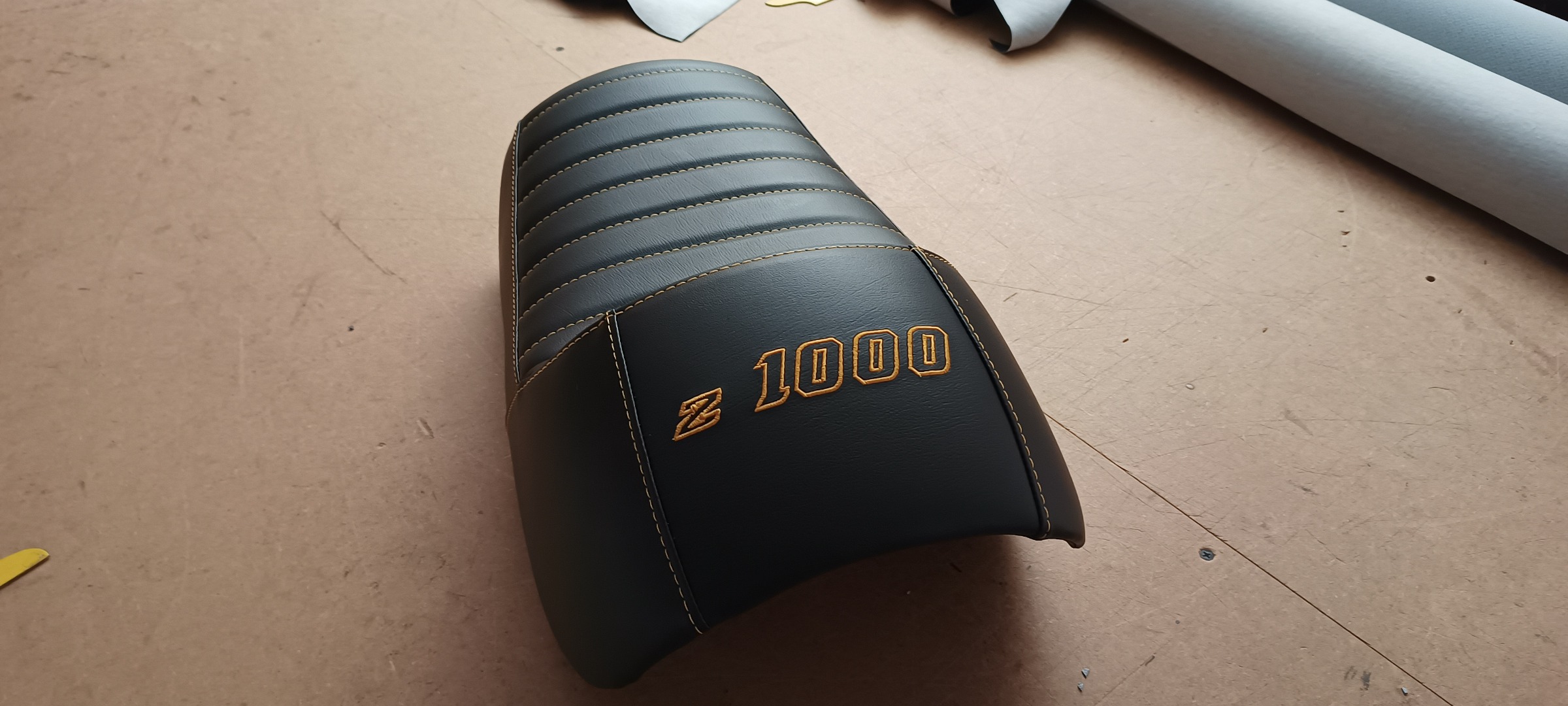

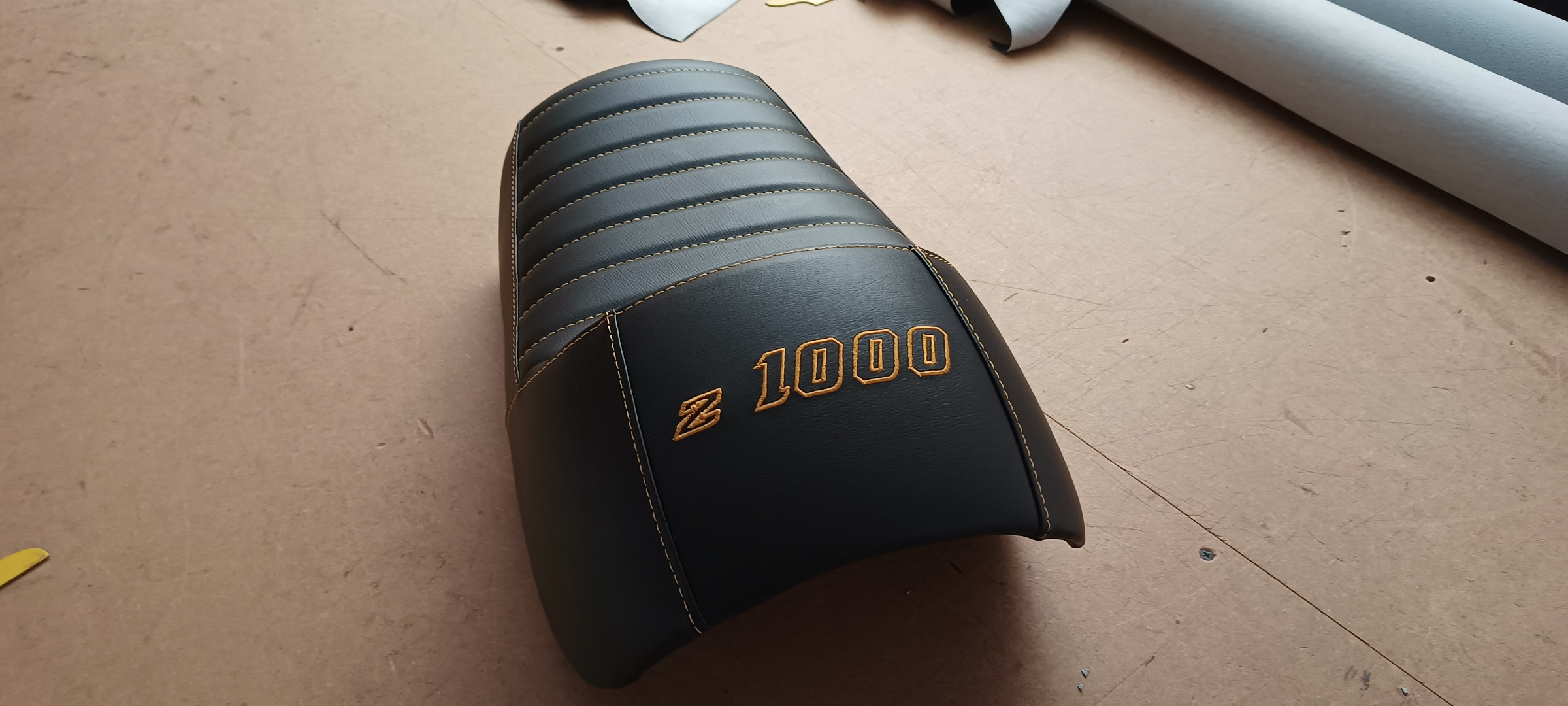

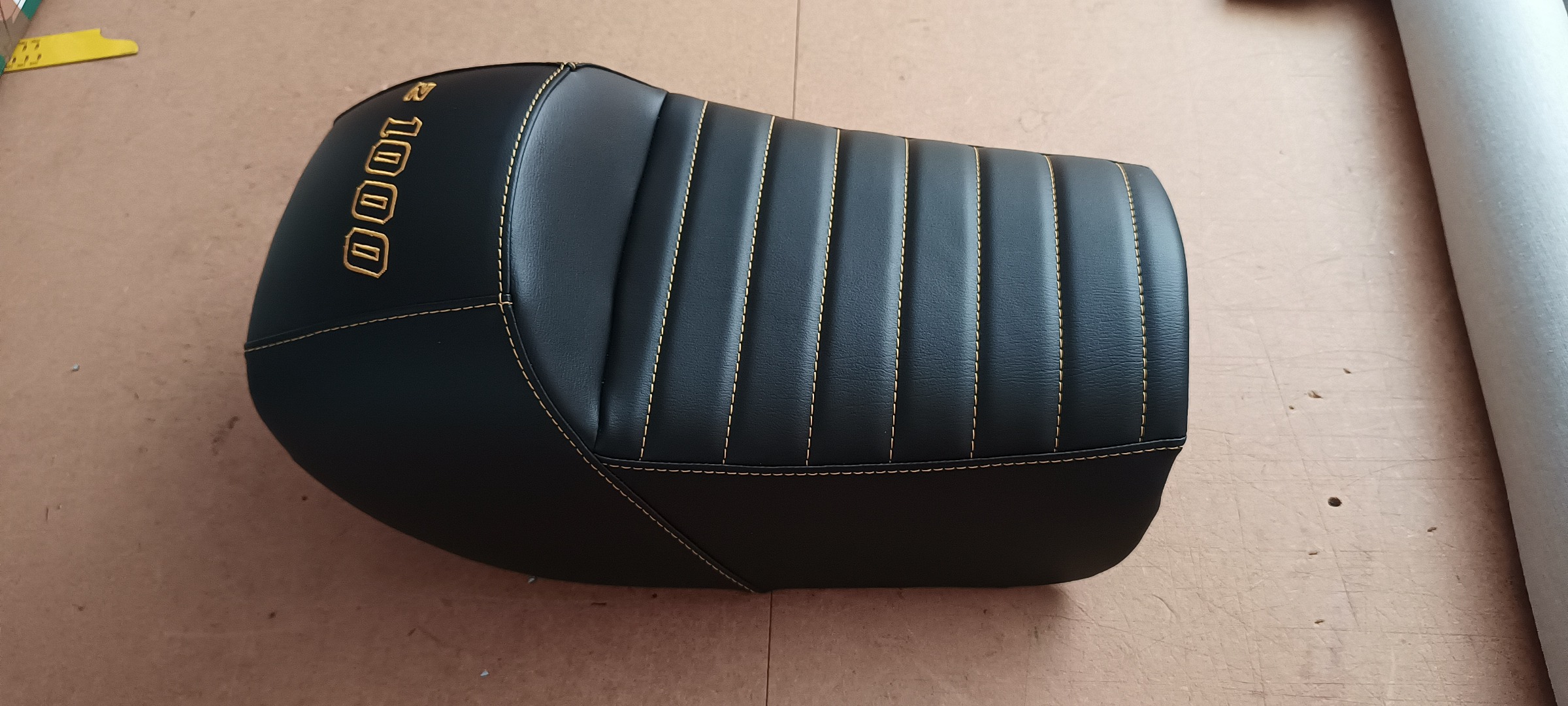

Going to pick up the seat tomorrow. The guy sent me a couple of photos:




Attachments:

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 01 Aug 2022 08:01 #871448

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3093
  • Thank you received: 1720
That's nice trim work, you are getting there. It must be close now ?

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 01 Aug 2022 08:05 #871449

  • kzstreetfighter71
  • kzstreetfighter71's Avatar
  • Offline
  • User
  • Atlantic West Coast
  • Posts: 876
  • Thank you received: 250
That is a real nice seat.... real nice.
06 Gsf 1200 bandit, 08 Triumph tiger 1010
05 Yam xv1700 , 02 Hon shadow 1100
1975 Z1 (currently working on)
1977 Z1000 ( running and in storage)
1978 Z1000 (currently working on)
1978 Z1r "skinny tank" (currently working on)
1978 Z1r "fat tank (gathering parts)
1979 z1000st (currently working on)

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 01 Aug 2022 08:12 #871450

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 1101
  • Thank you received: 369
Thanks guys. This is the third seat this guy's done for me and I've been more than happy with his work.

I'm hoping to get the bottom end together in the next couple of days (waiting on the zinc plated bolts) then I can start putting everything together for a final mock up. Hope to have that done before I go away at the end of next week. After that I need to make a couple of brackets and then tear everything down and get started on the painting.

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 01 Aug 2022 15:20 #871469

  • Skidmark
  • Skidmark's Avatar
  • Offline
  • User
  • Posts: 1067
  • Thank you received: 256

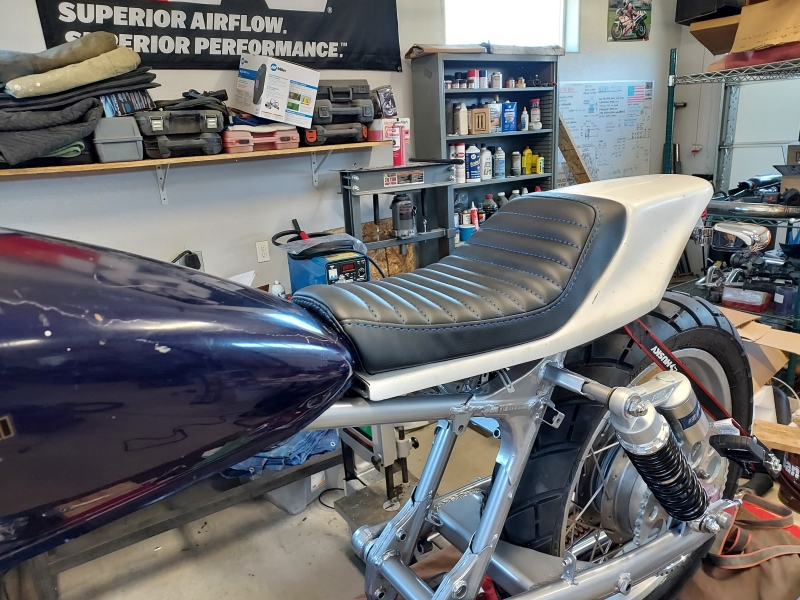

That seat is a thing of beauty!  I had a custom seat maker do one for my street tracker project.  He sent me a sneak peek pic right before he shipped it.  Got me all excited!  The delivered product went beyond my expectations.


Retired gearhead
'81 KZ-750 E2
'87 Suzuki Savage 650 Street Tracker
Attachments:

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 01 Aug 2022 15:24 #871471

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3093
  • Thank you received: 1720
That is a great looking build Skidmark
The following user(s) said Thank You: Skidmark

Please Log in or Create an account to join the conversation.

1977 KZ1000 Restomod 10 Aug 2022 12:11 #871985

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 1101
  • Thank you received: 369

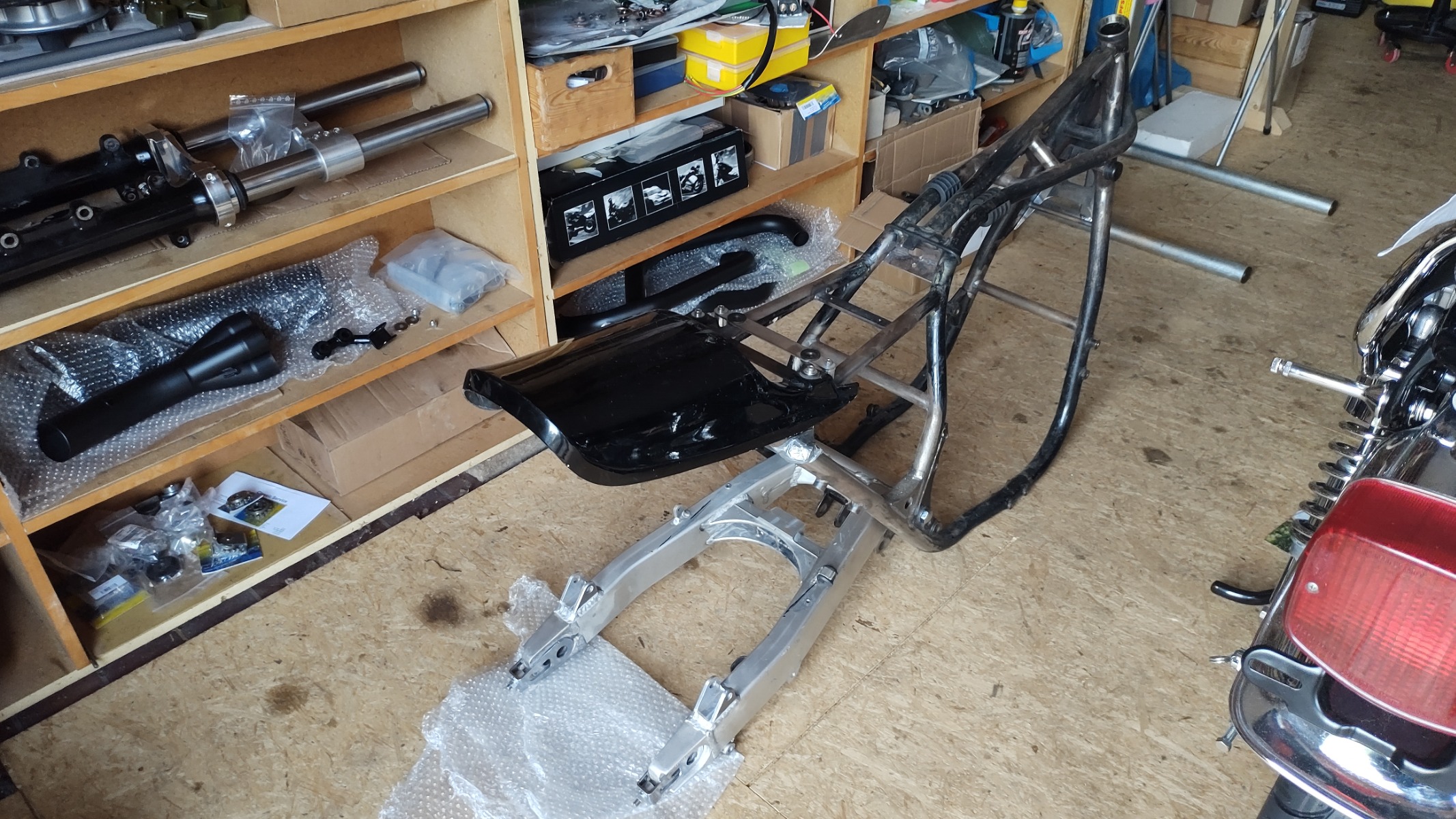

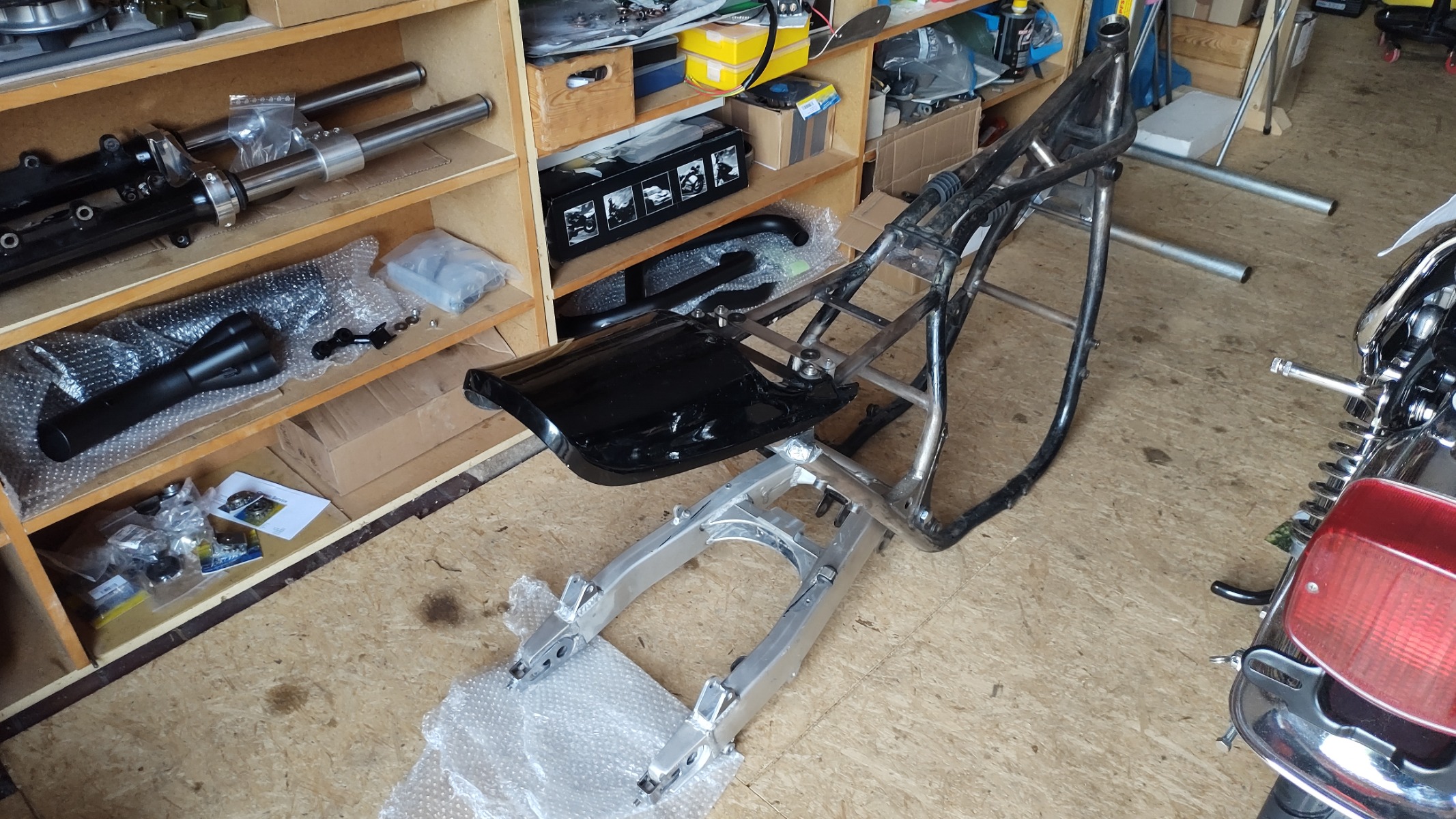

So I was hoping to get a fair bit done on this build over the last week or so. I still haven't got the crankcase bolts back from plating so this is as far as I got :( Without the engine done I can't get the exhaust mount or wiring finished.


Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by calum.
