Saving a '81 KZ750-E 30 Apr 2020 14:02 #824657

  • calum
  • calum's Avatar
  • Offline
  • User
  • Posts: 1101
  • Thank you received: 369
Hope it all works out on Saturday! It's been a bit of an ordeal with that tank - you, sir, have shown some serious perseverance!

The chassis looks good with that front end. Looks like a nice riding position and quick on those corners... looking forward to the first ride report.

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 30 Apr 2020 14:21 #824660

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • User
  • Posts: 1067
  • Thank you received: 256
You and me both!!
Retired gearhead
'81 KZ-750 E2
'87 Suzuki Savage 650 Street Tracker

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 30 Apr 2020 16:02 #824666

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • User
  • Posts: 1067
  • Thank you received: 256

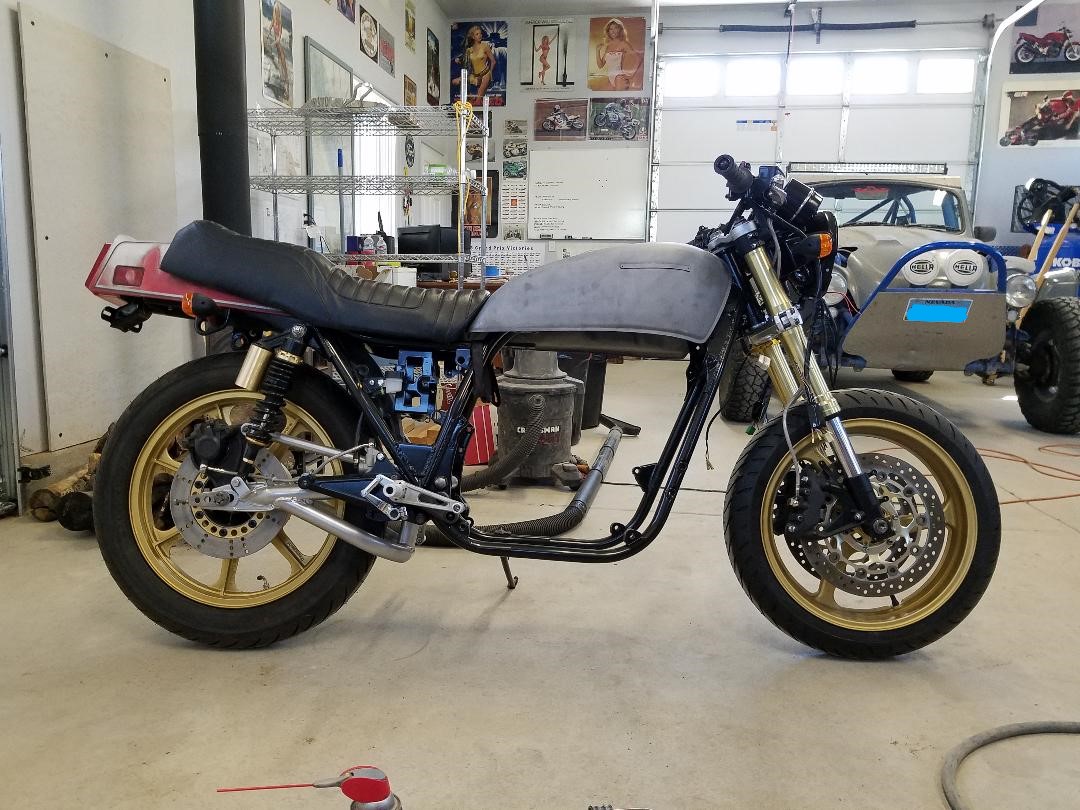

I had to test fit the tank after welding, right?

Retired gearhead
'81 KZ-750 E2
'87 Suzuki Savage 650 Street Tracker
Attachments:

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 30 Apr 2020 16:41 #824669

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7257
  • Thank you received: 2659
What sort of sealer are you going to use?

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 30 Apr 2020 16:53 #824673

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • User
  • Posts: 1067
  • Thank you received: 256
I ordered the POR15 Tank Sealer, and it had shipped by the time Caswell was recommended by DoctoRot. I certainly don't want to do it twice, but on the other hand I don't want to wait for a different brand to ship, and spend twice as much. So I figured I would run with what I bought. Everything is taking longer to ship with the pandemic affecting warehouse labor. More bore scope inspections are in order after the next treatment. I am hoping to minimize the flash rust by rinsing a second time with alcohol after the water, and before drying with compressed air. Once dry and fume free I will run the heat gun through it as insurance no moisture of any kind remains. I think the performance of these sealers relies heavily on the prep work. If I can get the inside flash rust free, I think the POR15 will work as designed.
Retired gearhead
'81 KZ-750 E2
'87 Suzuki Savage 650 Street Tracker

Please Log in or Create an account to join the conversation.

Last edit: by Skidmark.

Saving a '81 KZ750-E 30 Apr 2020 17:11 #824675

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7257
  • Thank you received: 2659
Por-15 sealer is good. It's thinner than Caswell's and easier to apply. I think Caswell's is better for seriously damaged metal but your tank should be okay with the Por-15 stuff.

Stir up that Por-15 stuff and dump the full can inside your tank. Move it around for a good half hour then dump out the majority through the petcock hole. Put your plug back in and look inside the tank because there will still be a good size puddle moving inside. Move the puddle around and coat the tank again. You will be able to get a couple of extra coats inside the tank before the sealer fully kicks off and stops flowing. Don't put the tank down until it stops flowing. It takes about one hour. Just get yourself a cold beverage and take your time and focus on getting that sealer to coat the entire tank several times before it's all done.
The following user(s) said Thank You: Skidmark

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 01 May 2020 12:45 #824719

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • User
  • Posts: 1067
  • Thank you received: 256
The phosphoric acid solution is in the tank for the last time, I hope! I am going to try and rinse with the alcohol instead of water this time to try and prevent the flash rust. I will dry with no heat, just compressed air. I am leaving the tank open this time to let the bath out-gas (learned THAT lesson the hard way!). I am only going to leave it in the tank an hour per side before draining it for a check. Hopefully the tracking is correct and the sealer arrives by the end of today.
Retired gearhead
'81 KZ-750 E2
'87 Suzuki Savage 650 Street Tracker

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 01 May 2020 15:45 #824728

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • User
  • Posts: 1067
  • Thank you received: 256

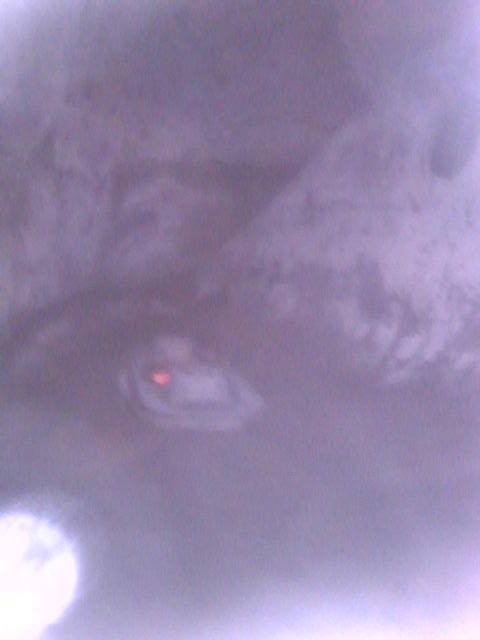

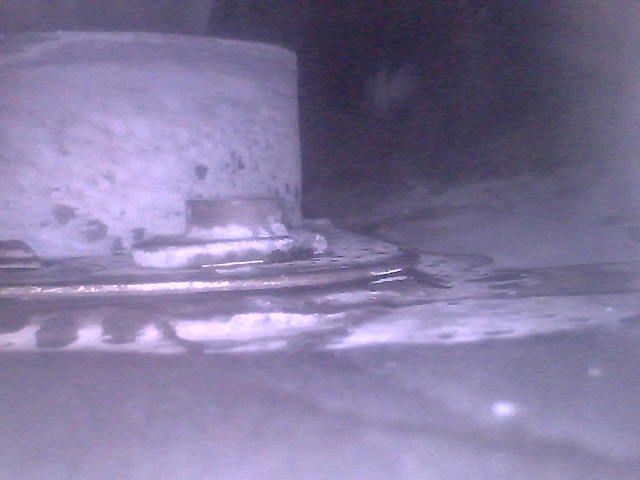

It looks like rinsing with alcohol solved the flash rust problem! Finally a rust and leak free tank!! I will run a heat gun in it for a while to make sure it's dry, along with letting it sit overnight, before I use the sealer.

Retired gearhead
'81 KZ-750 E2
'87 Suzuki Savage 650 Street Tracker
Attachments:

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 01 May 2020 20:21 #824742

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843
I’m impressed with the persistence and focus on completing a task. Good job. You have my respect.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: Skidmark

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 06 May 2020 11:11 #825135

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • User
  • Posts: 1067
  • Thank you received: 256

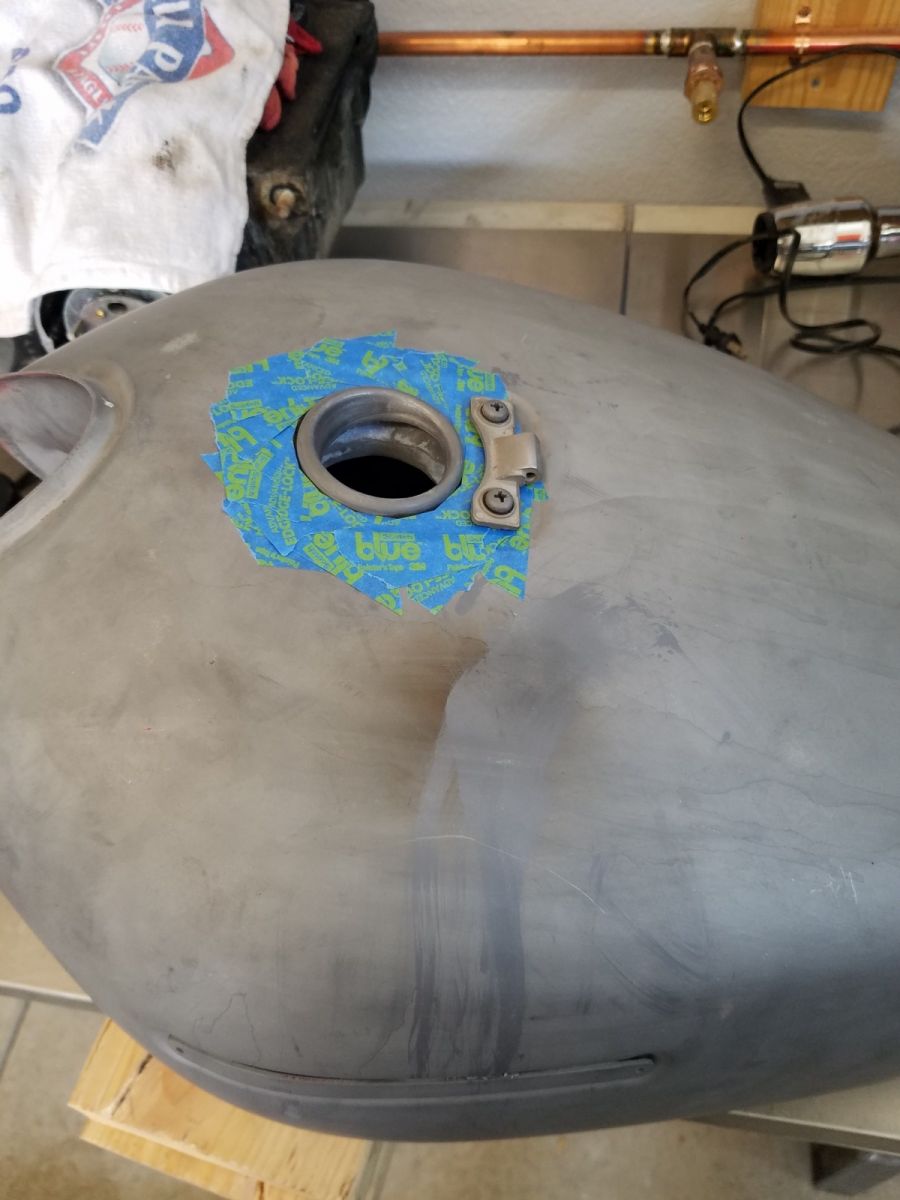

First time using a tank sealer product. Time to get this sealer party started! Process seems pretty straight forward. Just going to take my time and hope I get full coverage...

Retired gearhead
'81 KZ-750 E2
'87 Suzuki Savage 650 Street Tracker
Attachments:

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 06 May 2020 12:38 #825140

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • User
  • Posts: 1067
  • Thank you received: 256
After rolling the tank for 30 minutes, I drained it, and rolled it around another 30 minutes. Pulled all the cover plates and filler plug, then coated the top of the filler with a brush. Instructions call for a 96 hour cure before putting fuel in it. Yeah, I still have to get it painted, and do the motor as well. So that won't be a problem.

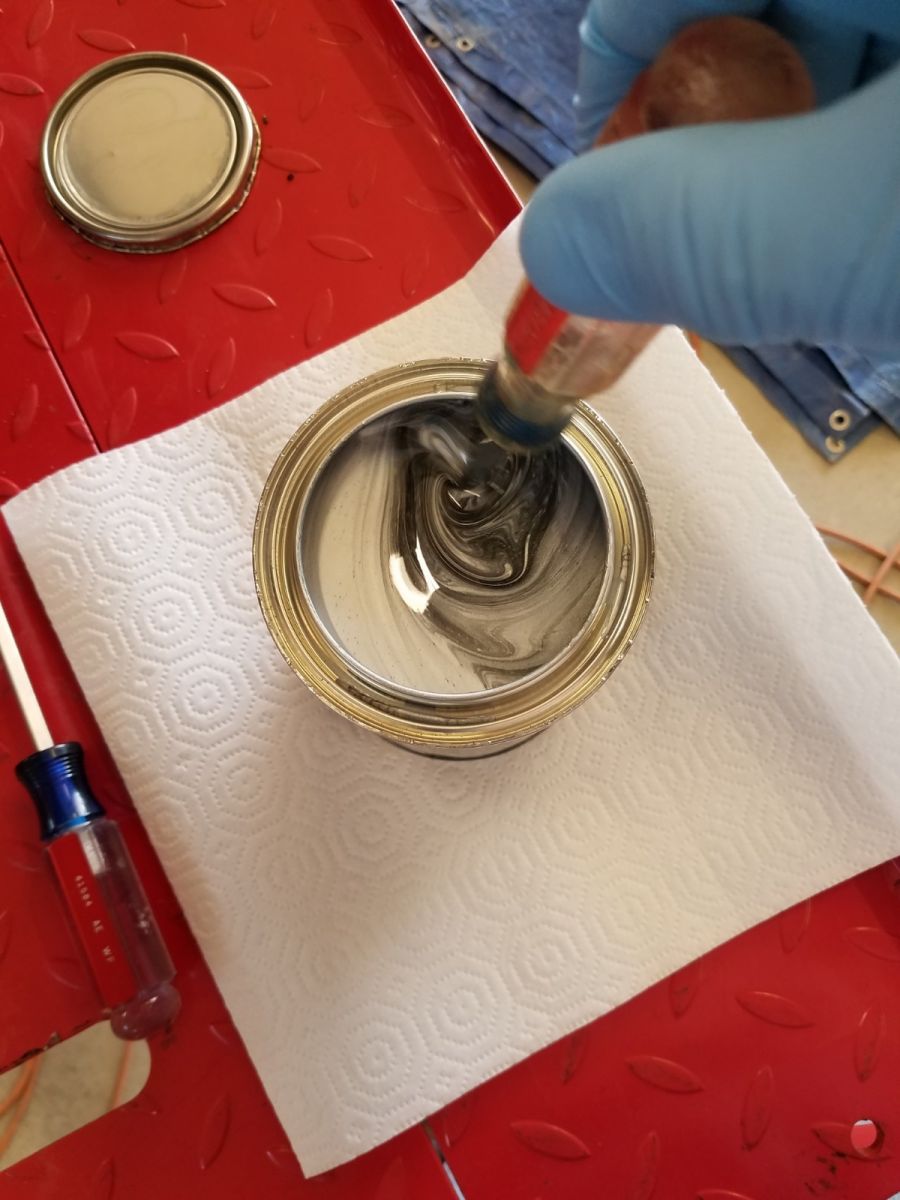

What it looks like before stirring.

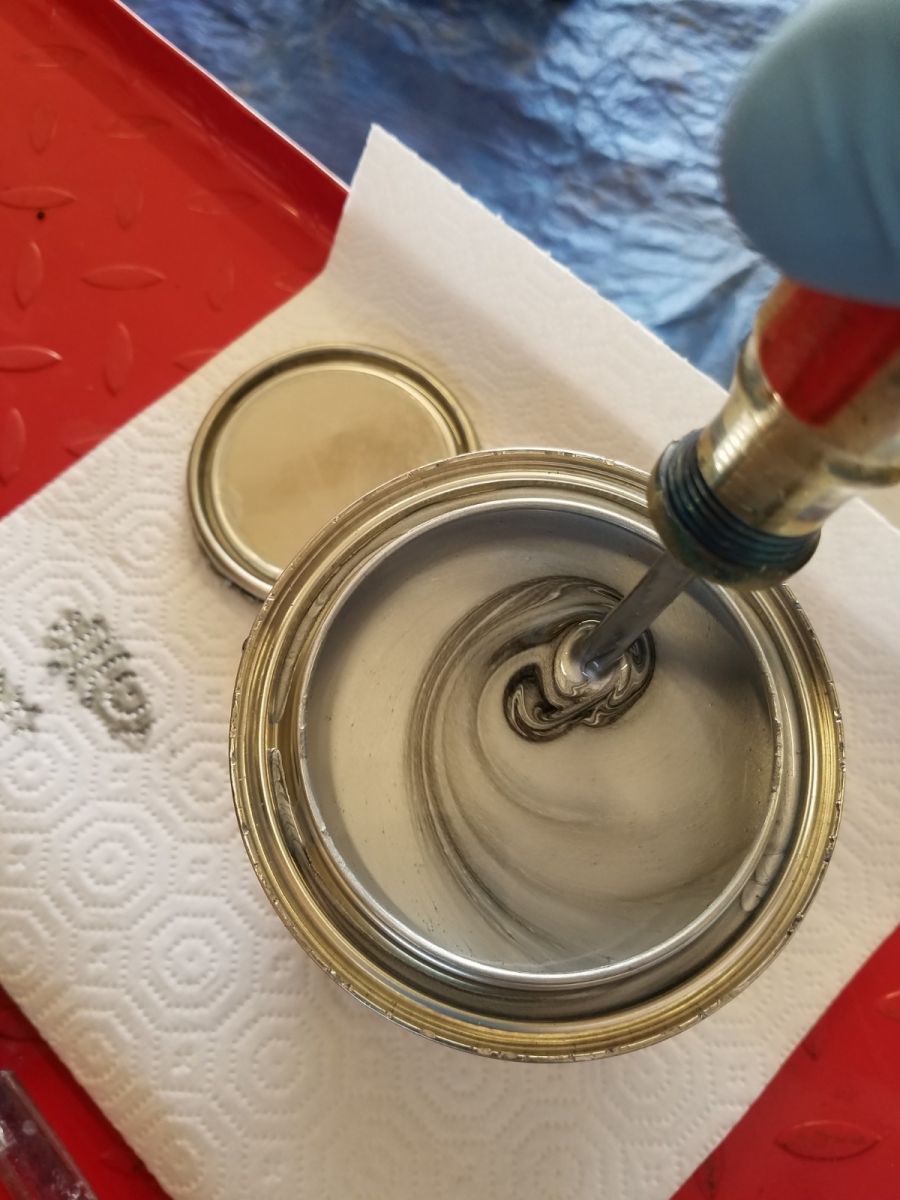

After 15 minutes of constant stirring. I guess it never achieves a solid color.

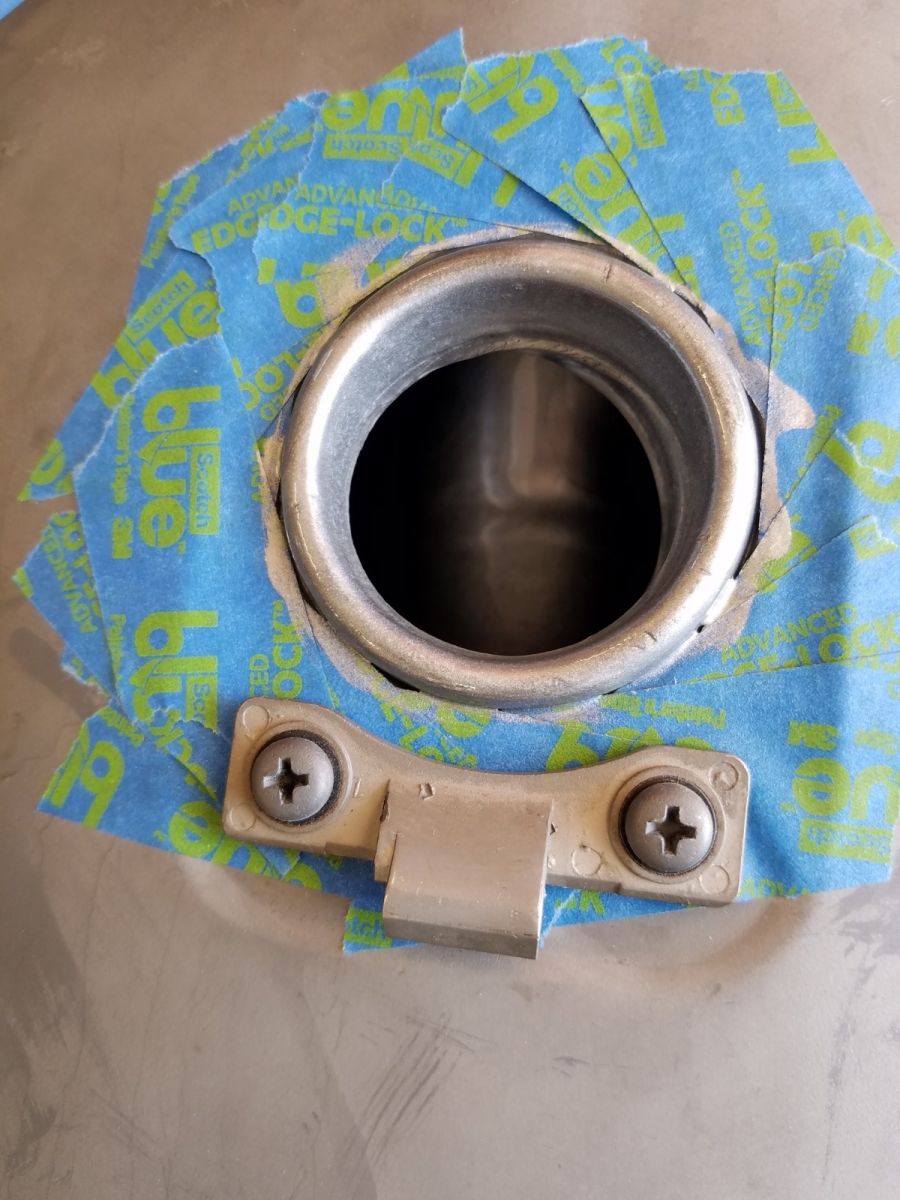

Filler neck coated.
Retired gearhead
'81 KZ-750 E2
'87 Suzuki Savage 650 Street Tracker
Attachments:

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 06 May 2020 16:57 #825150

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7257
  • Thank you received: 2659
Nice job! You should be good to go now! I think that a lot of tank coating failures are self inflected injuries. Getting rid of all the old rust like you did and making sure the metal is clean is the key to success.
The following user(s) said Thank You: Skidmark

Please Log in or Create an account to join the conversation.
