1975 KZ400D - restore project 17 Nov 2019 23:43 #814123

  • Kidkawie
  • Kidkawie's Avatar
  • Offline
  • User
  • I bleed premix
  • Posts: 1919
  • Thank you received: 245
Z1s leak at the stator grommet. Many threads on it. Oil will wick through where the wires are, not just on the perimeter of the grommet. I cleaned and cleaned and cleaned again with brake clean. Then used Permatex form a gasket and let it setup for a few days before reinstalling. That was years ago, still dry.
1975 Z1 900
1994 KX250 Supermoto
2004 KX125

Please Log in or Create an account to join the conversation.

1975 KZ400D - restore project 18 Nov 2019 05:14 #814129

  • Jack_Mills
  • Jack_Mills's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 165
  • Thank you received: 17
I feel like there is some underlying issue besides a failed gasket...on the 75 400d2, is there a way pressure builds up on the left case?
74 kz400 D1
75 kz400 D2
75 kz400 D2
75 kz400 D2
76 kz400 D3
76 kz400 D3
77 kz400 A1
78 kz400 B1
80 xl80s
81 kz440 B2
81 GL1100
81 xl80s
81 xr80
96 K1100LT
18 HAWK250
Thanks goes out to all folks who share their great knowledge teaching others about classic metric motorcycles.

Please Log in or Create an account to join the conversation.

1975 KZ400D - restore project 18 Nov 2019 05:49 #814132

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
Yes. there is a way for oil and pressure to build up in the left cover (alternator cover).
The oil comes in through the crankshaft. The crankshaft has a small hole on the starter-clutch-sprocket bearing surface, then is supposed to seep back into the crankcase along the outside of the crank, but inside the starter-clutch-sprocket bearing. There are two seals involved. One seal is in the starter-clutch-sprocket between the starter clutch and the crankshaft. The other seal involved is in the crankcase between the crankcase and the starter-clutch-sprocket. If either one leaks you will get oil in the alternator cover. I think the starter-clutch-sprocket seal may be more important for keeping out oil because that one has to hold oil pressure.

I could have sworn I saw a path for oil to get back into the crankcase on some 400/440 motor, but the 1976 D3 I am currently working on absolutely does not have a return opening. So oil builds up in the alternator cover and it leaks. I'm not sure if actual pressure builds up. If the actual starter-motor is sealed and sealed to the crankcase, then I guess pressure would build up too.

I took photos of the crankshaft oil passage to the starter-clutch:
www.kzrider.com/forum/11-projects/611489...400-s?start=0#811430
The following user(s) said Thank You: Jack_Mills

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1975 KZ400D - restore project 18 Nov 2019 05:52 #814133

  • Jack_Mills
  • Jack_Mills's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 165
  • Thank you received: 17
Oh, this isnt good, so what youre saying is I perhaps have a bad seal on behind the stator? :( Orrrr can that seal be replaced without messing with the bottom cases? Man that would be tits!

Thanks for the reply...
74 kz400 D1
75 kz400 D2
75 kz400 D2
75 kz400 D2
76 kz400 D3
76 kz400 D3
77 kz400 A1
78 kz400 B1
80 xl80s
81 kz440 B2
81 GL1100
81 xl80s
81 xr80
96 K1100LT
18 HAWK250
Thanks goes out to all folks who share their great knowledge teaching others about classic metric motorcycles.

Please Log in or Create an account to join the conversation.

Last edit: by Jack_Mills.

1975 KZ400D - restore project 18 Nov 2019 05:55 #814135

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615

Jack_Mills wrote: Oh, this isnt good, so what youre saying is I perhaps have a bad o ring on the bottom end :(

Thanks for the reply...


No. I'm saying maybe your leak is the seal on the starter-clutch-sprocket. That's easy to get to, but I'm not sure how available they are.
The following user(s) said Thank You: Jack_Mills

Please Log in or Create an account to join the conversation.

1975 KZ400D - restore project 18 Nov 2019 05:57 #814138

  • Jack_Mills
  • Jack_Mills's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 165
  • Thank you received: 17
GREAT! CMS has all the seals if no one else has them on ebay or what not. Thanks for the info..Im going to tear into this job a bit later today.
74 kz400 D1
75 kz400 D2
75 kz400 D2
75 kz400 D2
76 kz400 D3
76 kz400 D3
77 kz400 A1
78 kz400 B1
80 xl80s
81 kz440 B2
81 GL1100
81 xl80s
81 xr80
96 K1100LT
18 HAWK250
Thanks goes out to all folks who share their great knowledge teaching others about classic metric motorcycles.

Please Log in or Create an account to join the conversation.

1975 KZ400D - restore project 18 Nov 2019 07:05 #814142

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
Please let us know how it goes. I have to do the same thing on our Kz400.

If you get a chance, please post the part numbers you used so I can be sure to get the right ones.

Also, can the crankcase seal be replaced without splitting the case open?

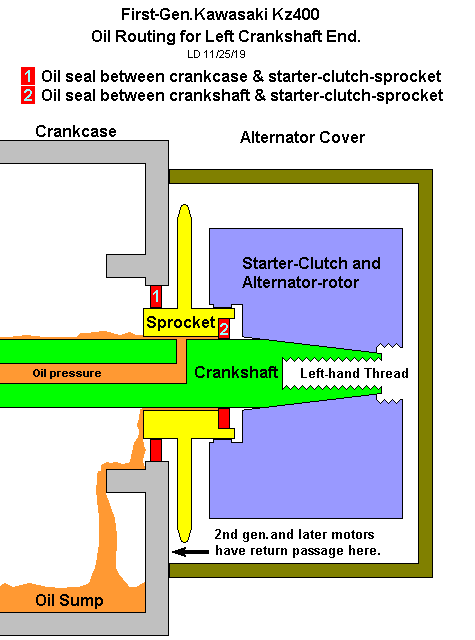

I attached a diagram of how I understand it.
During normal running, the sprocket is not moving while the crankshaft is turning inside of it, so it needs oil.

Attachments:
The following user(s) said Thank You: Jack_Mills

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

1975 KZ400D - restore project 18 Nov 2019 07:16 #814143

  • Jack_Mills
  • Jack_Mills's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 165
  • Thank you received: 17
I only bought the outer oil seal (I dont see the inner one on the microfiche)
Oil seal: 92050-066
I also bought a new thrust washer: 92026-100

I have a feeling that the inner oil seal (if there is one like youve shown) wouldnt be accessible unless taking the bottom end apart and that sucks! haha
74 kz400 D1
75 kz400 D2
75 kz400 D2
75 kz400 D2
76 kz400 D3
76 kz400 D3
77 kz400 A1
78 kz400 B1
80 xl80s
81 kz440 B2
81 GL1100
81 xl80s
81 xr80
96 K1100LT
18 HAWK250
Thanks goes out to all folks who share their great knowledge teaching others about classic metric motorcycles.
The following user(s) said Thank You: loudhvx

Please Log in or Create an account to join the conversation.

1975 KZ400D - restore project 18 Nov 2019 07:18 #814144

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
Ok, thanks for the part numbers.

Please Log in or Create an account to join the conversation.

1975 KZ400D - restore project 18 Nov 2019 07:22 #814146

  • Jack_Mills
  • Jack_Mills's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 165
  • Thank you received: 17
I have a 76 400D3 engine apart...Its in a crate at the moment, but perhaps I can take a look at it in the up and coming days. It has to come all the way apart so I can send the parts for vaper blasting...so many projects, never enough time.
74 kz400 D1
75 kz400 D2
75 kz400 D2
75 kz400 D2
76 kz400 D3
76 kz400 D3
77 kz400 A1
78 kz400 B1
80 xl80s
81 kz440 B2
81 GL1100
81 xl80s
81 xr80
96 K1100LT
18 HAWK250
Thanks goes out to all folks who share their great knowledge teaching others about classic metric motorcycles.
The following user(s) said Thank You: loudhvx

Please Log in or Create an account to join the conversation.

1975 KZ400D - restore project 18 Nov 2019 07:23 #814147

  • Jack_Mills
  • Jack_Mills's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 165
  • Thank you received: 17
www.CMSNL.com (and many other websites) have copies of the microfiche to cross reference part numbers. Here is a direct link to the 74-75 D2 and at the bottom of the same page they have some of the 76D3 parts lists.

www.cmsnl.com/kawasaki-kz400d-1975-canada_model15458/partslist/
74 kz400 D1
75 kz400 D2
75 kz400 D2
75 kz400 D2
76 kz400 D3
76 kz400 D3
77 kz400 A1
78 kz400 B1
80 xl80s
81 kz440 B2
81 GL1100
81 xl80s
81 xr80
96 K1100LT
18 HAWK250
Thanks goes out to all folks who share their great knowledge teaching others about classic metric motorcycles.
The following user(s) said Thank You: loudhvx

Please Log in or Create an account to join the conversation.

1975 KZ400D - restore project 18 Nov 2019 09:16 #814152

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
For some reason, I can't find that crankcase oil seal on any fiche, not even for the 2nd gen Kz400 motor cases. Sometimes there is a note next to an oil seal which says whether the cases have to be split to replace a seal. I was actually looking for that note, but I can't even find the actual seal on the fiches.

Maybe someone with more coffee on hand can find it. :)
