CSR1000 Project Build 26 Aug 2014 05:55 #645188

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797
tophats

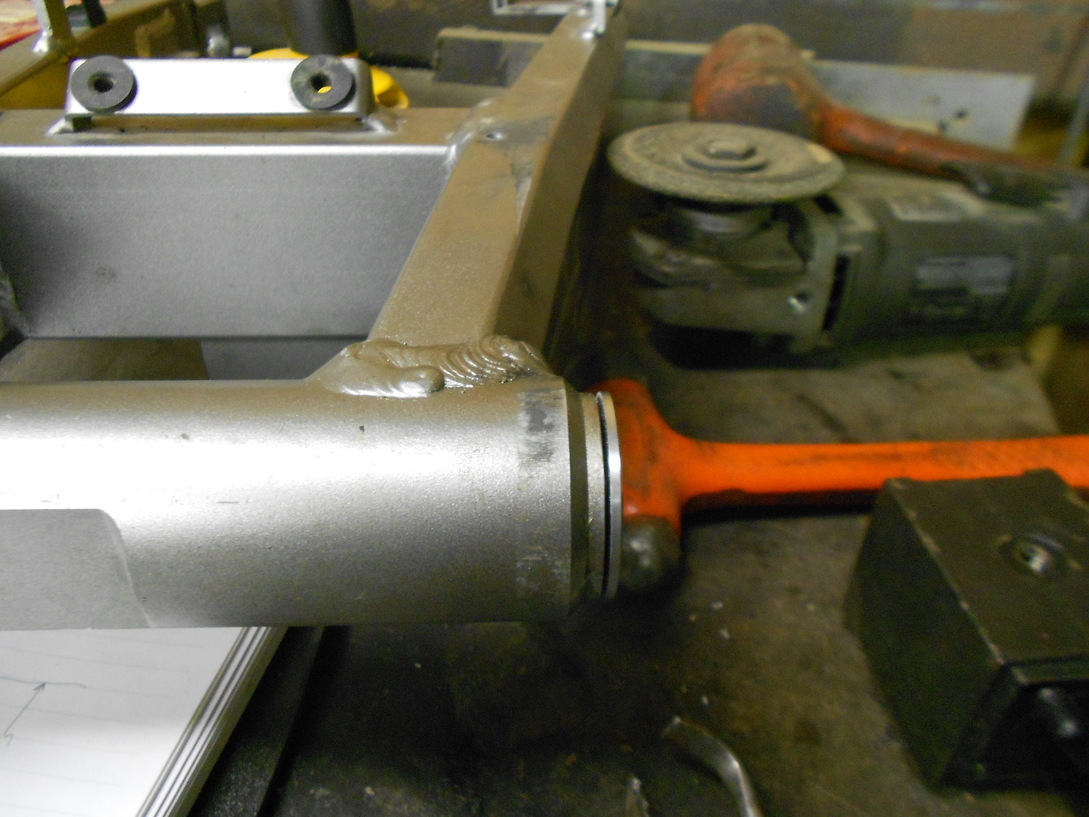

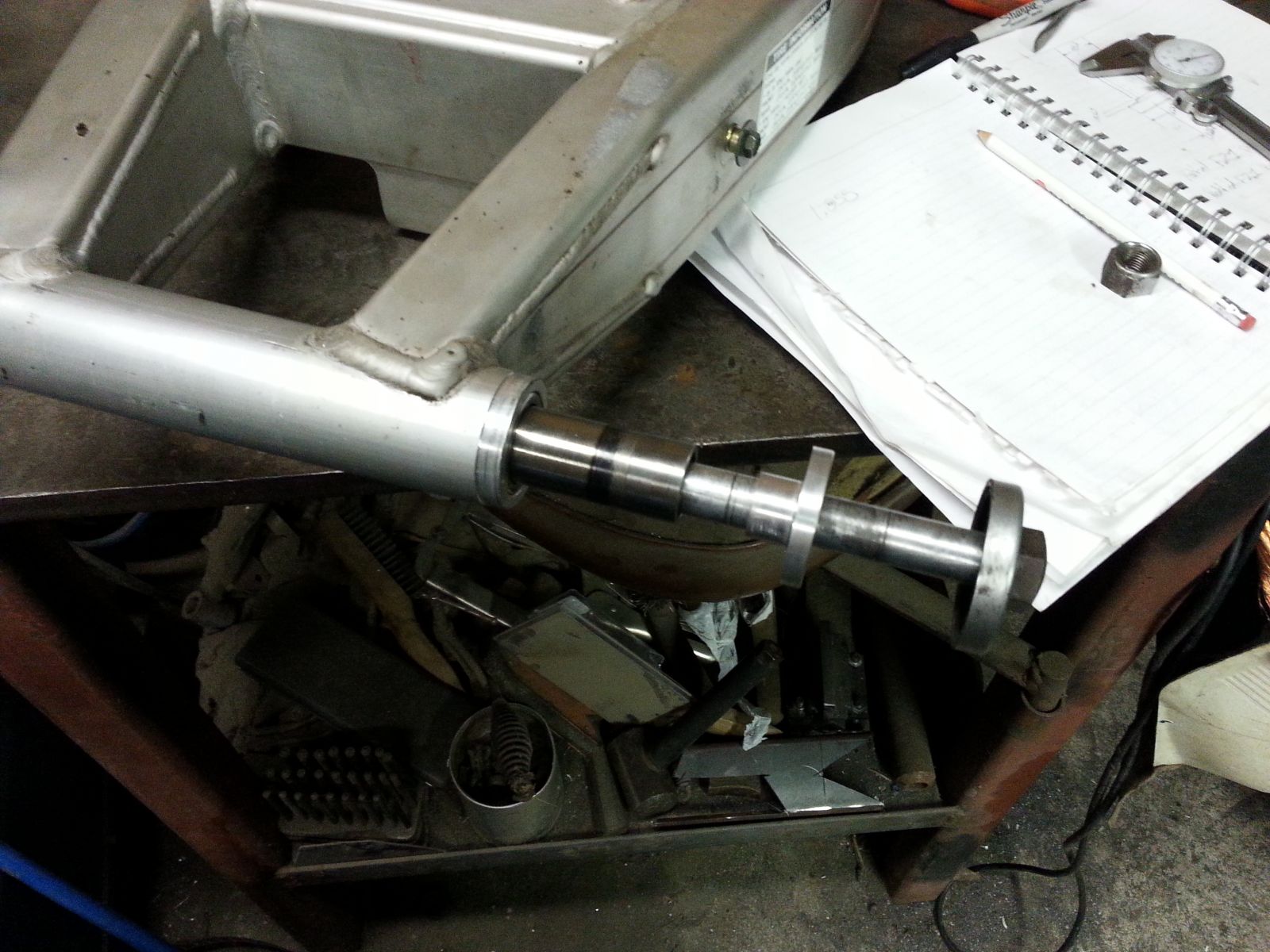

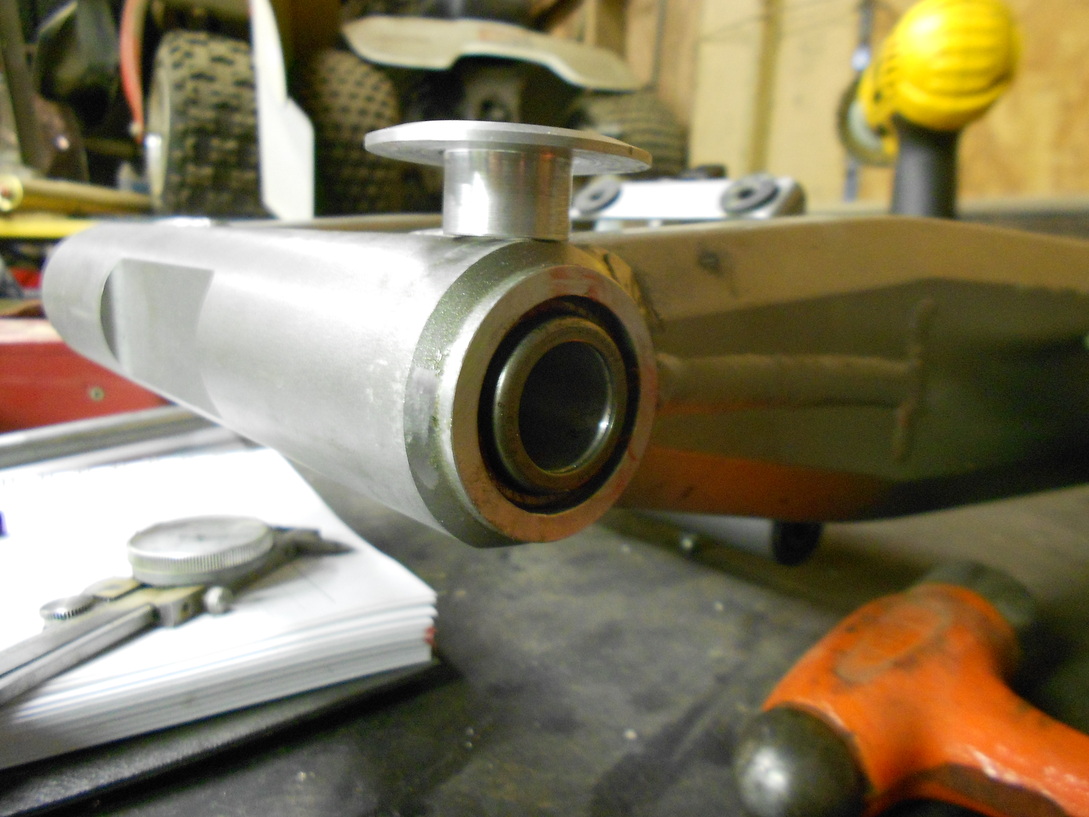

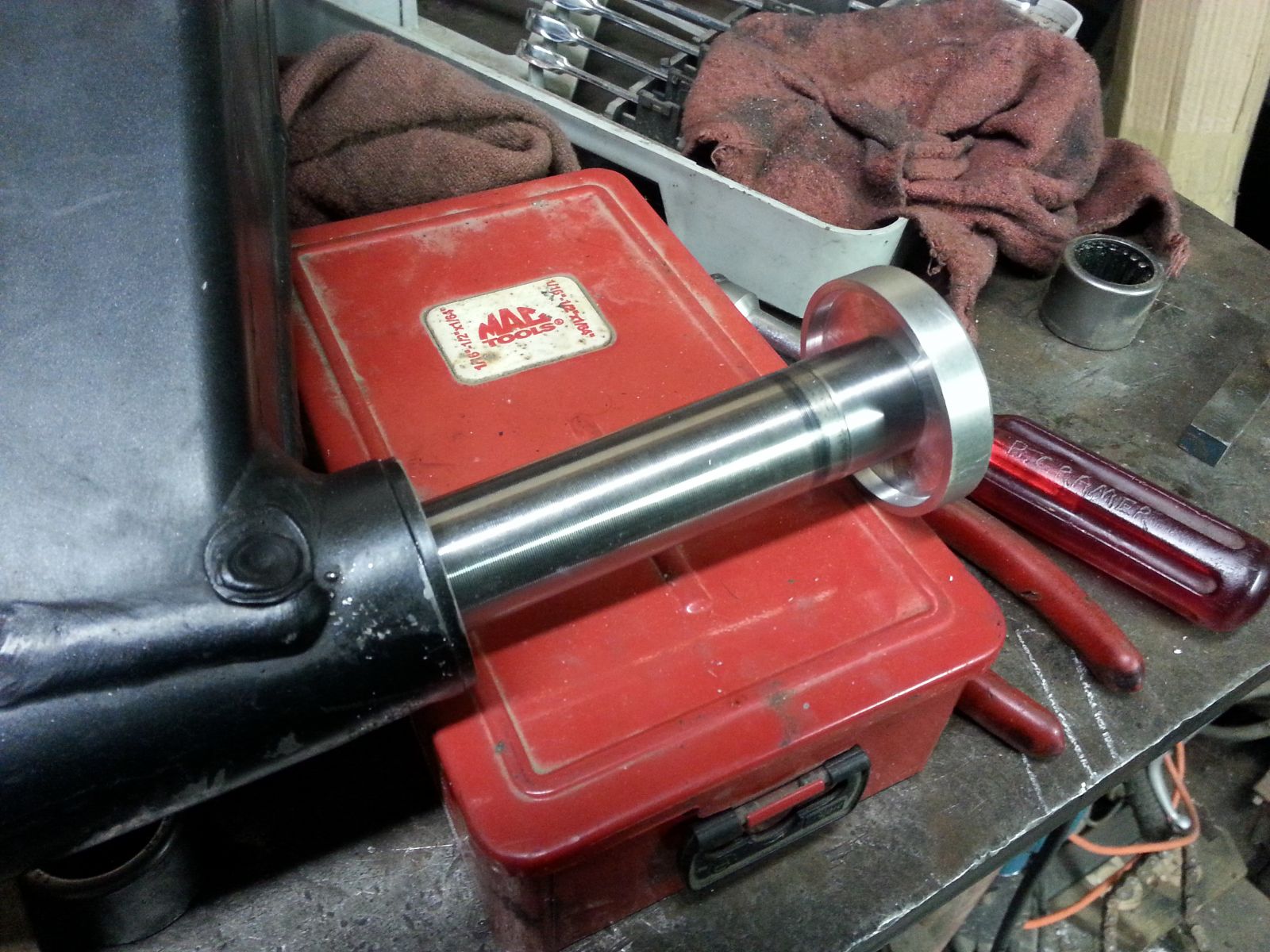

the spacers and pivot bushings machined as one.




leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by 531blackbanshee.

CSR1000 Project Build 26 Aug 2014 08:57 #645226

  • davido
  • davido's Avatar Topic Author
  • Offline
  • User
  • Posts: 1544
  • Thank you received: 265
Steel or alu?
What about the dust caps?
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550
(CB500/4)
(CBX750)
GSF600
KZ1000CSR
XT 600e

Please Log in or Create an account to join the conversation.

CSR1000 Project Build 26 Aug 2014 12:24 #645251

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797

davido wrote: Steel or alu?
What about the dust caps?


your choice.

i use 6061 t-6 .

as for dust caps,if you can re-use yours fine.
i was able to do just that on an fz1 arm i converted for a kz1000.



or,
as i done on another fz1 arm conversion when the dust caps were not present i machined the dust caps in to the top hat bushing.



and if none of these are possible,
small grease filled gaps will keep dust out.



hth,

leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by 531blackbanshee.

CSR1000 Project Build 27 Aug 2014 10:33 #645371

  • davido
  • davido's Avatar Topic Author
  • Offline
  • User
  • Posts: 1544
  • Thank you received: 265
Thanks Leon.Ive sent a link of your pictures to the lathe man to give him some idea of how other people have done this. Ill talk to him tomorrow.
On a different subject,I remember some mention of alu brackets that you weld on to the (monoshock)swingarm to keep the twin shock set up.
Anybody know where I can get these or do I need to have them fabricated?
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550
(CB500/4)
(CBX750)
GSF600
KZ1000CSR
XT 600e

Please Log in or Create an account to join the conversation.

CSR1000 Project Build 27 Aug 2014 12:08 #645376

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797

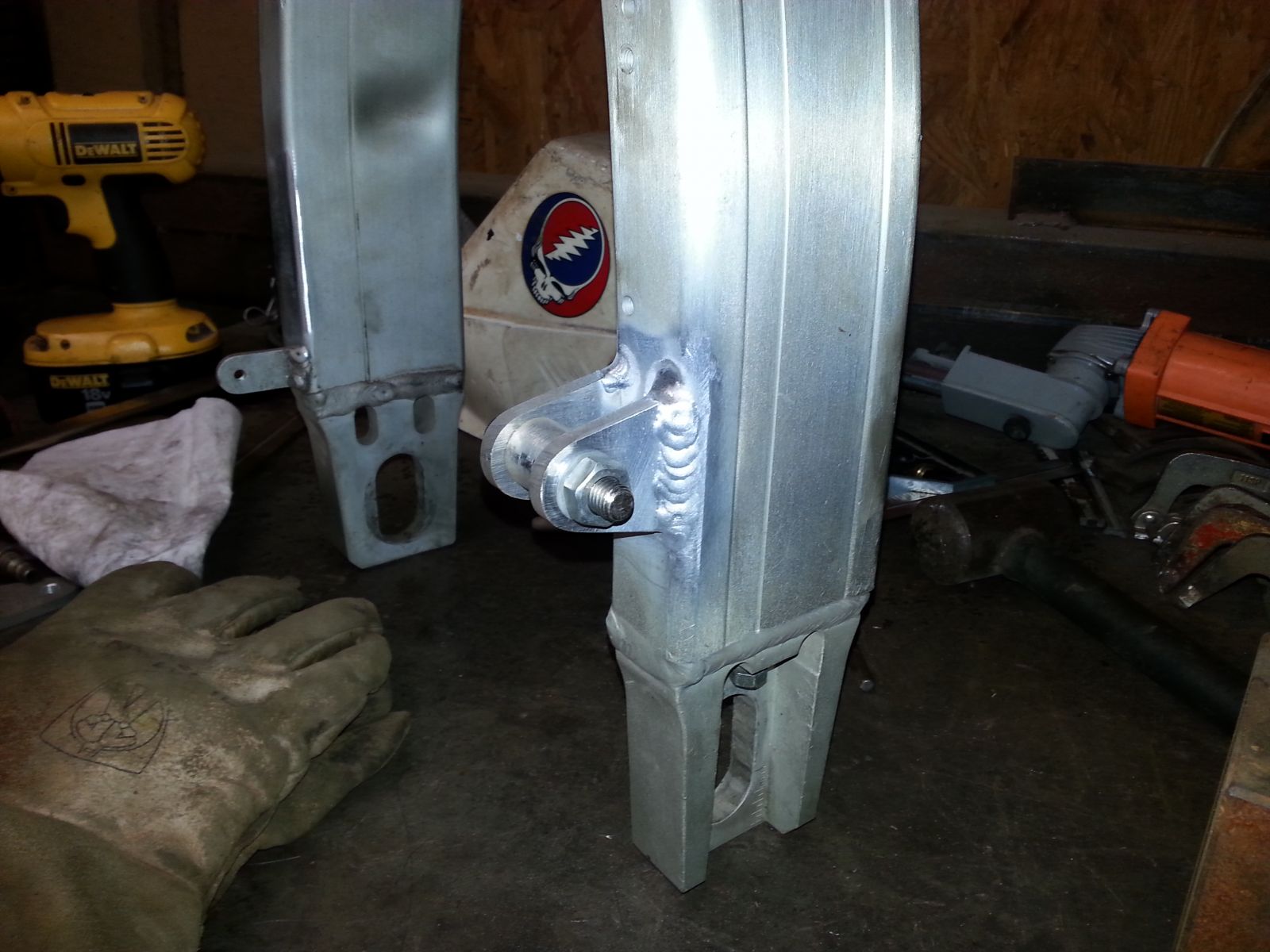

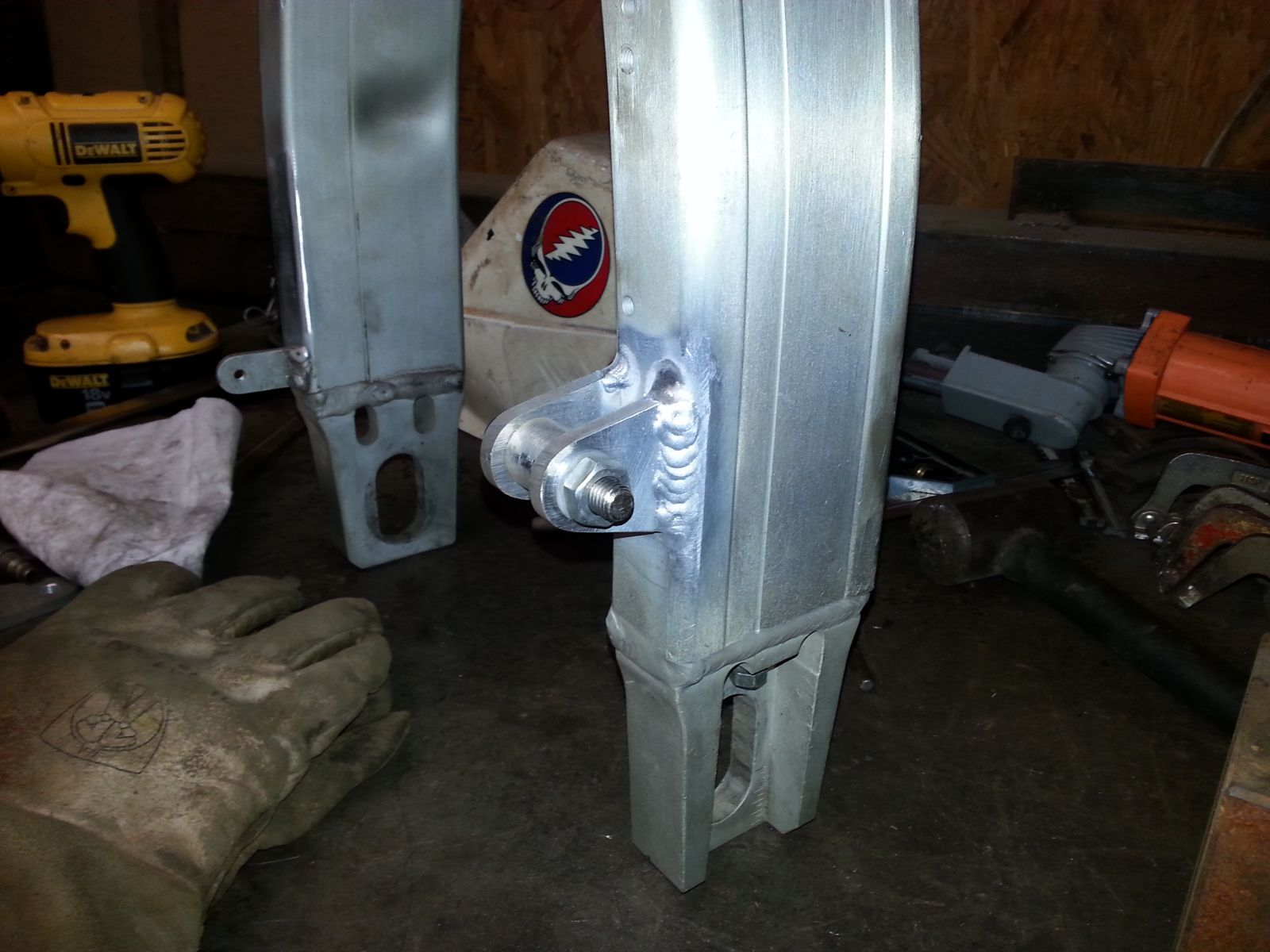

i have welded these on a couple arms.
tracdynamics.com/collections/swingarm-pa...weld-on-shock-towers

Attachment kevinrevboyzzx636tokz53.jpg not found



i have also fabbed my own and welded them on.




leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Attachments:
The following user(s) said Thank You: davido

Please Log in or Create an account to join the conversation.

Last edit: by 531blackbanshee.

CSR1000 Project Build 01 Sep 2014 12:37 #645816

  • davido
  • davido's Avatar Topic Author
  • Offline
  • User
  • Posts: 1544
  • Thank you received: 265

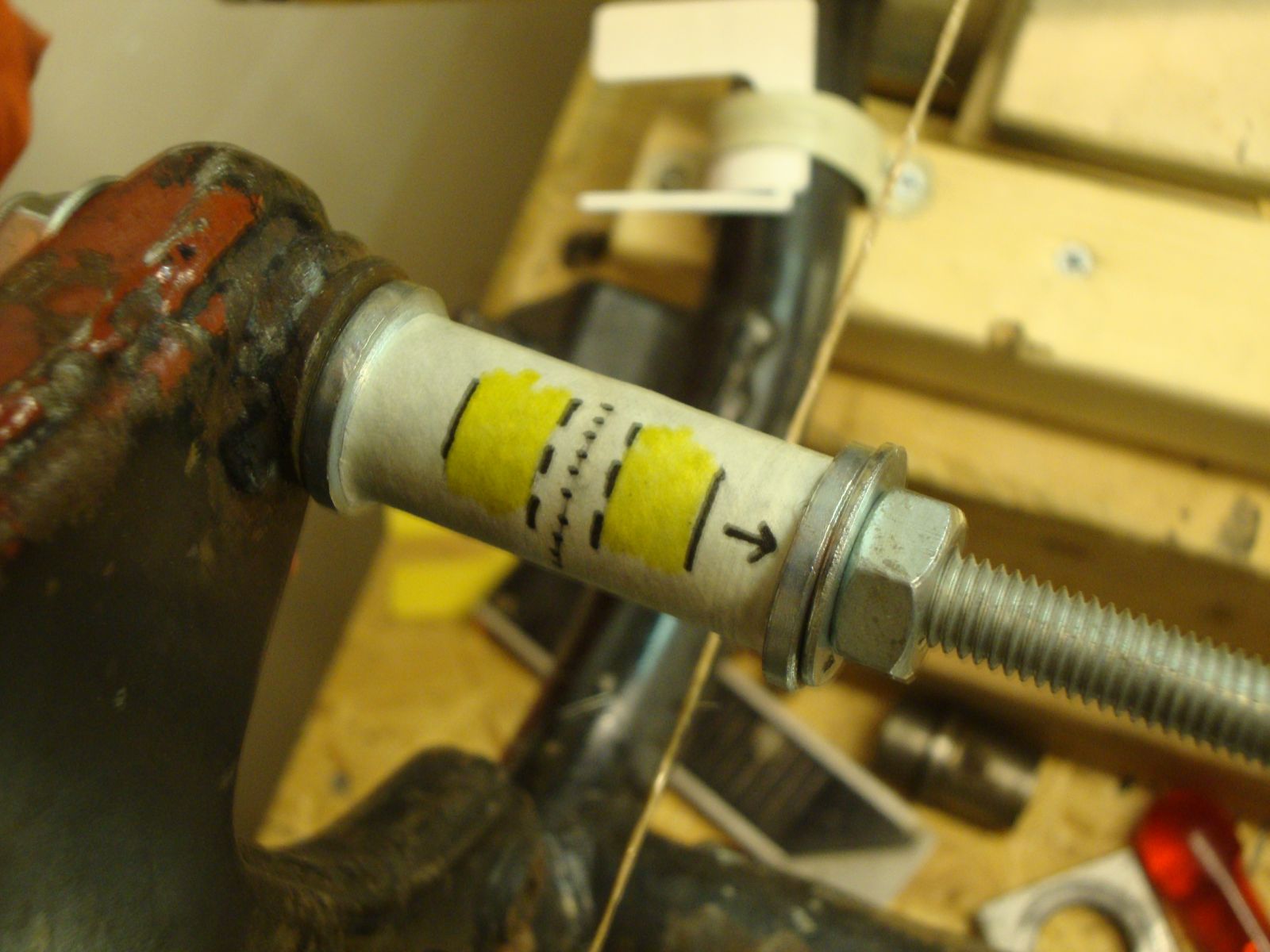

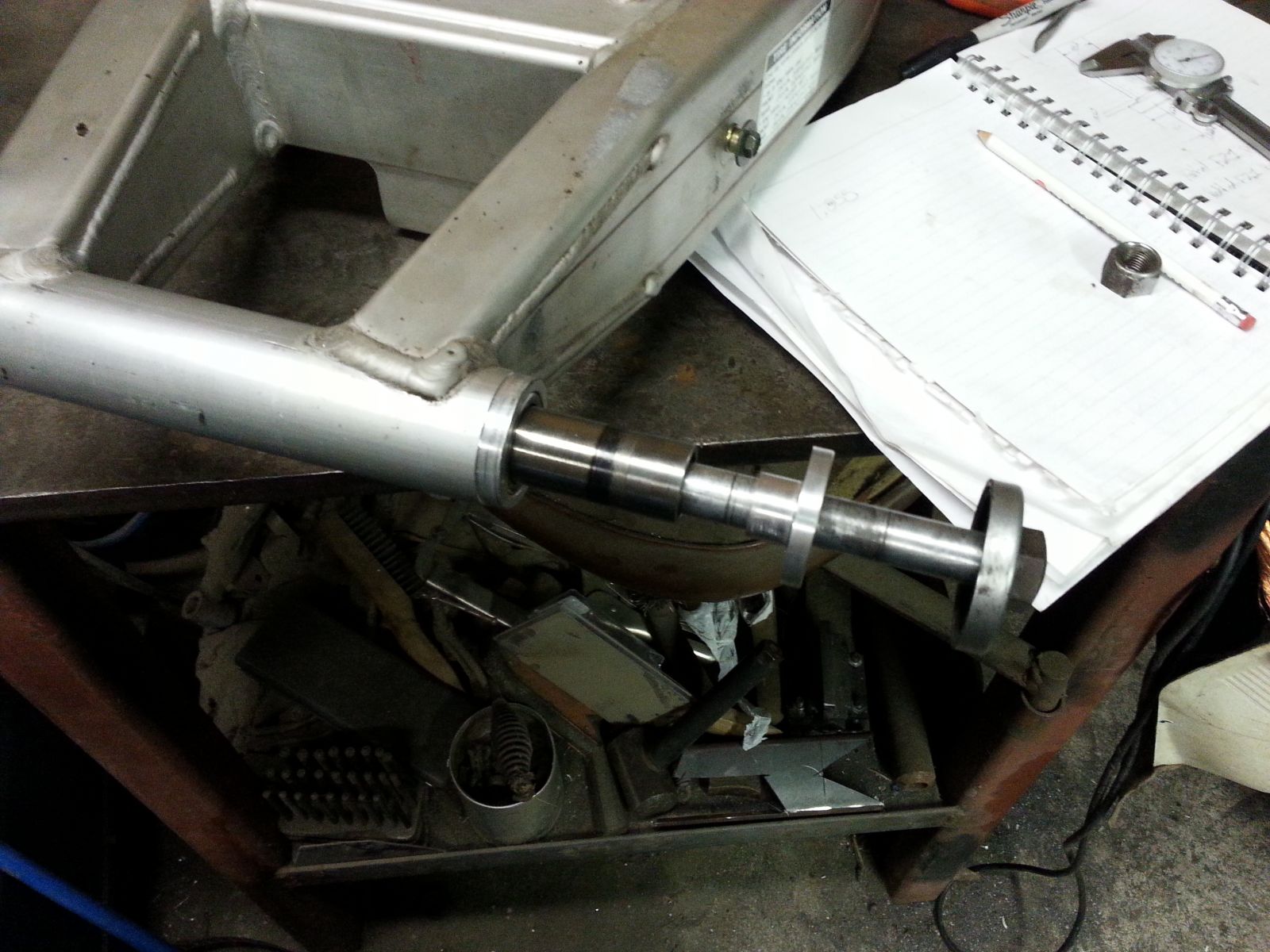

Well the latheman did a fantastic job on the swing arm pivot set up.Not sure exactly what he did but it works great.
I fitted it as soon as I got home and forgot to take pictures.Ill pull it out next weekend and post some pictures.

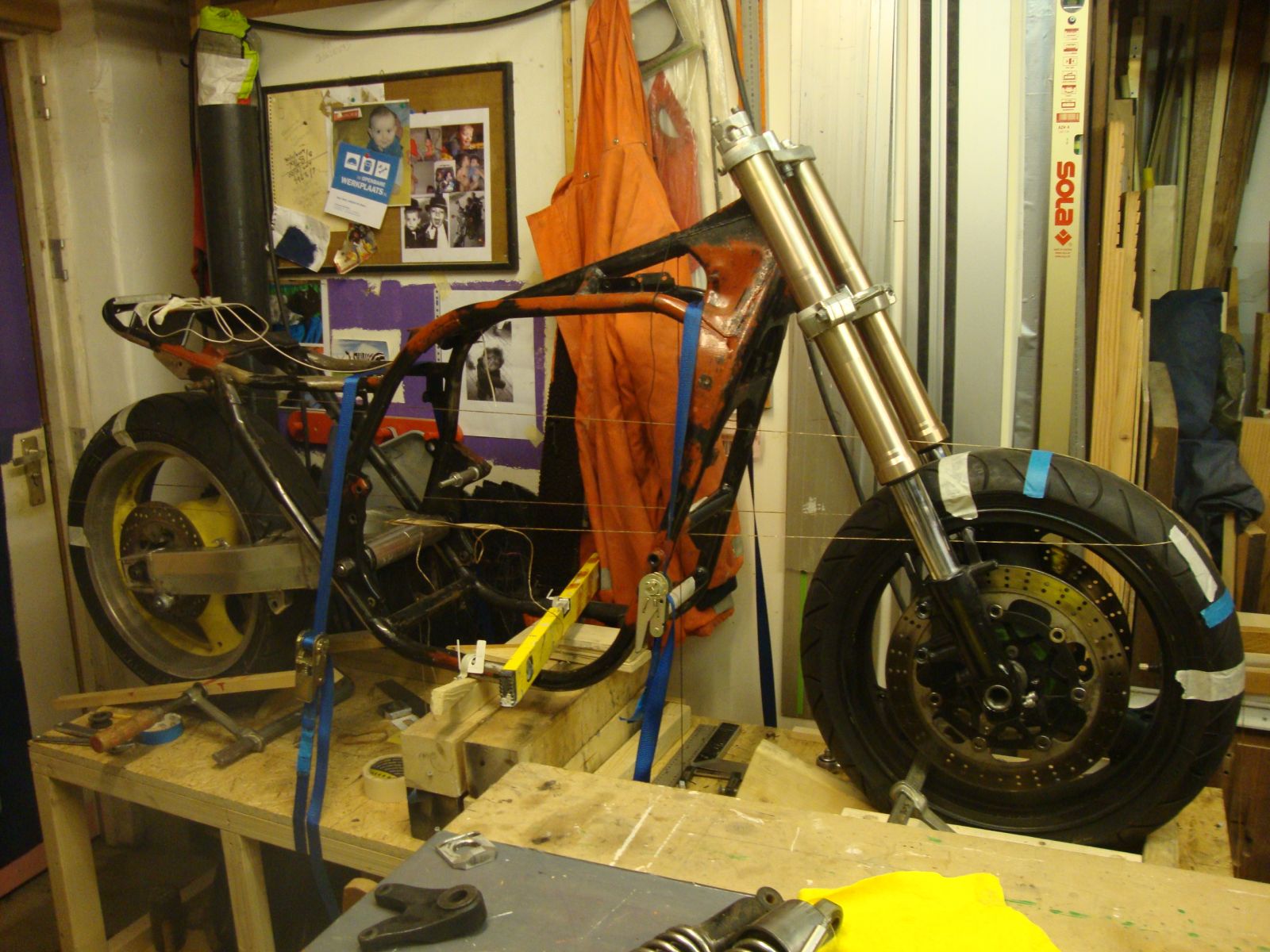

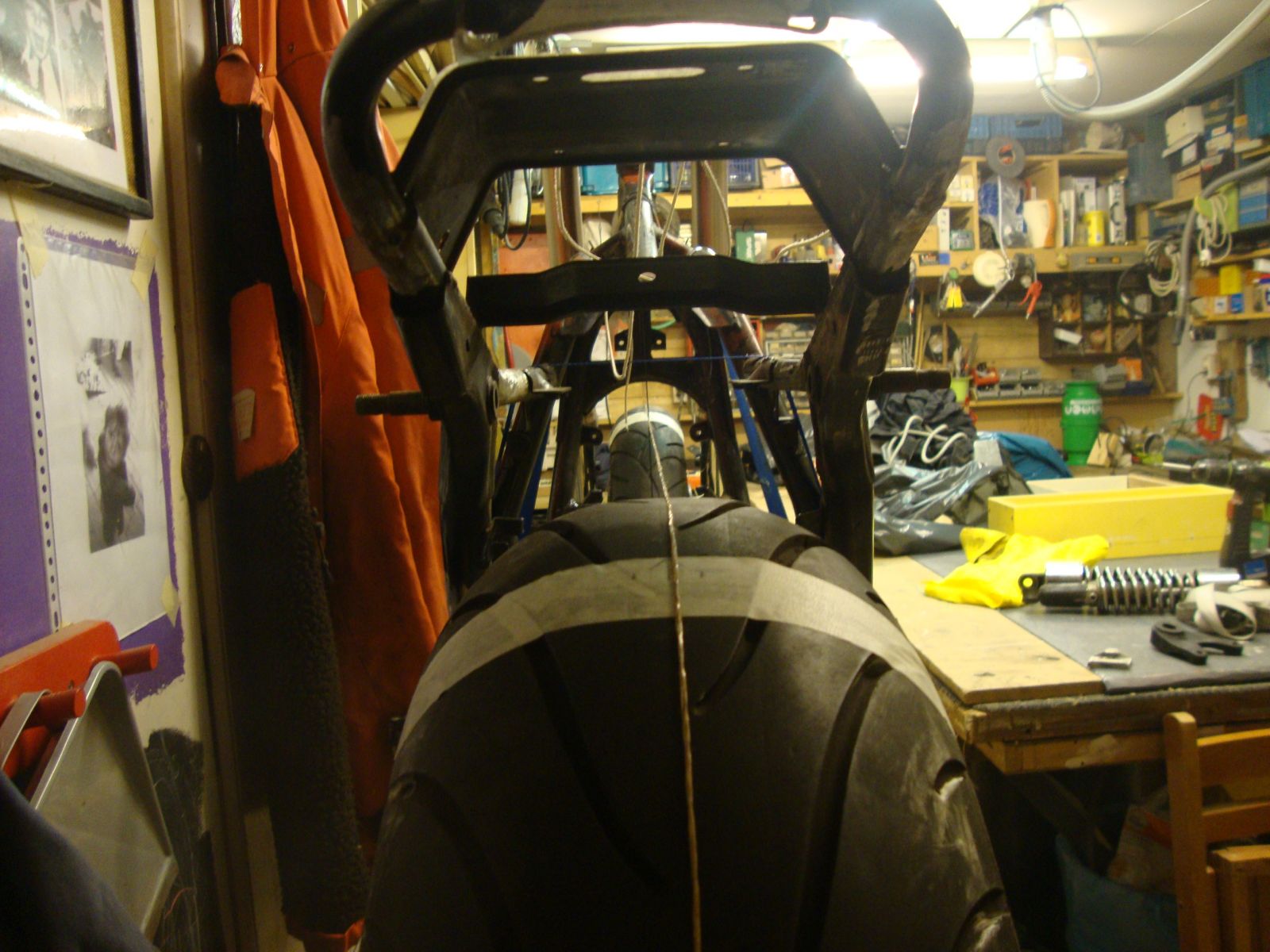

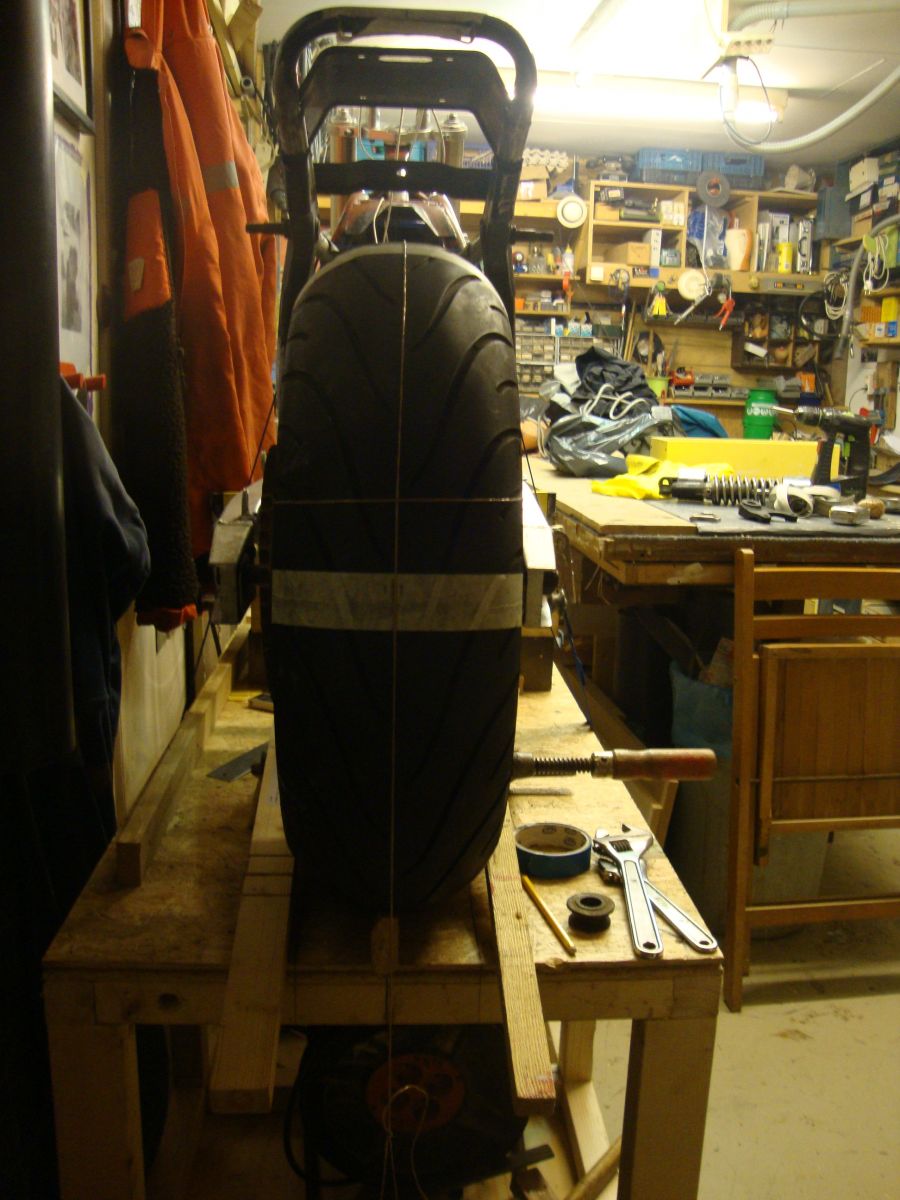

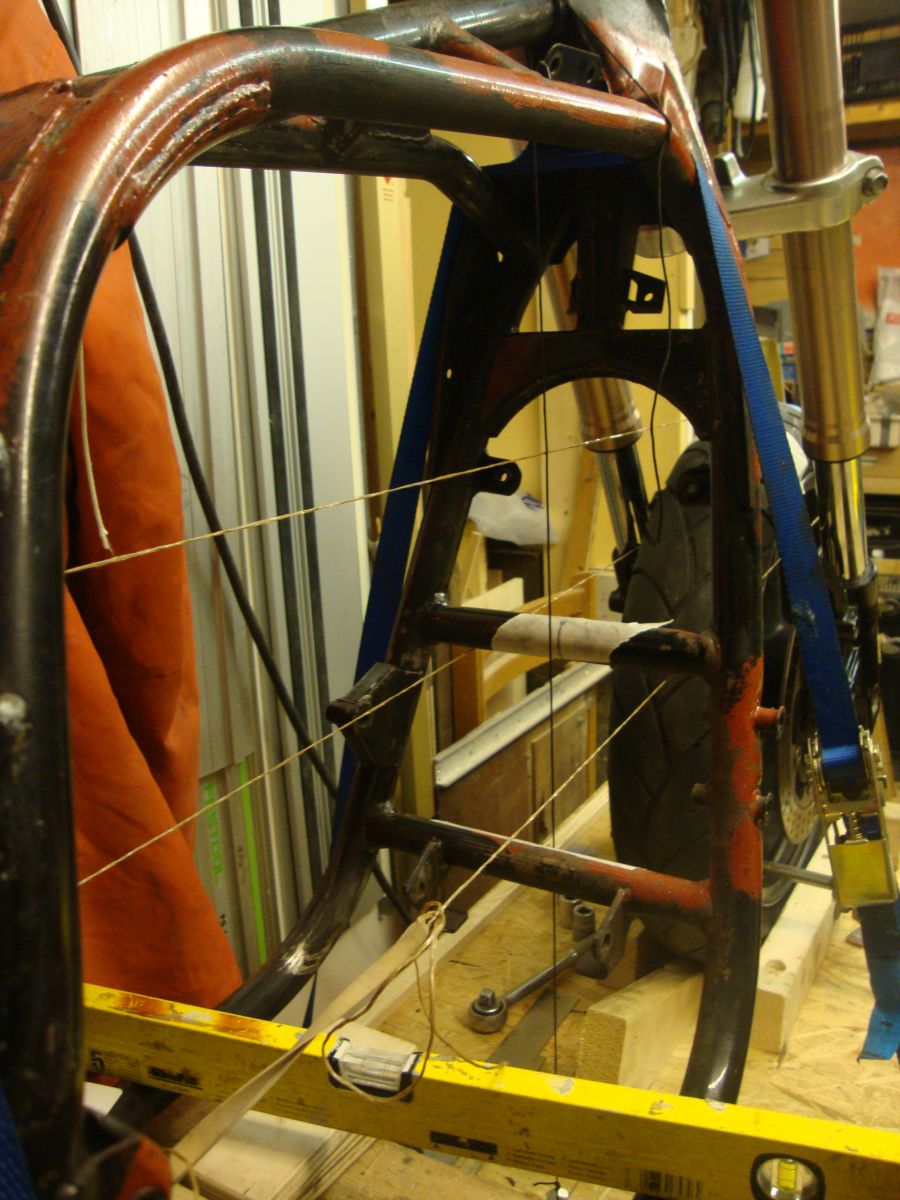

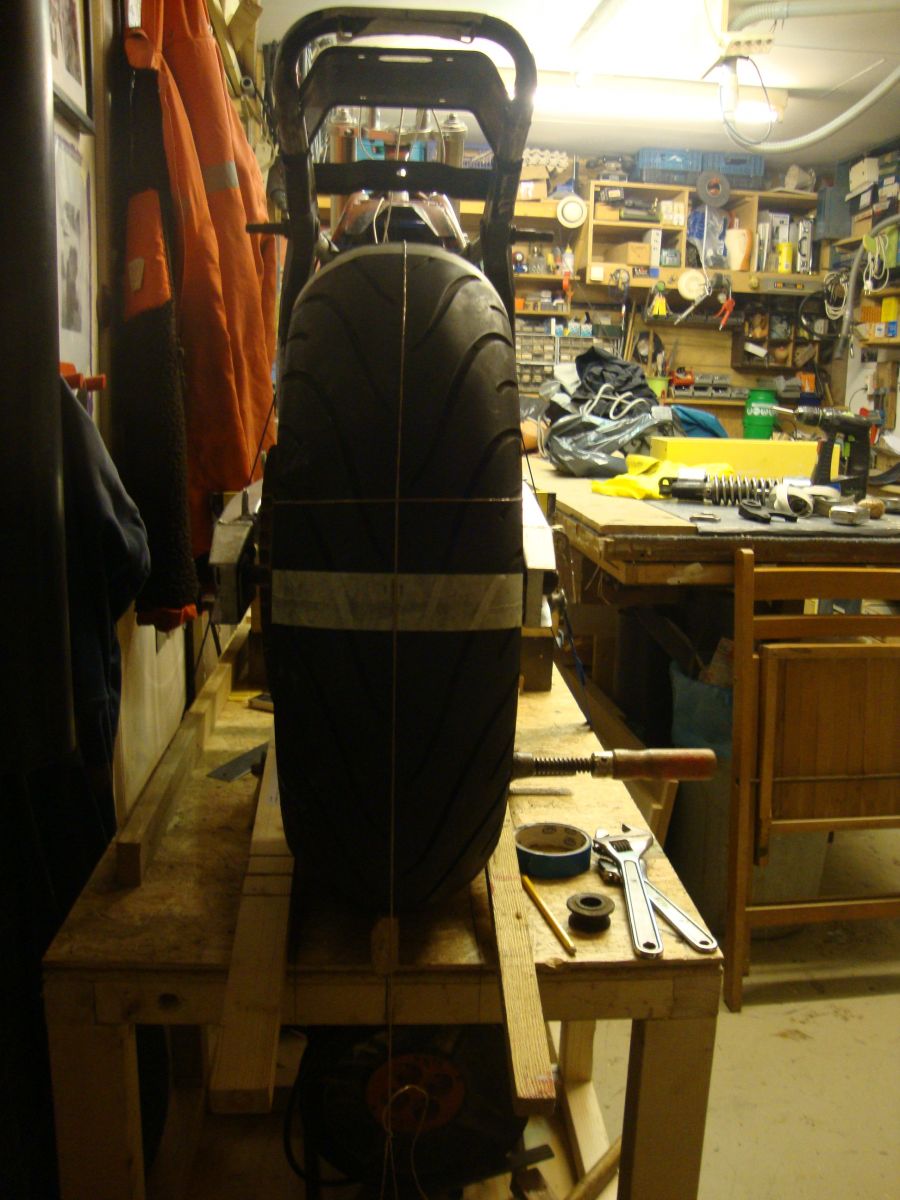

Anyway,it allowed me to get the back wheel in and line everything up to see how things stand.Lots of measuements,lots of string and lots of head scratching






and I got the back wheel centered nicely



Now I get a better idea of how the chain will run.

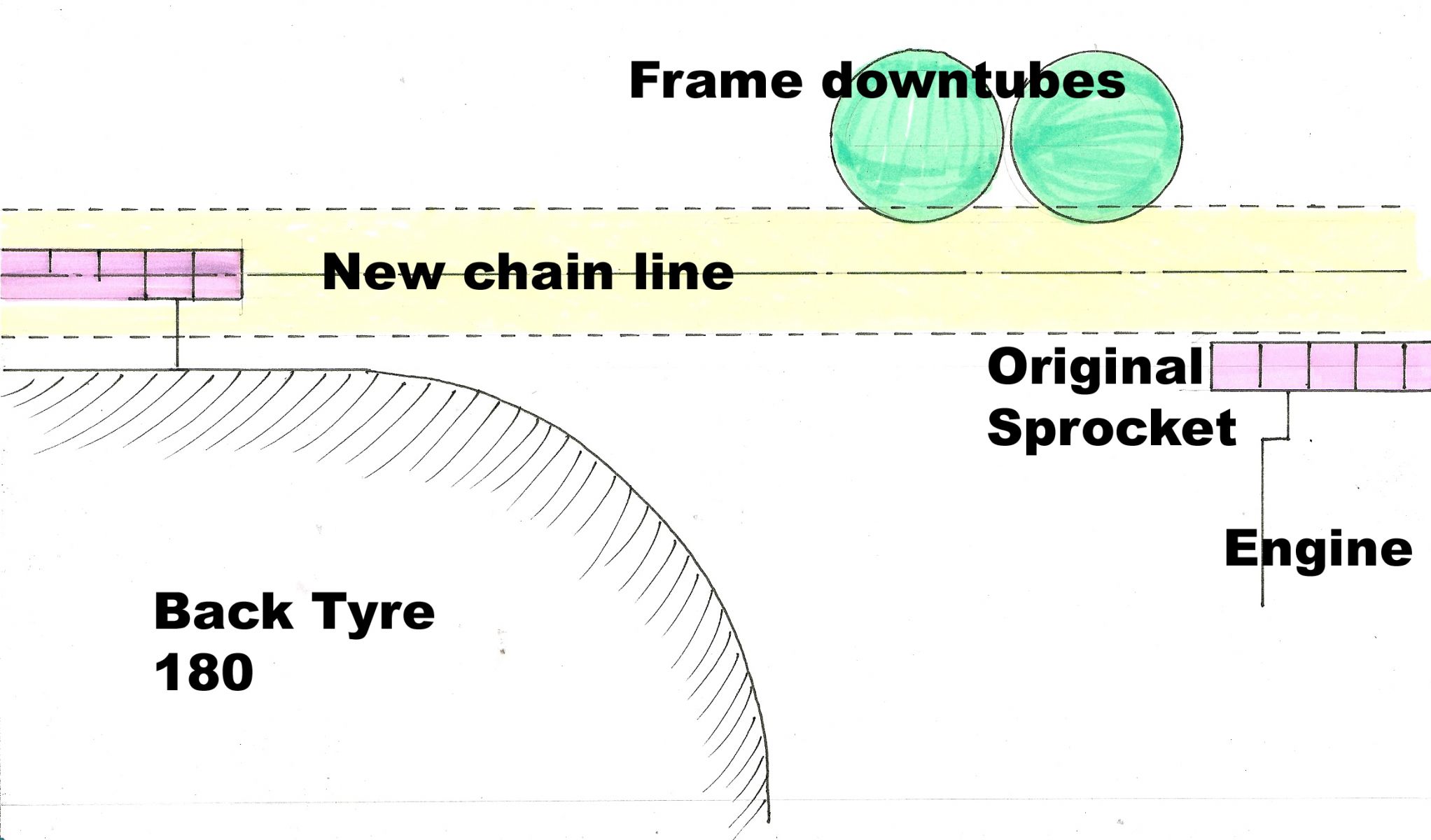

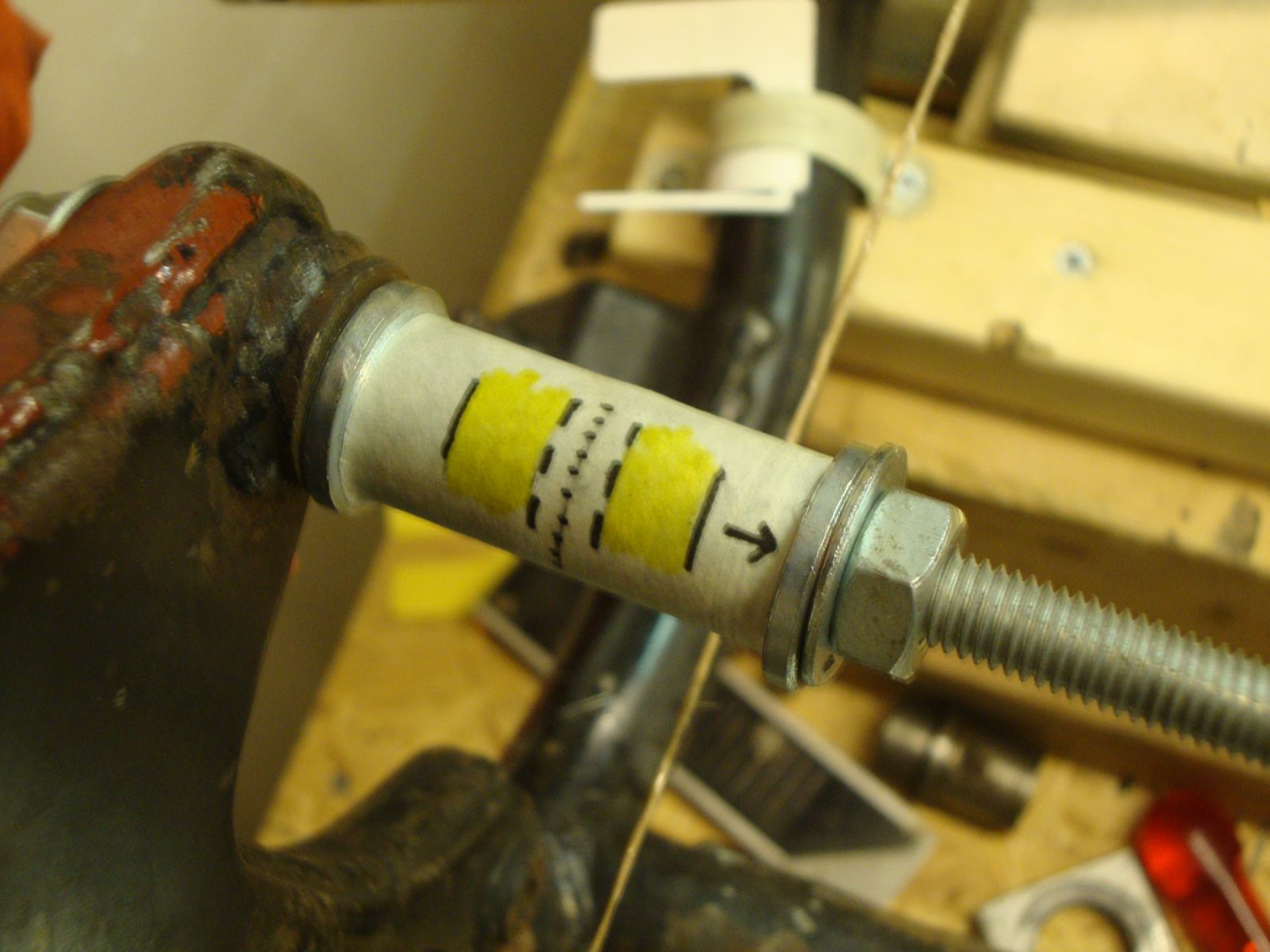

The dotted line is the center of the original front sproket,the yellow area the width of the chain.

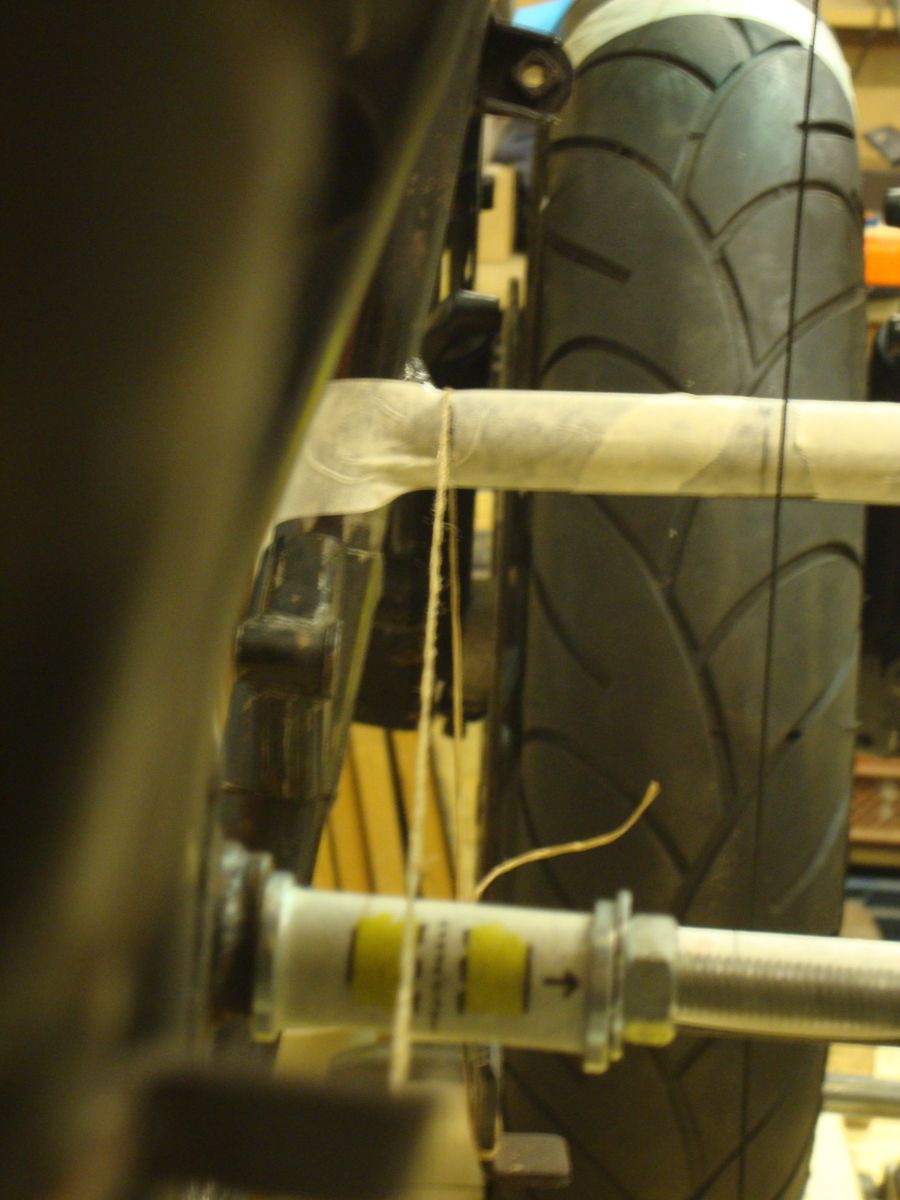

The string is the line from the edge of the back tyre,



If I want to keep the 180 wheel Im going to have to scallop the frame. Or I go with a 160 wheel which ,fingers crossed, will fit without messing with the frame.
I found a zxr400 wheel (with sproket,disc and axle) for a good price,so ive ordered that and should get it in a few days.
Well see what happens with that.
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550
(CB500/4)
(CBX750)
GSF600
KZ1000CSR
XT 600e

Please Log in or Create an account to join the conversation.

Re:CSR1000 Project Build 01 Sep 2014 16:51 #645836

  • cyclhed
  • cyclhed's Avatar
  • Offline
  • User
  • Posts: 56
  • Thank you received: 0
So is the chain line correct? What is hitting the frame?
Past:
1972 175 F7
1974 KZ400
1981 GPZ550
1980 KZ750 LTD
1978 KZ1000
1968 H1500 Mach III
Present:
1982 KZ1000 M2 CSR

Please Log in or Create an account to join the conversation.

Re:CSR1000 Project Build 02 Sep 2014 12:17 #645938

  • davido
  • davido's Avatar Topic Author
  • Offline
  • User
  • Posts: 1544
  • Thank you received: 265
No the chain line isnt good.Its going to hit the frame downtubes.
This is the best way I can describe it.

If I fit an offset front sprocket to get the chain running true,as it should,then I will need to get the frame scalloped.
(A part cut out of the tubes and rewelded so the frame dosnt lose any structural integrity.)
I talked to latheman A.K.A.weldman, today and he reckons he can do it.Its going to be a bit of a job though,so,Im going to try a 160 wheel first and see how that looks.
In theory,it,ll move the whole chain line in by 10mm, which should be just enough to clear the frame.I,ll still need an offset front sprocket of course but one with a smaller offset (which should also be betterfor the gearbox).
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550
(CB500/4)
(CBX750)
GSF600
KZ1000CSR
XT 600e
Attachments:

Please Log in or Create an account to join the conversation.

Re:CSR1000 Project Build 02 Sep 2014 12:57 #645944

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • Posts: 18640
  • Thank you received: 2095

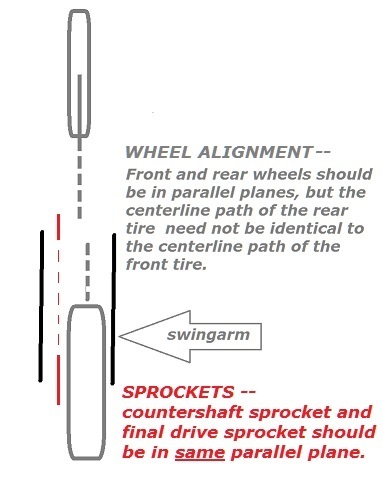

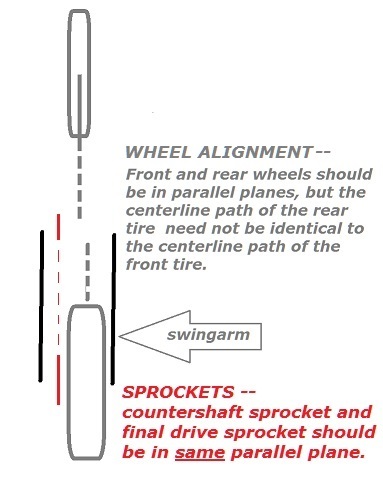

Rear wheel need not be centered, as it's okay if the rear tire center-line does not overlap the front tire center-line.









Perhaps the rear wheel could be repositioned to where the sprockets would be aligned.

Good Fortune! :)
1973 Z1
KZ900 LTD
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Patton.

Re:CSR1000 Project Build 02 Sep 2014 13:03 #645947

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797

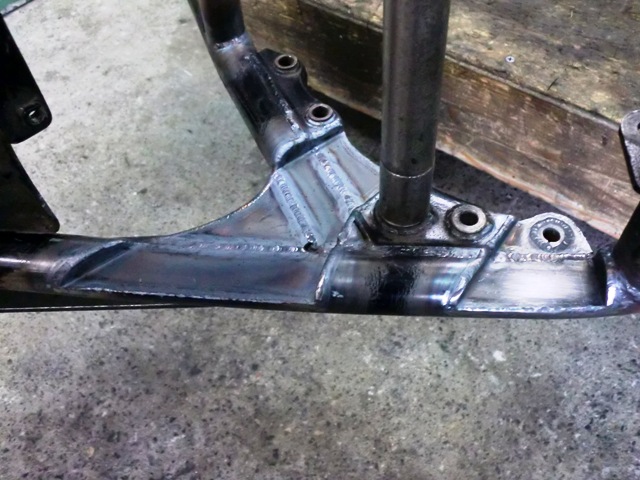

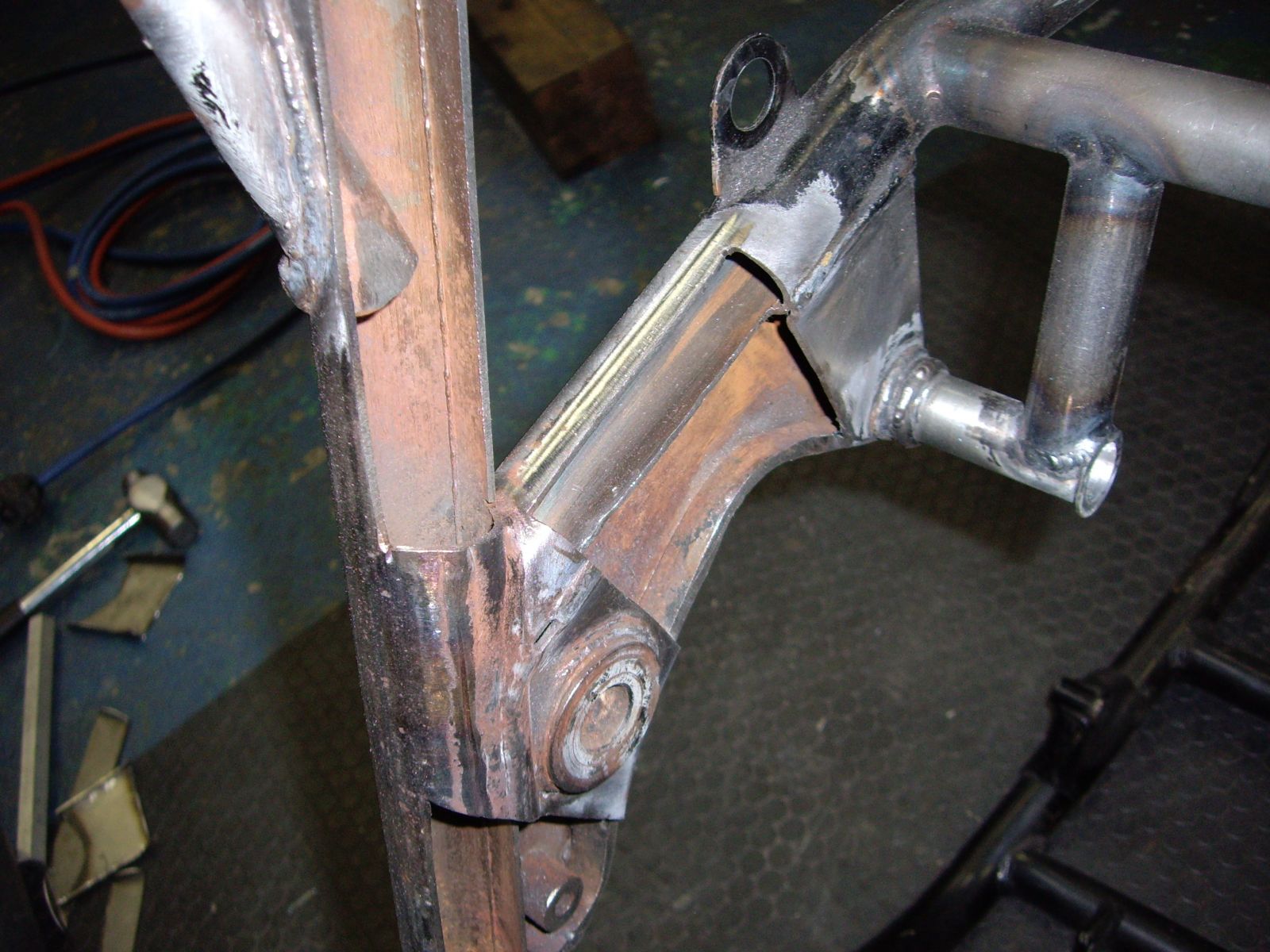

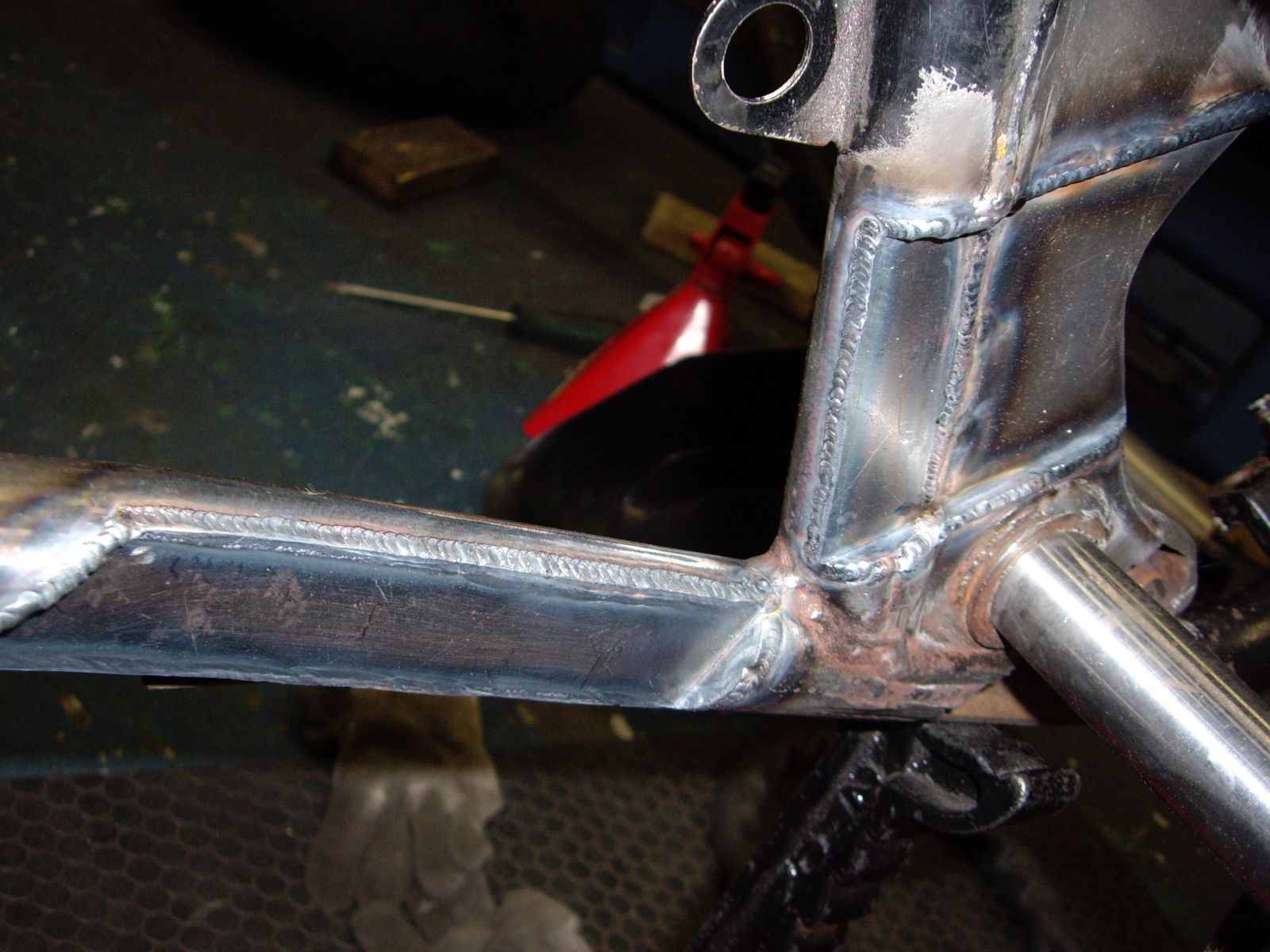

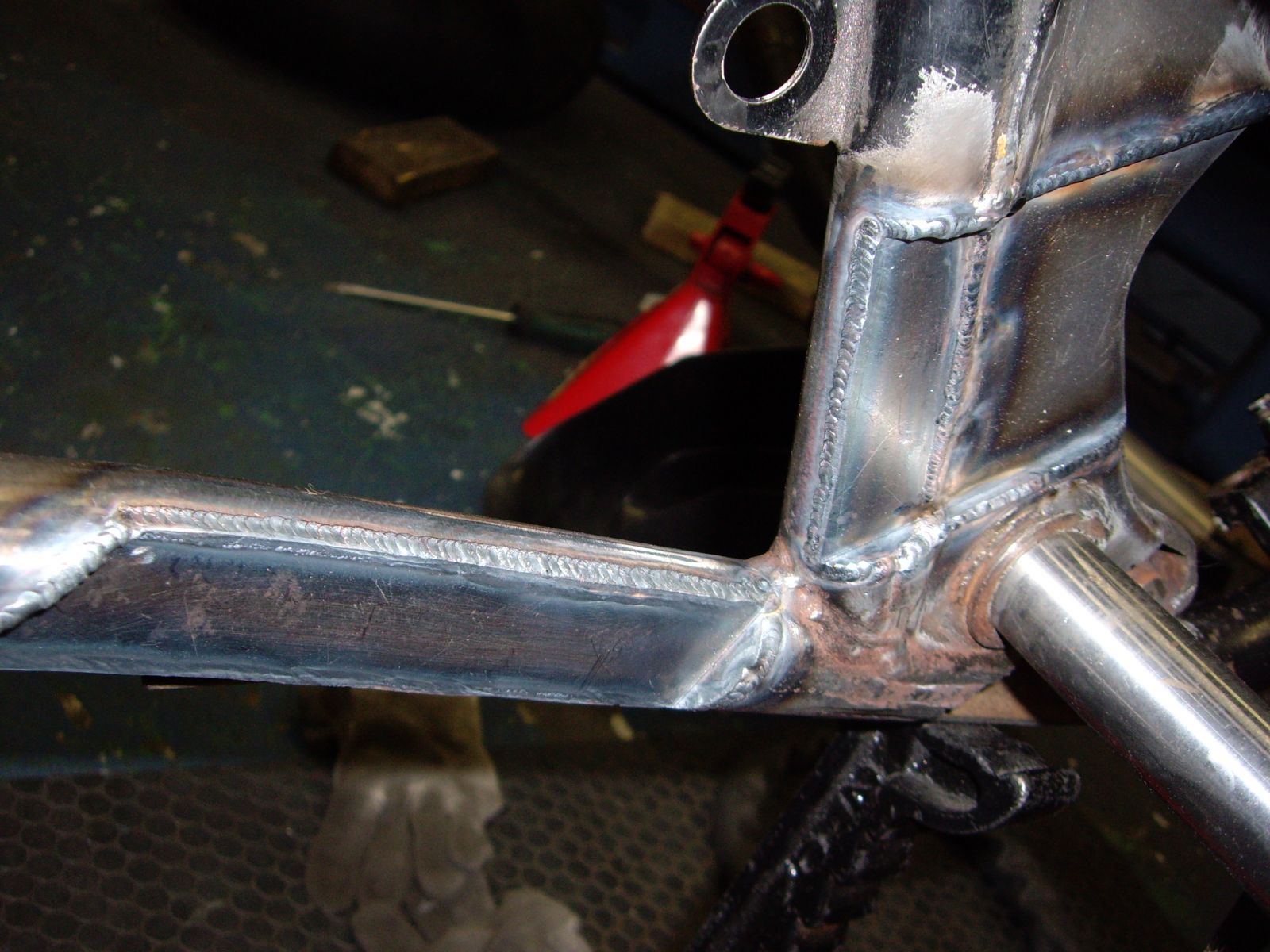

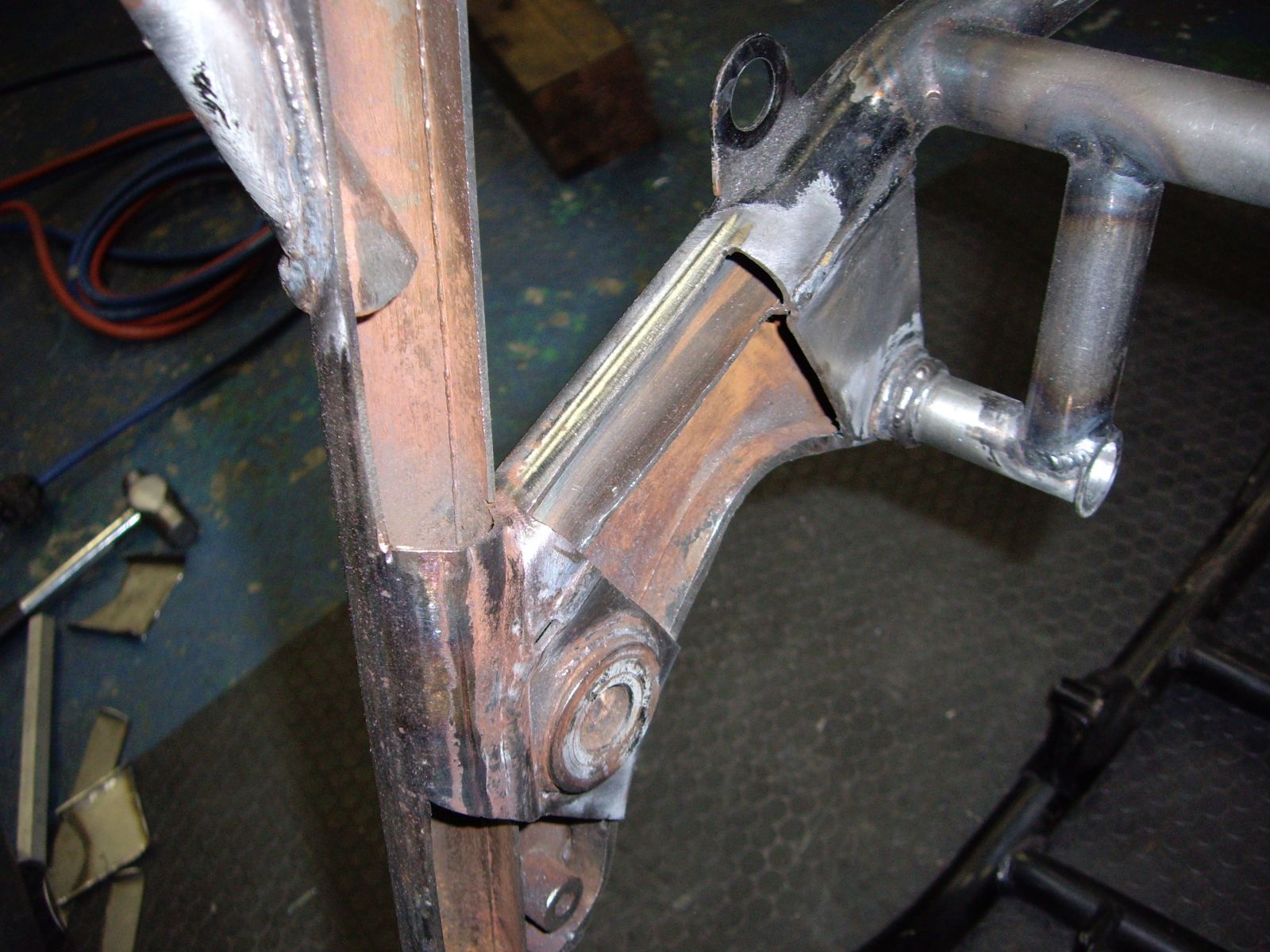

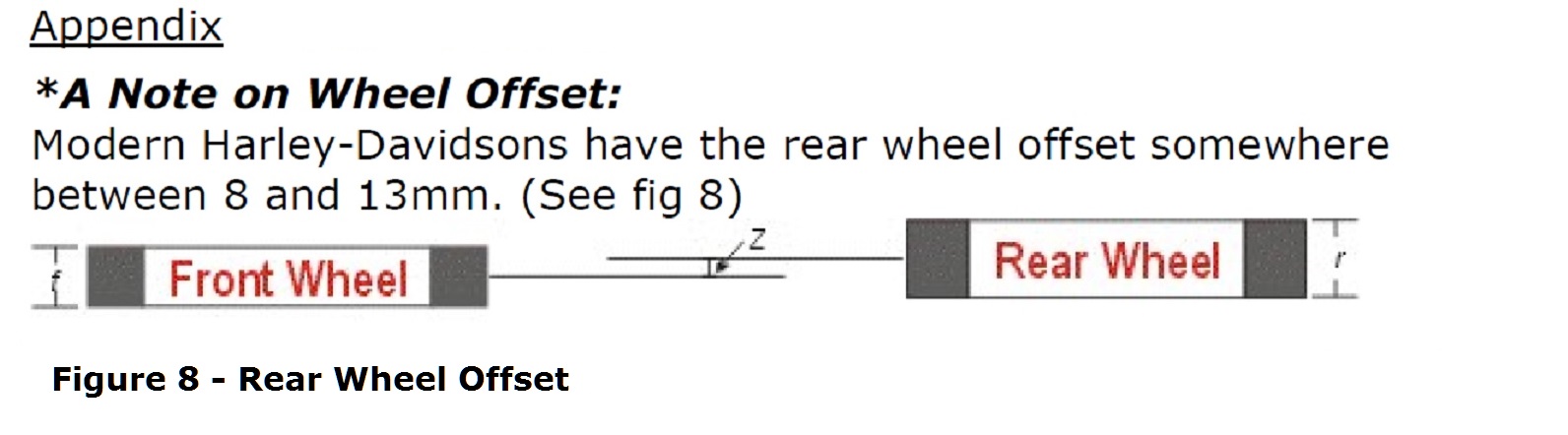

here are some pics of how sanctuary does there chain line processing.






hth,

leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Attachments:

Please Log in or Create an account to join the conversation.

Re:CSR1000 Project Build 02 Sep 2014 13:09 #645949

  • davido
  • davido's Avatar Topic Author
  • Offline
  • User
  • Posts: 1544
  • Thank you received: 265
There you go.Thats what Im talking about.
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550
(CB500/4)
(CBX750)
GSF600
KZ1000CSR
XT 600e

Please Log in or Create an account to join the conversation.

Re:CSR1000 Project Build 02 Sep 2014 13:11 #645952

  • davido
  • davido's Avatar Topic Author
  • Offline
  • User
  • Posts: 1544
  • Thank you received: 265
Sanctuary know their onions
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550
(CB500/4)
(CBX750)
GSF600
KZ1000CSR
XT 600e

Please Log in or Create an account to join the conversation.
