I found a old turbo drag bike 10 Jun 2021 14:37 #849976

  • DoctoRot
  • DoctoRot's Avatar
  • Offline
  • Sustaining Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 2423
  • Thank you received: 558
Steve - the earlier stator cover doesn't fit the MKII.

Nice work. We need more pics!
The following user(s) said Thank You: thebuelligan

Please Log in or Create an account to join the conversation.

I found a old turbo drag bike 10 Jun 2021 14:53 #849979

  • thebuelligan
  • thebuelligan's Avatar
  • Offline
  • User
  • Posts: 14
  • Thank you received: 11
@swest MK2 crank and stator are totally different and early cover won’t fit ..
if it had only been that straight forward lol

Please Log in or Create an account to join the conversation.

I found a old turbo drag bike 10 Jun 2021 15:05 #849981

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Posts: 20359
  • Thank you received: 2078
That's right. The cover would bolt on but the innards are different. My bad.  Carry on.
Nice work
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

I found a old turbo drag bike 21 Jun 2021 15:37 #850559

  • thebuelligan
  • thebuelligan's Avatar
  • Offline
  • User
  • Posts: 14
  • Thank you received: 11
Started with getting hold of the old drag bike at the beginning of this thread that was for sale here in the UK and now here it is 8 years later!! Lots of changes but fundamentally the same old drag bike but now registered and back on the road....



The following user(s) said Thank You: DOHC, Scirocco, Bent Trigger

Please Log in or Create an account to join the conversation.

Last edit: by thebuelligan. Reason: to add detail

I found a old turbo drag bike 16 Jul 2021 18:45 #851887

  • thebuelligan
  • thebuelligan's Avatar
  • Offline
  • User
  • Posts: 14
  • Thank you received: 11

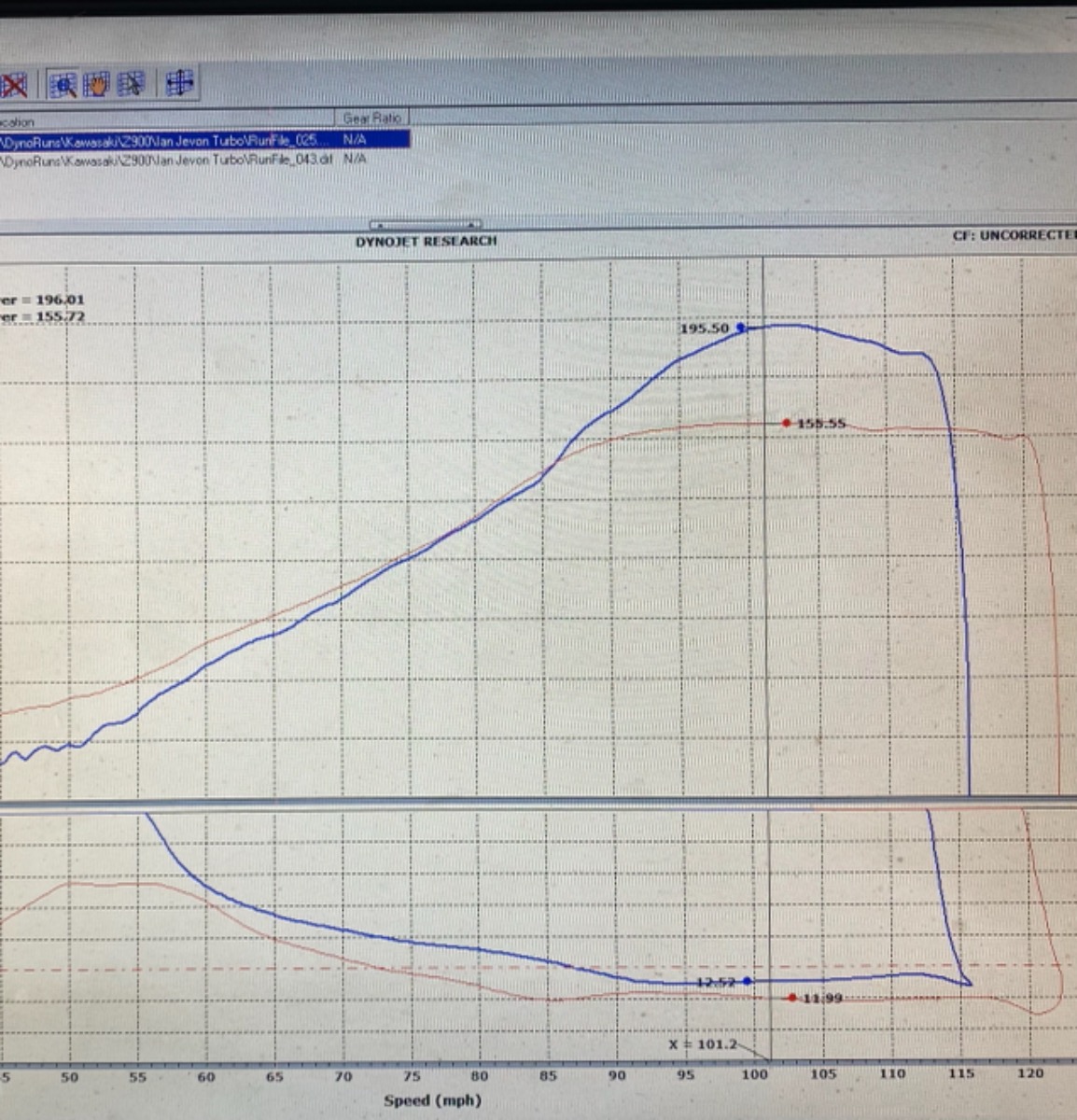

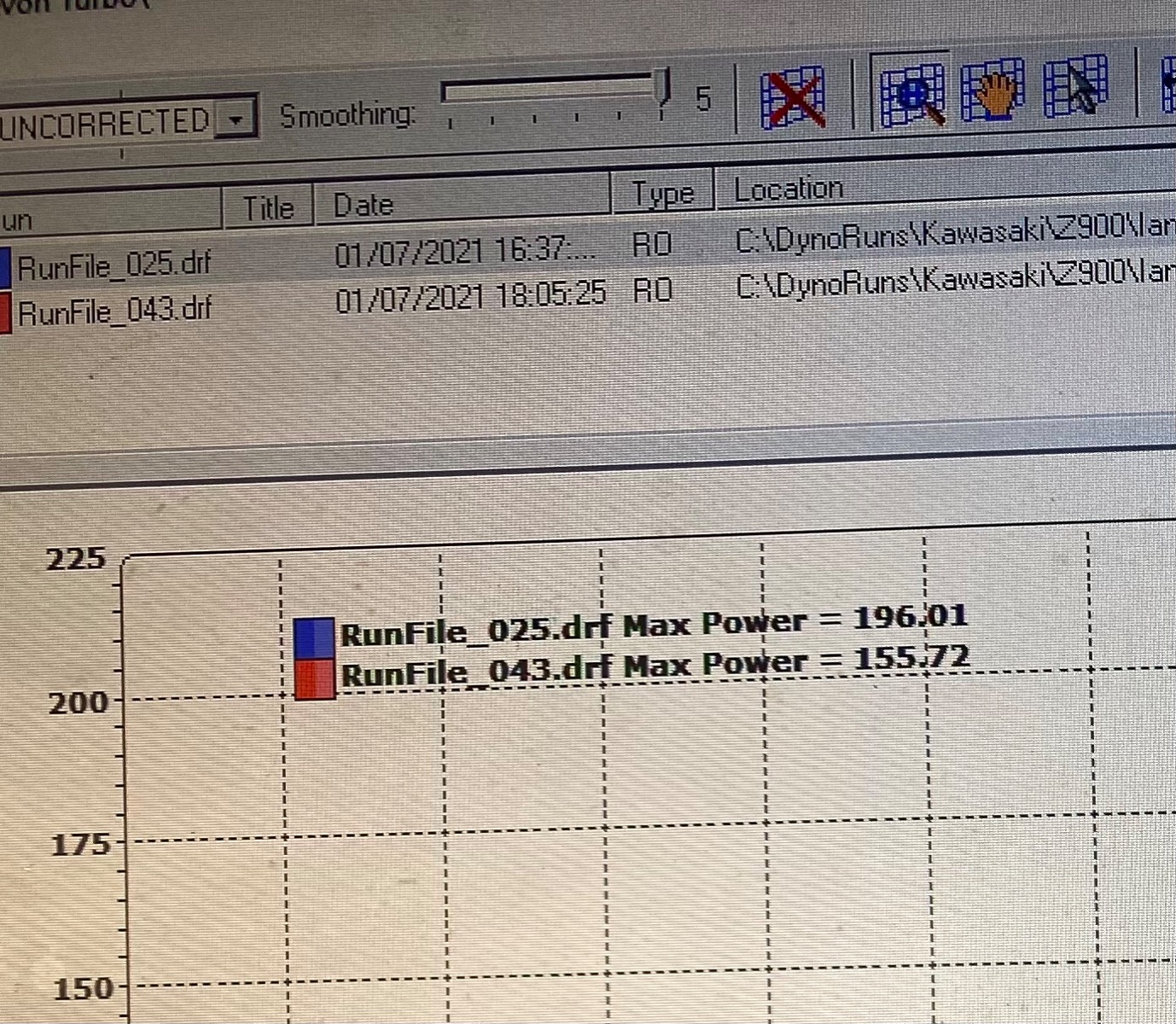

First Dyno session! Still some work to do
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Street Fighter LTD.

I found a old turbo drag bike 16 Jul 2021 20:19 #851890

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 827
  • Thank you received: 269

First Dyno session! Still some work to do

That's a good number.  Can you post the curve so we can see where the power is.  How much boost were you running?
'78 Z1-R in blue, '78 Z1-R in black, '78 Z1-R in pieces
'95 GPZ1100 (sold) , '00 ZRX1100

Please Log in or Create an account to join the conversation.

I found a old turbo drag bike 17 Jul 2021 02:13 #851894

  • thebuelligan
  • thebuelligan's Avatar
  • Offline
  • User
  • Posts: 14
  • Thank you received: 11
10psi on the 196 with the old F40 Rayjay with the original bendix zenith. Some work to do on the fuelling bottom end and mainly want to figure out where I am with the ignition timing as this was an initial “ guess” Got no plate on the vertex so unsure of advance at the moment.  Will set the initial static up and take it from there

Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Street Fighter LTD.

I found a old turbo drag bike 17 Jul 2021 05:52 #851896

  • Street Fighter LTD
  • Street Fighter LTD's Avatar
  • Offline
  • Moderator
  • TURBO, Its Better to be Blown than Injected
  • Posts: 4044
  • Thank you received: 1222
Good numbers.
I fixed your pictures
PLEASE  next time  click the insert all tab to complete the process
Dave

Original owner 78 1000 LTD
Mr Turbo Race Kit, MTC 1075 Turbo pistons by PitStop Performance , Falicon Ultra Lite Super Crank, APE everything. Les Holt @ PDM's Billet Goodies . Frame by Chuck Kurzawa @ Logghe Chassis . Deep sump 5qt oil pan. RIP Bill Hahn
The following user(s) said Thank You: thebuelligan

Please Log in or Create an account to join the conversation.

I found a old turbo drag bike 17 Jul 2021 09:18 #851907

  • Street Fighter LTD
  • Street Fighter LTD's Avatar
  • Offline
  • Moderator
  • TURBO, Its Better to be Blown than Injected
  • Posts: 4044
  • Thank you received: 1222
What are the particulars in your setup ?

What fuel ? Carb ?
Water or alcohol  injection ?
Pistons  specs ?
cams, headwork ?
Plugs ?
Planning on Nitrous ?


Original owner 78 1000 LTD
Mr Turbo Race Kit, MTC 1075 Turbo pistons by PitStop Performance , Falicon Ultra Lite Super Crank, APE everything. Les Holt @ PDM's Billet Goodies . Frame by Chuck Kurzawa @ Logghe Chassis . Deep sump 5qt oil pan. RIP Bill Hahn

Please Log in or Create an account to join the conversation.

I found a old turbo drag bike 17 Jul 2021 16:57 #851944

  • thebuelligan
  • thebuelligan's Avatar
  • Offline
  • User
  • Posts: 14
  • Thank you received: 11
Running original RC engineering turbo plenum, headers and wastegate with a Rayjay F40 turbo. Carbs an ATP Bendix with added Thunderjet circuit running 4psi fuel pressure
No water or Alcohol injection but have a vintage ATP unit I might fit
Sunoco Maxnos 119 fuel
Stock 900 hollow cams with flowed head standard size valves
Plugs are NGK B9ES
Nitrous is fitted and ready to go!

Basic motor details are -
Motors built around early 73 cases
all balanced and blueprinted
MK2 Crank welded and balanced
APE Main bearing support and crank bolts
5qt full deep sump modded pump
Vertex magneto ignition Taylor made leads
MRE gearbox billet second gear
windage tray
1327 MTC big block with modified stepped liners and 7.8:1 turbo pistons (Needed lots of balancing)
Flowed and ported head
Stock cams with slotted sprockets
Liska Cam chain gears
Stainless valves Underbucket shims Ti spring retainers
APE studs and head bolts
MRE lockup clutch with standard plates and springs
APE clutch mushroom with PMC easy actuator
The following user(s) said Thank You: DOHC, Street Fighter LTD, Dragbike_Mike

Please Log in or Create an account to join the conversation.

Last edit: by thebuelligan.

I found a old turbo drag bike 17 Jul 2021 17:07 #851946

  • thebuelligan
  • thebuelligan's Avatar
  • Offline
  • User
  • Posts: 14
  • Thank you received: 11

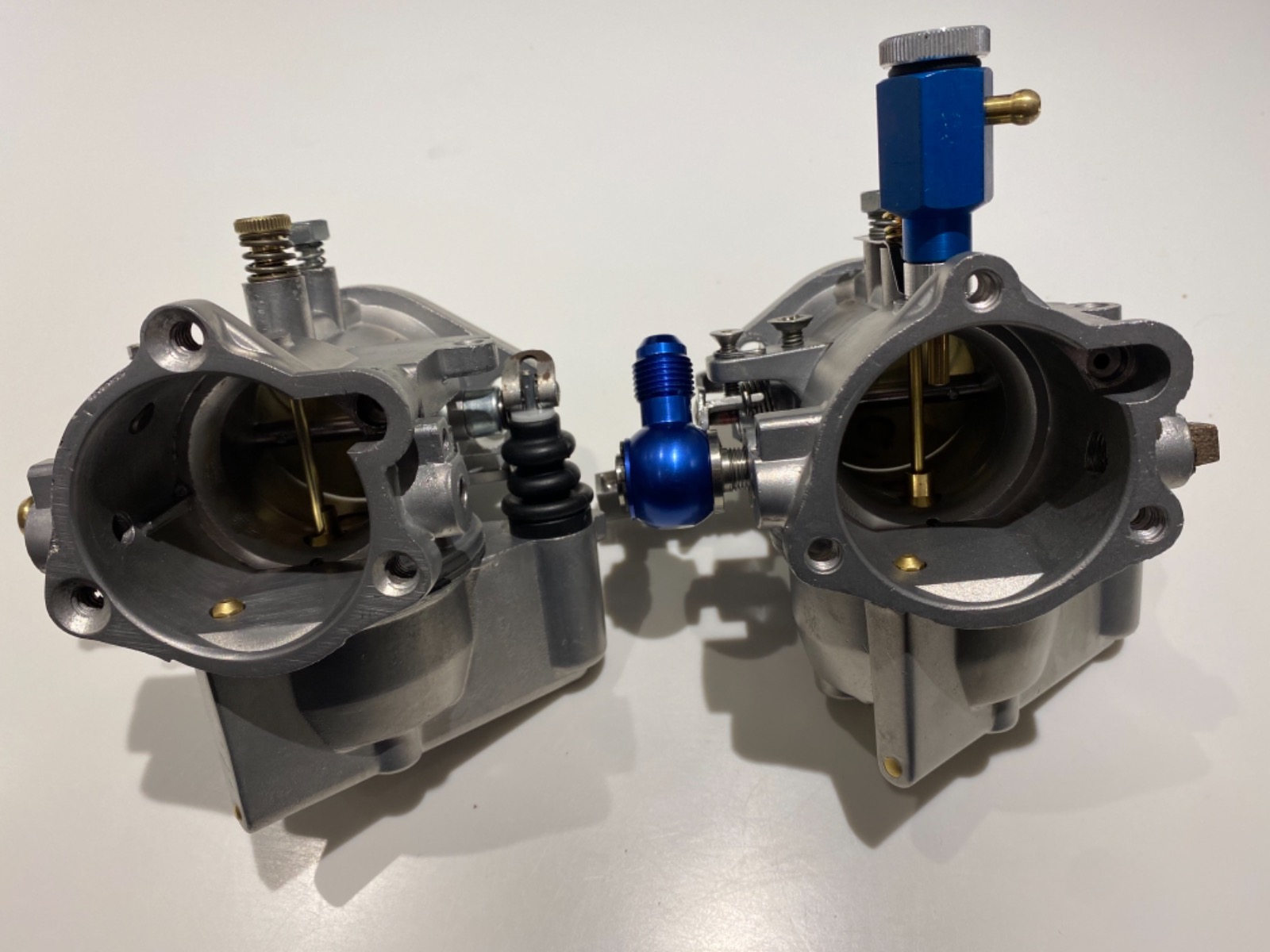

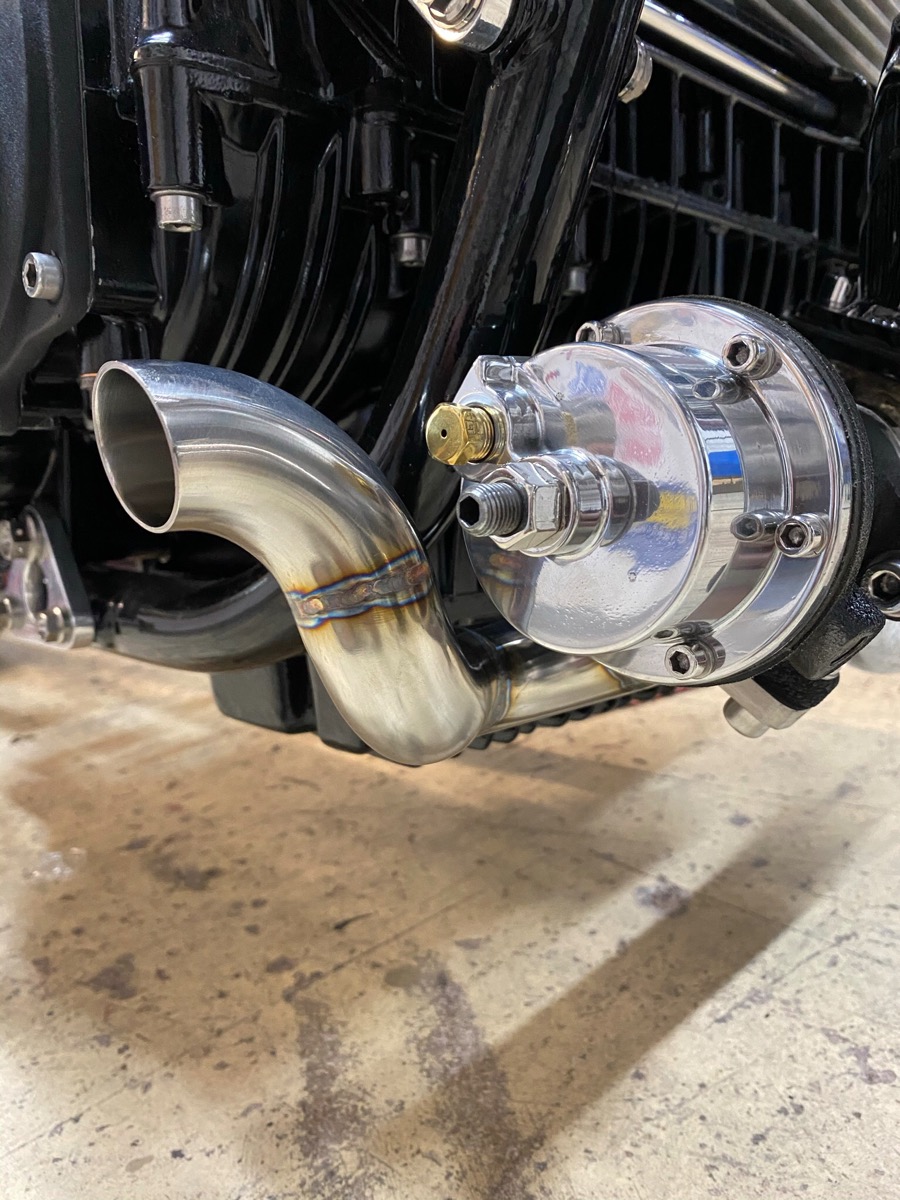

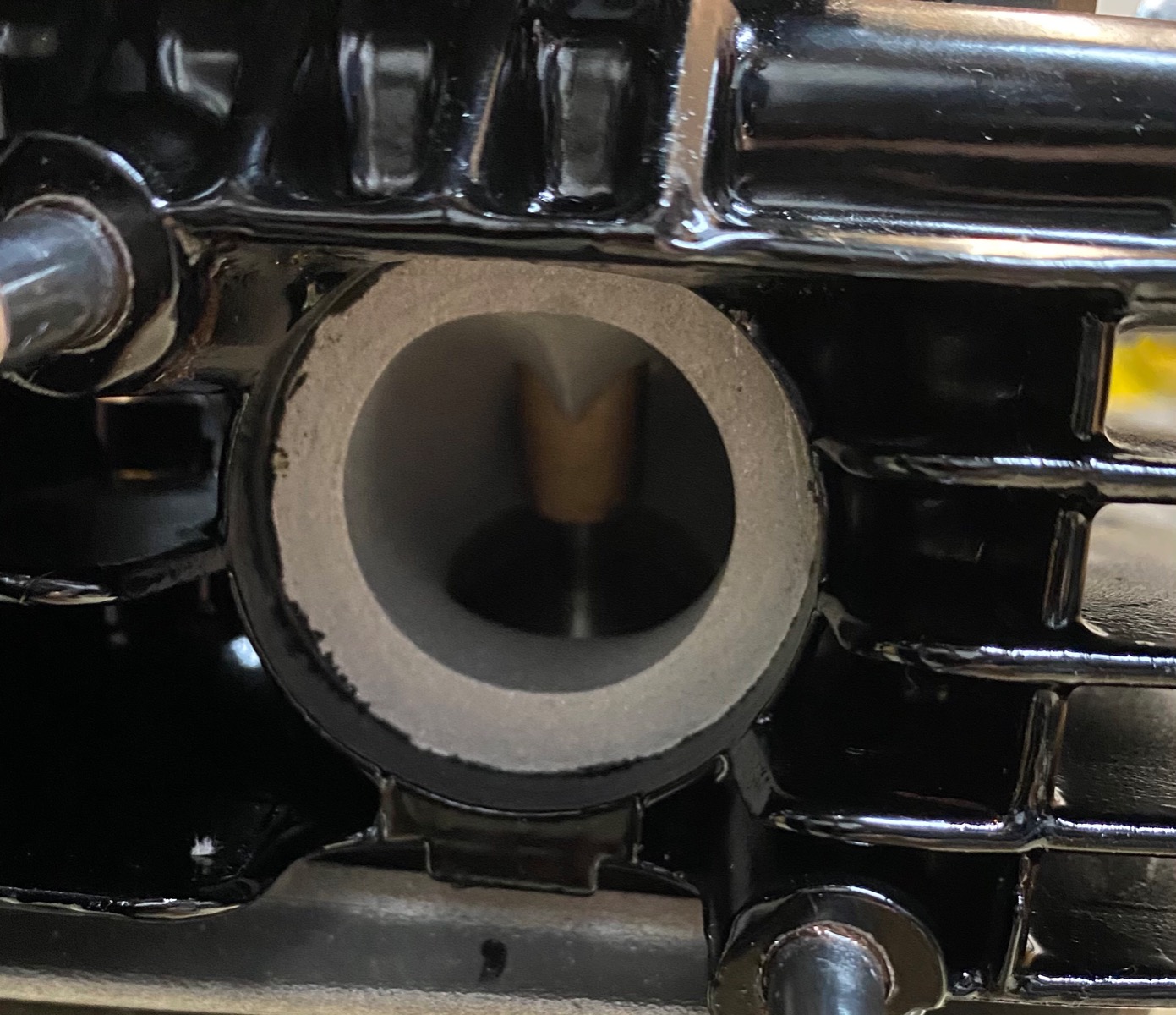

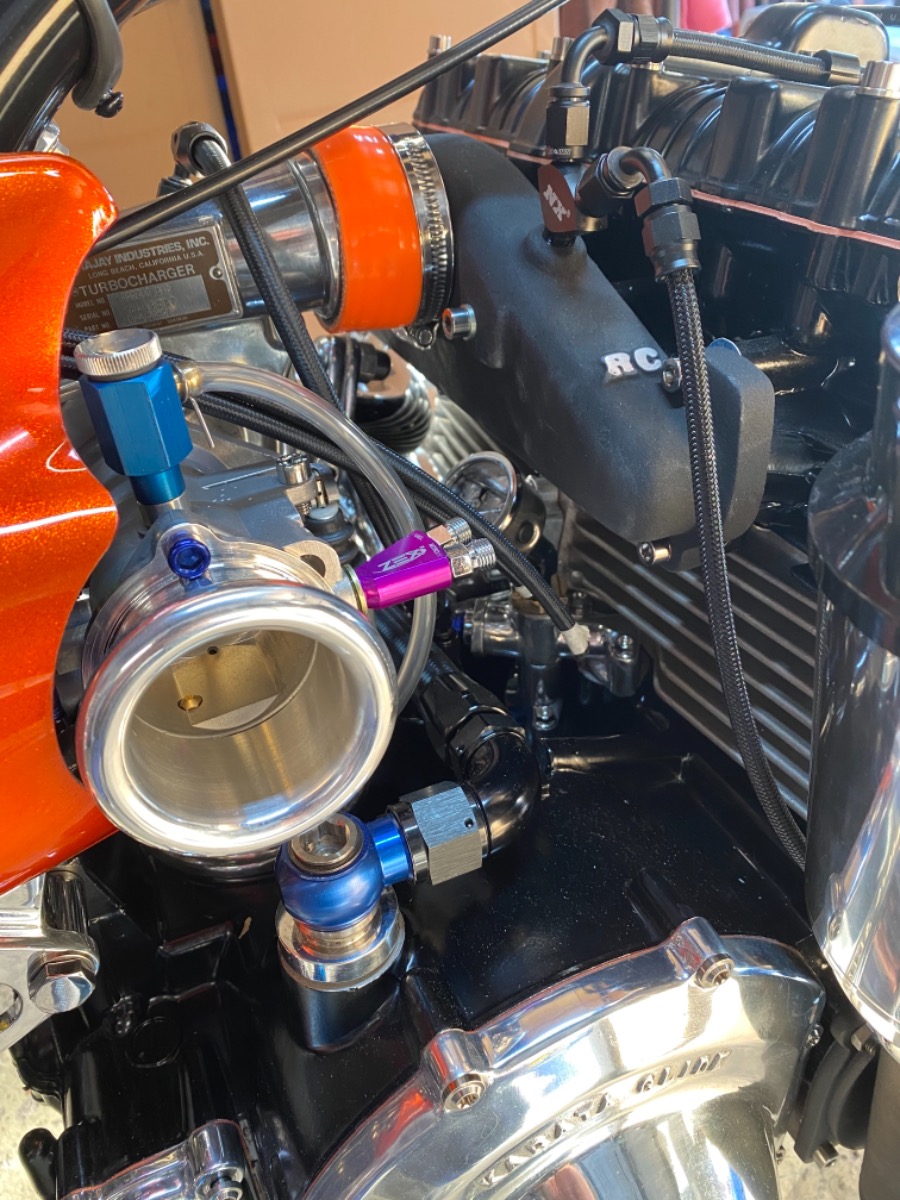

A few closer pics of carb set up with Thunderjet other bits and bobs
Attachments:
The following user(s) said Thank You: Dragbike_Mike

Please Log in or Create an account to join the conversation.

I found a old turbo drag bike 17 Jul 2021 17:21 #851947

  • Street Fighter LTD
  • Street Fighter LTD's Avatar
  • Offline
  • Moderator
  • TURBO, Its Better to be Blown than Injected
  • Posts: 4044
  • Thank you received: 1222
Looks like you are well on your way to  having a real runner.
250 HP  is a very easy safe bet. before the nitrous hits
I changed mine over to the Mikuni 42mm  flat slide some years ago and I find it to be a winner.



Original owner 78 1000 LTD
Mr Turbo Race Kit, MTC 1075 Turbo pistons by PitStop Performance , Falicon Ultra Lite Super Crank, APE everything. Les Holt @ PDM's Billet Goodies . Frame by Chuck Kurzawa @ Logghe Chassis . Deep sump 5qt oil pan. RIP Bill Hahn
The following user(s) said Thank You: thebuelligan

Please Log in or Create an account to join the conversation.
